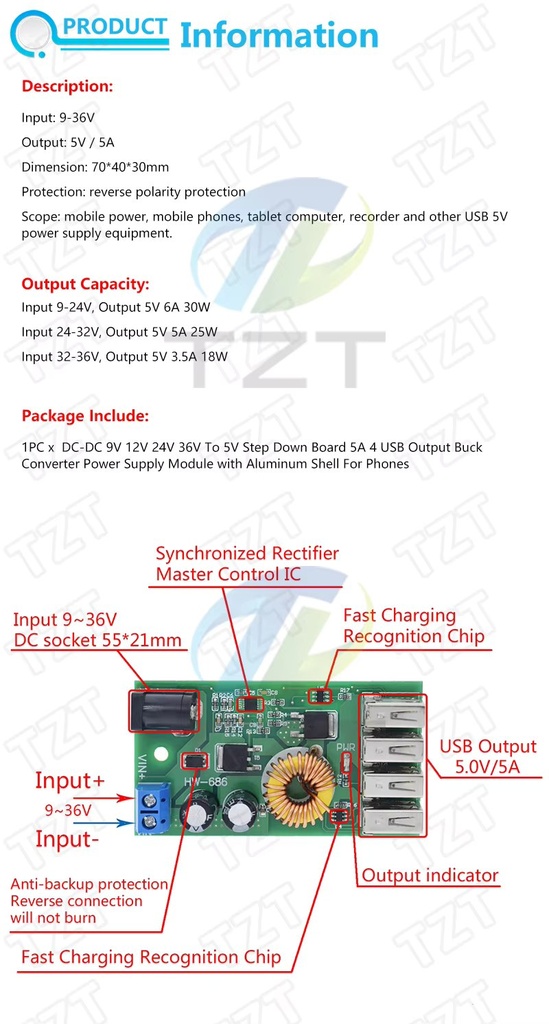

1. Synchronous rectification solution, wide voltage, large current, high efficiency;
2. With terminal block and DC plug, very convenient to use;
3. 4 USB ports, all with fast charging identification chips, compatible with Android and iPhone
4. With exquisite aluminum shell, easy to use.
Product parameters:
1: Working voltage: DC 9V--36V;
2: With input reverse connection protection and output short circuit protection;
3: Output voltage: 5.2V/5A/25W (total output current of 4 ports)
4: Output capacity:
(a) 9~24V input: Output 5.2V/6A/30W
(b)24~32V input: output 5.2V/5A/25W
(c)32~36V input: output 5.2V/3.5A/18W

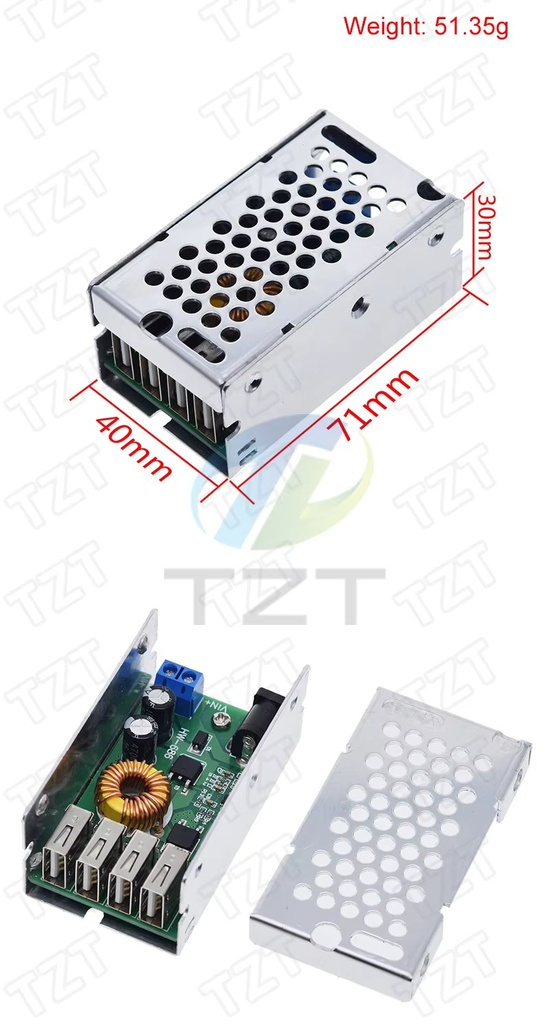

5: Size: 7*4*3cm (length*width*height)
6: Weight: 57g
Note
It does not mean that if the power module has 5A current, there will be 5A current to charge the mobile phone. The size of the charging current is determined by the power tube IC inside the mobile phone.
Why is the output 5.2V instead of 5V? The output is exactly 5V. When charging, there is a voltage drop on the data line, and it is only about 4.7V when it reaches the phone. The output voltage is 5.2V, which can compensate for line loss.
