365 12V DC pumping motor micro self-priming water dispenser micro pump

Product Description

1. Product model: 365 DC micro diaphragm pump
2. Rated working voltage: 12V
3. Load: ≤450MA
4. Rated (load) speed: 3000 ± 10%
5. Power: 4W-7W
6. Pressure: 4 (Bar)
8. Water inlet pressure: 0.3 (Opr)
9. Vacuum: ss0.2Bar
10. Continuous working life: ≥200, H (hours)
11. Fluid: 0-100°C
12. Ambient temperature: 0°C -40°C
13. Applicable water temperature: 5°C-45°C
14. Working mode: continuous work
15. Normal working time: 2-3 years.
16. Maximum suction range: 2 meters
17. Maximum flow: 2-3 liters/minute

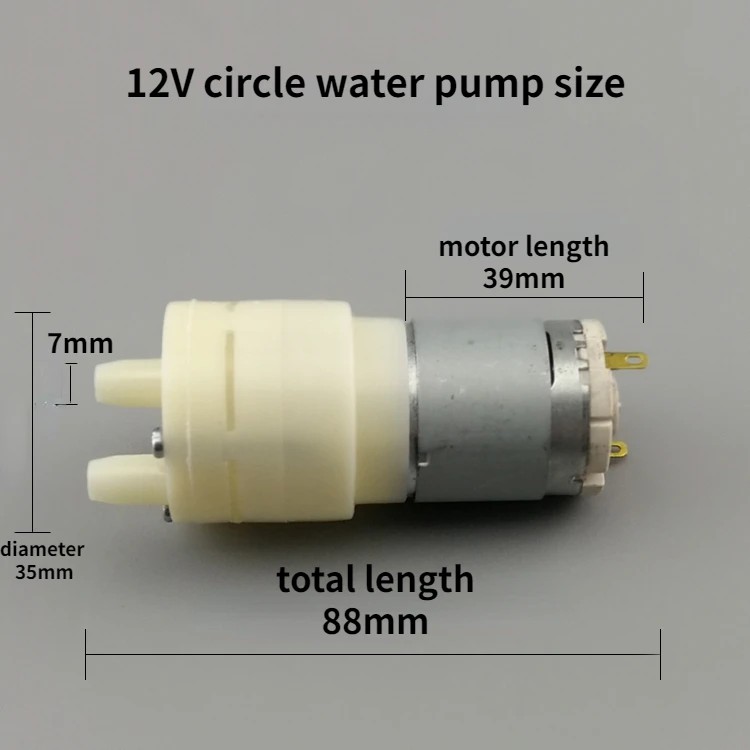

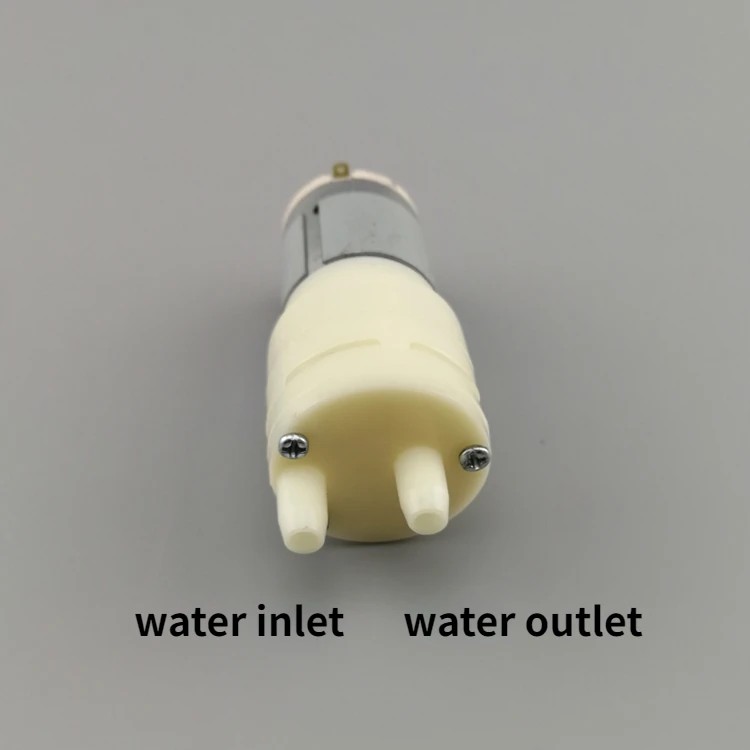

18. Inlet and outlet diameter: 7mm
19. Motor length: 40MM
20. Motor diameter: 30MM
21. Pump length: 40MM
22. Pump diameter: 35MM
23. Weight : 111g
24. Total length: 88mm

Package Include
1 * micro pump
