● 1. Both USB ports can support fast charging (only when one is used alone). When two or more output ports are used at the same time, only 5V is supported.
● 2. Quick charge specifications
● Integrate QC2.0/QC3.0 output fast charging protocol
● Integrate FCP input/output fast charging protocol
● Integrate AFC input/output fast charging protocol
● Integrate SFCP input/output fast charging protocol
● Integrate MTK PE+ 1.1&2.0 output fast charging protocol
● Integrate USB C DRP protocol, support input and output fast charge
● Compatible with BC1.2, Apple and Samsung mobile phone fast charging
● Integrate USB Power Delivery (PD2.0/PD3.0) protocol
● Support PD2.0 bidirectional input/output protocol
● Support PD3.0 input/output, PPS output protocol
● Support 5V, 9V, 12V voltage range input/output
● PPS supports 5~11V
● 3. Charging specifications
● The battery charging current can reach up to 5.0A
● Adaptive charging current adjustment
● 4. Discharge specifications
● Synchronous switch discharges 5V 2A with an efficiency of 95% and supports line compensation. Output current capability: 5V/3.1A; 9V/2.0A; 12V/1.5A
● 5. Capacity: Up to 20000mAh (Battery not included)
Specific Method:
● After the battery is installed, the battery is discharged first, which is to charge the phone until the battery is used up and shut down, and then recharge the power supply until the display is full, and then it can be used normally.
Note:
● After the battery is installed, the digital power display will be accurate after the battery is fully charged and discharged.

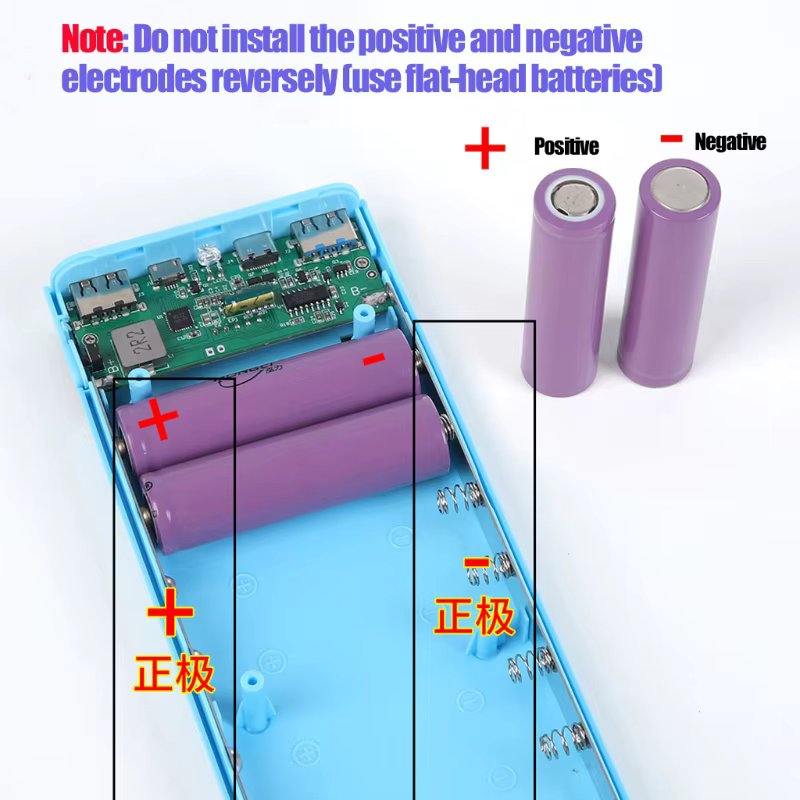

● Flat head 18650 lithium battery 3.7V (length 65MM * width 18MM), pointed flashlight battery and battery with protective plate are not available (No. 5 and No. 7 batteries are also not available).

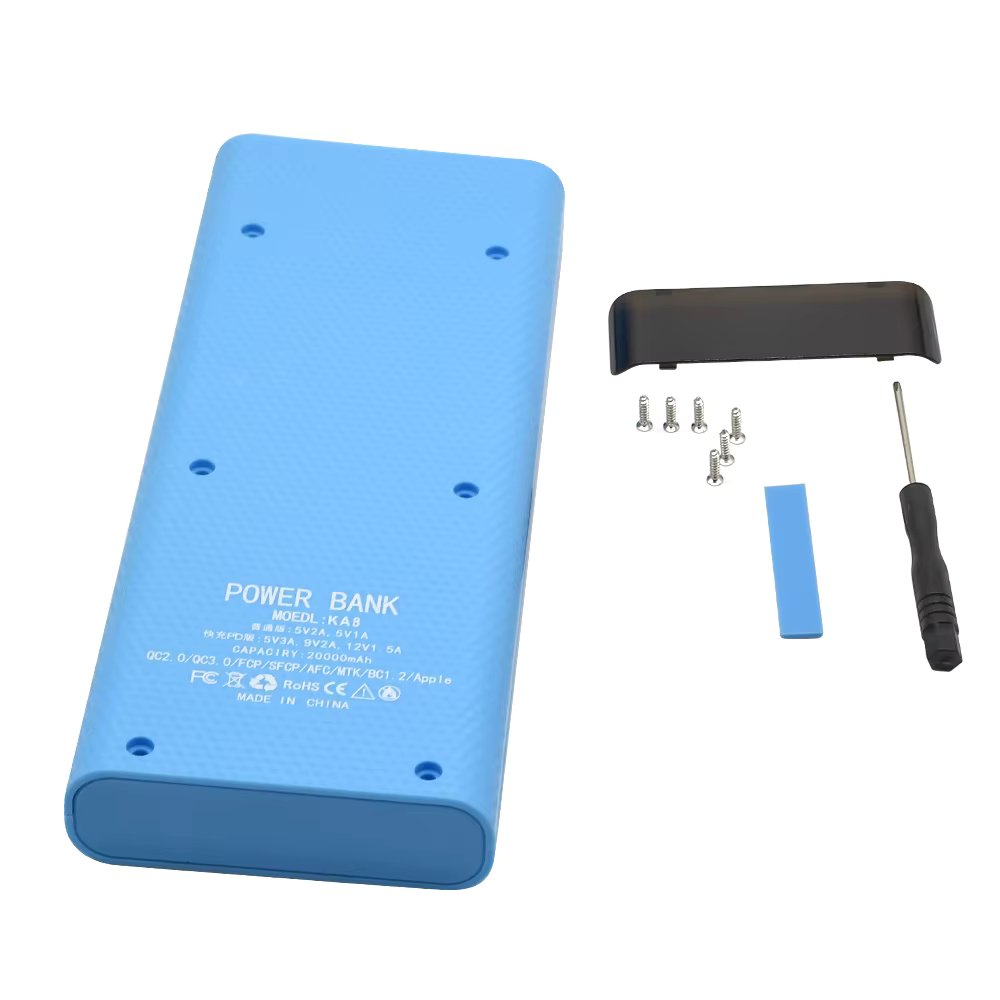

Package Including:
● 1 x Mobile Power Protection Shell (Battery not included)
● 1 x Screwdriver
● 1 x Screen Protector Case
● 6 x Screws
