Product Parameters:
1. Size: 33 * 24mm
2. Voltage: 3.3V, 5V
3. Port: Digital quantity level
4. Output load voltage: 0 to 24V
5. Output load current: < 5A ( need to add heat sink if more than 1A )
6. Platform: Arduino, MCU, ARM, Raspberry pie
Features:
1. Using original IRF520 power MOS tube, can adjustPWM output
2. Can let the Arduino drive up to 24V load, such as LED lights belt, dc motor, micro pump, solenoid valve
3. By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation
Instructions:
1. PWM signal for high level effectively
2. When the PWM for high level (3.3 V to 3.3 V) :
3. As the power supply voltage, between V + and V - working indicator, work load
4. When the PWM is low level(0 V to 0.5 V):
5. V + and V - between 0, work lights out, don't work load
Package Include

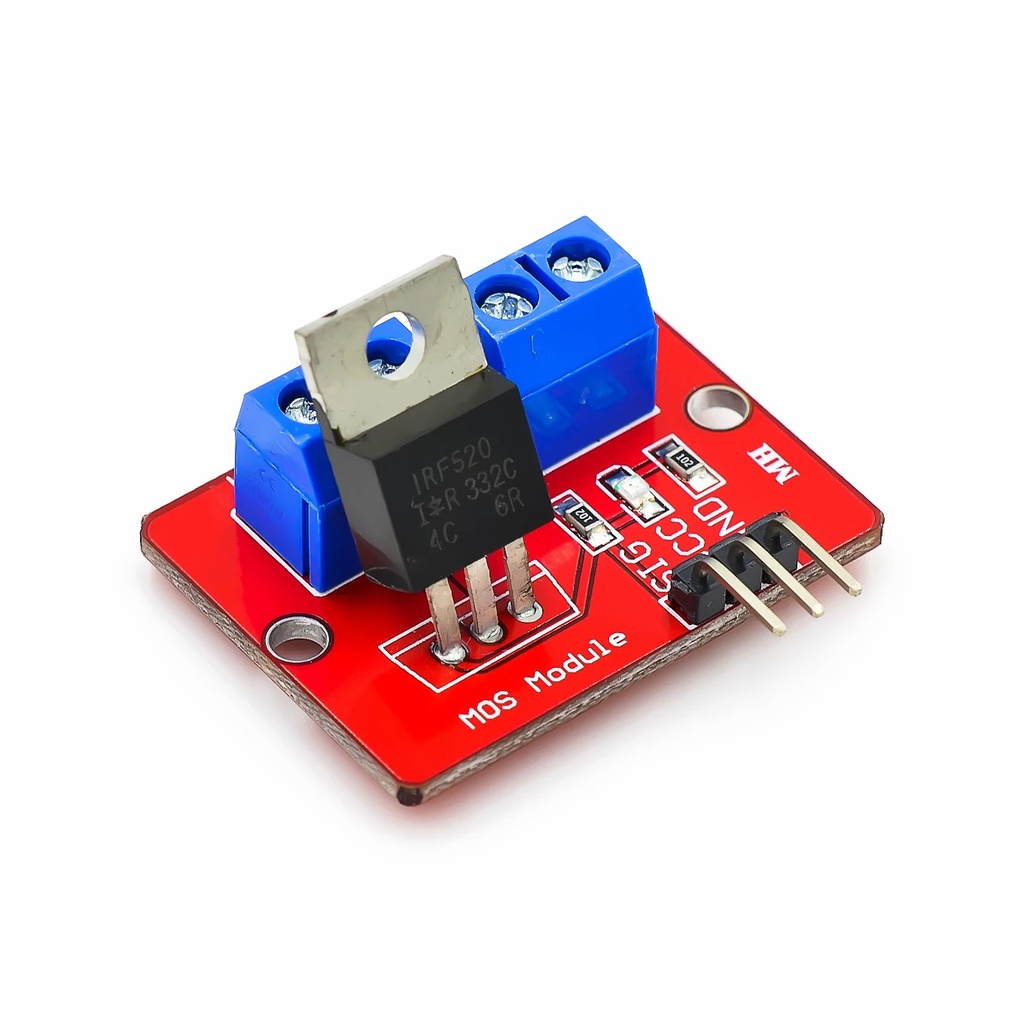

1 * IRF520 Module
