1 CH 18650 Battery Capacity Internal Resistance Tester Lithium Battery Capacity Tester Module With LCD Digital Display

Description

● The product supports single-channel capacity and internal resistance measurement
● Supports individual charging and discharging, up to 9 charging and discharging cycles in automatic mode:
● 11 levels of adjustable stopping and discharging voltage
● DC two-wire method for internal resistance testing, English version.
● Maximum charging and discharging flow is about 1A.

Features:
● Accurate Battery Testing: The 18650 Lithium Battery Capacity Tester Module MAh MWh Digital Battery Power Detector Module 18650 Battery Tester provides accurate testing of battery capacity, ensuring that you know exactly how much power is left.
● Easy to Use : With its simple design and easy-to-read display, the 18650 Lithium Battery Capacity Tester Module MAh MWh Digital Battery Power Detector Module 18650 Battery Tester is incredibly user-friendly.
● Versatile Compatibility: This battery tester is compatible with a wide range of batteries, including 18650 lithium batteries, making it a versatile tool for any tech enthusiast.
● Convenient and Portable: The 18650 Lithium Battery Capacity Tester Module MAh MWh Digital Battery Power Detector Module 18650 Battery Tester is small and lightweight, making it easy to carry around and use on the go.



Specifications:

● Working power supply: DC5V power supply or 18650 battery (need to provide their own)
● Applicable battery: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery are applicable

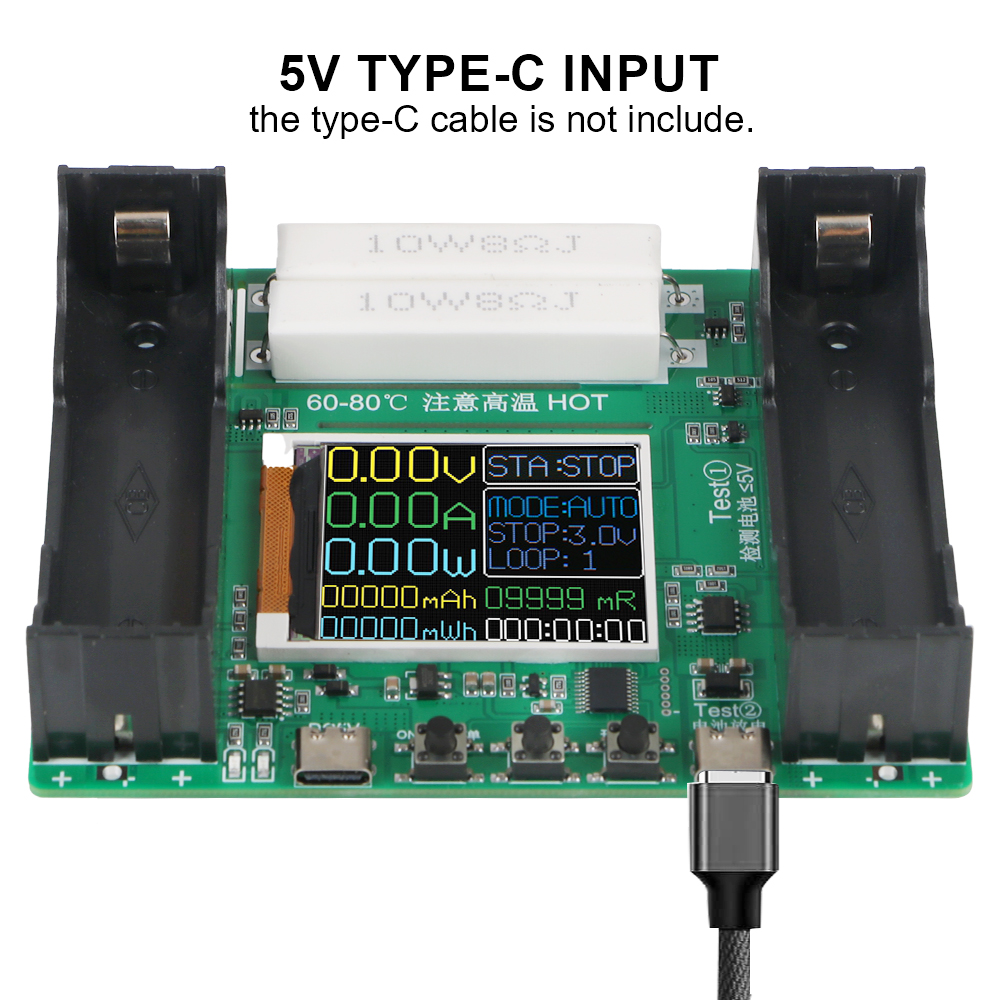

● Power supply interface: Type-C interface, power supply cable self-provided (C-port mobile phone cable)
● System language: English
● Number of tests: 1-channel charge and discharge measurement (right-hand battery position only)
● Internal resistance measurement: supported, using the DC two-wire method to test internal resistance
● Charging function: supported, full automatic cut-off charging (LiFePO4 charging not supported)
● Discharge function: supported, automatic stop when conditions are met, discharge current is not adjustable
● Automatic charging and discharging: supported, battery is fully charged at the end of automatic mode
● Cycle charging and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)

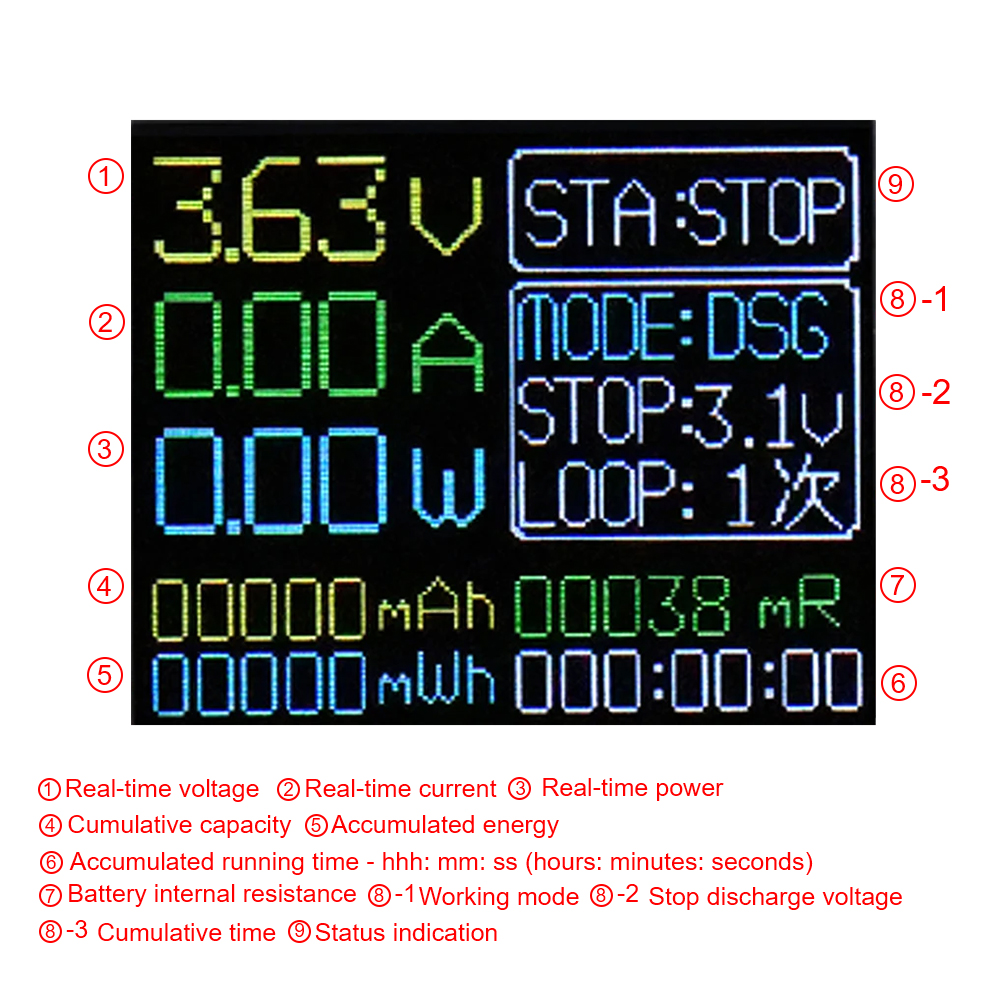

● Status indication: supported
● Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable
● Discharge current: two-way resistor, max. 1A current, not adjustable, does not support independent transformation
● Charging voltage: special battery charging chip control, max. 1A charging, full charge voltage 4.2V
● Power failure save: only the setting parameters are saved, not the measurement data
● Material: plastic,electronic components
● Color: black & green


Package Included:
● 1 x Battery Capacity Tester
