Features:
● 1. Supports 12V, suitable for various application scenarios.
● 2. Low static current, with a maximum remote control distance of up to 8 meters.
● 3. Relays have strong load-bearing capacity and can drive most household appliances.
● 4. Self locking and jog options are available to meet different control requirements.
● 5. Electrical isolation design ensures safe and stable use.
Parameter:
● 1 way 12V:
● Receiving board power supply: 12V (VIN+connected to 12V positive, GND - connected to 12V negative)

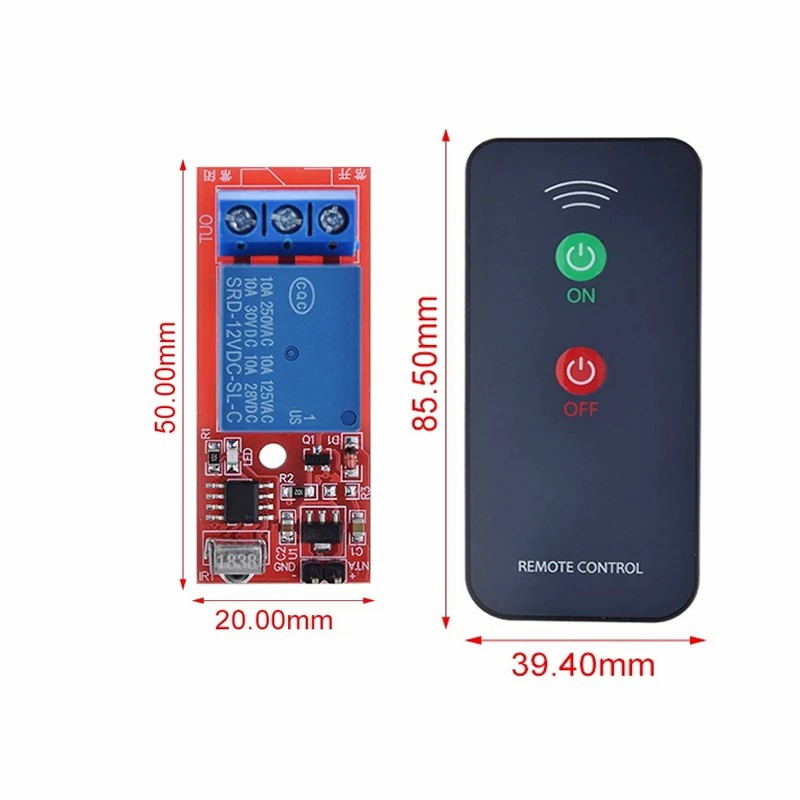

● The board size is 20 * 50mm and the height is 20mm
● Static working current less than 1mA
● Pull in current less than 80mA
● The maximum remote control distance is 8 meters (the receiving board must be equipped with the remote control of this kit and does not recognize other remote controls)

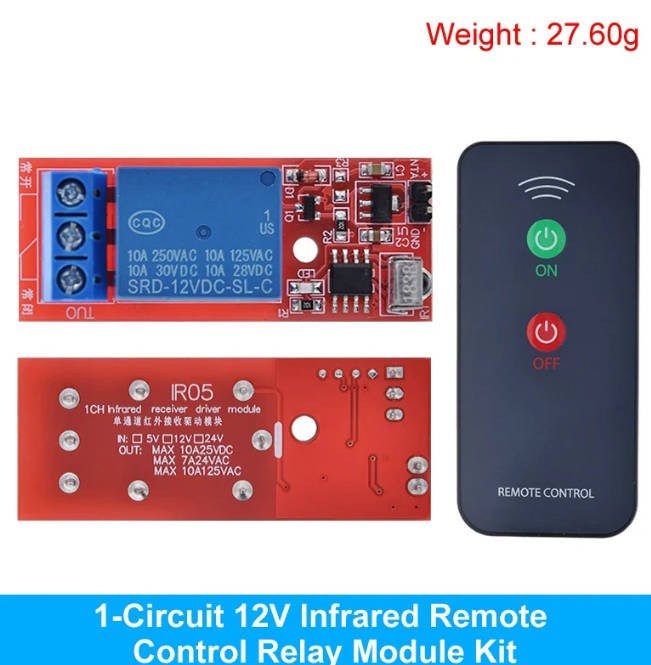

● Product Description:

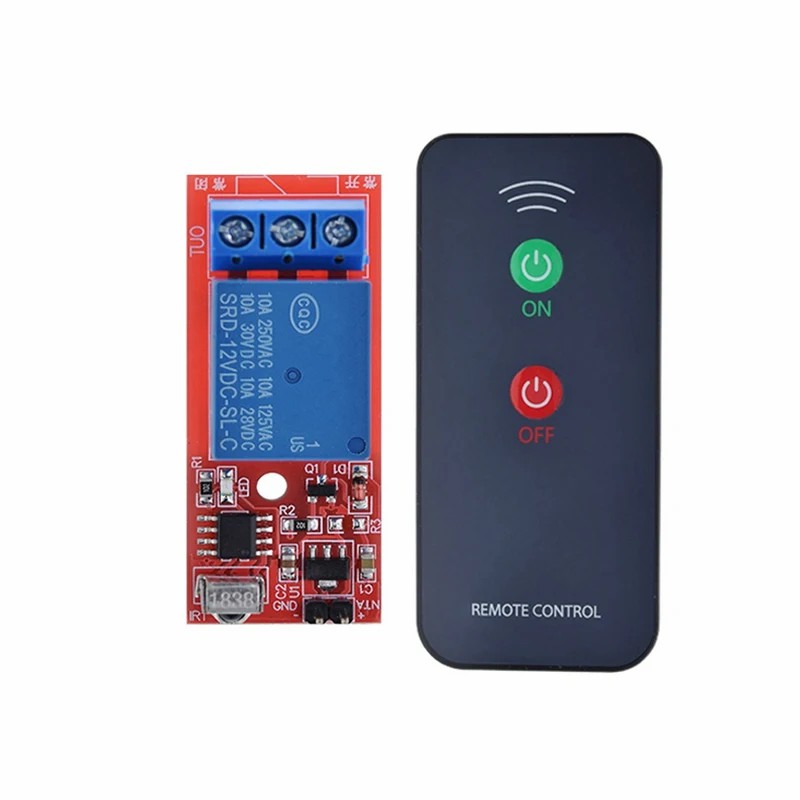

● The module provides normally open and normally closed interfaces after electrical isolation, and the load capacity of the relay is 250 VAC-10A、125VAC-10A、 30VDC-10A、28VDC -10A， It can drive most household appliances or other devices to achieve remote control function. This connection is a self-locking receiver+remote control kit. When the 2-key remote control is pressed ON, the relay on the receiver board will engage and the LED will light up. When pressed OFF, the relay will release and the LED will turn off. Therefore, it can achieve a 1-way self-locking remote control switch.
