Product information:

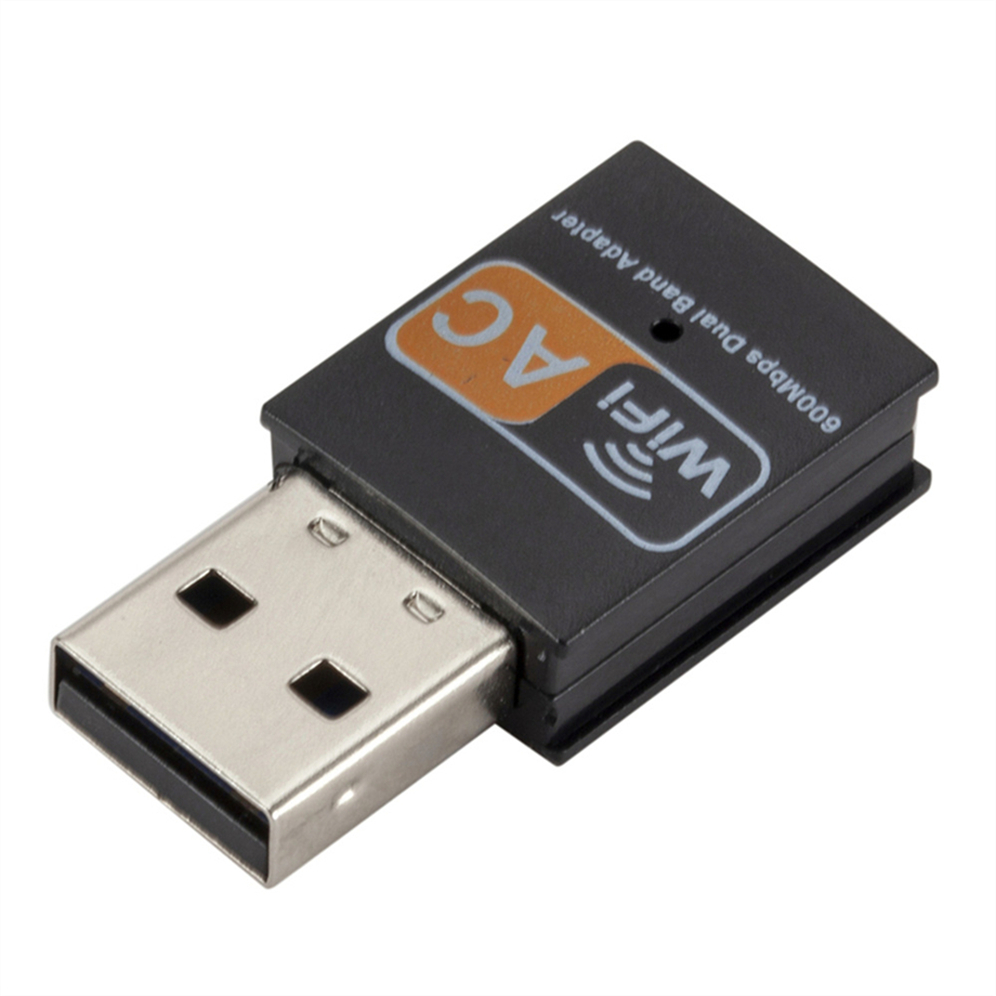

● 1. Product Model: Mini AC600M Dual Frequency
● 2. Product Material: Plastic + Metal
● 3. Product Chip: RTL8811CU
● 4. Applicable system: Windows Vista/XP/2000/7/8/10/11, Linux, MAC OS
● 5. Product size: 3.3*1.5*0.8cm
● 6. Package size: 15*9.5*0.9cm (Blister cardboard packaging)
● 7. Bare metal weight: 3g
● 8. Bare metal + CD weight: 9g
● 9. Full set weight including CD: 28g
Product Introduction

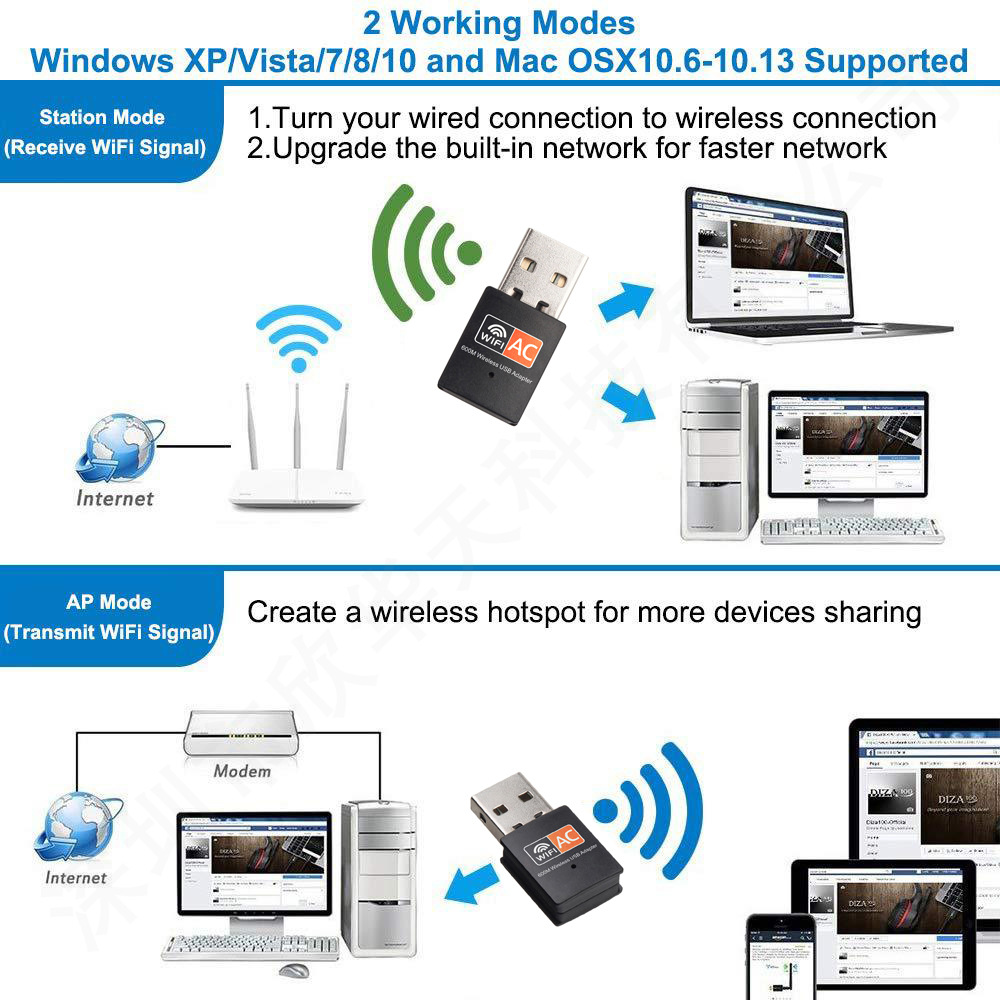

● 1. XHT-5B03 dual-band wireless USB network card is suitable for wireless connection of desktop PCs and other devices and can provide convenient and fast wireless Internet access.
● 2. The network card supports an automatic detection function and can automatically adjust the speed.
● 3. Comply with IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.11e, IEEE 802.11i, IEEE 802.11ac standards;

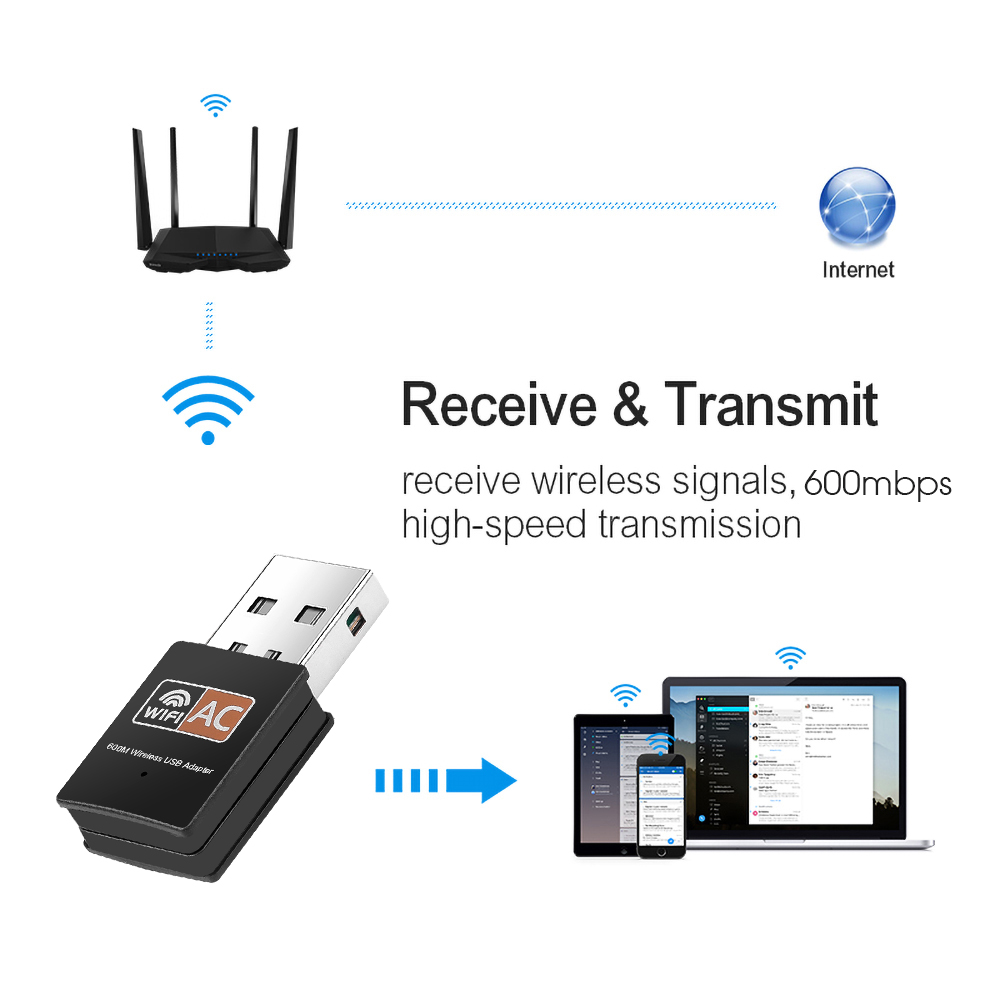

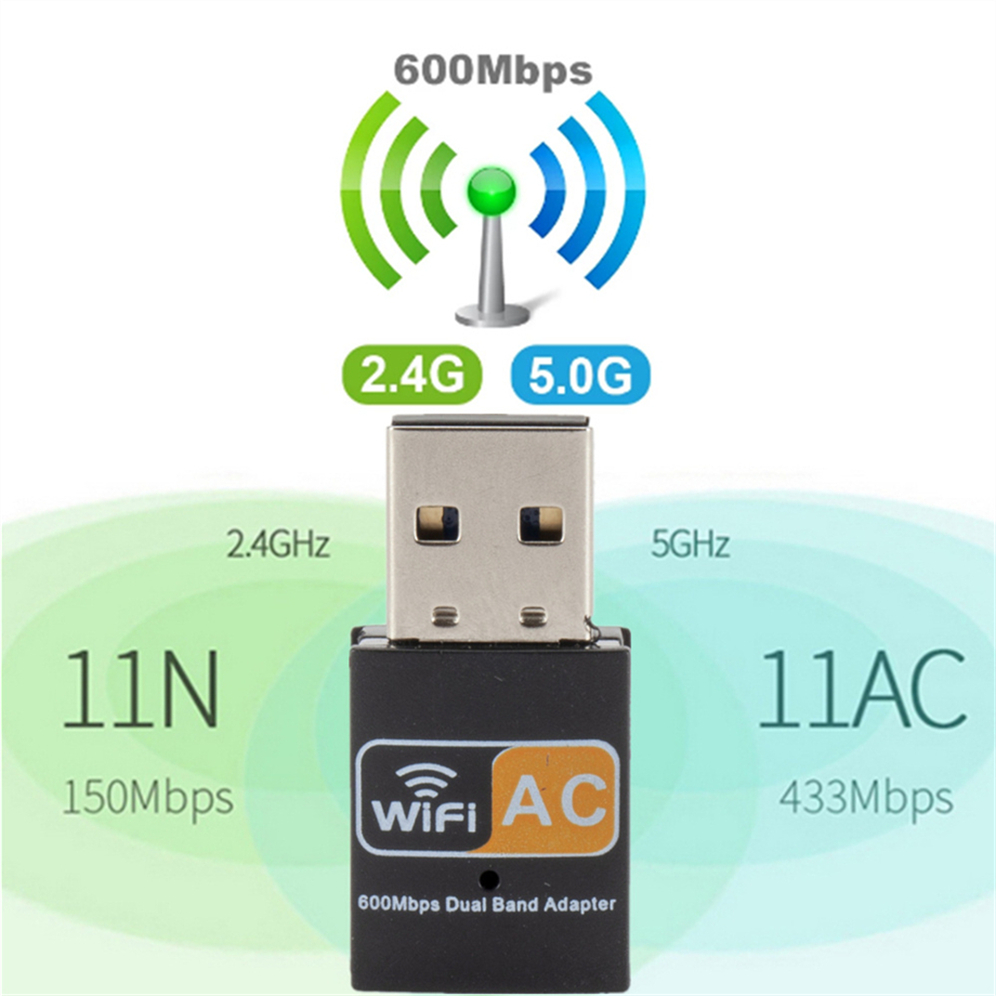

● 4. wireless transmission rate: 2.4G band up to 150Mbps; 5G band up to 433M bps.
● 5. Support WPA, WPA2 security mechanism, support WPA/WPA2/WEP/802.1X/WMM data encryption, and can provide a security guarantee for wireless network connection.
● 6. Compatible with Windows XP/Vista/7/8/10, Linx2.6X; Mac OS X and other operating systems
● 7. Has a strong anti-interference ability
● 8. Supports the latest wireless standards
● 9. Miniature appearance design, exquisite and compact

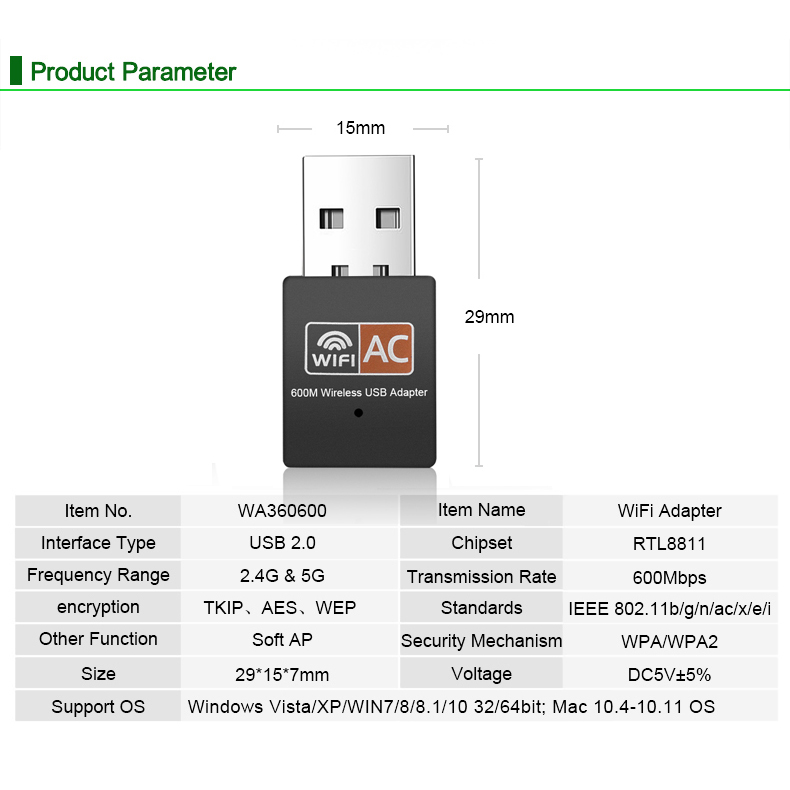

Product specification
● main chip: RTL8811CU
● interface: USB 2.0
● Antenna: Built-in 2DBI antenna
● Transmission distance: Indoor MAX: 100 meters (varies with the environment)
● Working frequency: 2.412~2484GHz/5.15~5.825GHz (according to country area)
● Transmit power: 802.11b (CCK) 11Mbps: 18+/-1dBm, 802.11g (OFDM) 54Mbps: 15+/-1dBm, 802.11n(OFDM) 54Mbps: 15+/-1dBm, 802.11ac (AC80) MCS9: 12+/-2dBm
● EVM: 11b 11Mbps: <-15db, 11g 54Mbps:＜-27db, 11ac MCS9: <-30db
● Receiver sensitivity: 802.11b: -76+/-1dBm; 802.11g: -65+/-1dBm, 802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -65+/-1dBm, AC80-MCS9: -55+/-1dBm
● Wireless transmission rate: 11b: Max 11Mbps, 11g: Max 54Mbps, 11n: Max 150Mbps, AC: Max 433Mbps
● Voltage/Current Range: 5 VDC±5%VDC/<220mA (MAX)
● Power consumption: Transceiver state: 220mA (max)
● TX state only: 220mA (max)
● RX state only: 180mA (max)
● Operating system: Windows XP/Vista/7/8/10/11,Linx2.6X;Mac OS X
● Wireless Security Support: WPA/WPA2/WEP/802.1X/WMM;

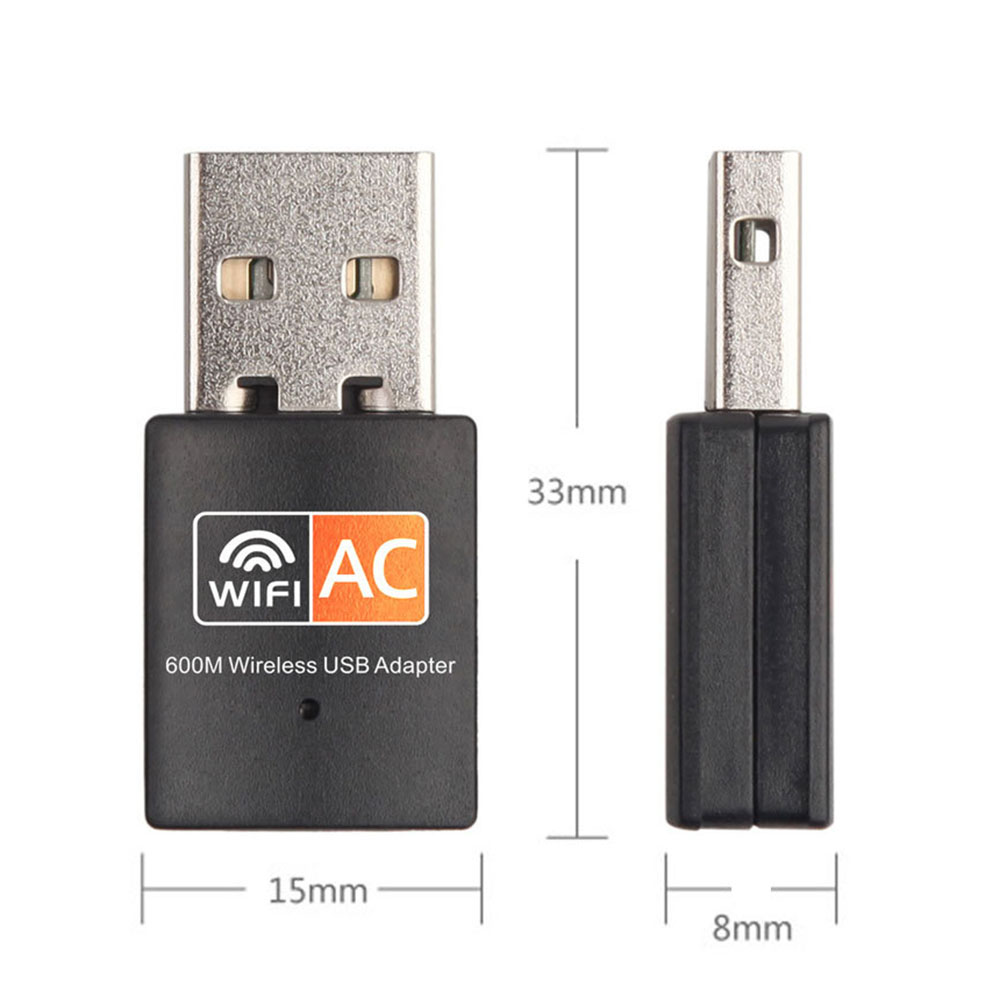

● Size: 28*15*7mm
● Weight: 35G
● Suitable working temperature: -10℃to+50℃
● Suitable storage temperature: -20°C to +85°C
● Suitable working humidity: 20%-80%
● Suitable storage humidity: 20%-80%
