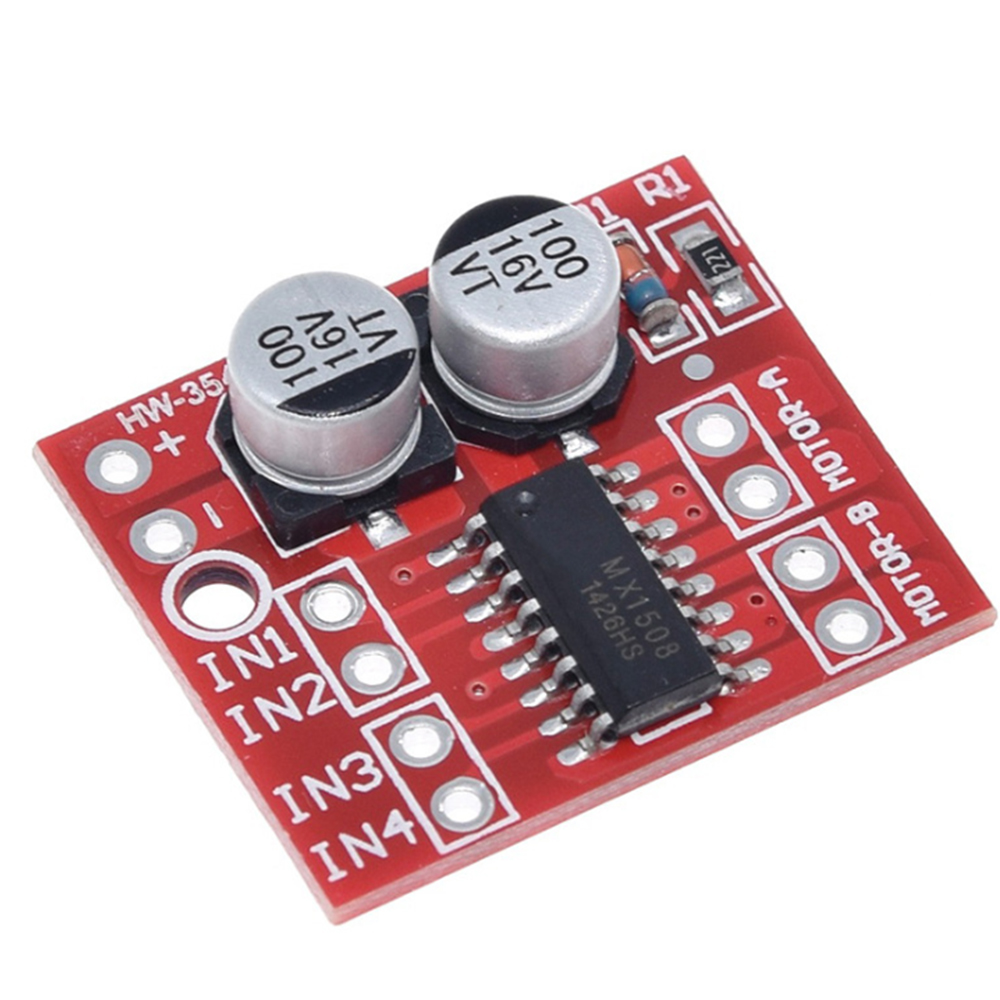

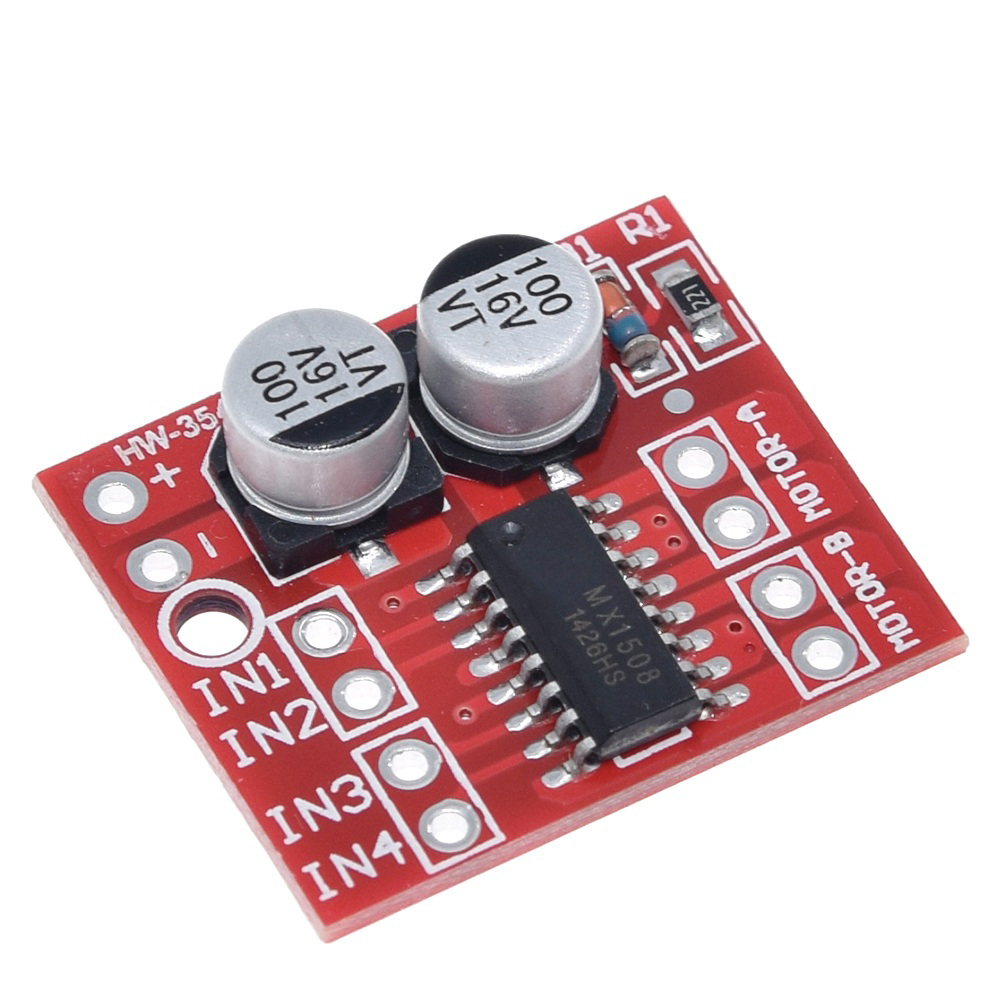

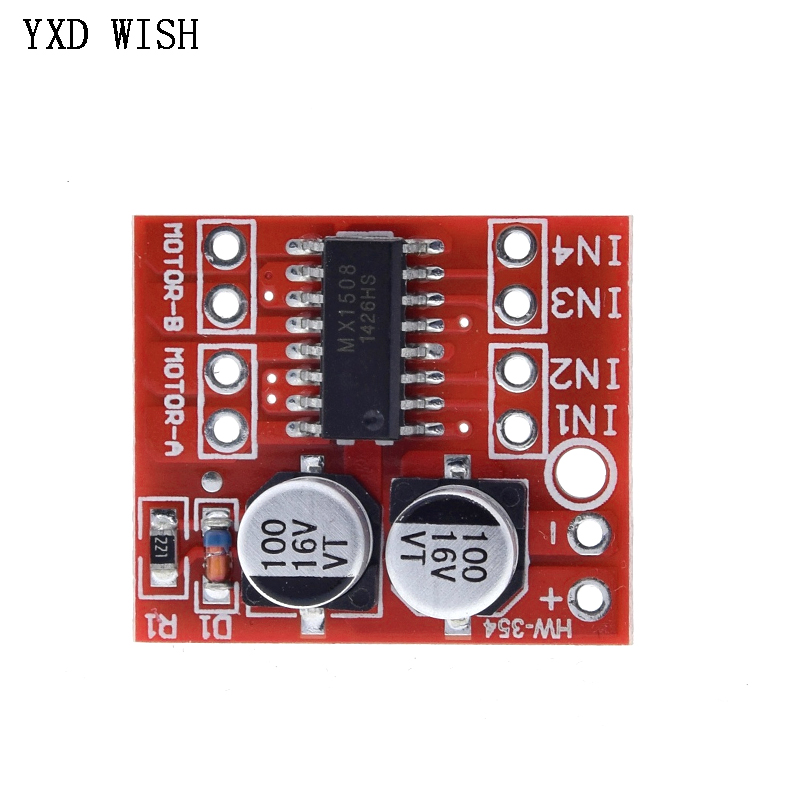

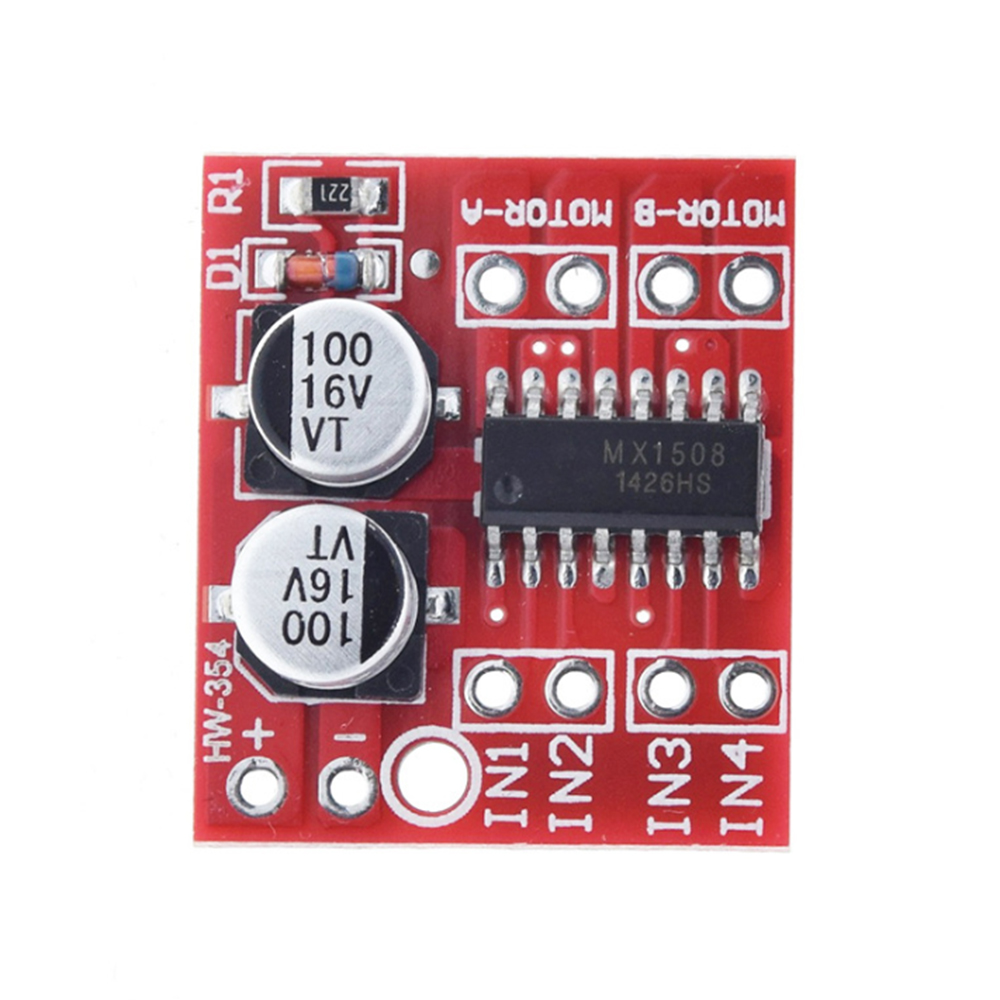

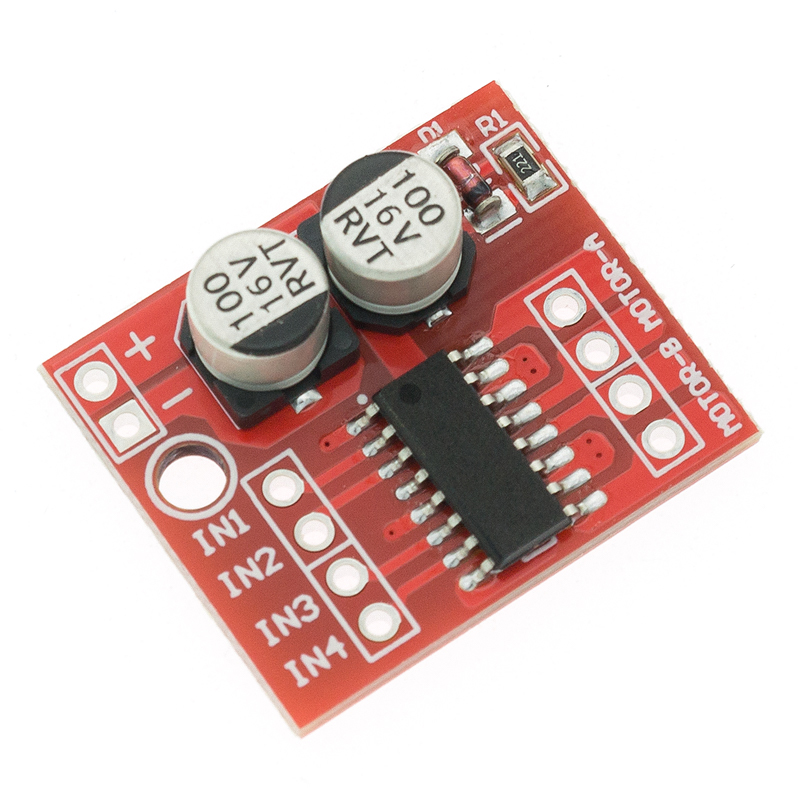

Product introduction:
● - The motor drive module is suitable for battery-powered smart cars, toy cars, robots, etc.
● - The power supply voltage is 2V ~10V.
● - It can drive two DC motors or a 4 - wire 2- phase stepper motor at the same time, which can be realized Forward, reverse, and speed adjustment functions, each current can reach 1. continuous current, peak current can reach 2. , has thermal protection and can automatically recover
Product parameters:
● 1. Dual H-bridge motor drive, which can drive two DC motors or a 4-wire two-phase stepper motor at the same time;
● 2. Module power supply voltage 2V-10V;
● 3. The input voltage of the signal terminal is 1.8-7V;
● 4. Single-channel operating current 1., peak current up to 2., low standby current (less than 0.1uA);
● 5. Built-in anti-common state conduction circuit, the motor will not malfunction when the input terminal is left floating;
● 6. Built-in overheating protection circuit (TSD) with hysteresis effect, no need to worry about motor stalling;

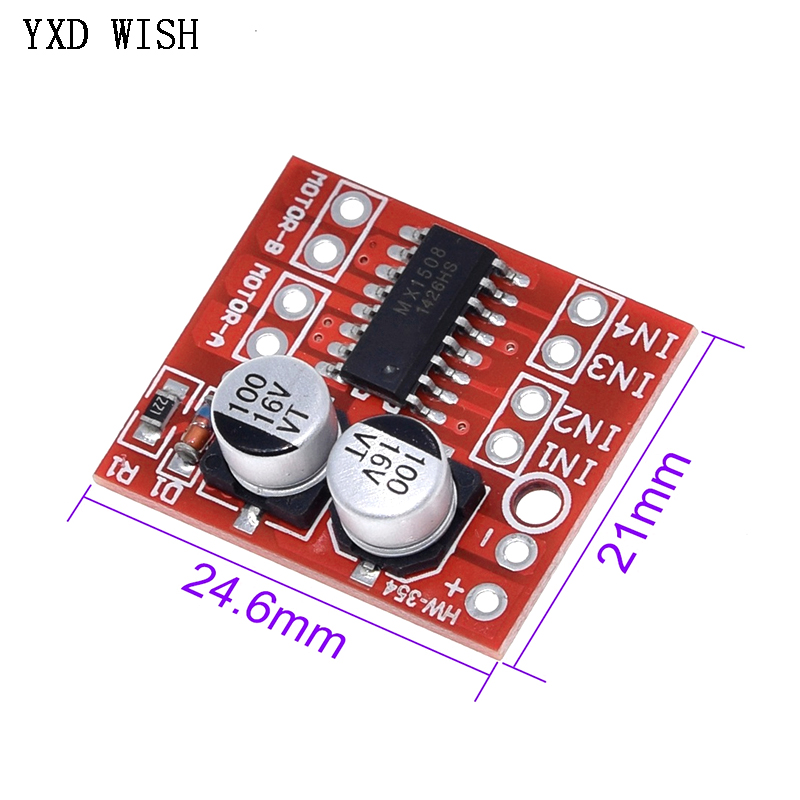

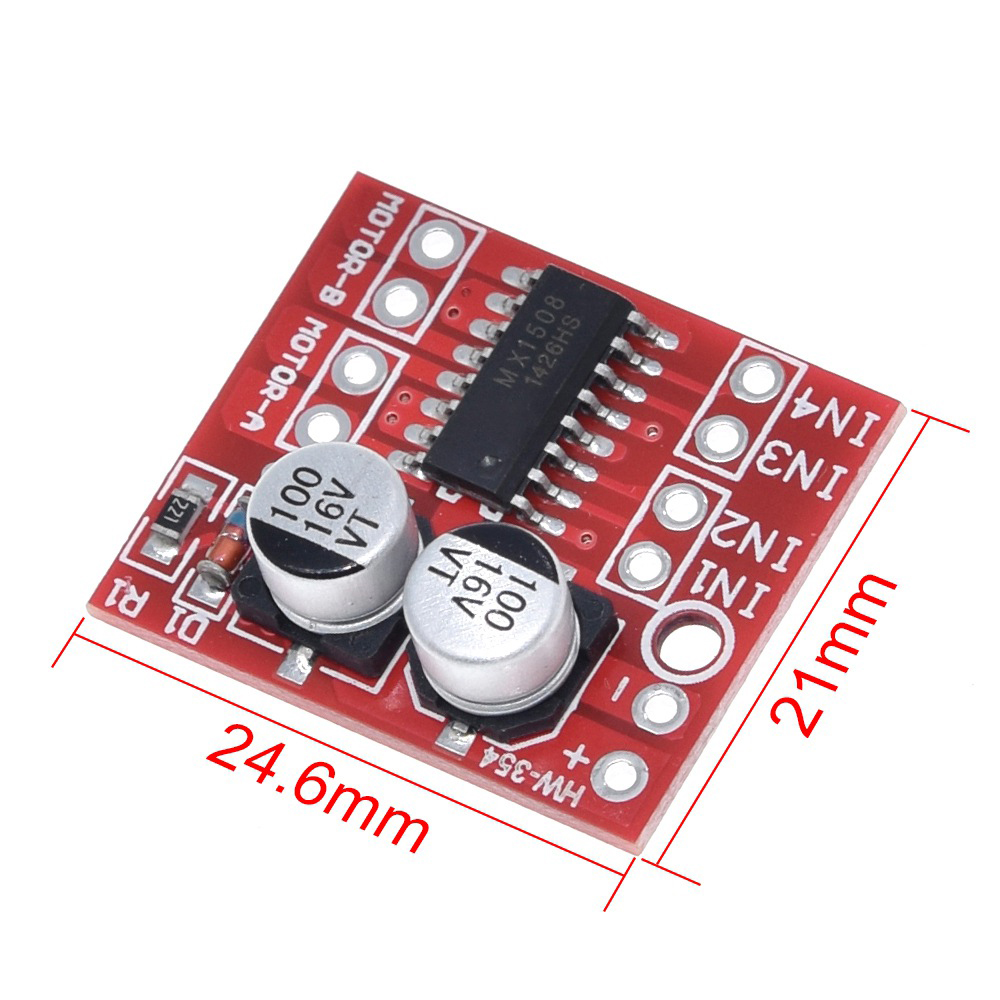

● 7. Product size: 24.7*21*5mm (length, width, and height), ultra-small size, suitable for assembly and vehicle mounting;
● 8. Mounting hole diameter: 2 mm.
● 9. Weight: 5g
