Descriptions
● The product is an energy-saving automatic switch, it adopts integrated circuit and precise detecting components.
● It can be on when one comes and will off automatically after one leaves.
● It can identify day and night automatically.
● Its performance is very stable.

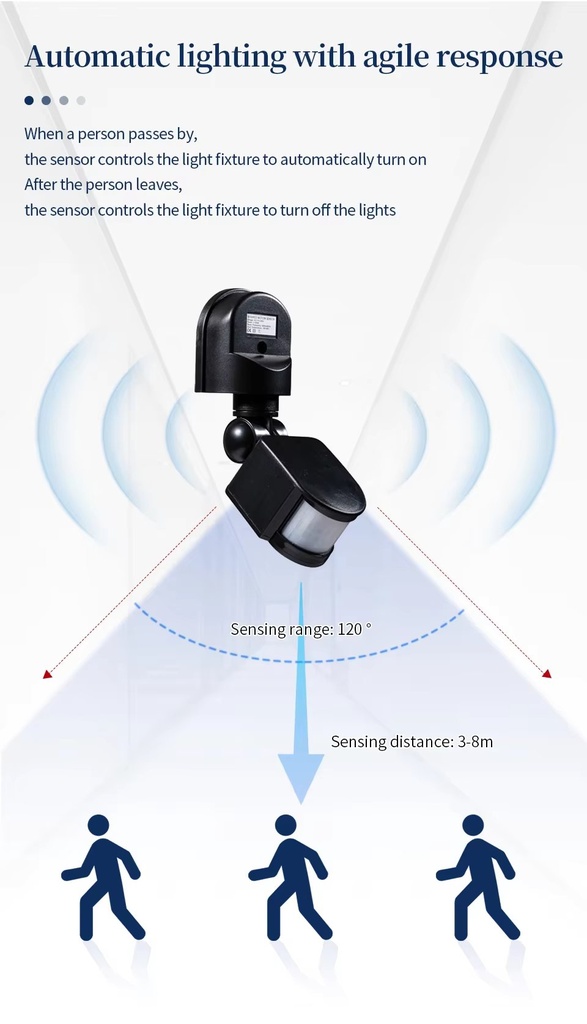

● The light will turn on automatically when one enters the detection field; the light will turn off after one leaves the detection field.
Function
● Can identify day and night automatically. Light-control can be adjusted. So it will work at night and stop in the daytime. The consumer can adjust it freely.
● Detection range can be adjusted according to the local place.
● The time setting can be adjusted vary to the place.
● The light-time can be added automatically. When one moves in the detection field when the lamp is lighting, it can compute time once more and delay the light-time automatically after the sensor detects signals once again.
Specifications
● Power Source: 85-265V/AV
● Power Frequency: 50/60Hz
● Rated Load: 1200W Max. Tungsten (85-265V/AC), 2000W Max. LED lights (85-265V/AC)
● Light-Control: <2 LUX-2000LIUX (adjustable)
● Detection Angle: 180 degree
● Detection Range: 12m Max(24 Degree C) (Adjustable)
● Working Temperature: -10degree C~+40degree C
● Working humidity: <93%RH
● Installation Height: 3.5m(MAX)
● Time Setting: 10sec~5min+-2min (Adjustable)

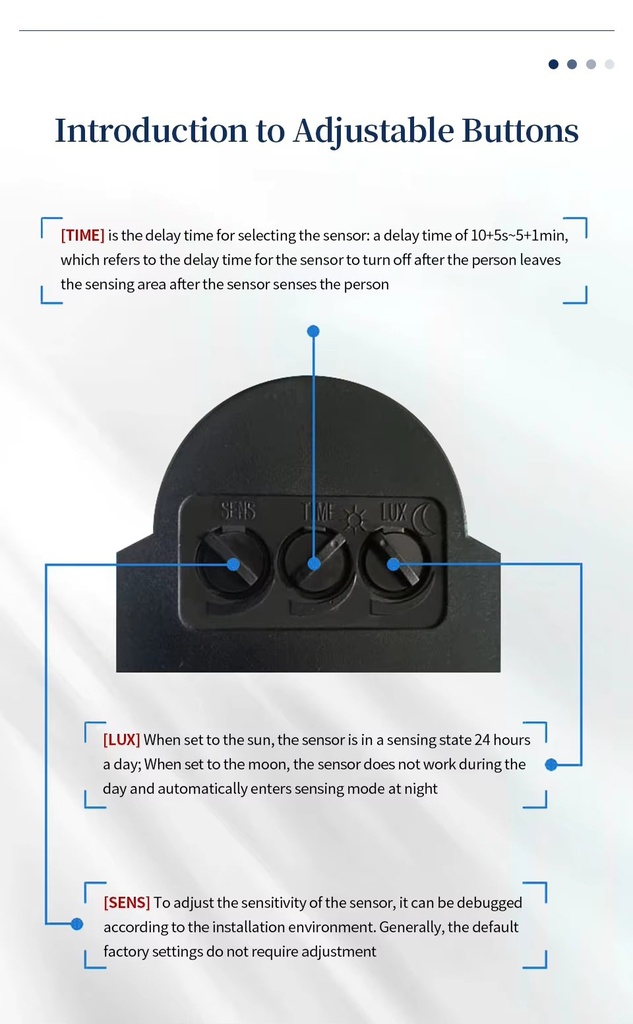

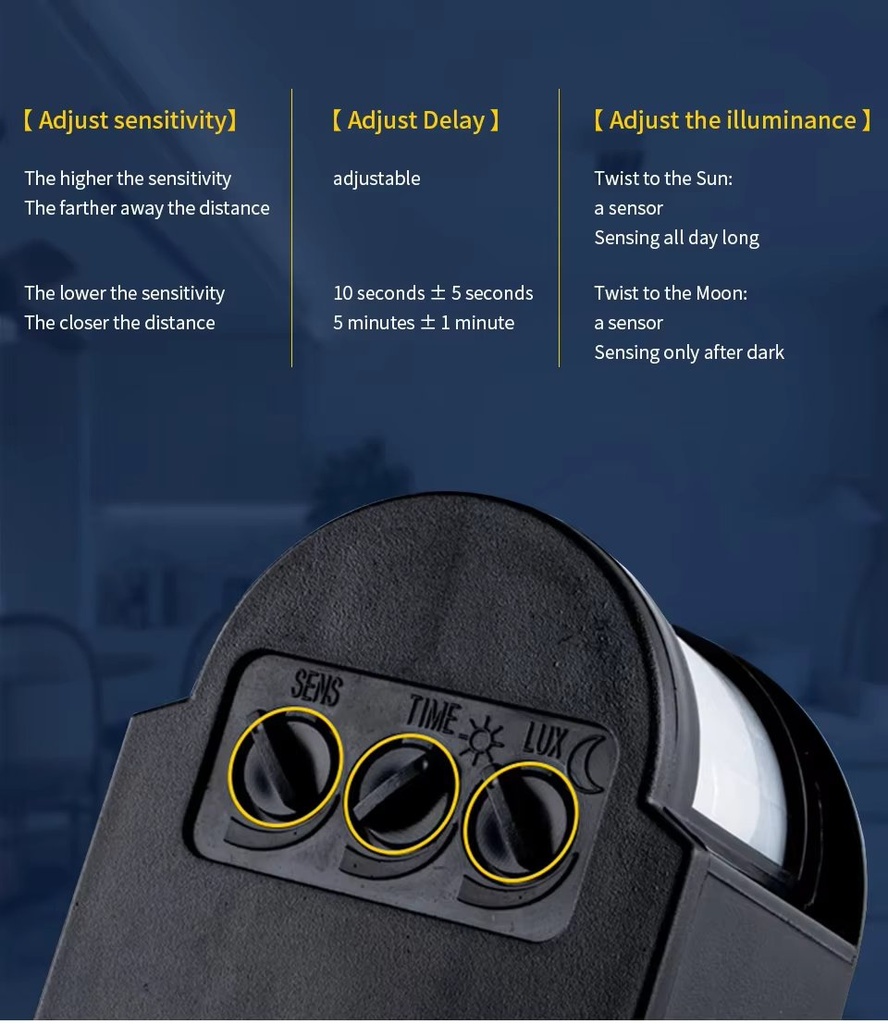

Operation:
● SENS: Adjust the sensing distance
● TIME: Adjust the induction delay time
● LUX: Adjust working hours (Night work/ day night work)
Package Include
● 1 * Sensor
● 1 * English Manual
● 1 * Screw and wall plug
