PAY SPECIAL ATTENTION
1. The Difference Between Split Port And The Same Port: Split port means that the positive and negative poles of charging and discharging should be separated: The charging current and discharging current of the same port are the same, and the charging and discharging are in the same interface.
2. Enhanced Version And Balanced Version: Balanced refers to the use of resistors to discharge high voltage cells during charging, waiting for low voltage cells to charge up the voltage to achieve consistent voltage across all voltages and improve the performance of the entire battery.
3. Before installing protection, the batteries must be properly matched (the voltage difference between each battery should not exceed O.5V. The difference in internal resistance is not greater than 5m. and the difference in capacity is 30mAh lower. The better the battery consistency, the longer the distance traveled, and the more stable the protection performance achieved.
4. Batteries should be connected in parallell before being connected in series, and ensure correct welding (18650 batteries should be spot welded nickel plates, and other batteries should be soldered with solder). Do not screw them down, as it may burn out the IC of the protective plate.
5. Confirm Whether The Battery Model Is A Lithium Battery Or An Iron Lithium Battery: the protection parameters for the two are different. Lithium batteries include: (ternary lithium. lithium cobalt oxide, manganese oxide), all of which have a reference voltage of 3.7V, collectively referred to as lithium batteries. Therefore, when selecting a protective plate, it is necessary to choose a lithium battery protective plate. The reference voltage of lithium iron phosphate battery is 3.2V, so the lithium iron phosphate protection board must be used when selecting the protection board.
Description

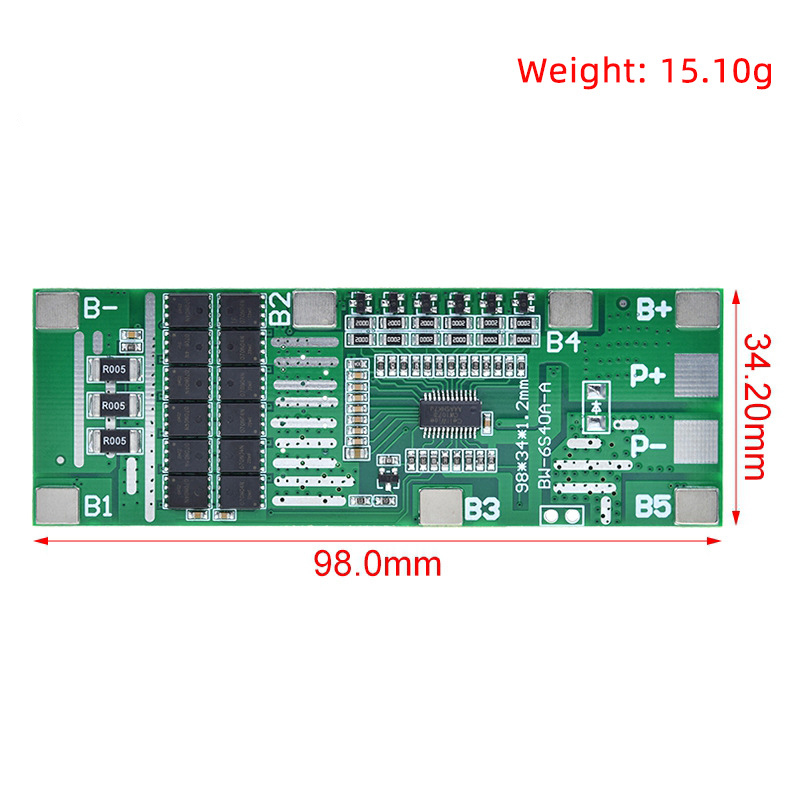

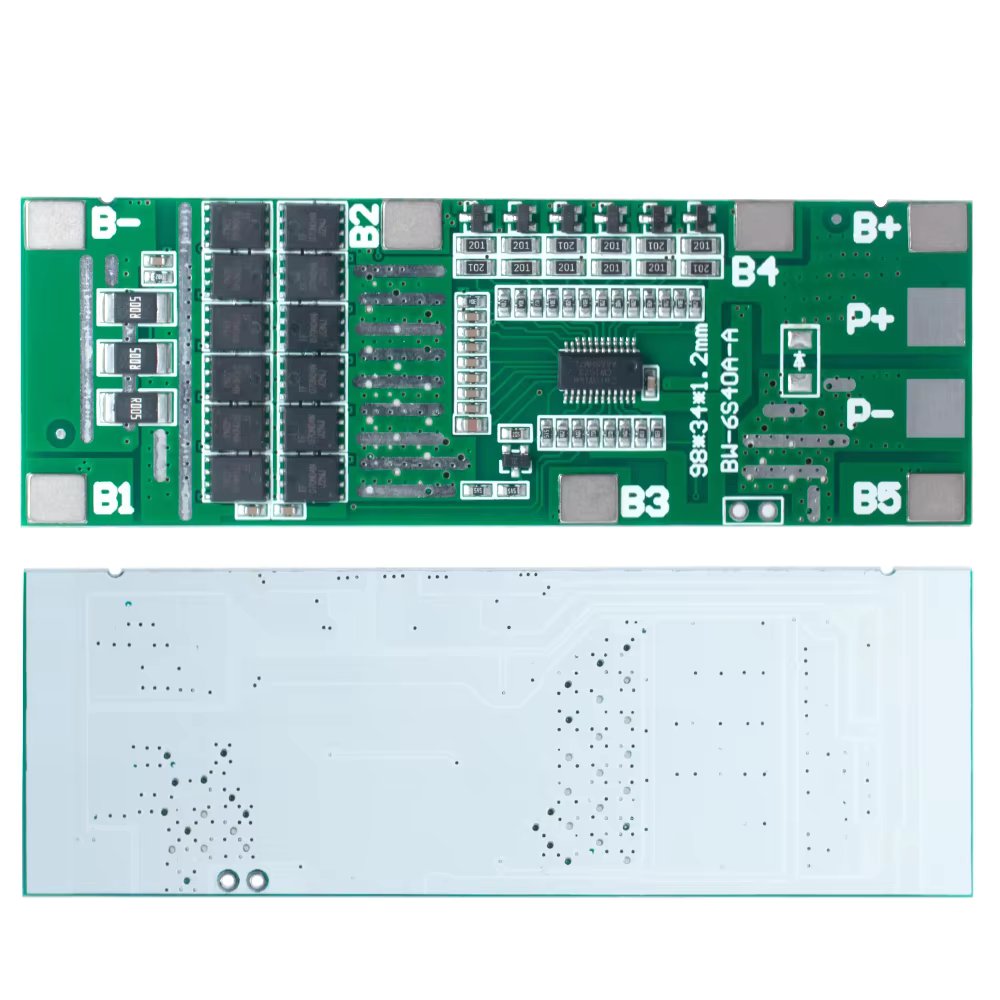

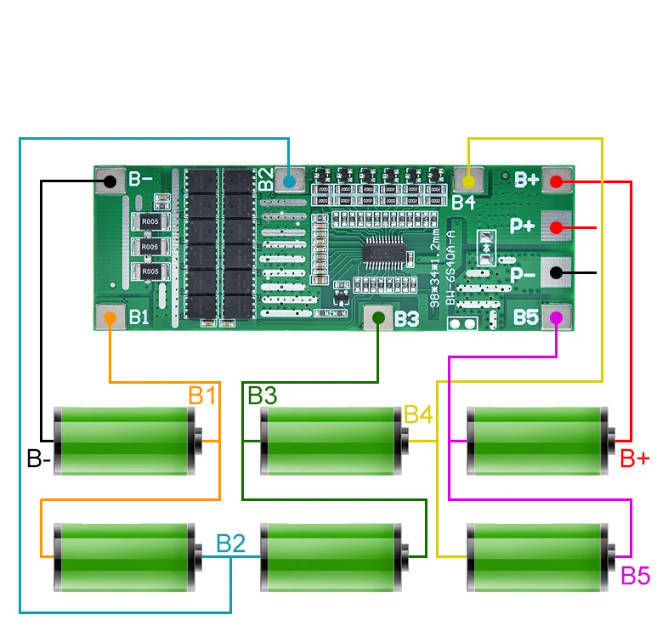

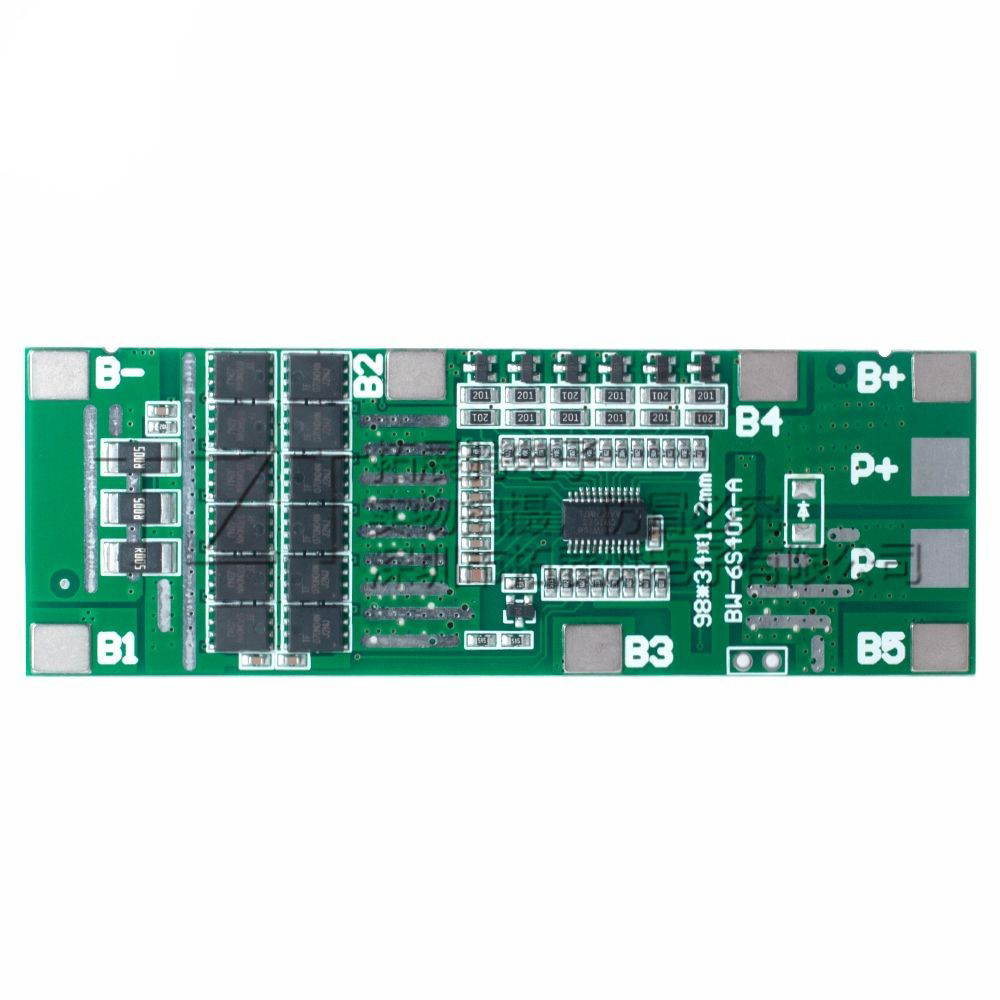

This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current
With heat sink
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection
Color: green
Material: PCB
Maximum discharge current: 40A
Instantaneous discharge current: 70A
Charging voltage: 25.5V
Maximum charging current: 40A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent protection current: 75±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: ≤20mΩ
Working current: ≤40uA
Temperature range: -30/+80°C
Size: 88*34*2.8mm
