● 1. Mold: welding-free 2-section nesting
● 2. Color: white bottom cover, shell color is black,
● 3. Battery type: 18650 battery with a flat head and no protective plate above 2C
● 4. Input: 5V/1A (MAX)
● 5. Output: 5V/0.1-1A (only supports low-current devices higher than 0.1A and lower than 1A, if the charging is disconnected, the charging is intermittent, or it cannot be charged in a few minutes, there are only two reasons, one is that the current of the mobile phone is too large, and the other is caused by the internal resistance of the battery is too large, there is no other reason.)

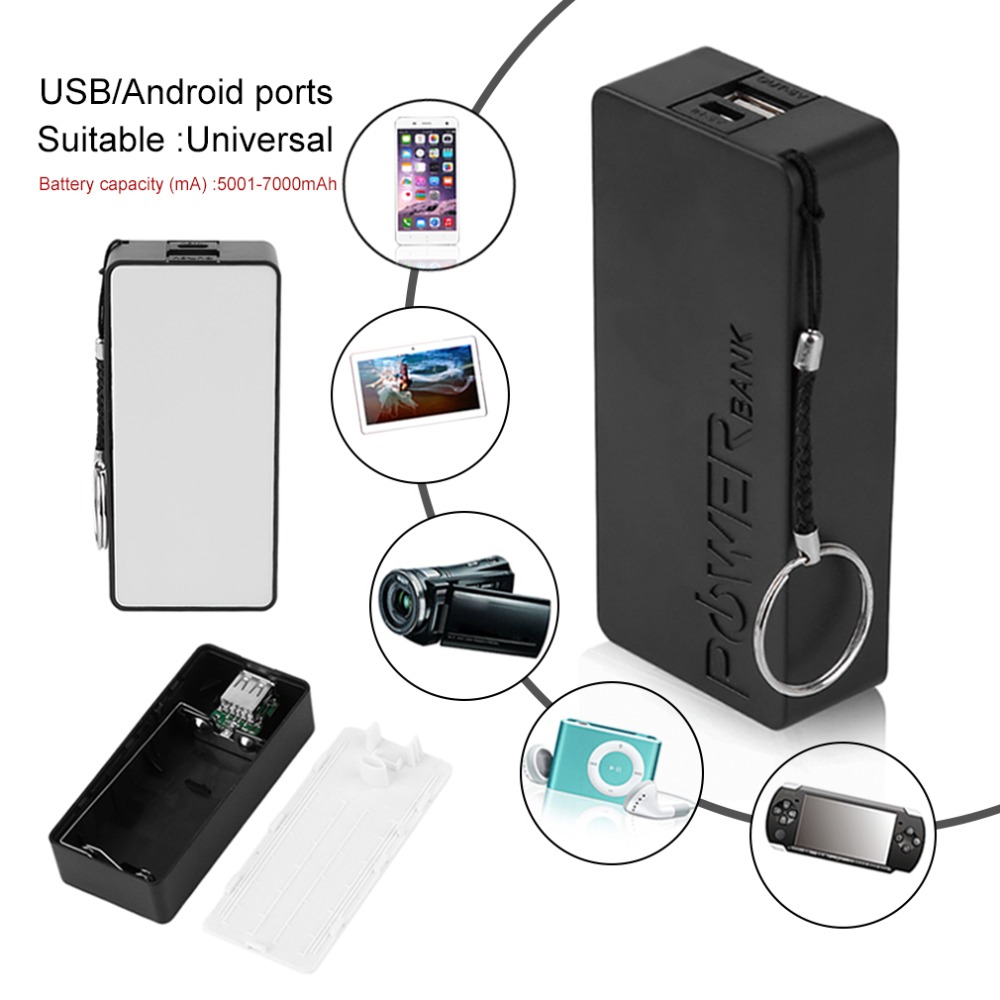

● 6. Input interface: V8 port, micro USB (Android port, flat port)
Note: For high-current devices such as fast-charging and flash-charging mobile phones, the charging will be slow or unable to output due to excessive current. If you don’t understand, please contact customer service before purchasing
Features:
● 1. Small and exquisite, easy to carry.
● 2. The 2.2-section solderless mobile power supply shell can be used by directly installing the battery.

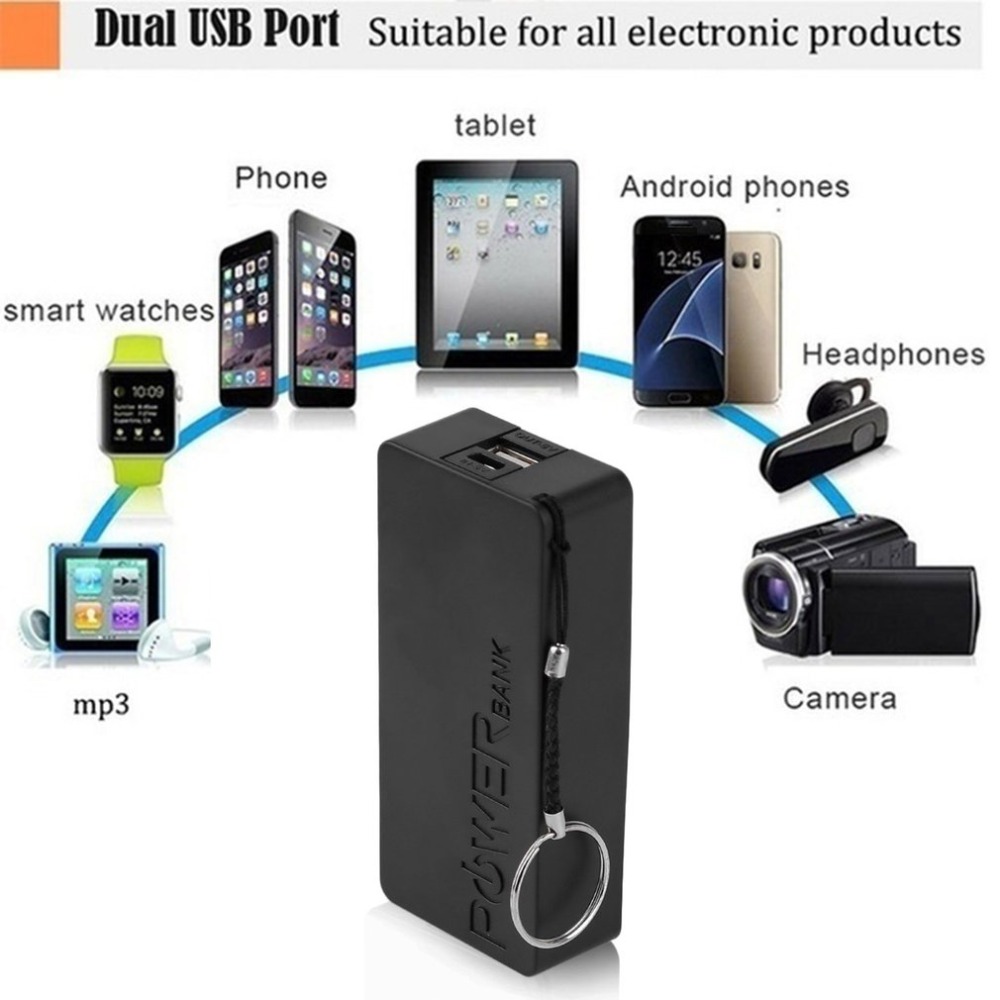

● 3. Easy to operate. It can charge different mobile phones or mobile devices, just change different charging lines.

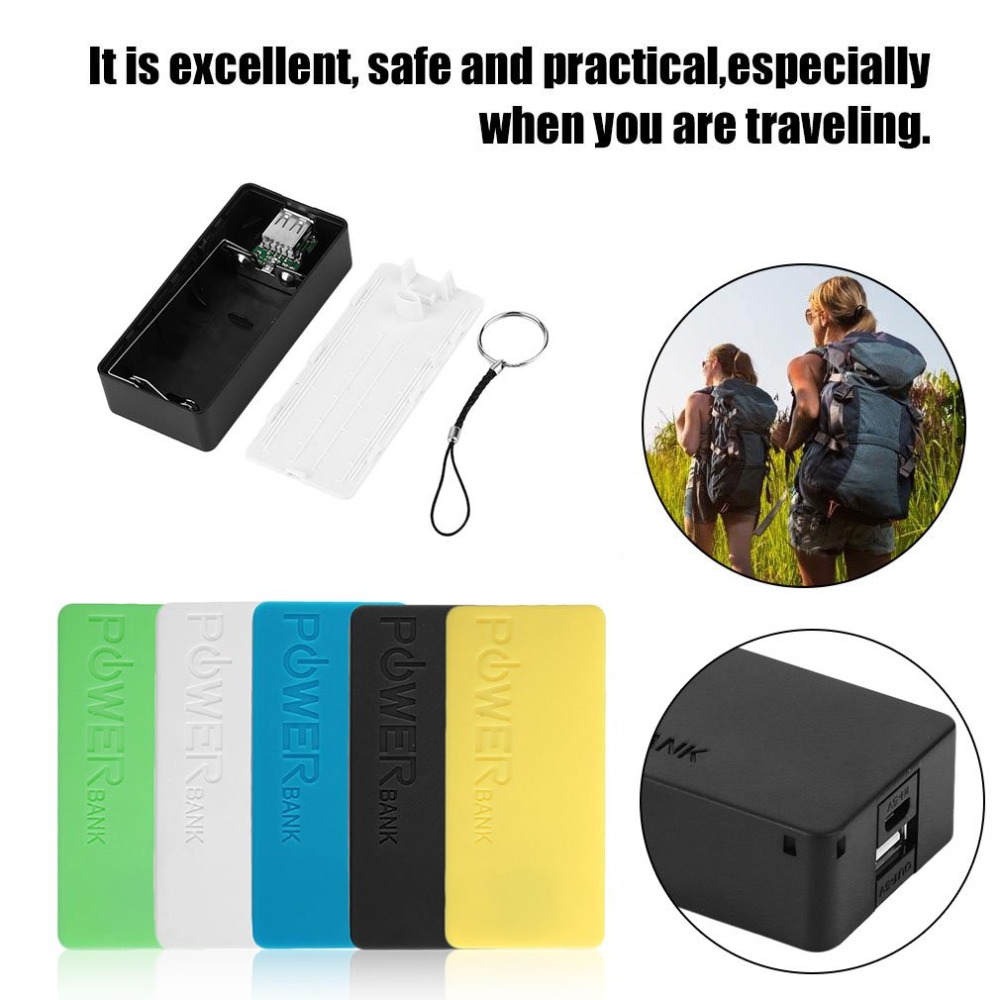

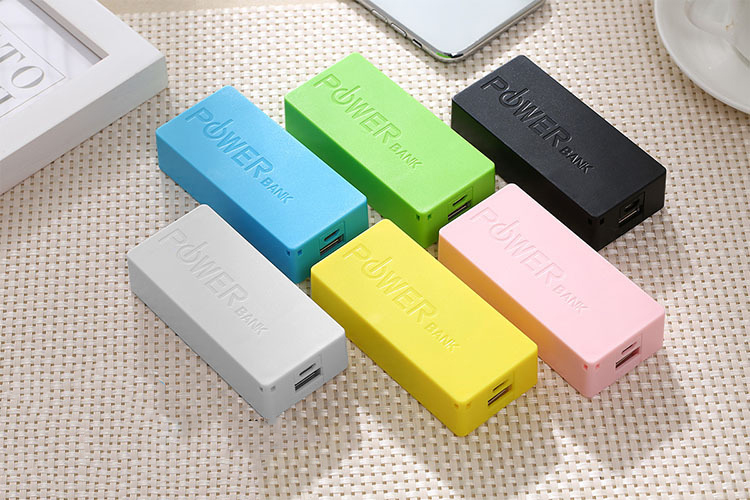

● 4. The bottom cover is all white, and the shell colors are black, white, blue, pink, yellow and green.
● 5. Battery requirements: 18650 battery (flat head, no protective plate, 65MM long, internal resistance within 60 milliohms, discharge current needs to be greater than 2C, voltage not lower than 3.3V, do not use Shenhuo batteries, 18650 batteries for flashlights, etc. compliant batteries.)

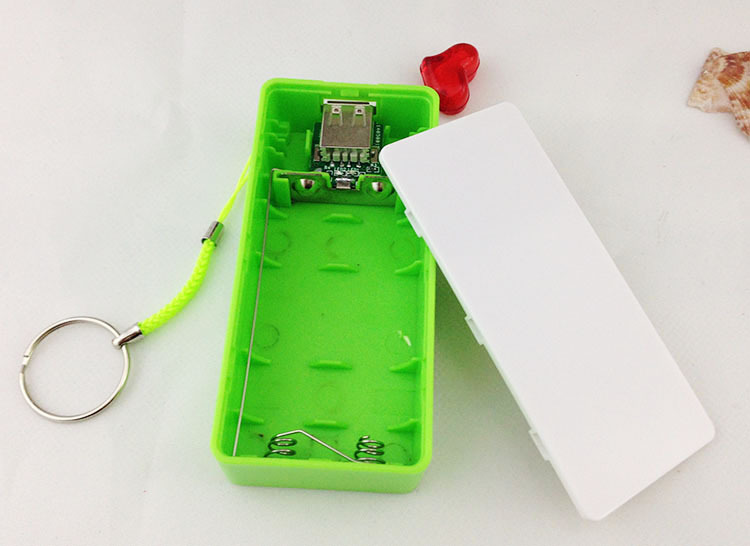

● 6. This is a solder-free casing, which only includes the motherboard + shell, does not include a charging cable, and does not include a battery. You need to bring your own battery or purchase it in this store.
● 7. Charging method: Use a 5V/1A power adapter and a dedicated charging line to charge the product directly
● 8. Applicable equipment: This product can be used for most USB charging devices with 0.1-1A, charging current devices, devices with a current exceeding 1A may not be recognized, flash charging mobile phones, fast charging mobile phones, and high current devices may not support power supply. If you are not sure, please consult customer service first
Note: Do not put the battery upside down, the shrapnel is positive +, and the spring is negative -, if it is reversed, it will damage the motherboard, no output, no second chance, please fix it once.
