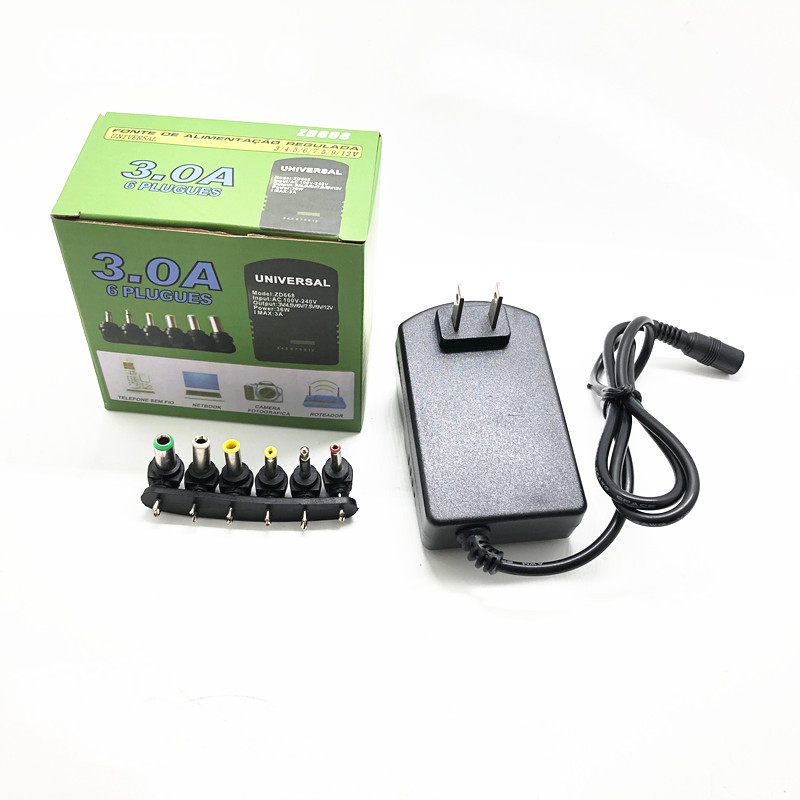

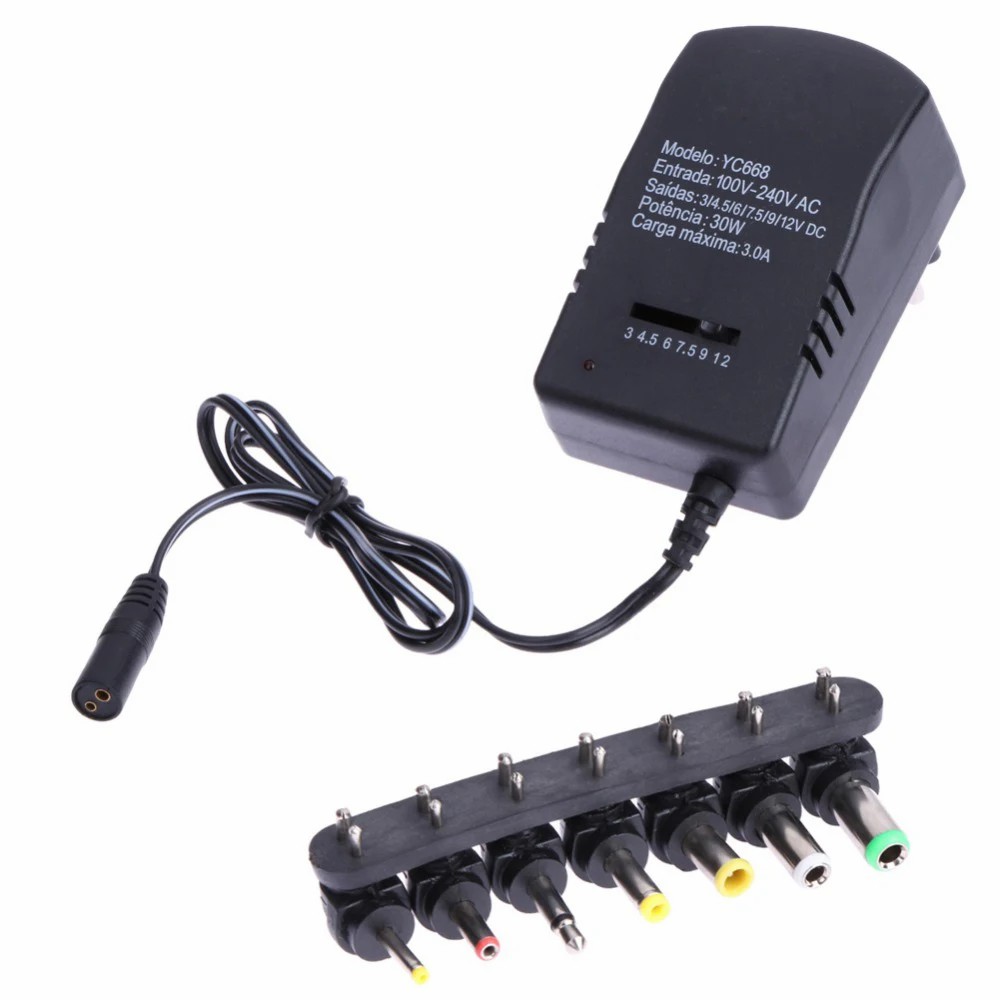

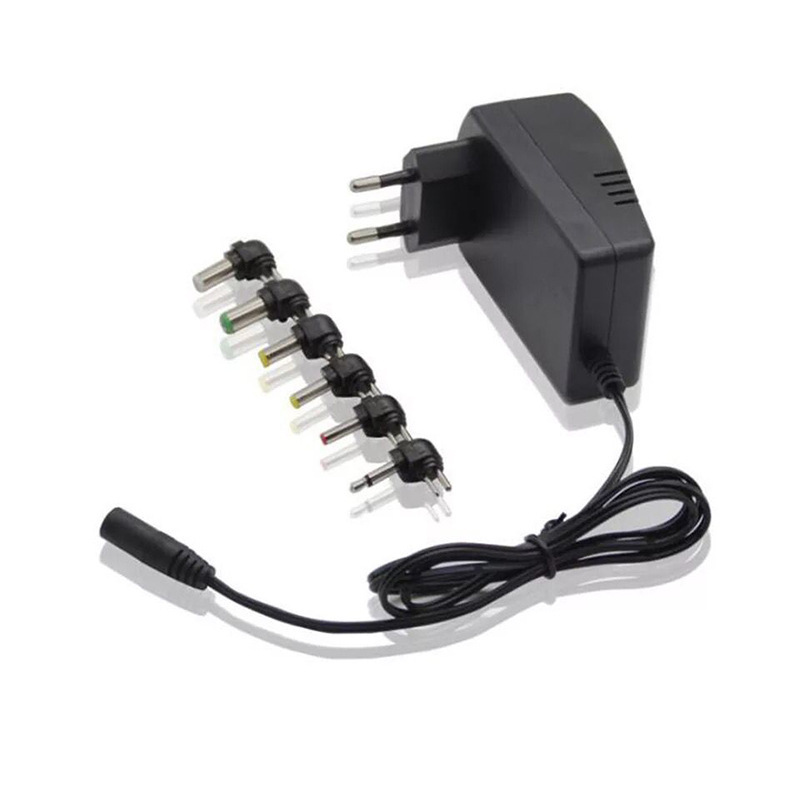

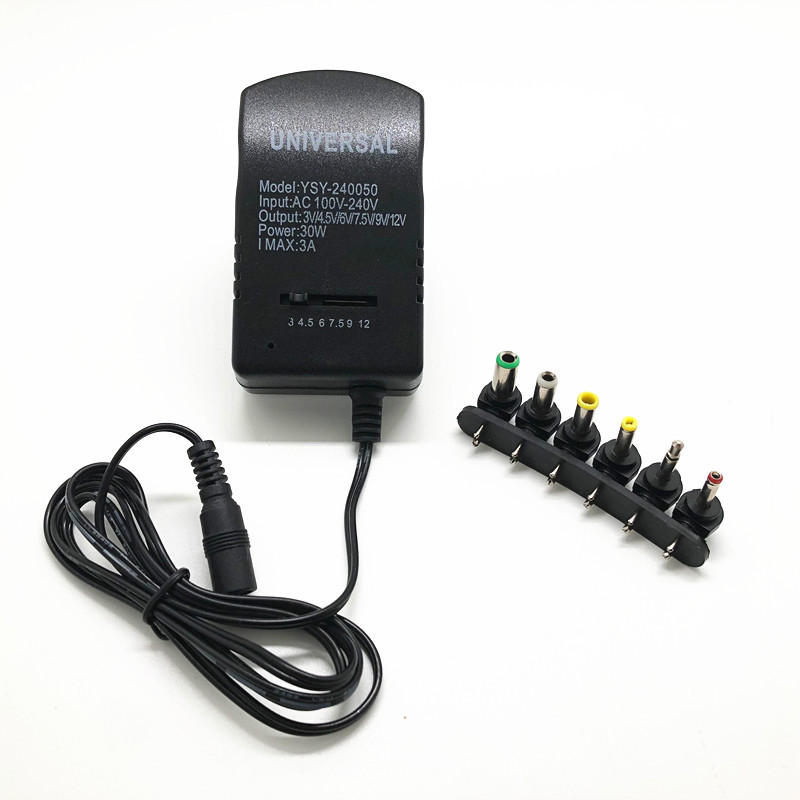

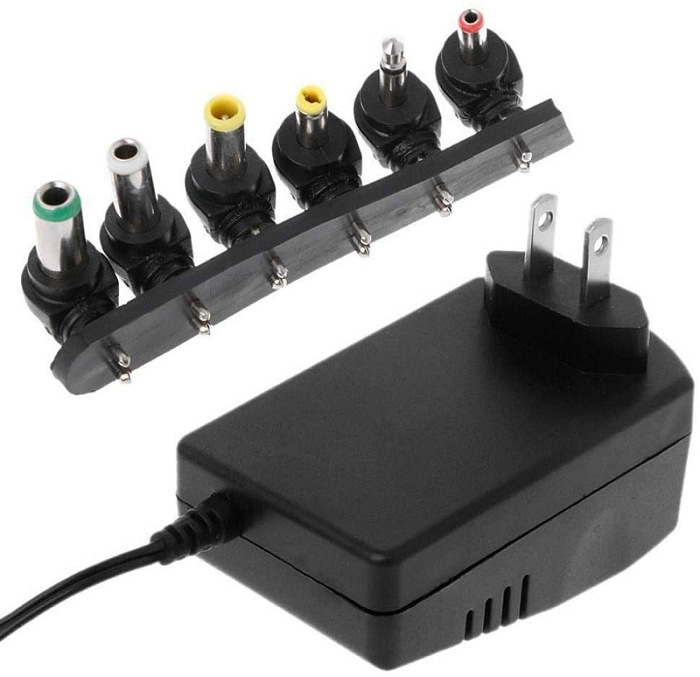

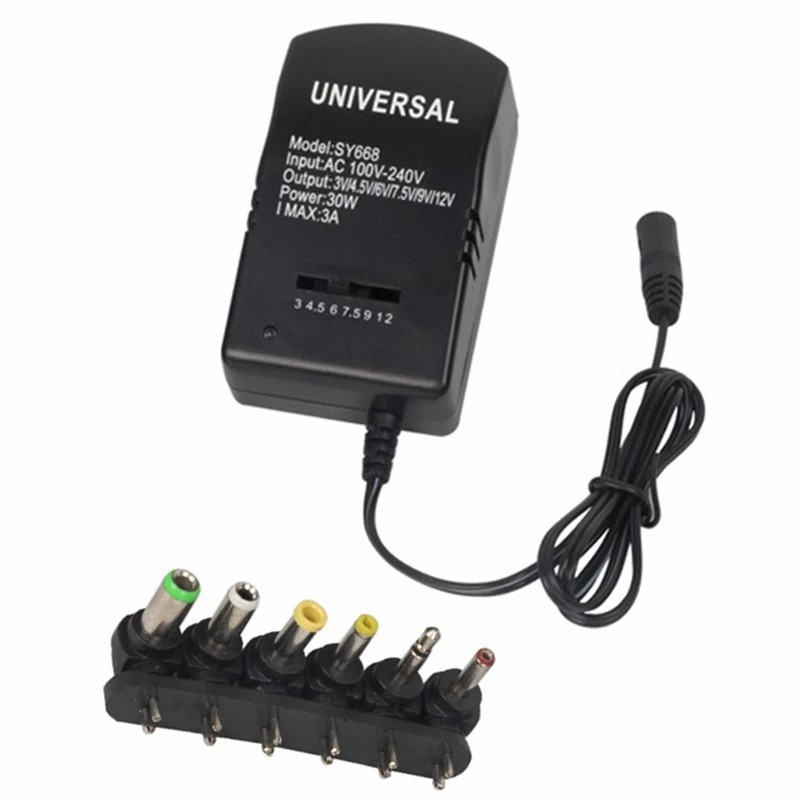

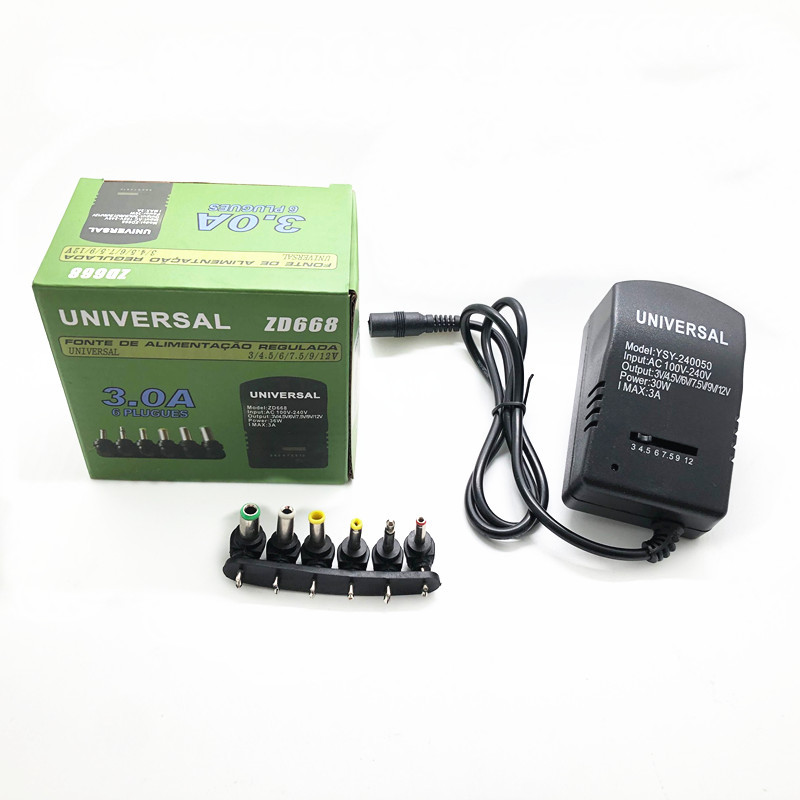

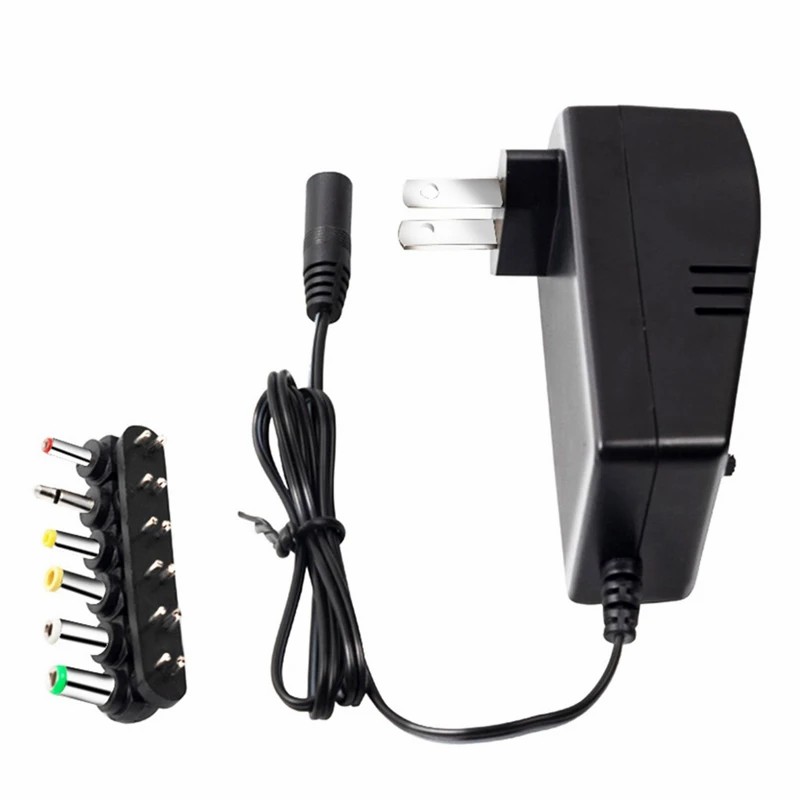

30W adjustable multi-function switching power supply 3-12V 3A voltage adjustable voltage power supply adapter

Description


Features:


1. 100% Brand new 100V-240V AC to DC Power Adapter supply

2. Input: 100-240VAC 3A 50/60Hz

3. Power: 30W

4. Output volt: 3V 4.5V 6V 7.5V 9V 12V （Manual adjustment）

5. Output Current: 3A Max, compatible with 500mA, 1A, 1.5A 2.5A



Usage:
1. For mobile phones, TV Box, CCTV, cameras, audio players, telephones, CDs, VCDs, repeaters, walkie-talkies, computers, electronic organs, game machines, small TV sets, health care equipment, computer and electronic equipment, etc.



Note: Firstly please move the switch to the Output Volt YOU NEED and then Connect the Power！

Specifications:
1. DC Plug Size(Outer Diameter & Inner Diameter): 6.3X3.0MM, 5.5X2.5MM, 5.0X3.0MM, 4.0X1.7MM, 3.5 mono, 3.5X1.35MM

2. DC Pin Type: The polarity can not change, The center is the positive pole(+) and the outside is negative(-), the size of the two pins with the joint is different.

3. Plug Specification: US / EU Plug

4. Cable Length:80cm

5. Color: Black

6. Size:85mm/3.34inch*50mm/1.96inch/36mm/1.40inch

7. Net weight: 130g - 145g

8. Short circuit protection: support



Packing Included:
1pcs X AC/DC Power Adapter

1sets X Connectors（6tips）
