š įį¬įøį DC Power Supply įį²į· DIY Charging Project įį½į±įį¾į¬ į”įįÆį¶įøįį¼įÆįįįÆįįŗįį²į· **Dual USB Type-C Fast Charging Module** įį¼į
įŗįį«įįįŗį

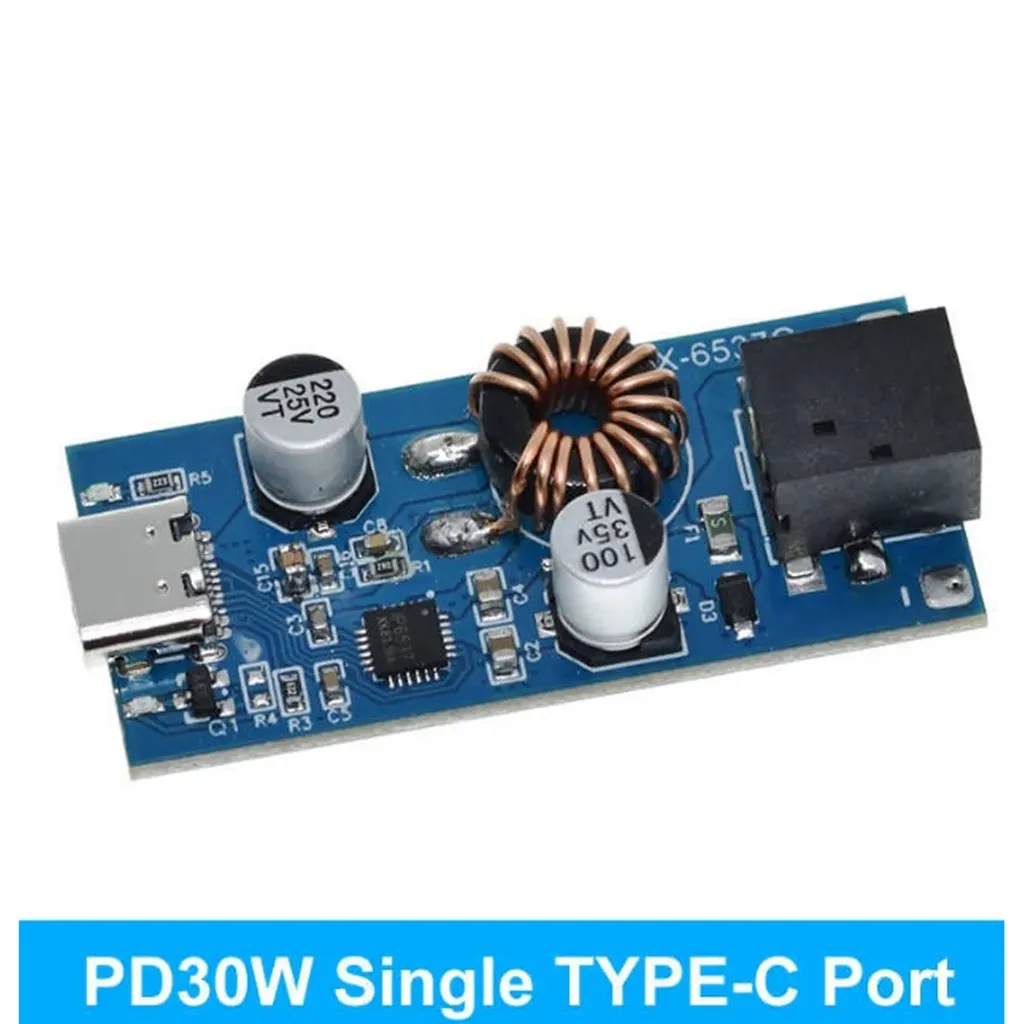

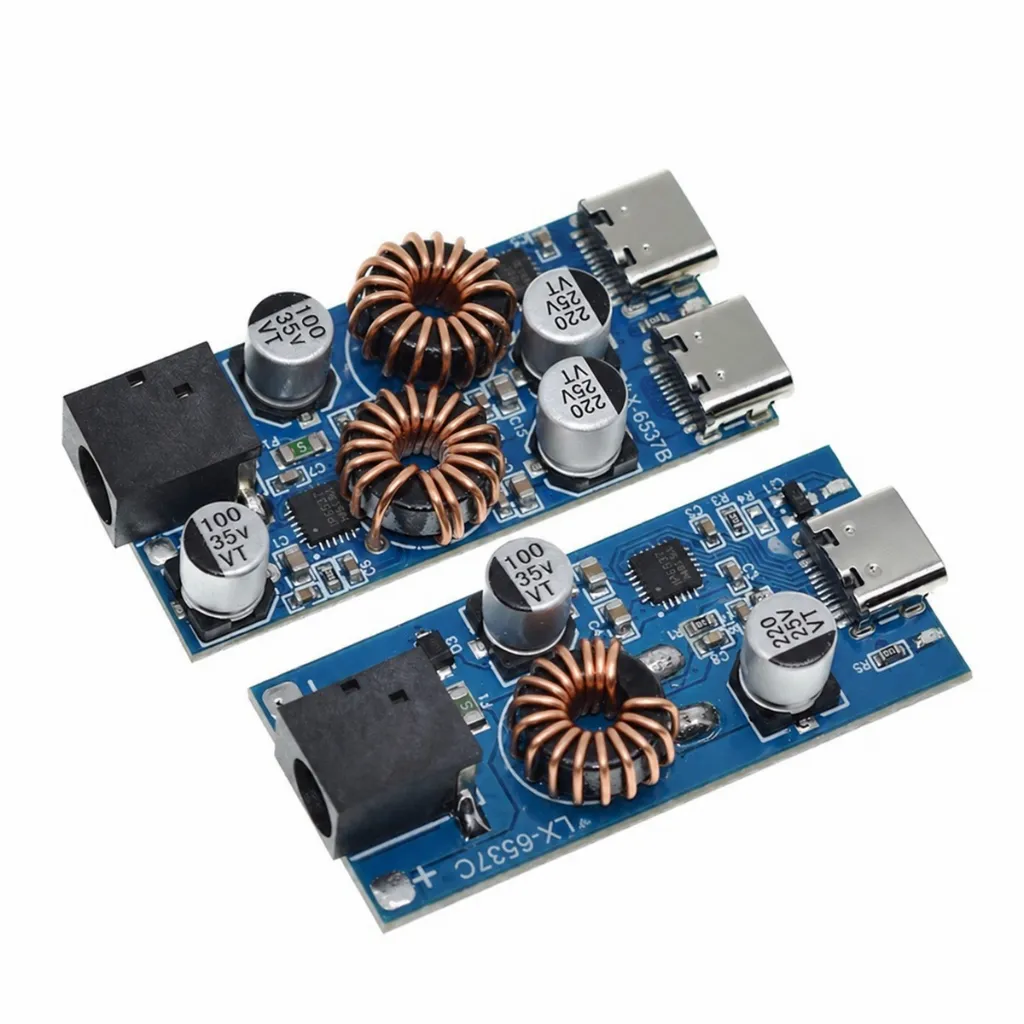

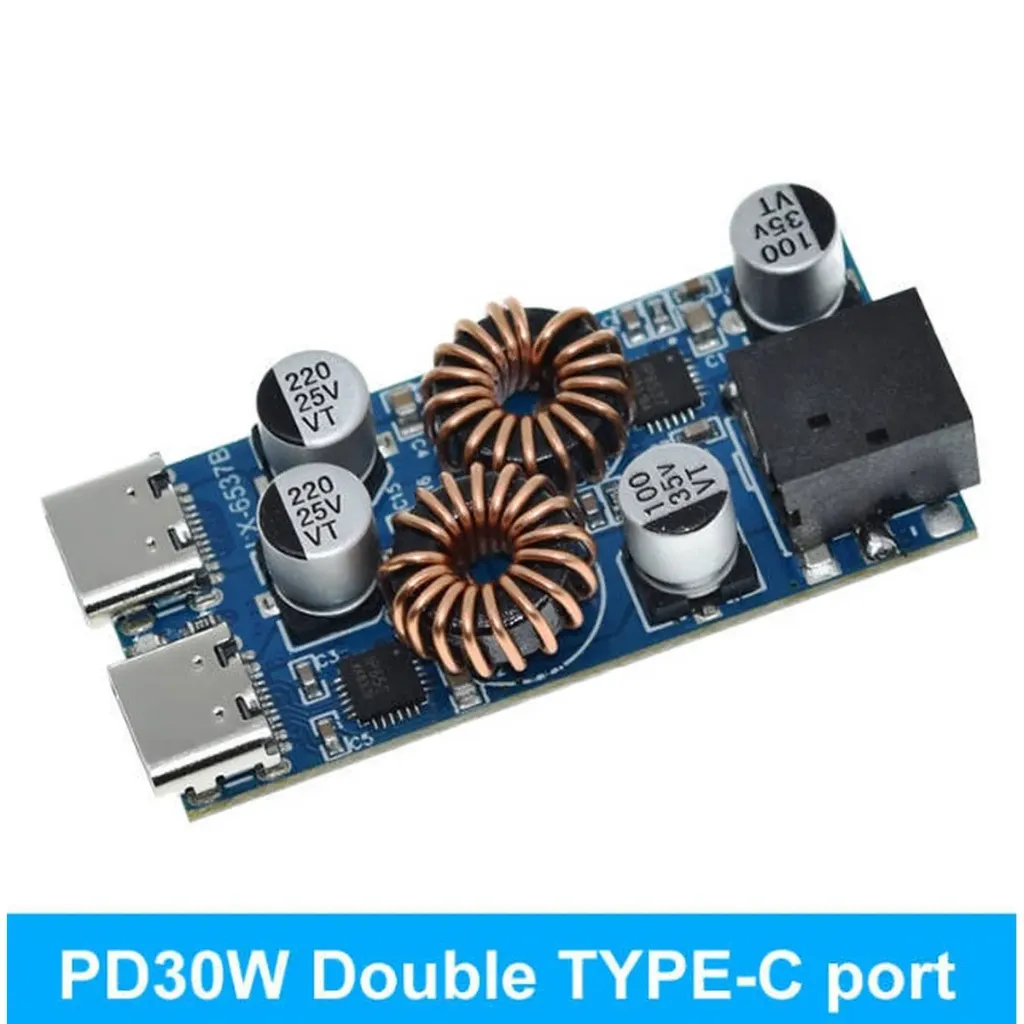

š Dual Version įį¾į¬ Type-C Port (į) įįÆįį«įįįŗįį¼į®įø įįÆįįŗįøį Tablet įį²į· į”įį¼į¬įø USB-C Device įį½į±įįįÆ Type C port įį¾į
įŗįįÆįįÆį¶įøįį¾ įįį¼įįÆįįŗįįįŗįø Fast Charging įį¼įÆįįÆįįŗįįįÆįįŗįį«įįįŗį
āØ **į”įįį Features įį»į¬įø**
ā
**Dual Type-C Output** ā Type-C Port įį¾į
įŗįįÆįįÆį¶įøįį¾ įį
įŗįį¼įįÆįįŗįįįŗ Fast Charging į”įįÆį¶įøįį¼įÆįįįÆįįŗįį¼įįŗįø
ā
**PD Fast Charging** ā USB Power Delivery (PD) įį²į· PPS Protocol įį»į¬įø Support įįÆįįŗįį¼įįŗįø
ā
**Multi-Protocol Support** ā QC, AFC, FCP, PE+ į
įį²į· Fast Charging Protocol įį»į¬įøįį¾įį·įŗ įį½į²įįįŗį”įįÆį¶įøįį¼įÆįįįÆįįŗįį¼įįŗįø
ā
**Wide DC Input** ā DC 7.1V įį¾ 32V į”įį½įįŗįø Power Supply į”įįÆį¶įøįį¼įÆįįįÆįįŗįį¼įįŗįø
ā
**Quality Capacitors** ā High-Frequency, Low Internal Resistance Capacitor įį»į¬įø į”įįÆį¶įøįį¼įÆįį¬įøįį¼įįŗįø
ā
**Compact Design** ā į”įį½įįŗį”į
į¬įøįį±įøįįįŗįį¼į®įø DIY Project įį»į¬įøįį½įįŗ įįįŗįįįŗį”įįÆį¶įøįį¼įÆįįįŗ į”įįįŗįį¼į±įį¼įįŗįø
š **Technical Specifications**
š¹ Input Voltage ā DC 7.1Vā32V
š¹ Input Connector ā DC5521 (Default) / Solder Wire Input
š¹ Output Ports ā Dual USB Type-C
š¹ Output Voltage ā DC 3Vā20V (Protocol į”įįįÆįįŗ į”įįįÆį”įį»į±į¬įįŗįį¾įįį±įøįį¼įįŗįø)
š¹ Fast Charging Output Profiles
- 5V / 3A
- 9V / 3A
- 12V / 2.5A
- 15V / 2A
- 20V / 2A (Max 40W)
š¹ PPS Output
- 3.3Vā5.9V / 3A
- 3.3Vā11V / 3A
š± **Supported Charging Protocols**
āļø USB PD / PPS
āļø Qualcomm QC 2.0 / QC 3.0
āļø Samsung AFC (9V / 12V)
āļø Huawei FCP (SCP įįį«įįįŗįį«)
āļø MTK PE+ 1.1 / PE+ 2.0
āļø Spreadtrum SFCP
āļø BC1.2 / Apple / Samsung Charging Protocols

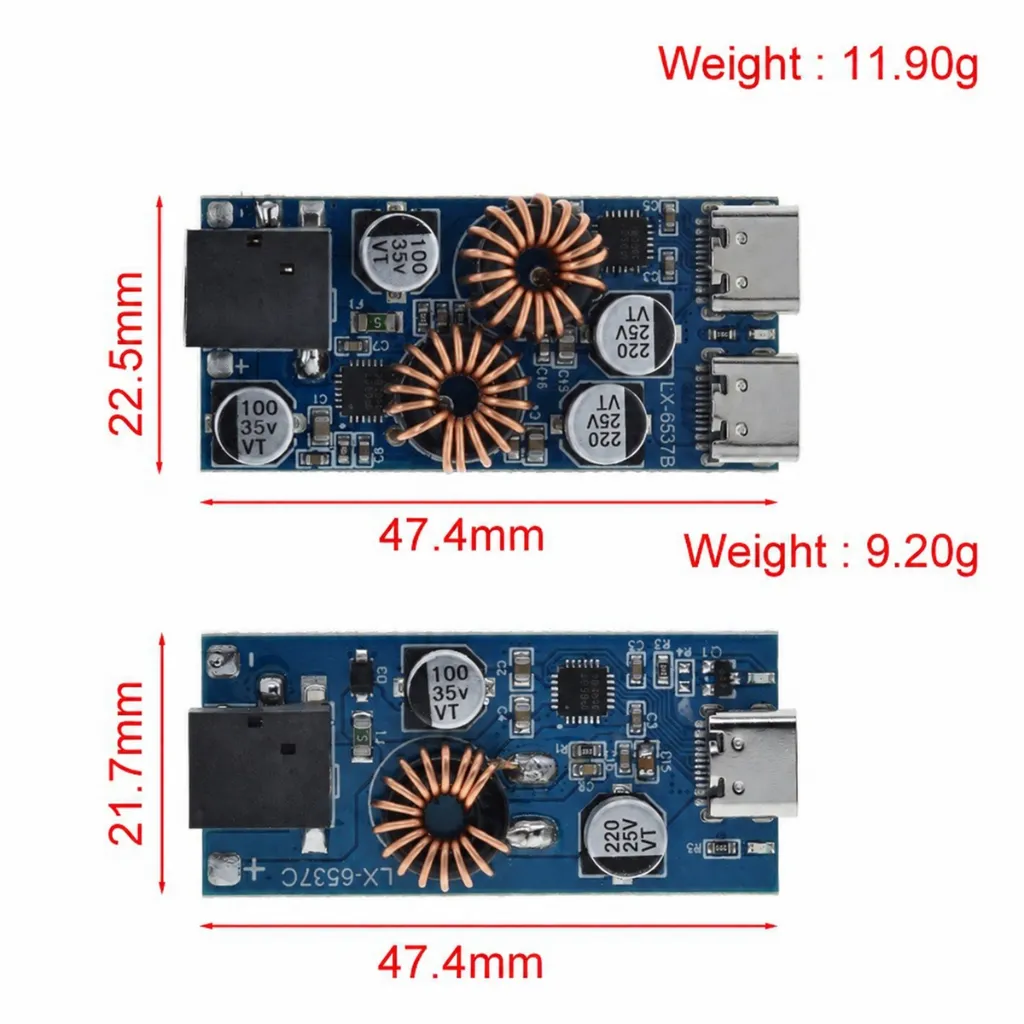

Dimensions (L Ć W)
- Dual Type-C: 47.4 Ć 22.5 mm
- Single Type-C: 47.4 Ć 21.7 mm
š ļø **į”įįÆį¶įøįį¼įÆįįįÆįįŗįį±į¬įį±įį¬įį»į¬įø**
š Car USB-C Fast Charger Project
š DC Power Supply įį¾ USB-C Charger įį¼įÆįįÆįįŗįį¼įįŗįø
ā” DIY Fast Charging Station
š§ Electronic DIY & Power Conversion Project įį»į¬įø
ā ļø **į”įįÆį¶įøįį¼įÆįį¬įį½įįŗ įįįįį¼įÆįįįŗ**
āŖļø į¤ Module įįįŗ **Step-Down (Buck) Type** įį¼į
įŗįį±į¬įį¼į±į¬įį·įŗ Input Voltage įįįŗ įįįÆį”įįŗįį±į¬ Output Voltage įįįŗ įį¼įį·įŗįį±įįį«įįįŗį
āŖļø į„įįį¬ ā 20V Output į”įįÆį¶įøįį¼įÆįįįÆįį«į 20V įįįŗįį¼įį·įŗįį±į¬ DC Input Supply įįįÆį”įįŗįį«įįįŗį
āŖļø **Power Bank Motherboard į”įį¼į
įŗ į”įįÆį¶įøįį¼įÆįįįŗ įįįį·įŗįį±į¬įŗįį«į** Car Charger įį¾įį·įŗ įįį·įŗįį»į±į¬įŗįį±į¬ DC Charging Project įį»į¬įøį”įį½įįŗ įįįŗįį½įįŗįį¬įøįį«įįįŗį
āŖļø įįÆįįŗįøį”įį»įįÆįøį”į
į¬įøįį¾įį·įŗ Charging Protocol Support įį±į«įŗįį°įįįŗį Charging Speed įį½į¬įį¼į¬įøįįįÆįįŗįį«įįįŗį
āŖļø Xiaomi ChargeTurbo, Huawei SCP, OPPO VOOC įį²į·įįįÆį· Proprietary Super Fast Charging Protocol į”įį»įįÆį·įįįÆ Support įįįÆįįŗįį«į
āŖļø 40W įįįŗ įį±į¬įŗįį¼įį¬įøįį±į¬ į”įį¼įį·įŗįįÆį¶įø Output Profile įį¼į
įŗįį¼į®įø įįÆįįŗįøįįįÆįįŗįøįį½įįŗ 40W Charging įįį¾įįįįŗįįÆ įįįįÆįįįÆįį«į
