Features:
1. 3.6V balancing voltage, balancing current is 58mA
use:
2. Charge equalization
Technical Parameters :
3. Equalizing voltage and equalizing current
Precautions:
1. This equalizing board is suitable for lithium iron phosphate battery packs without equalizing charging.
2. The equalizing charging makes all the batteries in the battery pack fully charged at the same time.
3. This balancing sheet does not have charge and discharge protection function and cannot replace the protection board.
4, When the battery is charging, the battery that is fully charged first is discharged through the resistor to make the shunt balanced.
5. Product size: 26*20.5*2.4mm

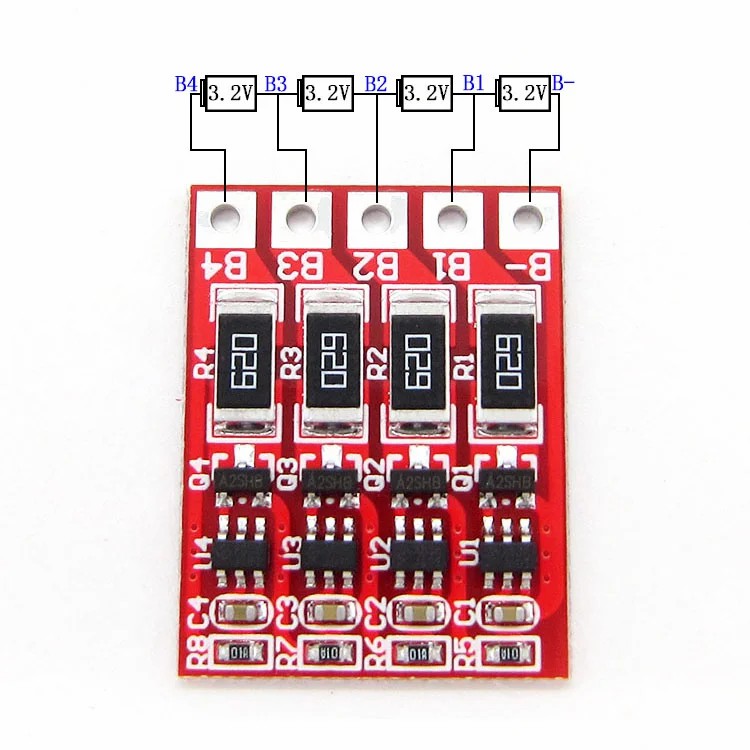

Solder point description:
1. B - Connect to the negative terminal of the battery pack
2. B1 connects the contacts of battery 1 and battery 2
3. B2 connects the contacts of battery 2 and battery 3
4. B3 connects the contacts of battery 3 and battery 4
5. B4 connects to the positive terminal of the battery pack
