Features:
● 1.Resistive load limit power 4000W, recommended for long-term resistive load within 2000
● 2.Efficiency above 90%
● 3.Mainly used for resistive loads: electric filament incandescent lamps, etc
● 4.Working voltage AC220V
● 5.Adjusting voltage AC0-220V
Specifications:

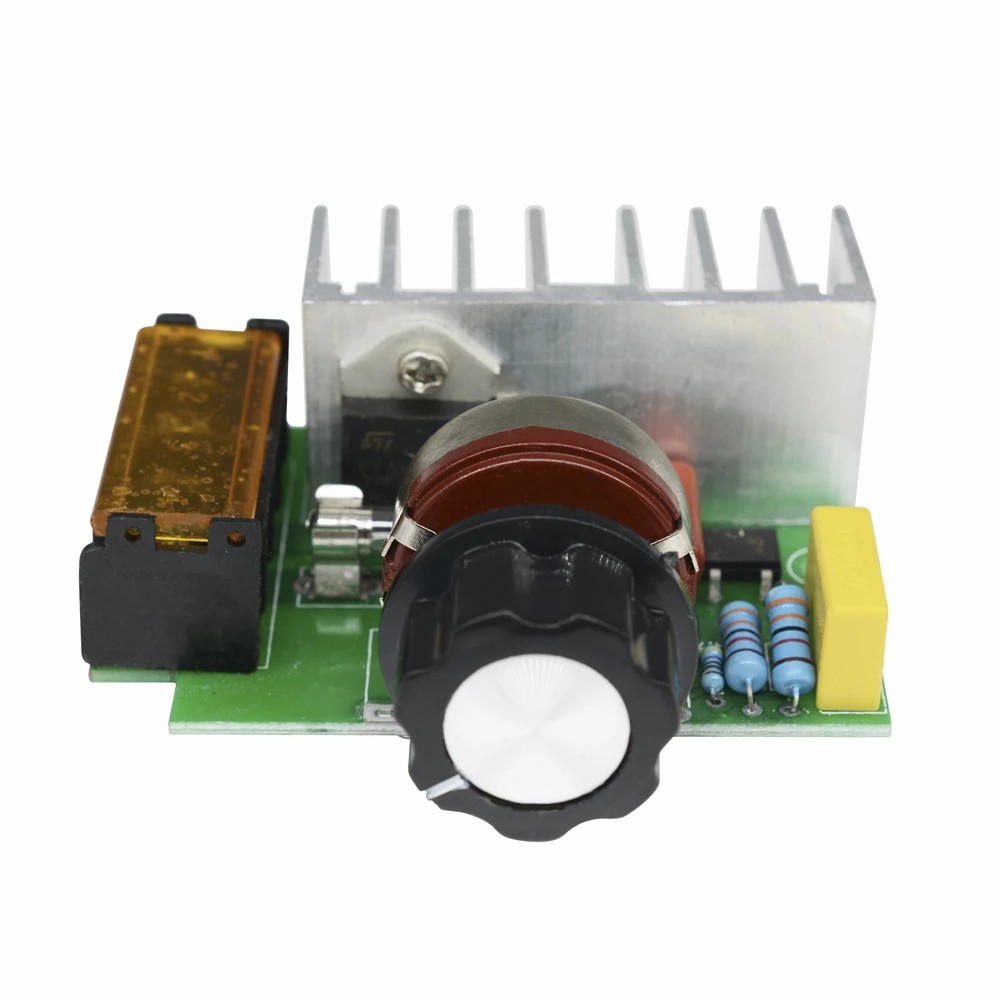

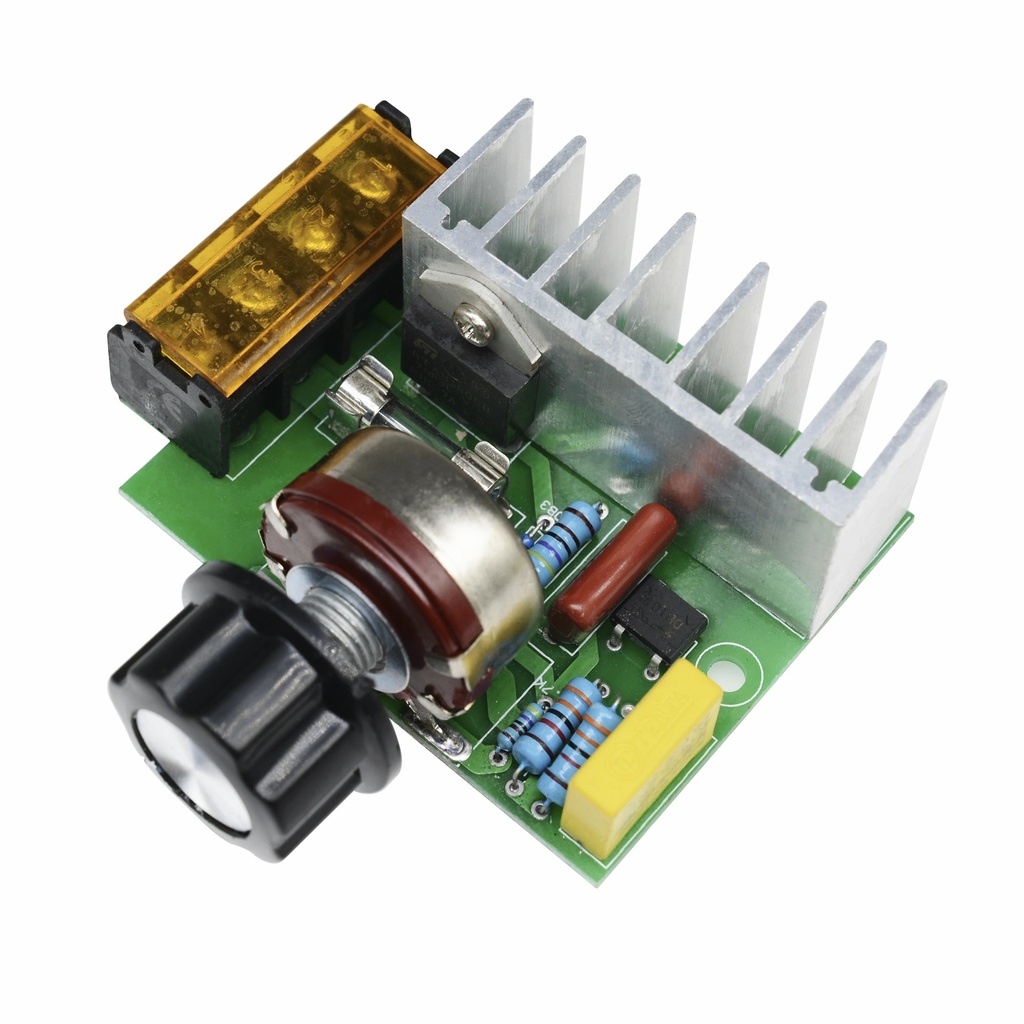

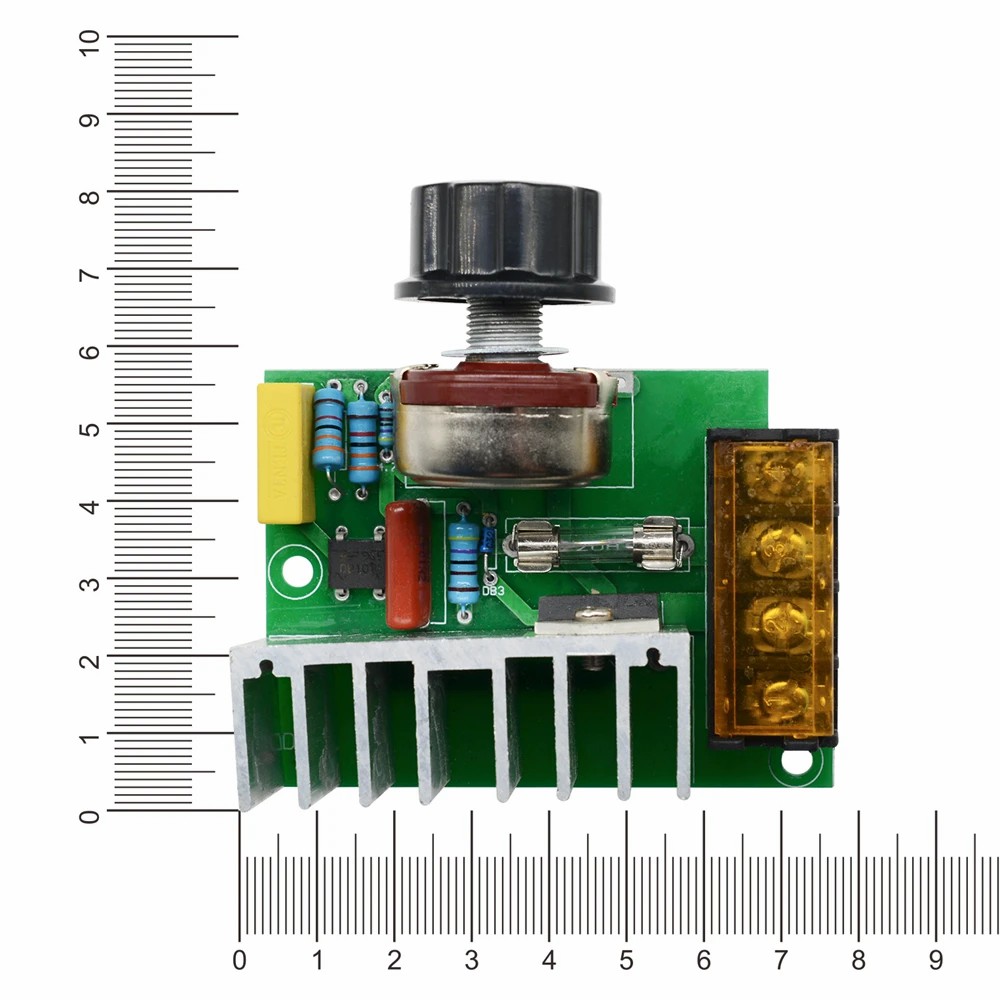

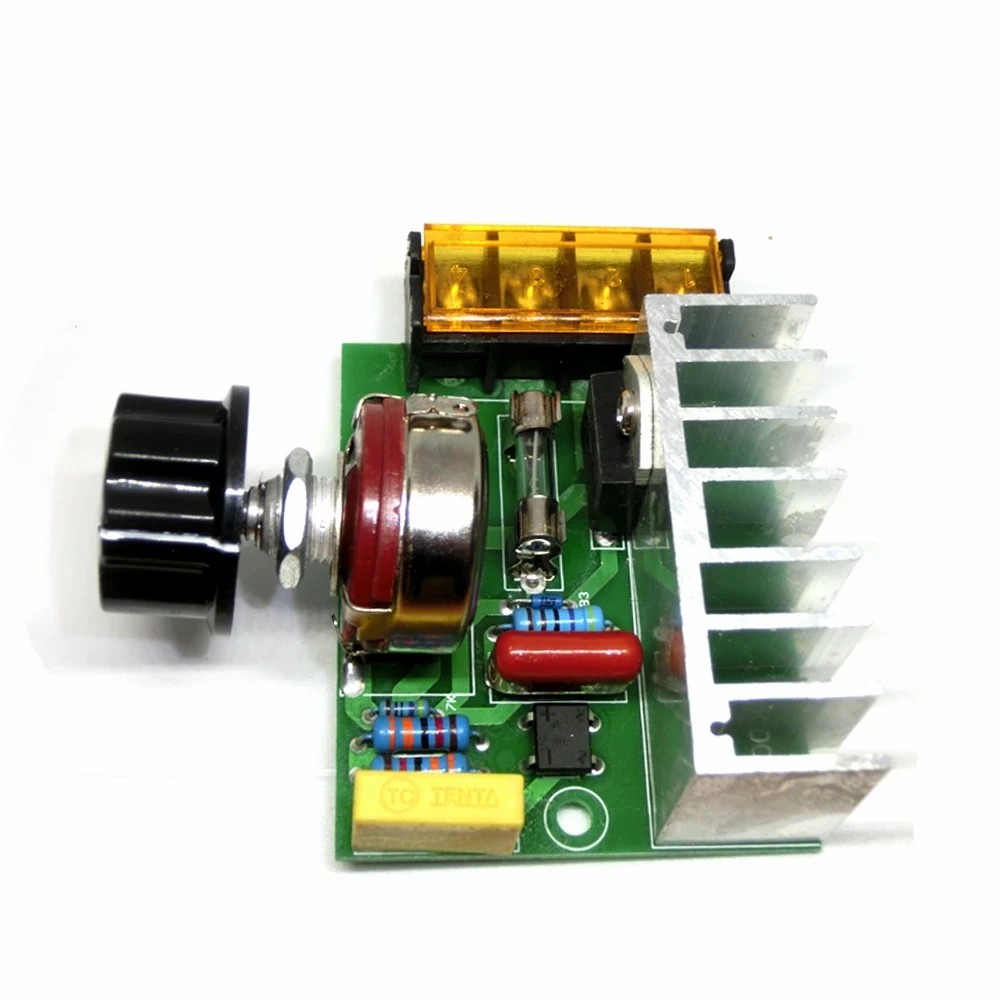

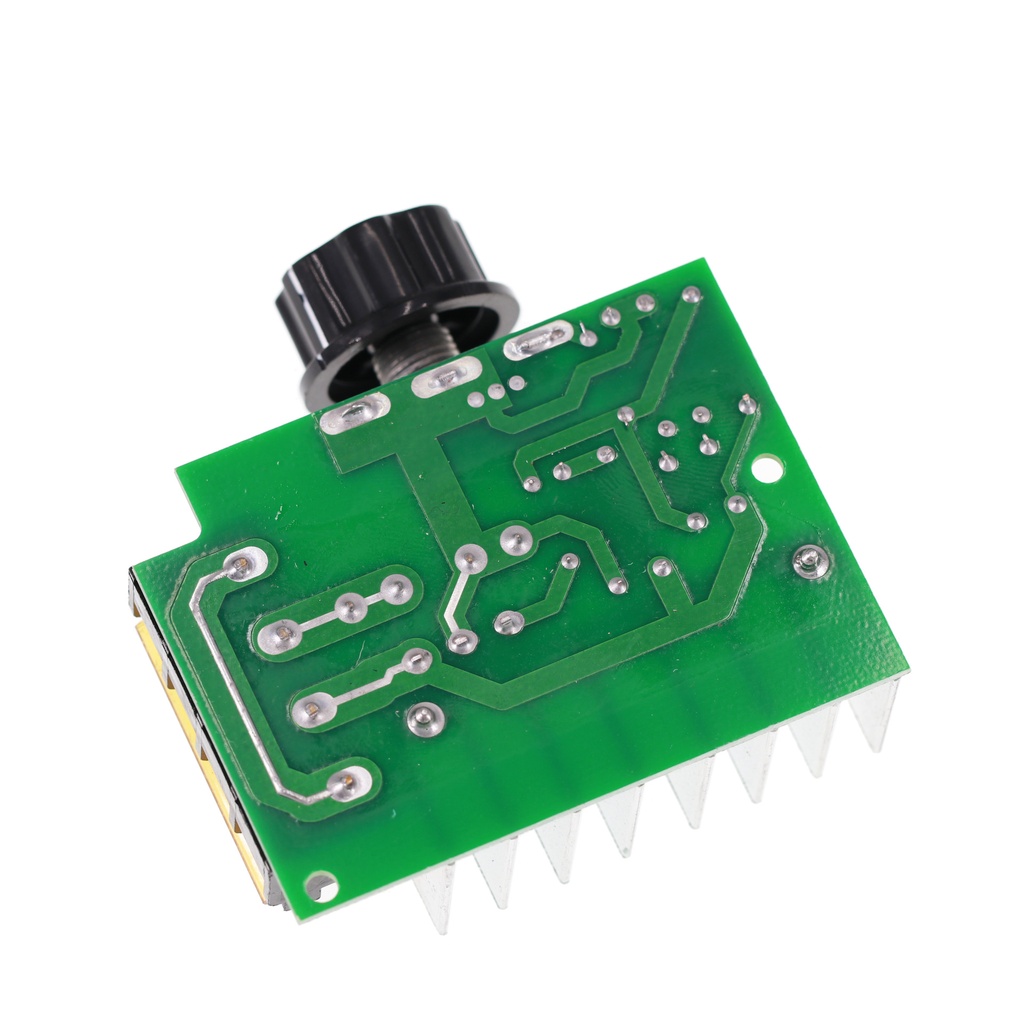

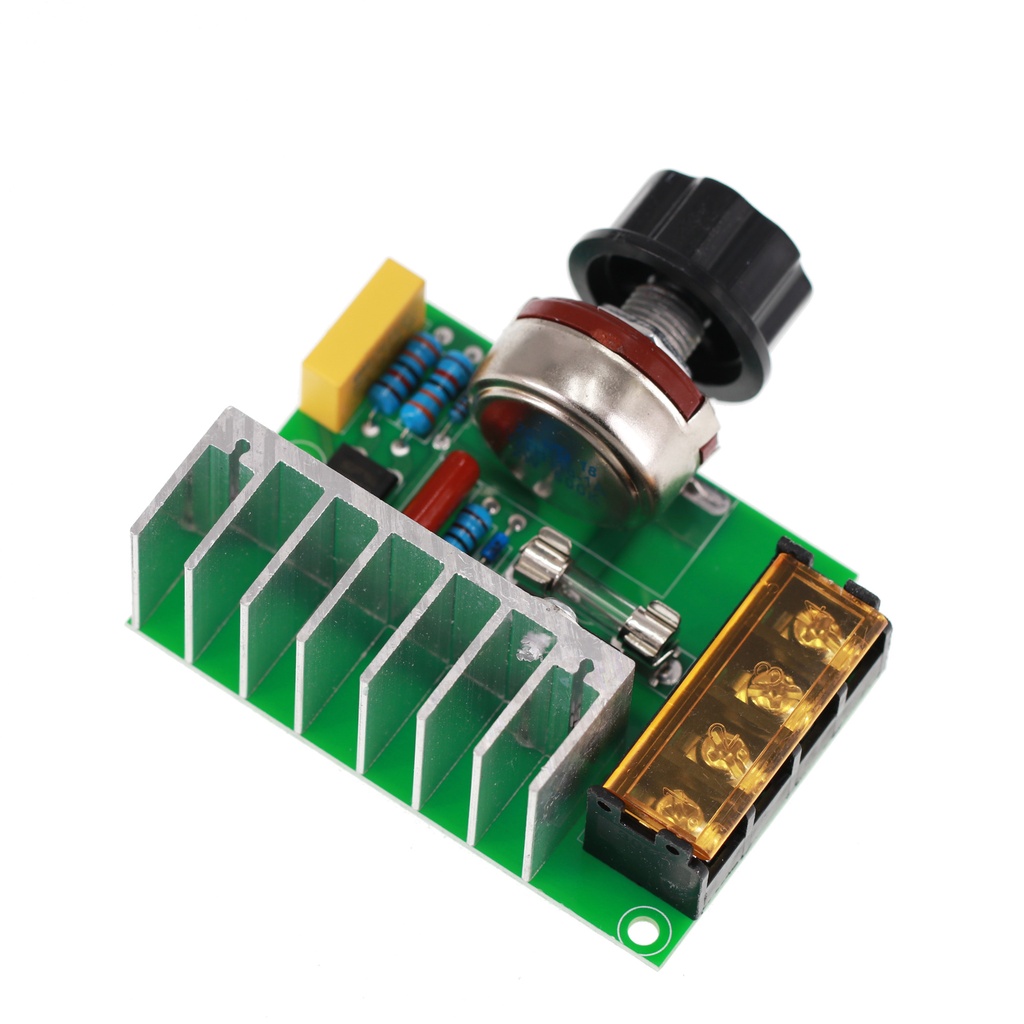

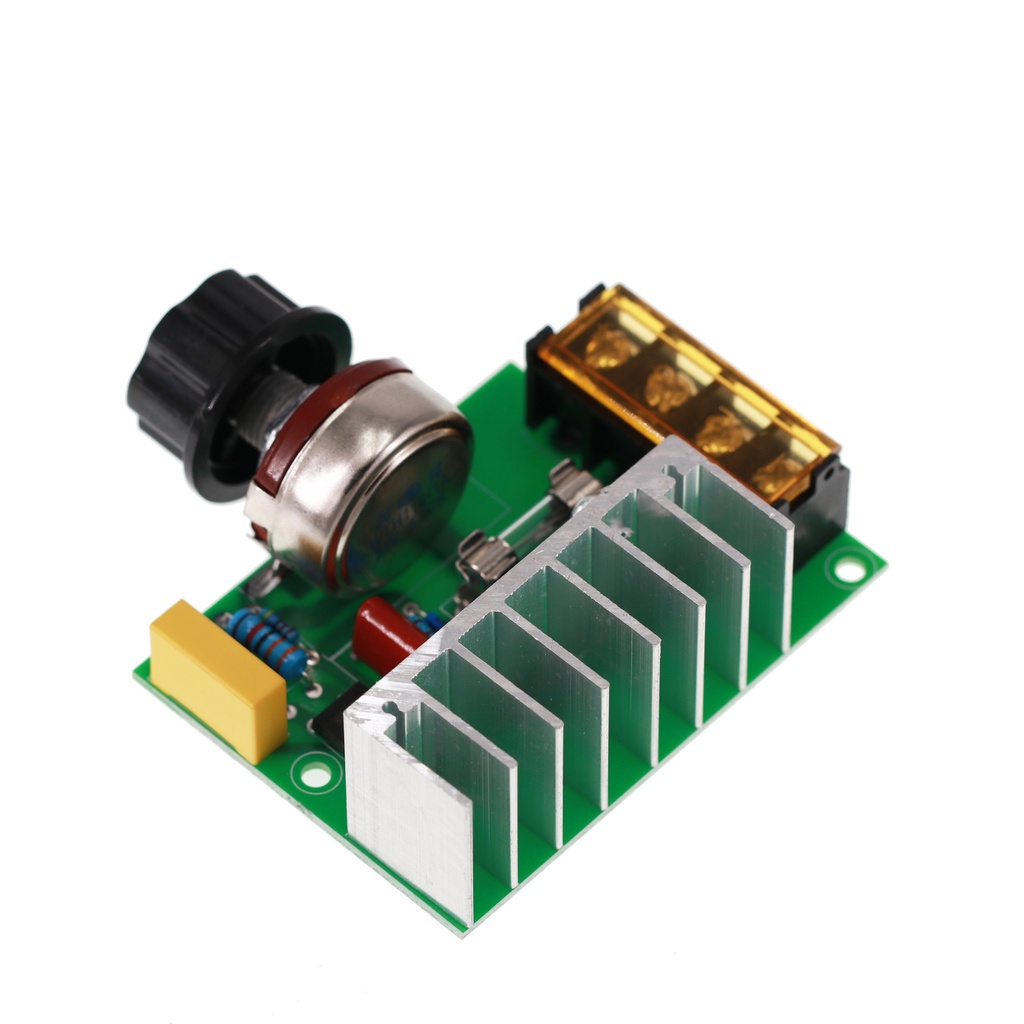

● Product name: 4000W AC voltage regulator
● Maximum power: 4000W (resistive load limit power), power should be reduced for long-term use. Long term resistive load is recommended within 2000.
● Efficiency: over 90%
● Working voltage: AC 220V
● Adjusting voltage: AC 0-220V (adjustable from high to low to 0, and from low to high to around 10V)

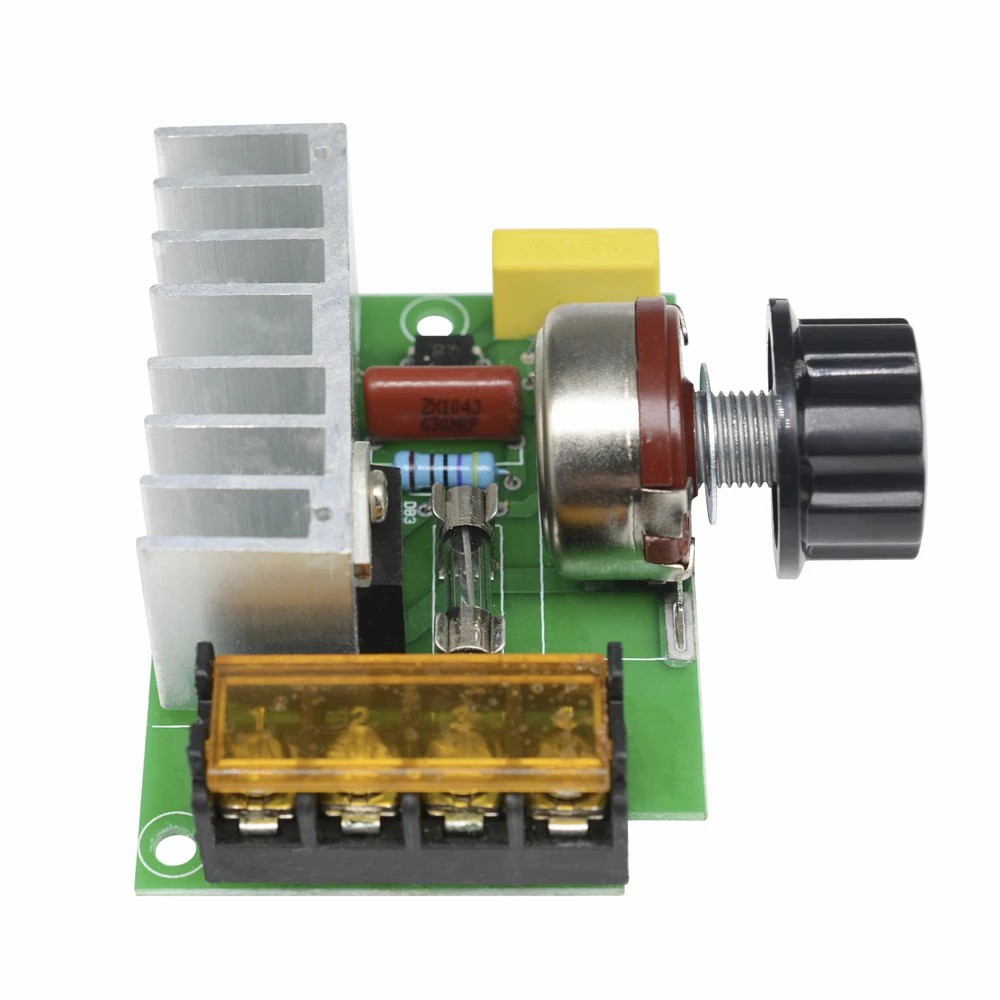

● Terminal 12 is connected to the input 220V, and terminal 34 is connected to the load. Please note that the load must be connected first before voltage regulation
Note:
● Thyristors are mainly used for resistive loads (such as electric filament incandescent lamps), and most single-phase AC motors can also be used, but it is not guaranteed that they can be used. Please confirm for other types of loads. Fuses are not omnipotent, they have a reaction time. If the current is too high, in addition to burning out the fuse, the module may also burn out.
