Product Information

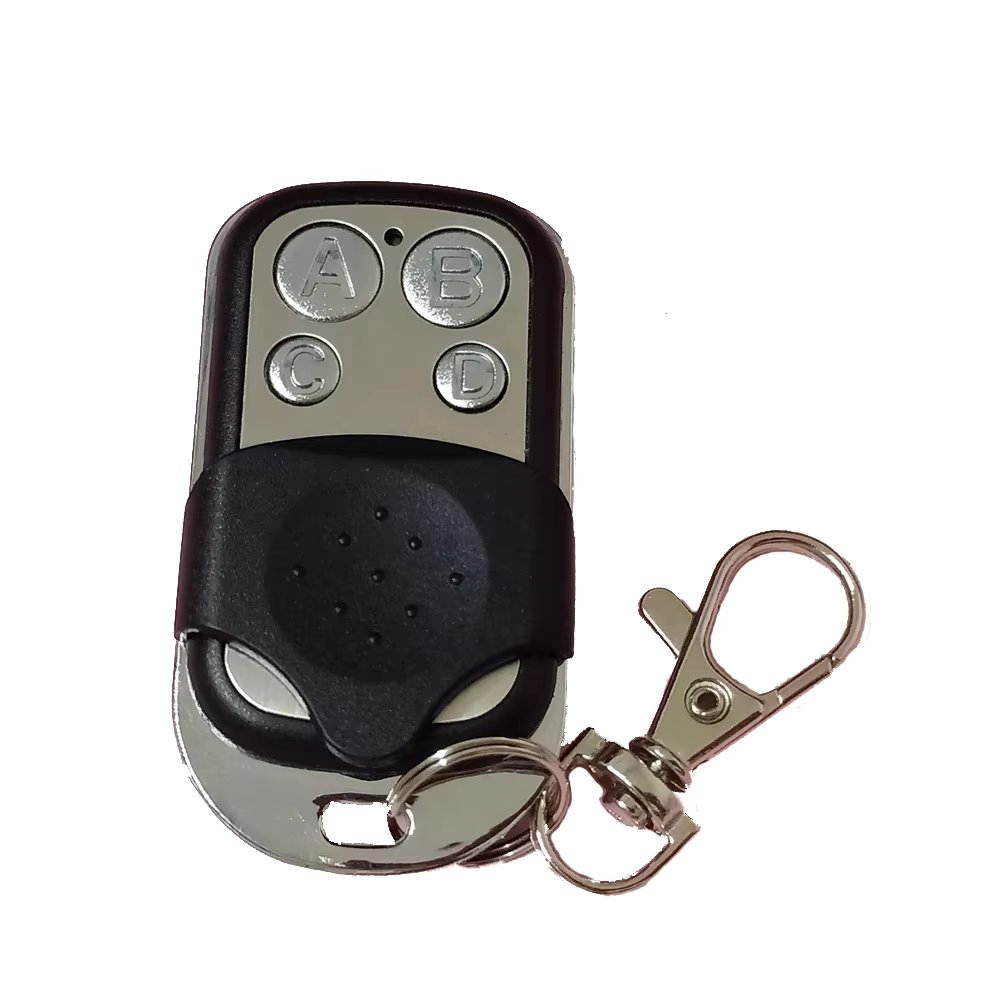

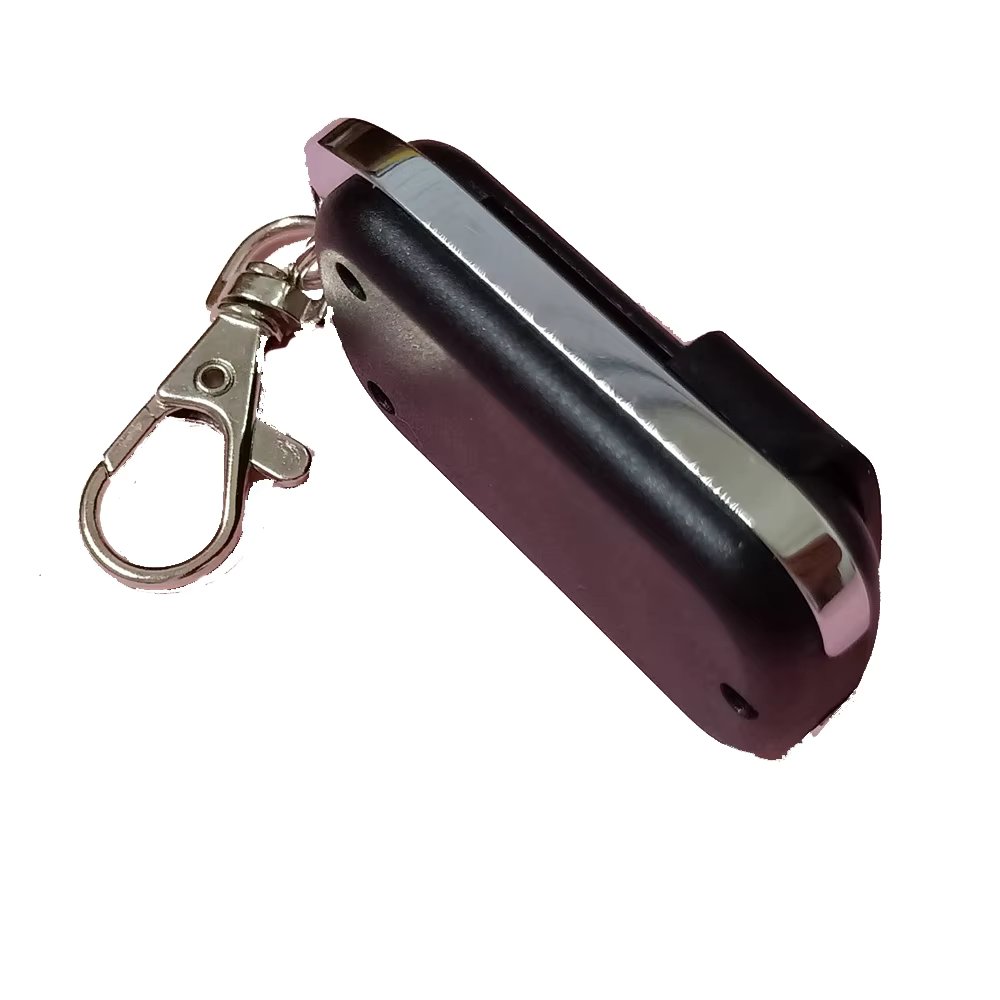

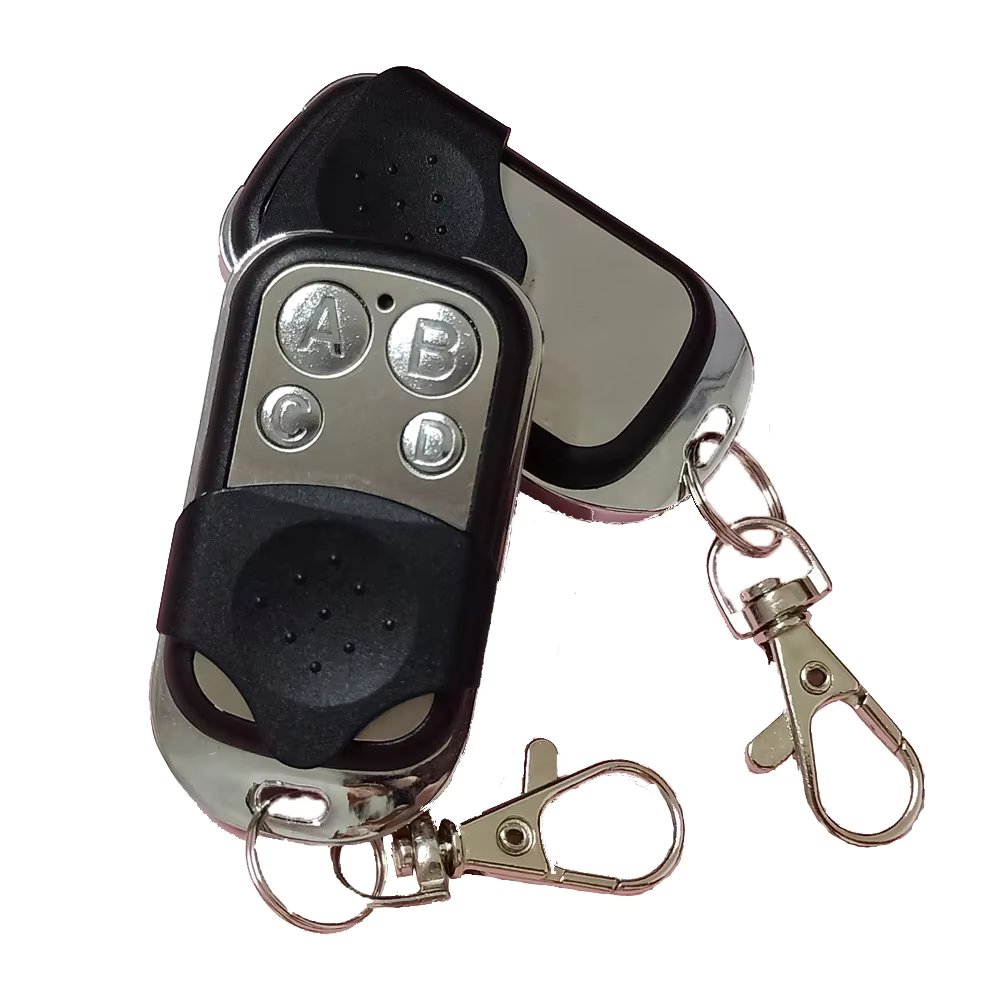

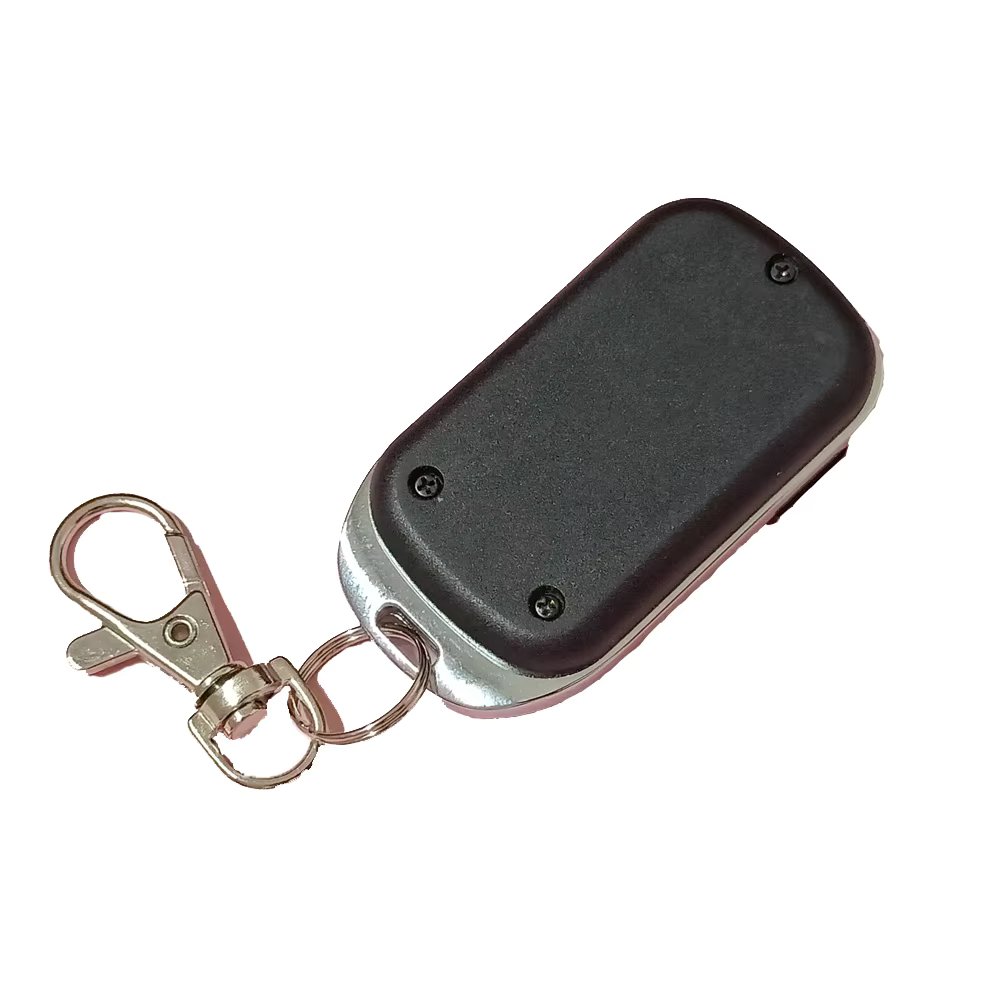

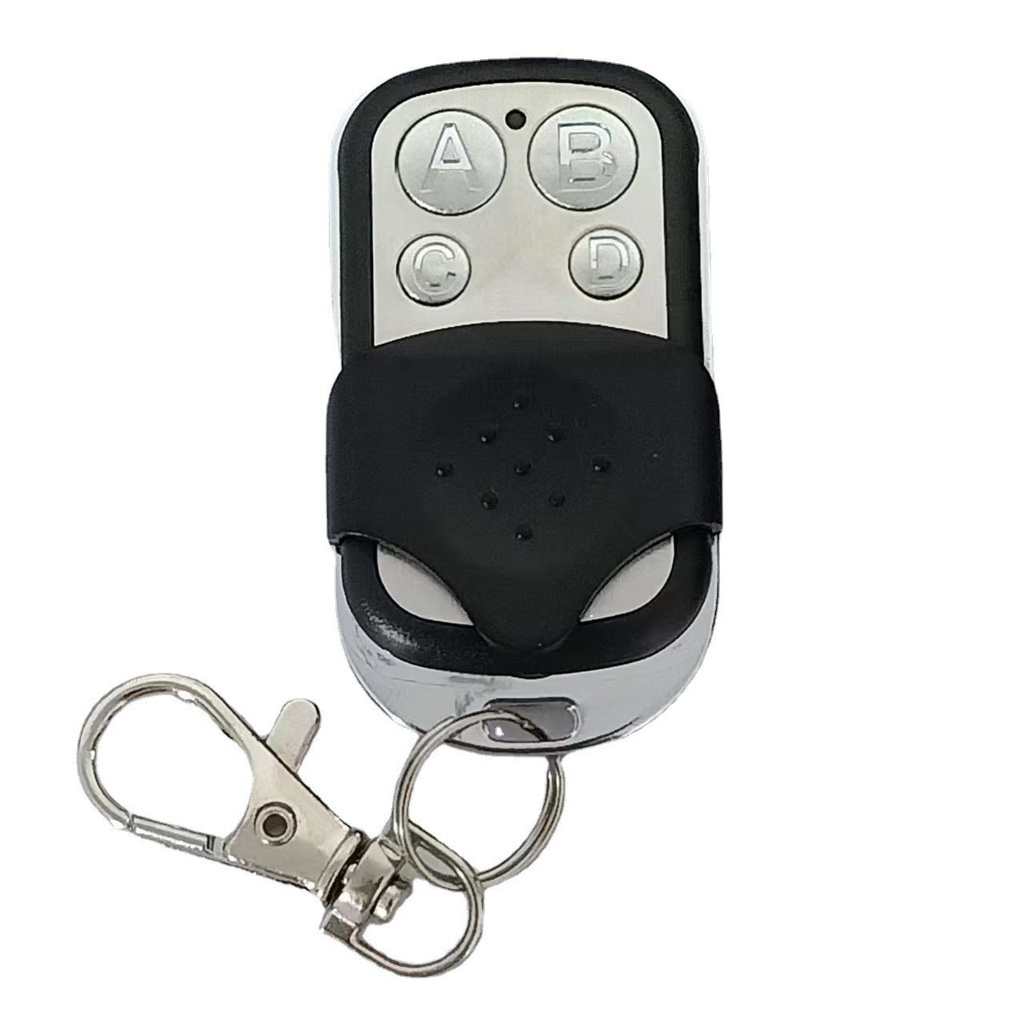

● Name: Metal copy four-button remote control
● Brand: LL
● Model: LL-KB-CQBYKQ
● Frequency: 433M
● Color: Metal frame, black shell, ABCD keys, unlock key, 1234 number keys, up and down keys.
● Powered 27A 12V battery (included)
Features:
● This remote control can be used for: telescopic door remote control, gate remote control, sliding door remote control, swing door remote control, flap door remote control, rolling door remote control, garage door remote control, electric door remote control, curtain remote control, car cover remote control, wife socket remote control, LED light remote control, wireless doorbell remote control, car fender remote control, anti-theft device remote control, alarm remote control, motorcycle remote control, electric car remote control, etc. For other functions, please see the IC description below.
1. Chips that can be copied:
2260 (all manufacturers), 2262 (all manufacturers), PT2264, 5326 (all manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers), HCS101, HCS200\HCS201 (partial code), HCS300\HCS301 (partial code), some single-chip microcomputers..........
1.Chips could be copied
2260(all manufacturers);2262(All manufacturers);PT2264, 5326(All manufacturers);SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series,527(All manufacturers);1527(All manufacturers);2240( All manufacturers);HCS101, HCS200\HCS201(part code),HCS300\HCS301(part code), part single chip microcomputer.....
2. Code clearing method:
Press and hold the unlock and lock buttons at the same time (some shells have up and down buttons), the LED indicator flashes three times, release any one button, without releasing the other, click the released button three times, the LED indicator enters a fast flashing state, and all the data in the memory is cleared. After clearing the data, no matter which button is pressed on the remote control, the LED indicator will not light up.
2.Code cleaning method:
Press the unlock button and lock button at the same time (some shells are the up button and down button), after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.
3. Copy method:
Hold the original remote control in one hand and the copy remote control in the other, and keep the two remote controls as close as possible (ideally, place the two remote controls side by side on the desktop at zero distance). Press the buttons you need to copy respectively. The LED indicator flashes three times quickly and then flashes quickly. The copy is successful. The other buttons are operated in the same way. Some remote controls have low transmission power. The original remote control and the copy remote control should be operated back to back for copying. Some operating environments have interference, so avoid interference. If the copying is not working well, clear the code and copy again. (Especially important: the remote control in your hand must be able to work normally and have the same frequency as our remote control.
3. Copy method
One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code. (Attention: Your original remote control must be able to work and the same as our remote control frequency)
4. Features of the new copy remote control:
The four buttons can copy four different types of chips respectively, that is, one remote control can operate four different types of facilities. The data copying speed is fast, the code is not easily lost, and the distance is long.
4. The features of new copy remote control
The four buttons could respectively copy four different types of chips, That is a remote control can operate four different types of facilities. The frequency is from 270MHz to 434MHZ and more than ten frequency points. Faster copy data speed, not easy losing code, far distance.
