"Instructions for use
● - Clear pairing code: (Before switching modes, clear the code first)
● - Press the learning code button 9 times, and the LED goes out. LED blinks 5 times, clear OK. (If the
● same remote control needs to change the working mode, please clear the code before learning)
Learning to
● 1. code: 1. Jog function:
● - Press the pairing button on the control board once, and the LED indicator will flash once. After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control board will flash 3 times continuously for successful code pairing.
● 2. Self-locking function:
● - Press the pairing button on the control board twice continuously, and the LED indicator will flash once. After the LED indicator lights up,
● - Press the button on the remote control that needs to be paired, and the LED indicator on the control board will flash thrice.
● 3. Interlocking function:
● - Press the code pairing button on the control board 3 times in succession, the LED indicator light will flash once, Wait for the LED light to light up and press the remote control button that needs to be coded, and the LED indicator light on the control board will flash 3 times in a row Code matching is successful.
● 4. Delay 5 seconds learning method:
● - Press the pairing button on the control board 4 times, and the LED indicator flashes once. After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control board flashes 3 times continuously, indicating that the pairing is successful.
● 5. Delay 10 seconds learning method:
● - Press the pairing button on the control board 5 times continuously, and the LED indicator will flash once. After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control board will flash 3 times continuously, indicating that the pairing is
● successful. 6. Delay 15 seconds learning method:
● - Press the pairing button on the control board 6 times in succession, the LED indicator flashes once, and after the LED indicator lights up, press the remote control button that needs to be paired, the LED indicator on the control board flashes 3 times continuously, and the code pairing is successful.
● 7. Delay 20 seconds learning method:
● - Press the pairing button on the control board 7 times in succession, The LED indicator flashes once, Wait for the LED indicator to light up, and press the remote control button that needs to be paired, the LED indicator on the control board flashes 3 times continuously, and the code pairing is successful.
● 8. Power on and open function learning method:
● - Press the pairing button on the control board 8 times in a row, and the LED indicator light flashes once, after the LED indicator light is on, press the remote control button that needs to be paired, and the LED indicator light on the control board flashes 3 times continuously, and the code pairing is successful. (This function is that The relay automatically pulls in after power-on, also known as the function of turning on the light when the power comes in)

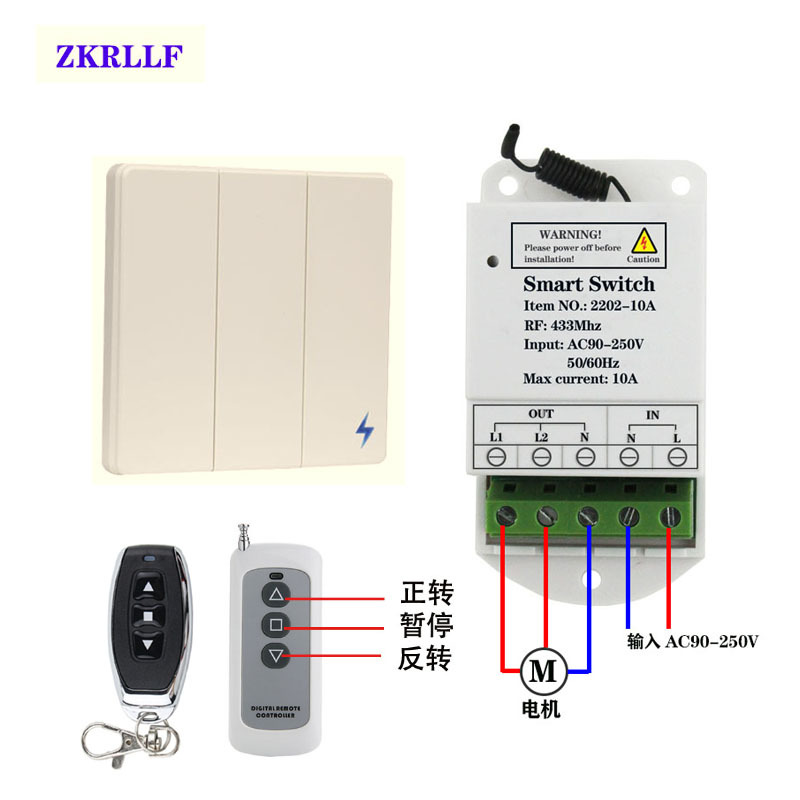

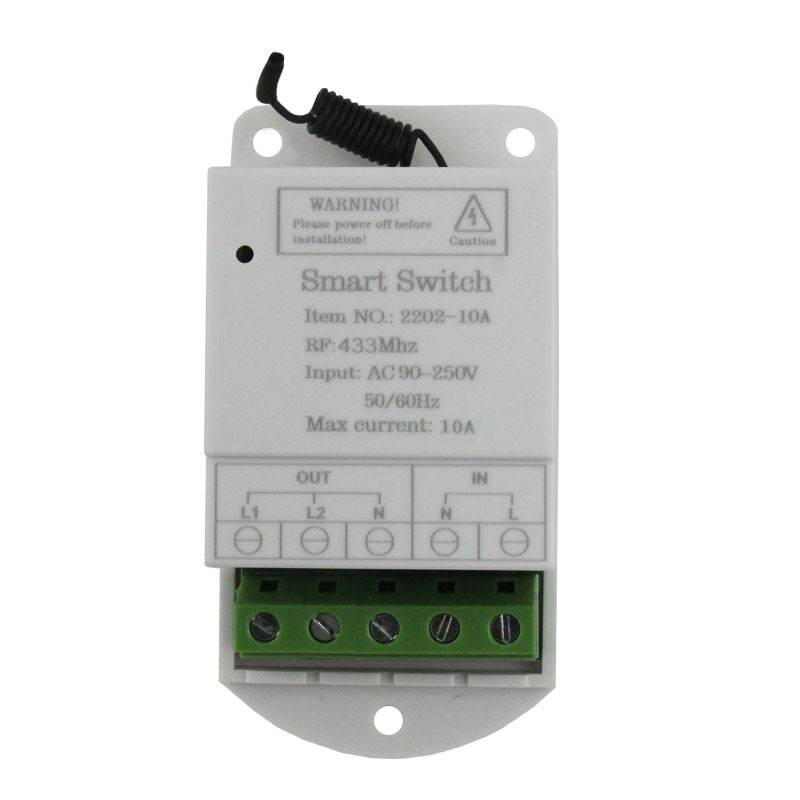

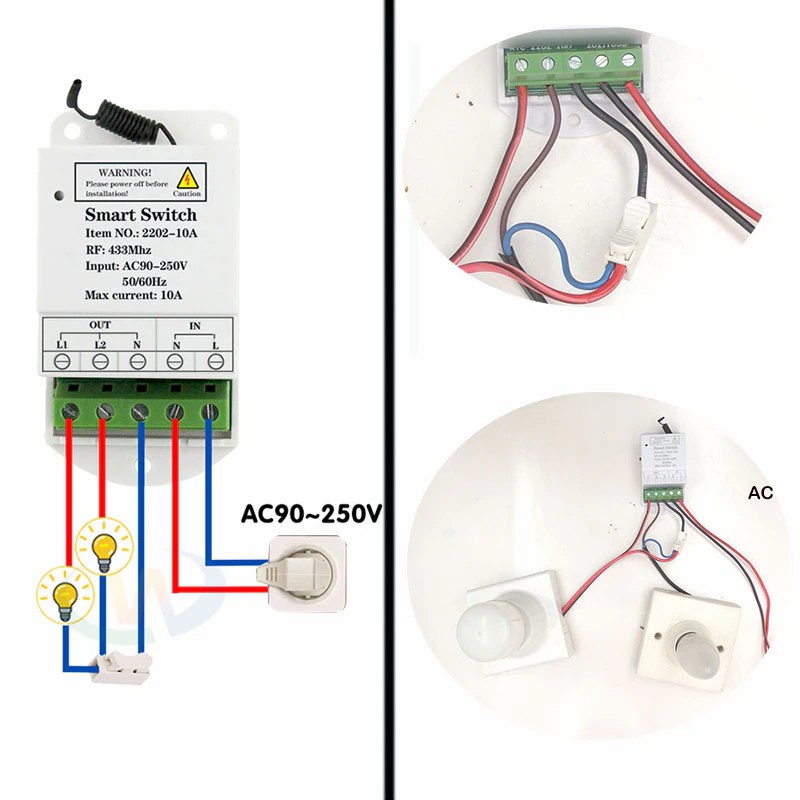

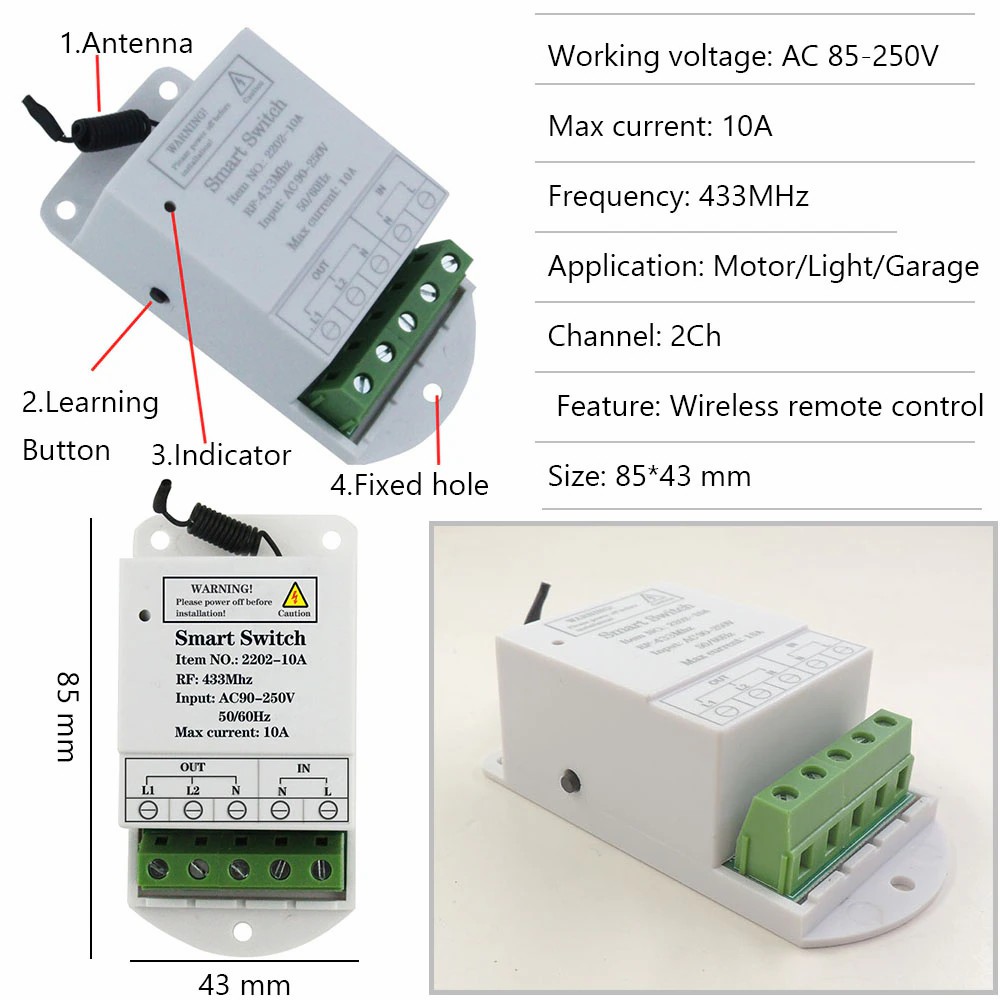

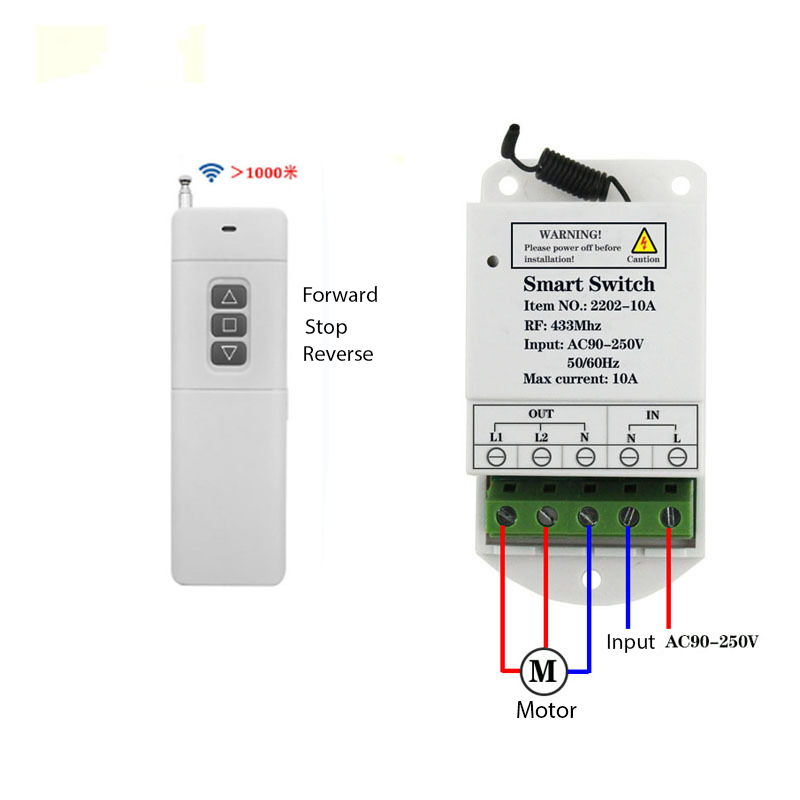

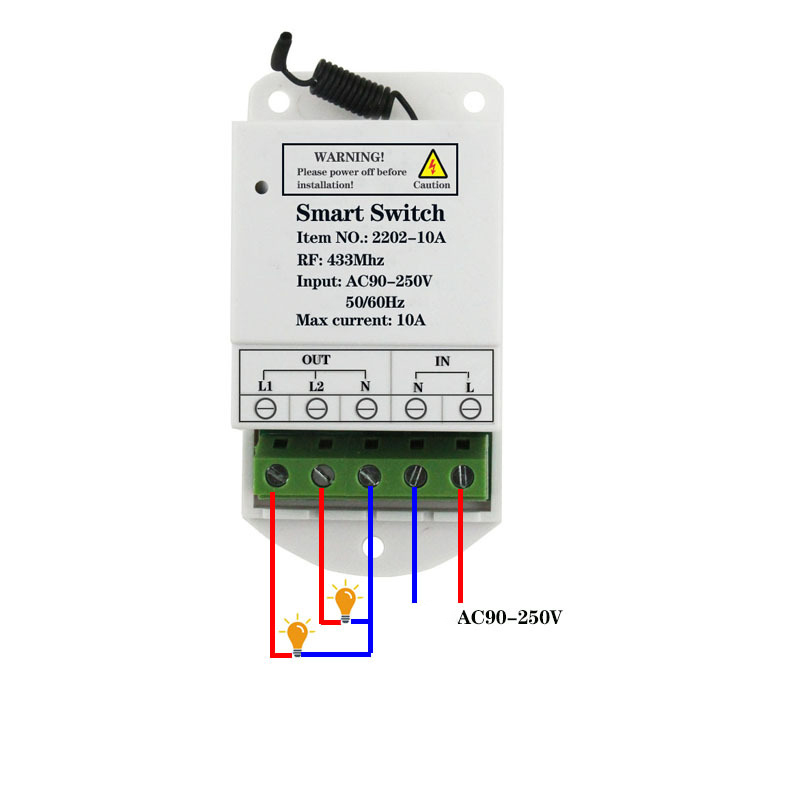

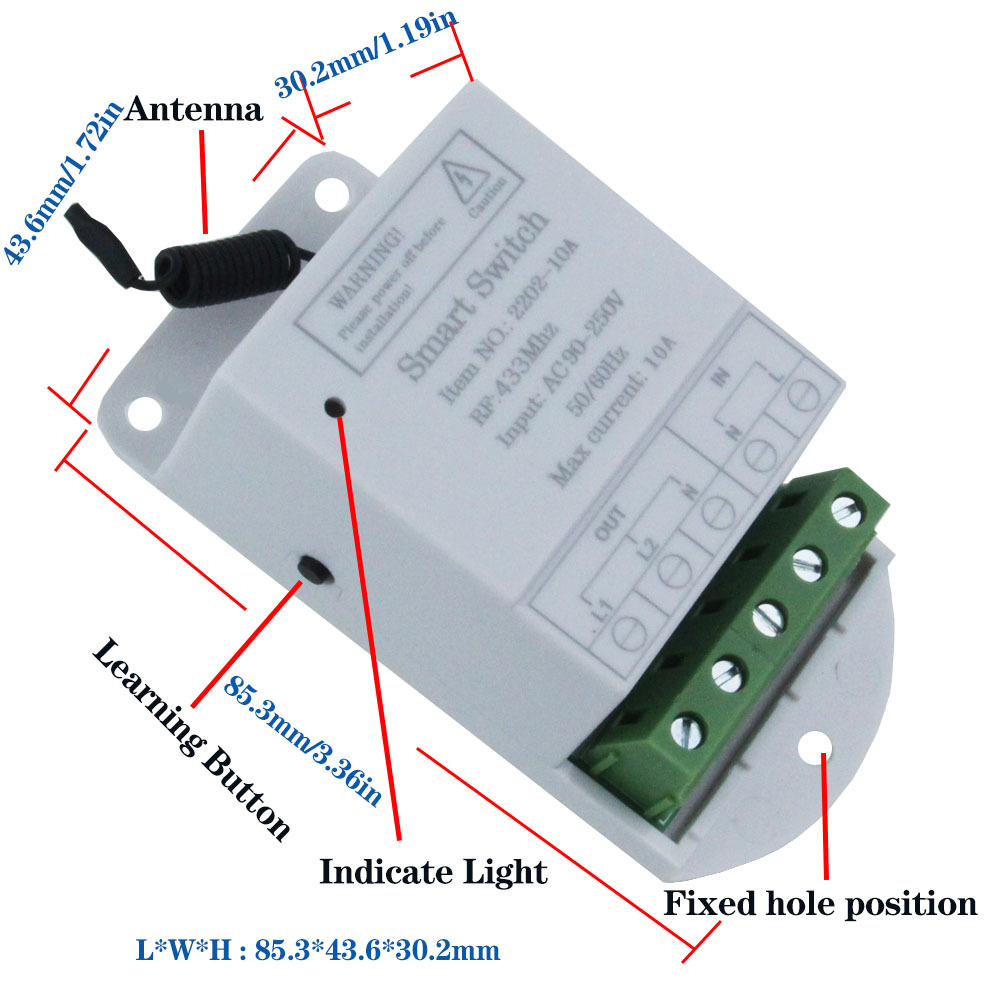

Relay Receiver Product Data
● Working voltage: AC90V-250V
● Quiescent Current: <5MA
● Max current: 10A
● Max load: 2200W
● RF frequency: 433MHz
● Working temperature: -30~+80
● Receiving Sensitivity : >97dbm
● Amount of storage remote controls: 25 pieces
● Support encoding: 1527 Leaning code
● RF Operating mode: ASK superheterodyne wireless reception
● Receiving range: Open space is more than 50 meters
● Remote operating mode: Momentary Mode / Toggle Mode /Latched Mode

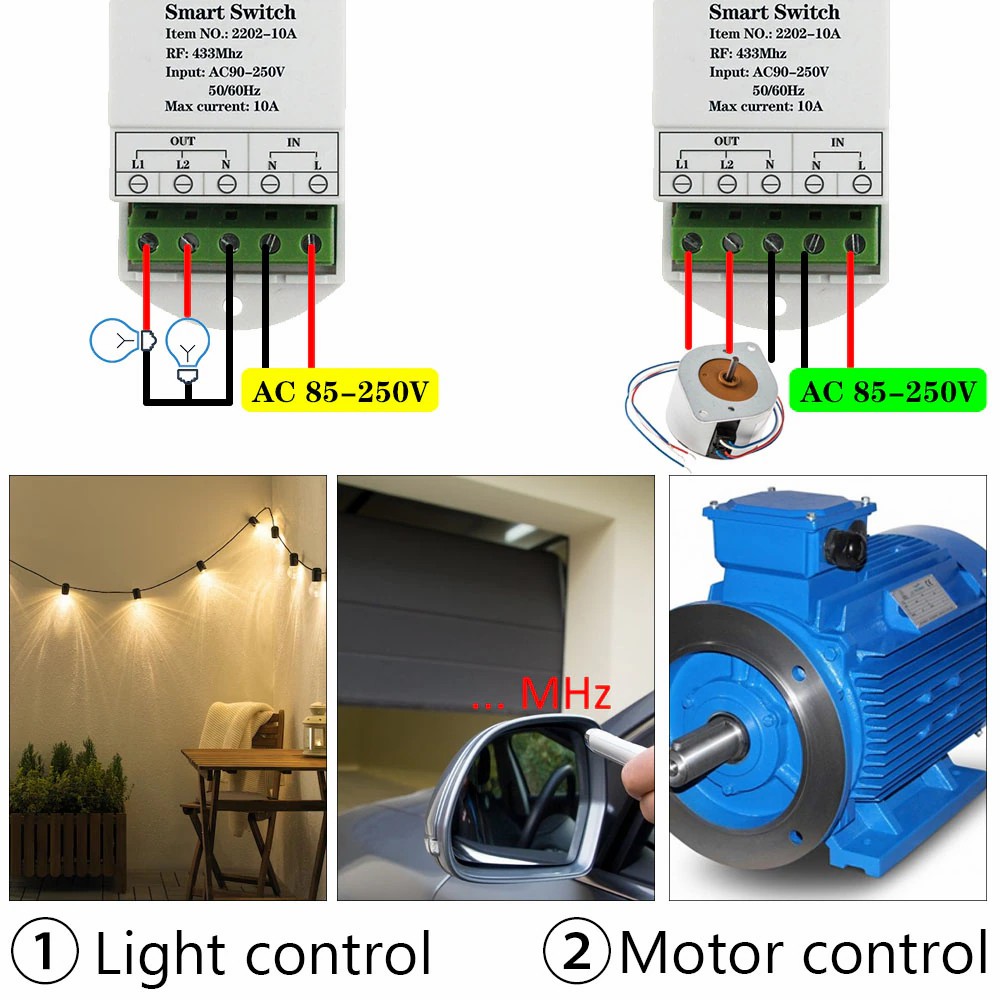

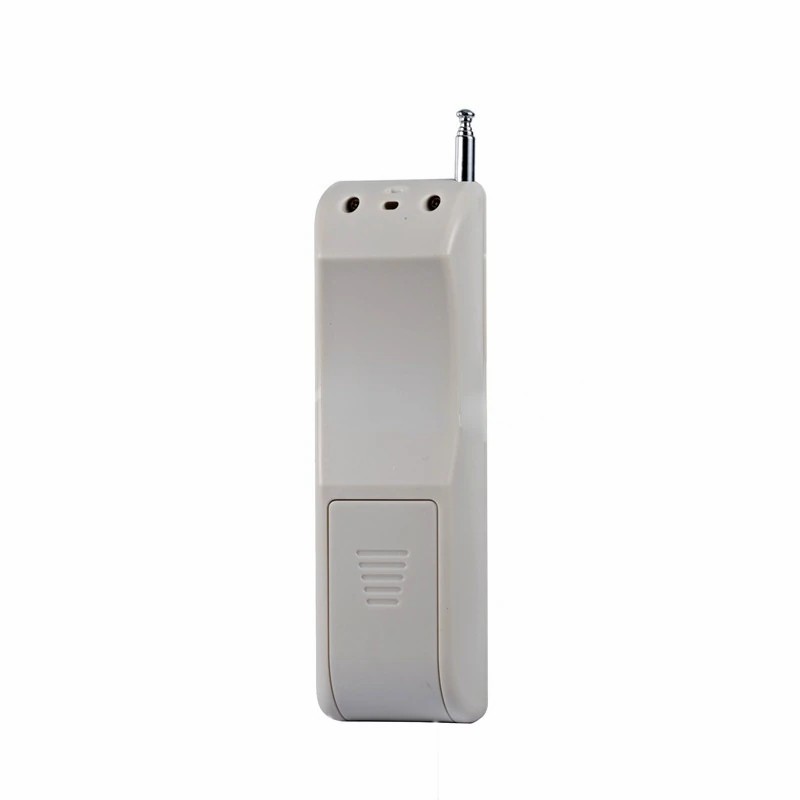

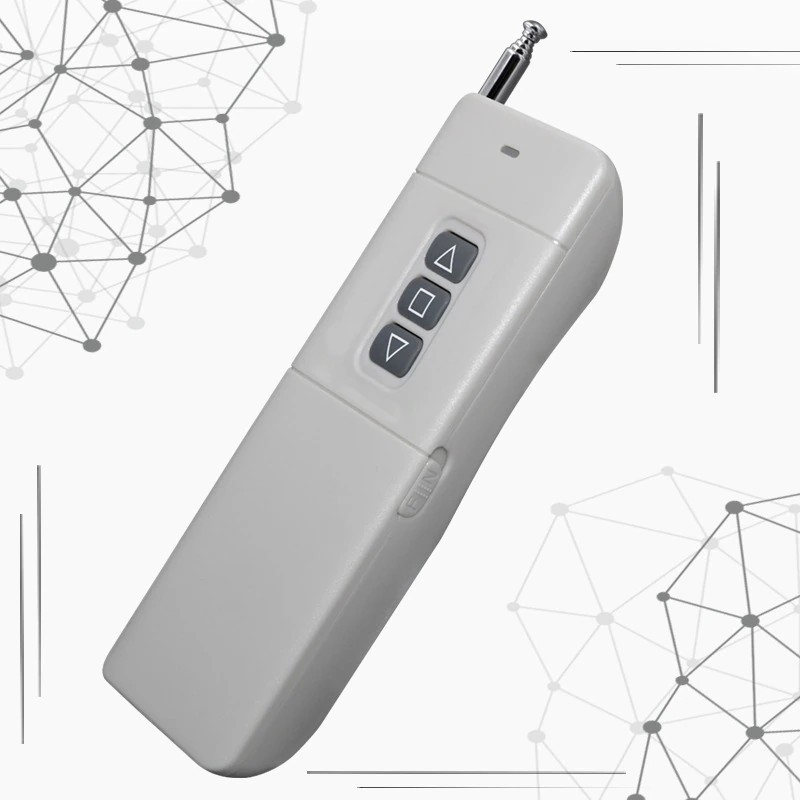

Remote Control Product Data
● 1. Working Voltage: DC9V Battery
● 2. Working Frequency: 433.92MHz
● 3. Standby Current:0mA
● 4. Working Current:>80mA
● 5. Encoding Type: 1527
● 6. Transmitting Distance: 1000m over (more than -103dBm) (( Ideal Distance without any block and signal interference would rise and fall about 10%-90% with the block and signal interference.)
● 7. Transmitting Power: 3000m(18dBm);
● 8. Transmitting Rate:<10Kbps
● 9. Modulation System: ASK
● 10. Working Temperature:-10'C~+70'C
● 11. Size:136*42.2*25mm

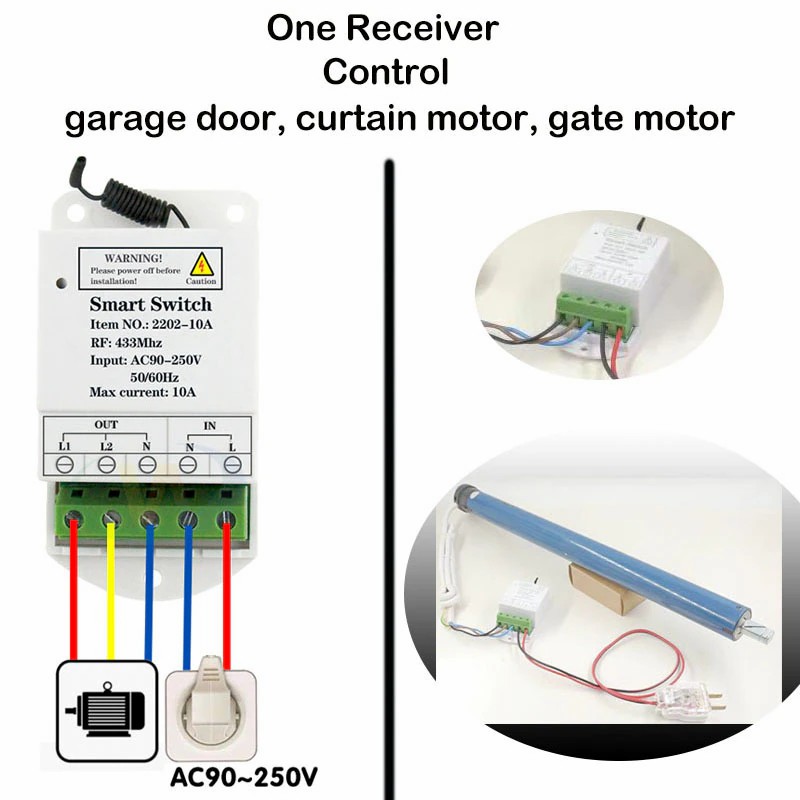

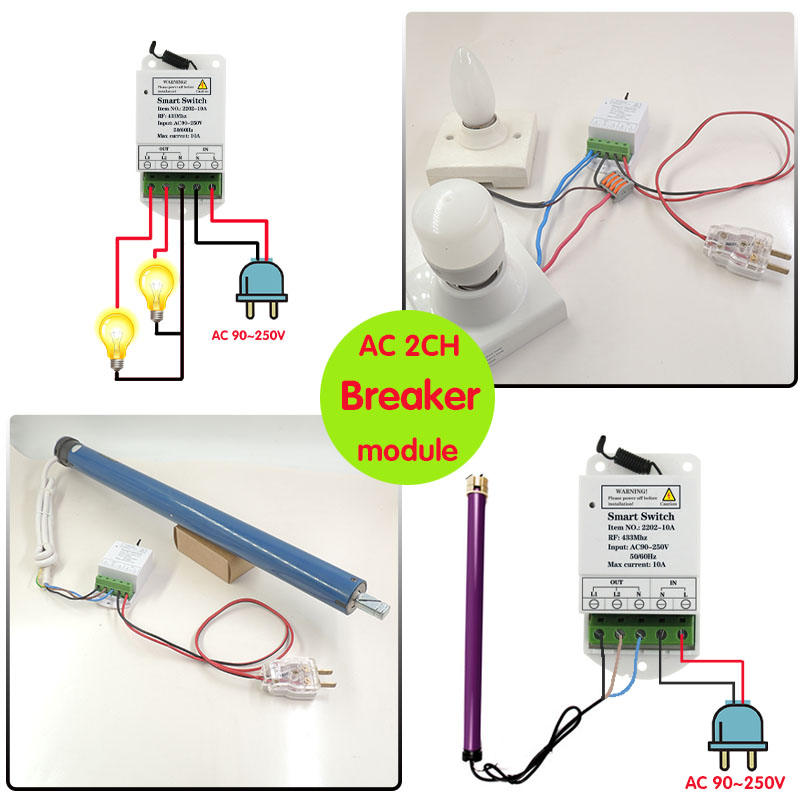

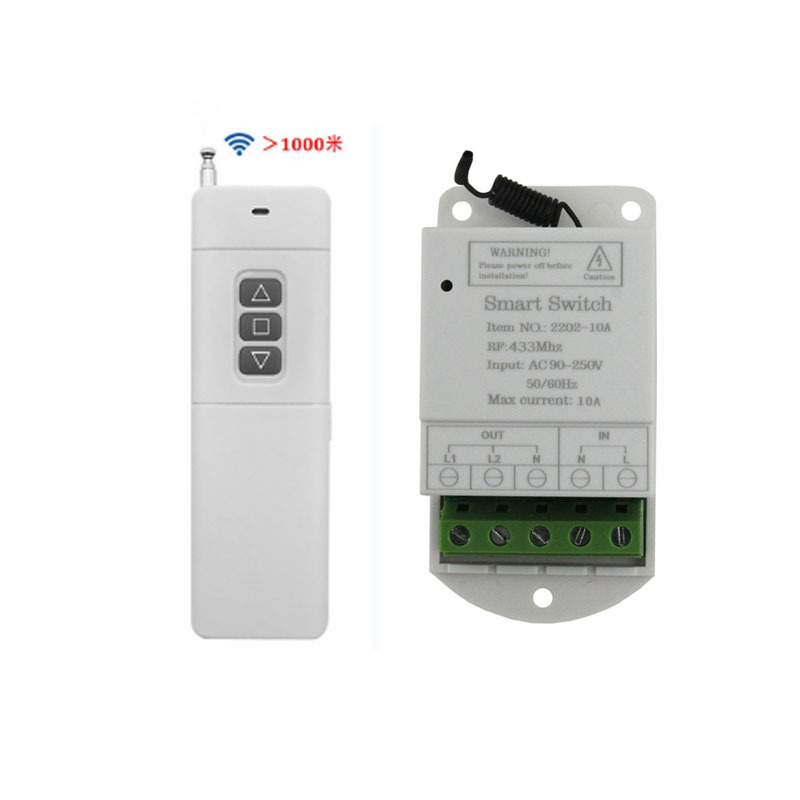

Package Include
● 1 * RF Smart Switch
● 1 * Remote Control
● 1 * Battery
