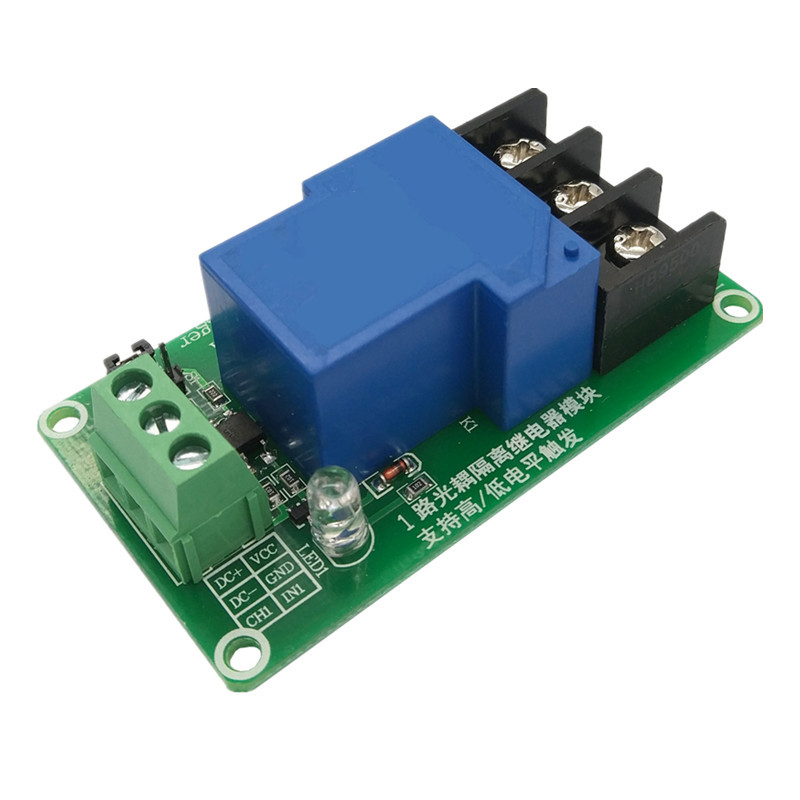

5V 12V 24V Supports High And Low Triger 1 Channel Relay Module 30A With Optocoupler Isolation

Descripition:

● 1,the module uses genuine high quality 30A relay,normally open interface maximum load: AC 250V / 30A,DC 30V / 30A;
● 2,the use of SMD optocoupler isolation,strong drive capability,stable performance; trigger current 5mA;
● 3,the module voltage 5V,12V,24V to choose from;
● 4,the module can be set by jumper high or low trigger
● 5,user-friendly interface design,all interfaces can be directly connected through the terminal leads,very convenient
● 6,Module Size: 72mm * 40mm * 24mm (L * W * H)
● 8,with four fixed bolt holes,holes 3.1mm,spacing 44.5mm * 27.5mm

Technical parameters:

● Relay version: 5V
● Quiescent current: 5mA
● Maximum current: 190mA
● Trigger current: 2-4mA

● Relay version: 12V
● Quiescent current: 5mA
● Maximum current: 80mA
● Trigger current: 2-4mA

● Relay version: 24V
● Quiescent current: 5mA
● Maximum current: 50mA
● Trigger current: 2-4mA

Module interface:

● 1.DC +: module DC power supply positive (trigger terminal voltage positive)
● 2.DC-: module DC power supply negative (trigger terminal voltage negative)
● 3.IN: signal trigger terminal (the default trigger voltage and power supply the same)
● 4. High / low level trigger mode selection,as shown,jumper and L-side connection,IN-side low-level trigger,connected with the H-side high trigger
● 5. NC (NC): normally closed relay
● 6. Common (COM): Relay Common
● 7. often open (NO): relay normally open

Package List:
● 1 * 5V/12V/24V 1 Channel Relay Module
