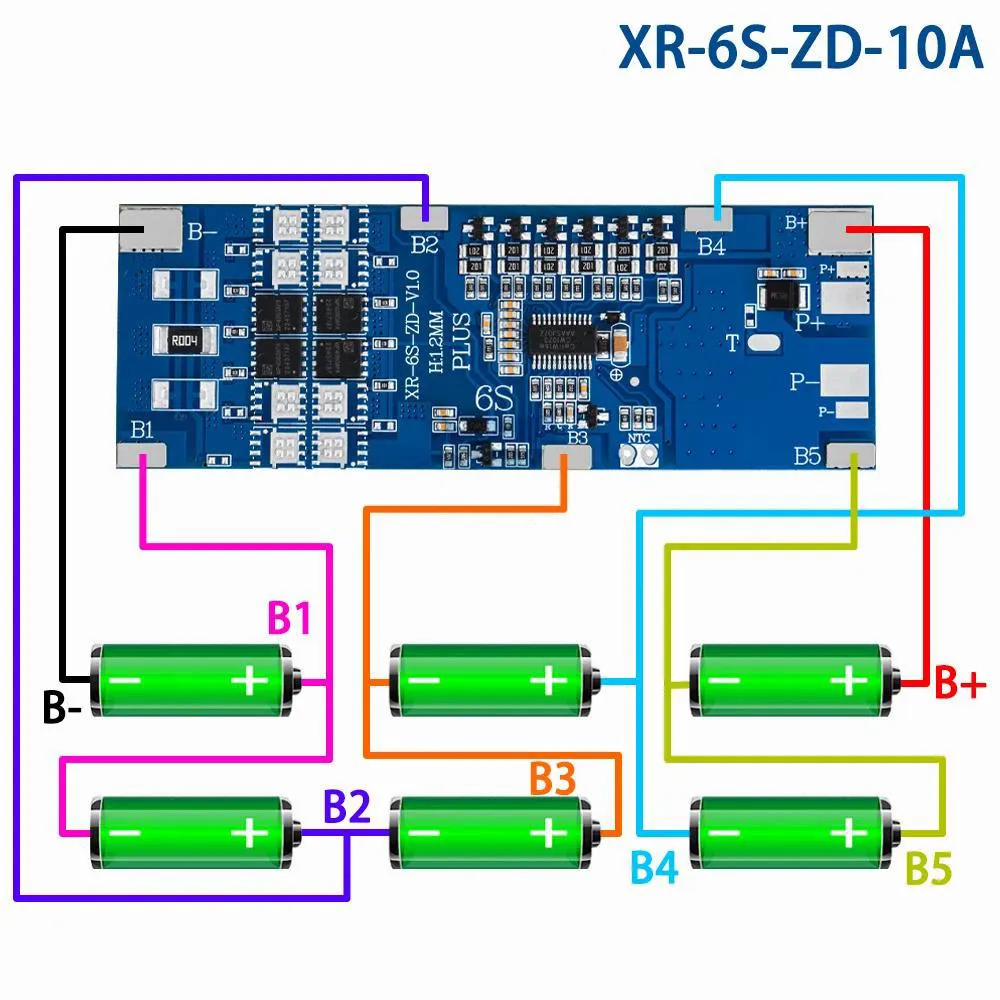

🔋 BMS 6S 22.2V 18650 Li-ion Battery Protection Board
⚡ Charging Specifications
🔹 Single Cell Overcharge Voltage: 4.25V ±0.025V
🔹 Continuous Charging Current: 10A / 20A / 30A
🔹 Charge Equalization Voltage: 4.15V ±0.025V
🔹 Charge Equalization Current: 40mA
🔹 Recommended Charger Voltage: 30V
🌡️ Charging Over-Temperature Protection: 50°C
🌡️ Discharge Over-Temperature Protection: 70°C
🔋 Working Power Consumption: ≤30µA
⚙️ Main Circuit Internal Resistance: ≤50mΩ
🌡️ Operating Temperature Range: -40°C to 80°C
🔌 Wire Break Protection: Yes
📏 Size: 96 × 34 × 2.8 mm
🔻 Discharge Specifications
🔹 Single Cell Over-Discharge Voltage: 2.7V ±0.08V
🔹 Continuous Working Current: 10A / 20A / 30A
⚡ Instant Protection Current: 25A / 50A / 70A
🔄 Overcurrent Recovery: Charge recovery or disconnect load
🔄 Short-Circuit Recovery: Charge recovery or disconnect load
📌 General Specification
🔋 Type: 6S 22.2V
🔗 Connection Method: Common Port
Package Includes:
📦 1 × BMS 6S 22.2V 10A / 20A / 30A 18650 Li-ion Lithium Battery Charger Protection Board
