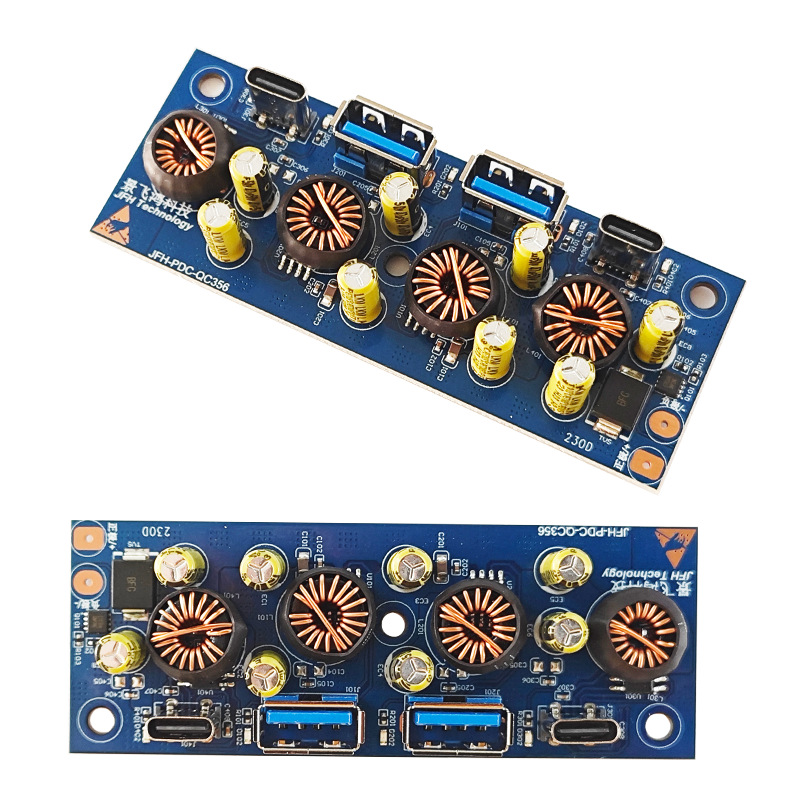

● Model:QC356
● Maximum output power per port: 27W
● Maximum total output power: 90W
● Welding wire length: 10cm

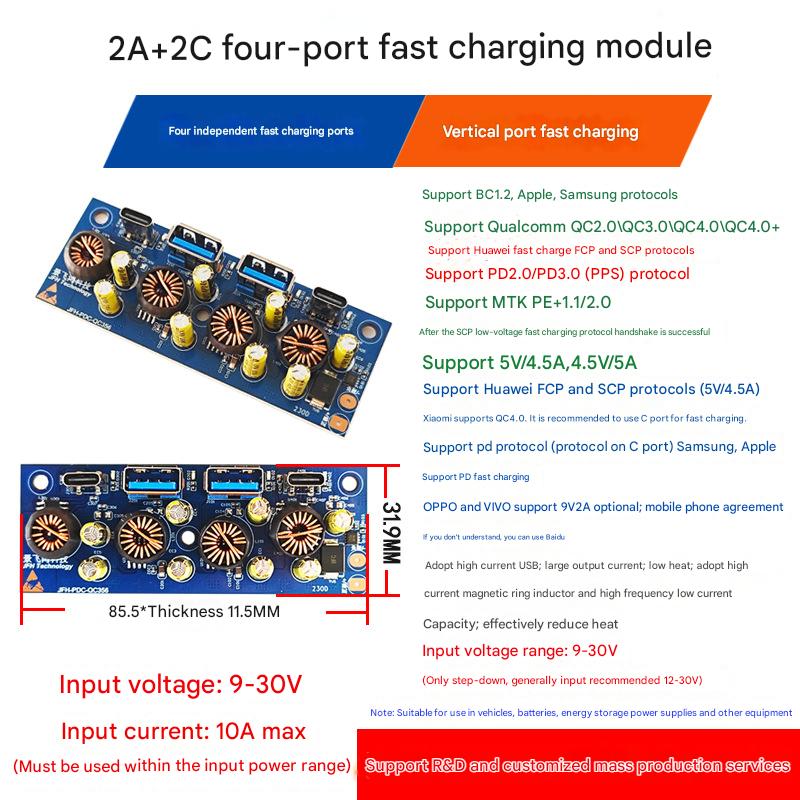

● 4 ports for independent fast charging

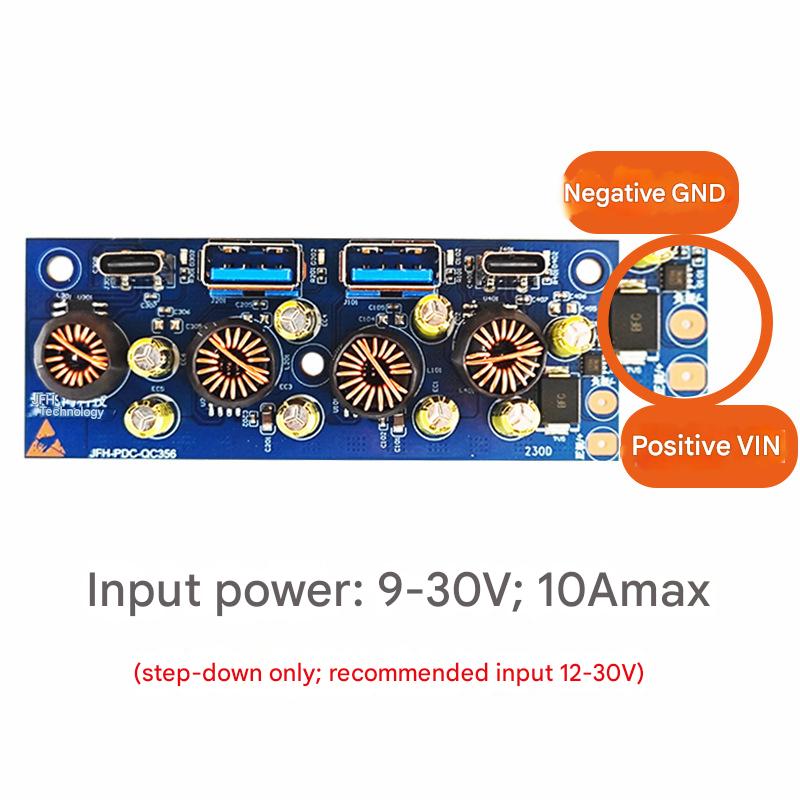

● Input voltage: 9-30V (Only step-down, generally input recommended 12-30V)
● Input current: 10A max
● Support QC4.0/PD/PPS and other protocols
● PD/QC protocol

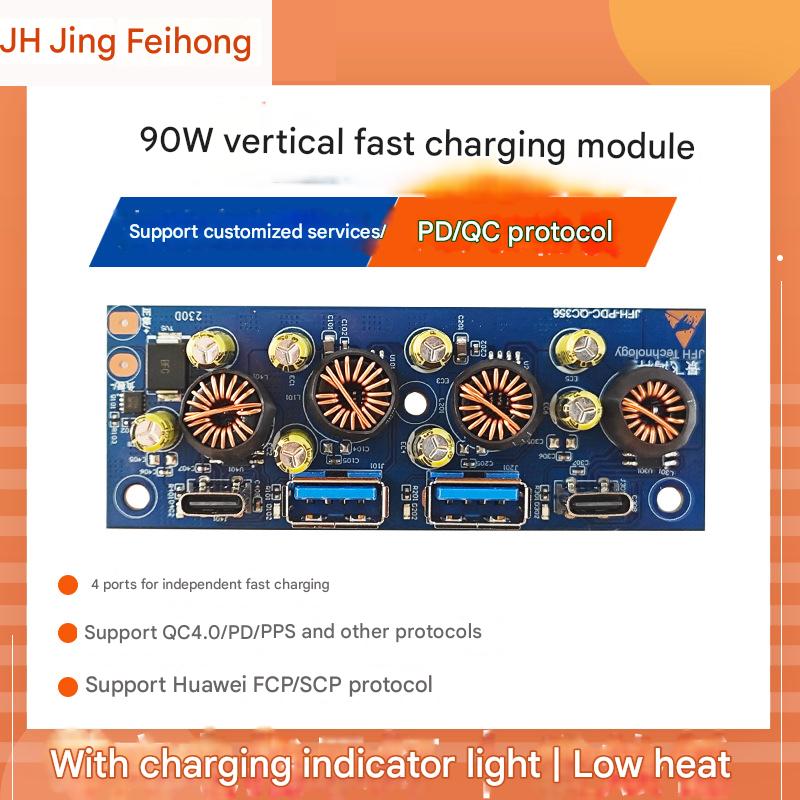

● Total 90W vertical fast charging module
● Support Apple 2.4A charging;
● Apple mobile phone up to 27W fast charging;
● Support pd protocol (protocol on C port) Samsung, Apple
● Support BC1.2; C port supports pd protocol,
● Support Qualcomm QC2.0\QC3.0\QC4.0\QC4.0+
● Support Xiaomi mobile phone up to 23W fast charging; Support laptops (requires input above 20V);
● Xiaomi supports QC4.0. It is recommended to use C port for fast charging.
● Support Huawei FCP and SCp protocol, up to 23W fast charging;
● Samsung A port supports AFC9V protocol fast charging; C port supports AFC12V protocol fast charging, with a maximum power of 22.5W;
● vivo mobile phones (iQ00 series) and OPPO mobile phones (OnePlus and Realme series) that support QC protocol can be fast charged, and slow charged if they do not support QC protocol;
● OPPO and VIVO support 9V2A optional; mobile phone agreement
● Support PD2.0/PD3.0 (PPS) protocol
● Support MTK PE+1.1/2.0
● After the SCP low-voltage fast charging protocol handshake is successful
● Support 5V/4.5A,4.5V/5A
● Support PD fast charging
● Adopt high current USB; large output current; low heat; adopt high current magnetic ring inductor and high frequency low current
● Capacity; effectively reduce heat

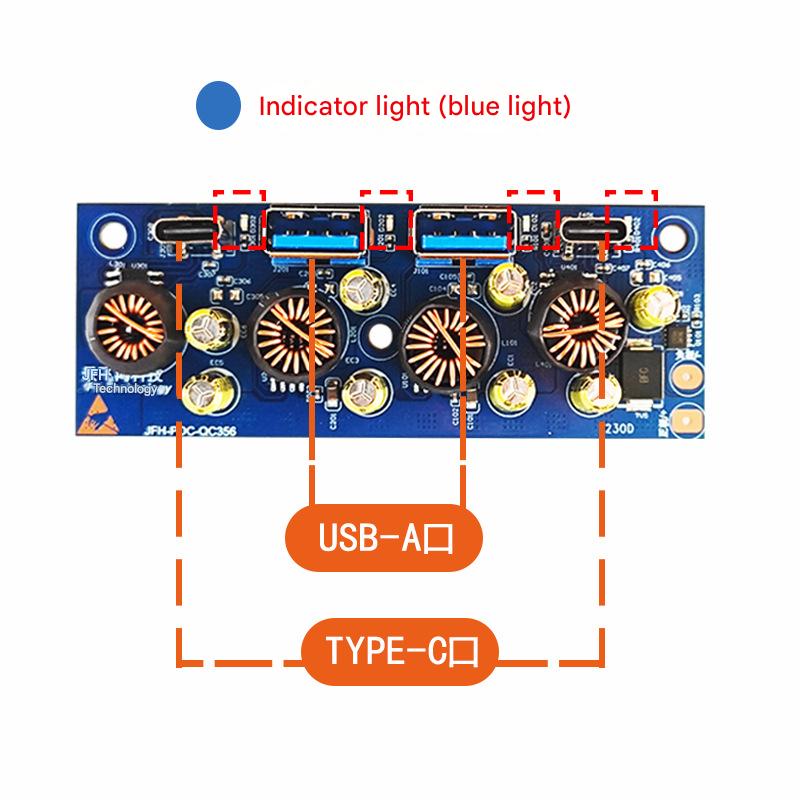

● With charging indicator light | Low heat
Note:
● Suitable for use in vehicles, batteries, energy storage power supplies and other equipment
● (Must be used within the input power range)
● The product has protection against reverse connection, temperature control, overcurrent, overvoltage, etc. Different protocols have different powers. The power of the direct protocol is up to 90W
