General:

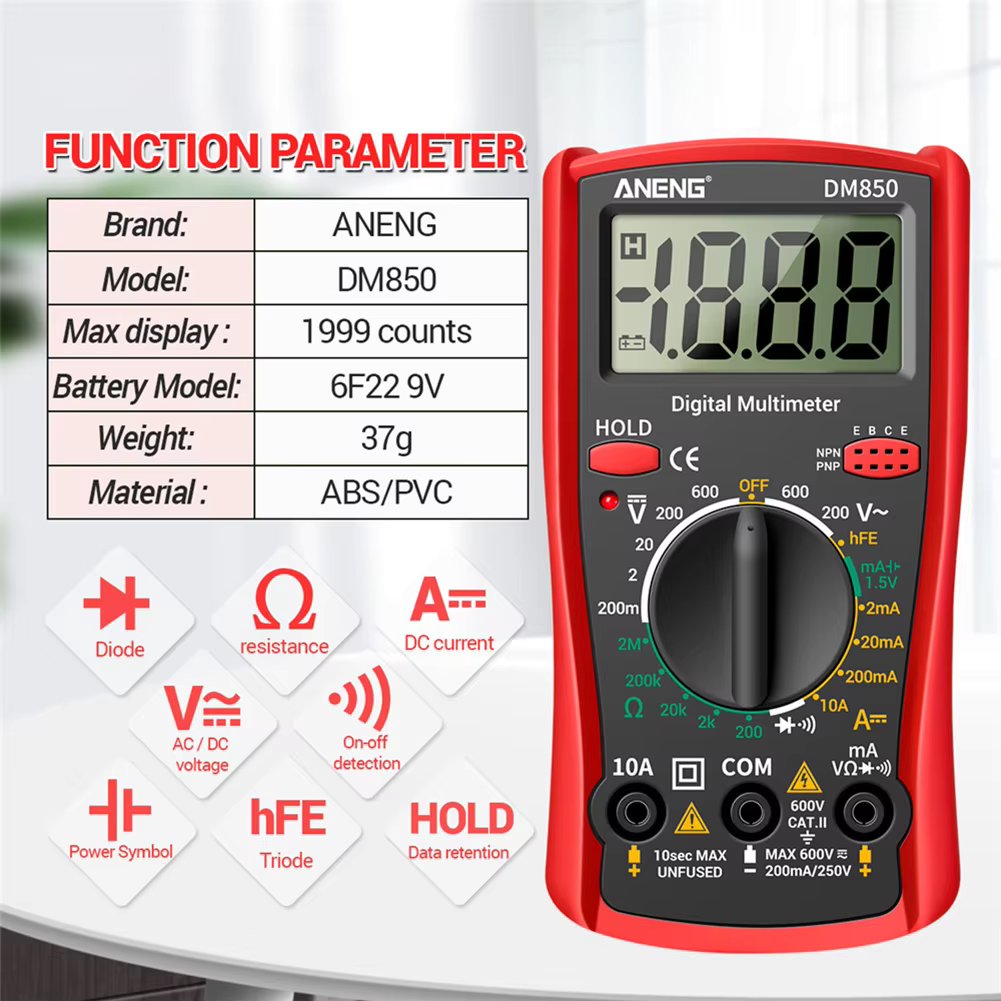

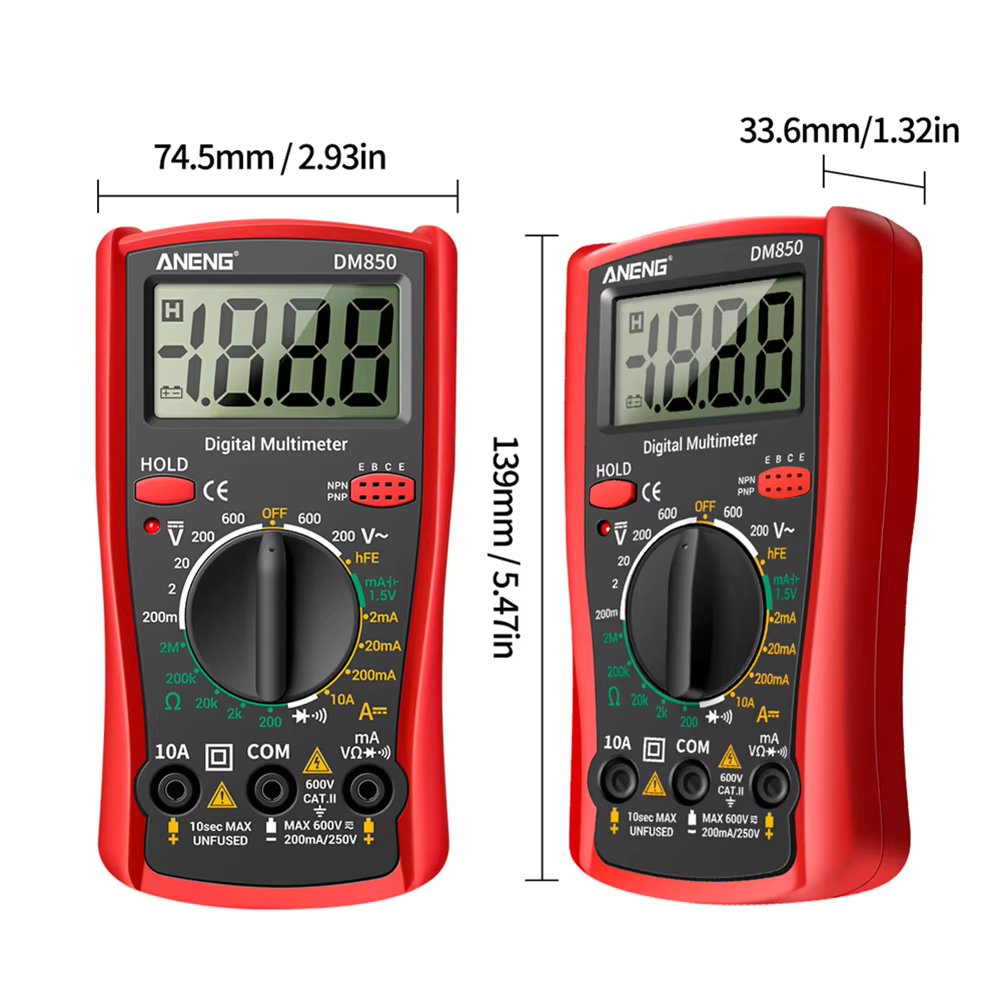

● This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.
● Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.
● They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
Function
Range
Accuracy
DC Voltage
200mV
+-(2% of rdg+3D)
2000mV/20V/200V
+-(2% of rdg+5D)
600V
+-(2.5% of rdg+5D)
AC Voltage
200V/600V
+-(2% of rdg+10D)
Frequency Range
45Hz~450Hz

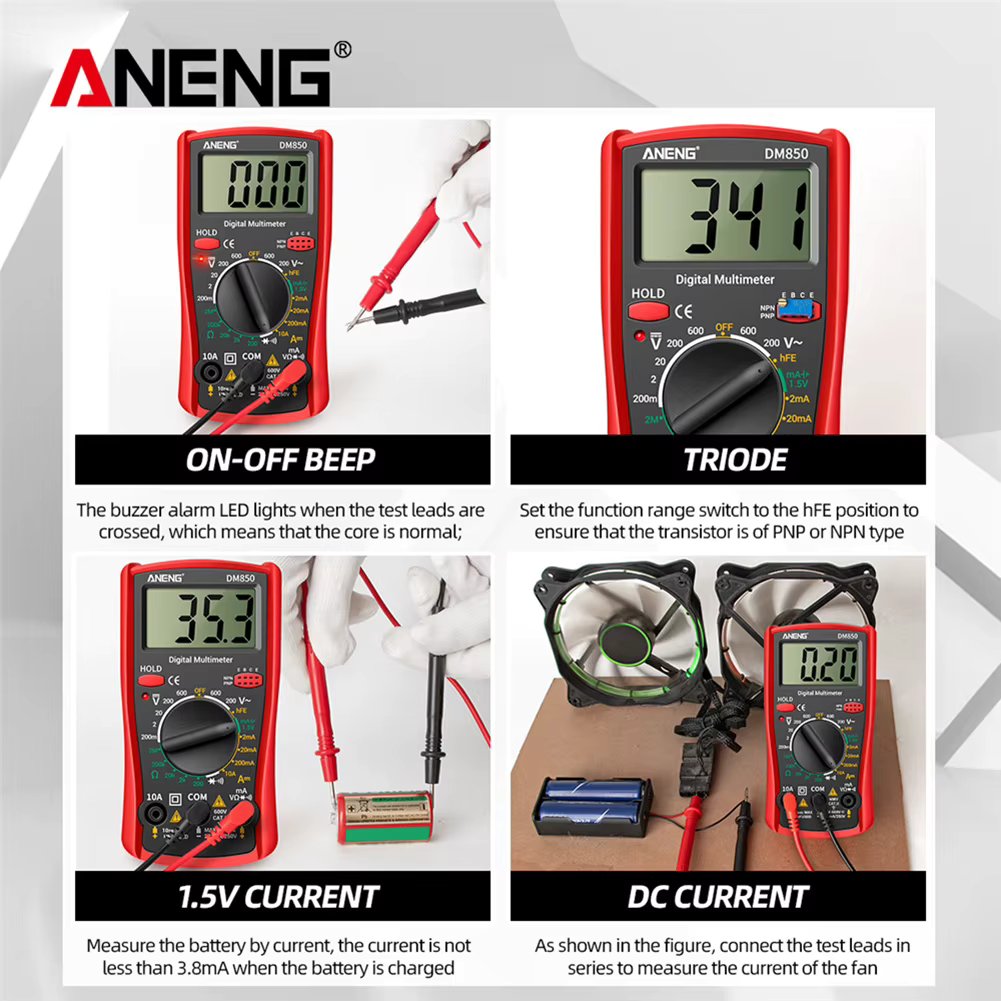

Audible Continuity Test
Yes
DC Current
200uA/2000uA/20mA
+-(2% of rdg+2D)
200mA
+-(2.5% of rdg+2D)
10A
+-(2.5% of rdg+10D)
Resistance
200Ω
+-(2.5% of rdg+10D)
2000Ω/20kΩ/200kΩ/2000kΩ
+-(2.5% of rdg+4D)
Overload Protection
15 second
Description

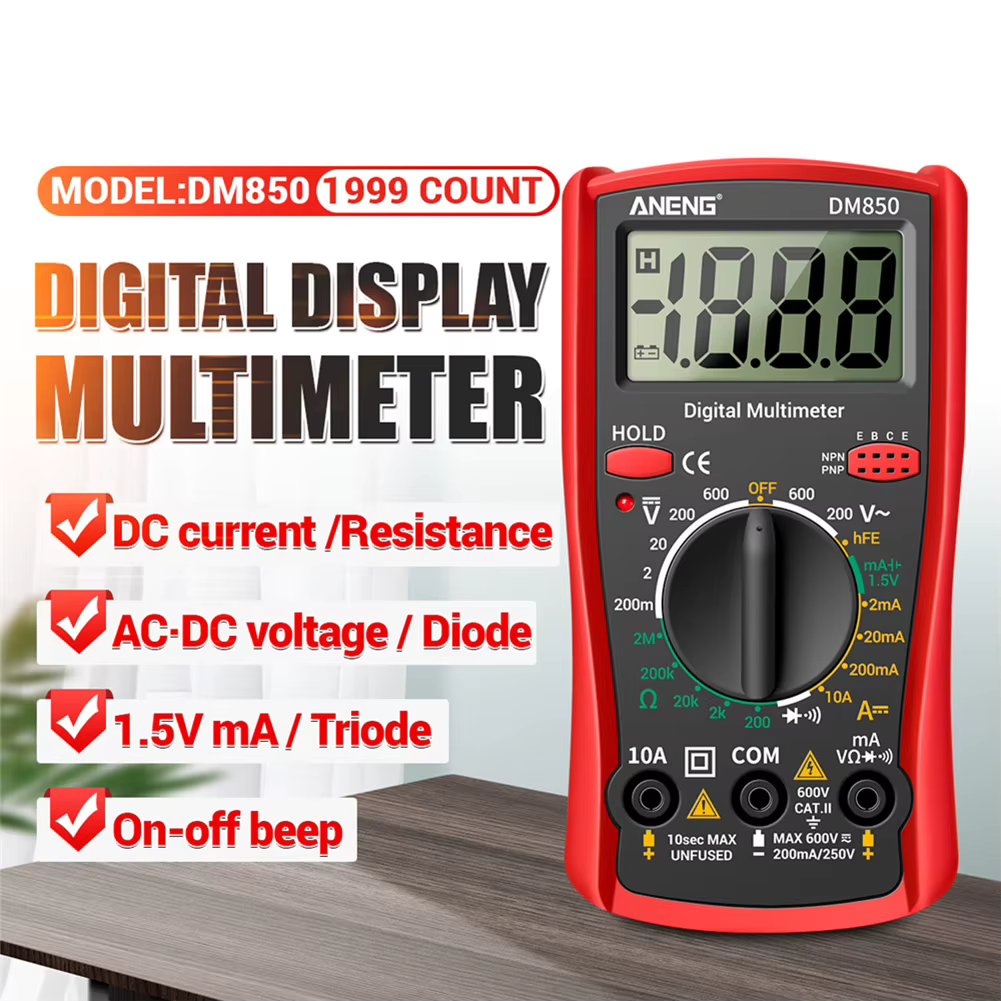

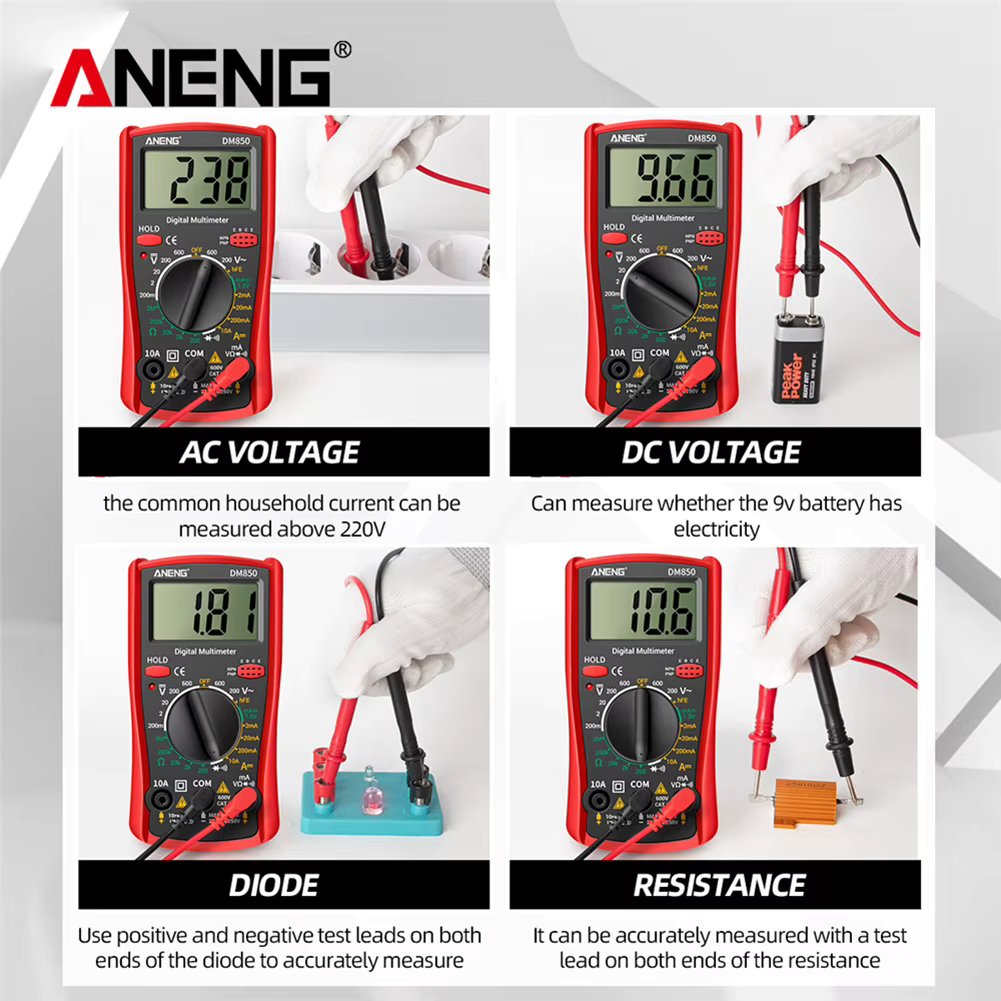

● Automatic AC/DC Voltage Testing :The ANENG DM850 1999 Counts Digital Multimeter can automatically test AC and DC voltage, making it easier and more efficient to use.
● Wide Range of Current Testing :With the ability to test currents up to 10A, this multimeter is perfect for a wide range of electrical applications.
● Digital Display :The digital display on the ANENG DM850 1999 Counts Digital Multimeter provides accurate and easy-to-read results, making it a reliable tool for any electrician.
● Data Retention :The multimeter has the ability to retain data, allowing users to track and monitor electrical signals over time.
● Digital Display :The digital display provides accurate and easy-to-read measurements, making it simple to understand the results of your tests.
● Automatic AC/DC Voltage Testing :With the ability to test both AC and DC voltage, this multimeter is versatile and can be used for a wide range of electrical applications.
● High Voltage Testing :With a maximum voltage testing capability of 600V, this multimeter is suitable for testing high-voltage circuits and components.
● Current Ohm Ammeter Detector :The current ohmmeter function allows you to measure the resistance of materials, making it useful for troubleshooting electrical circuits.
