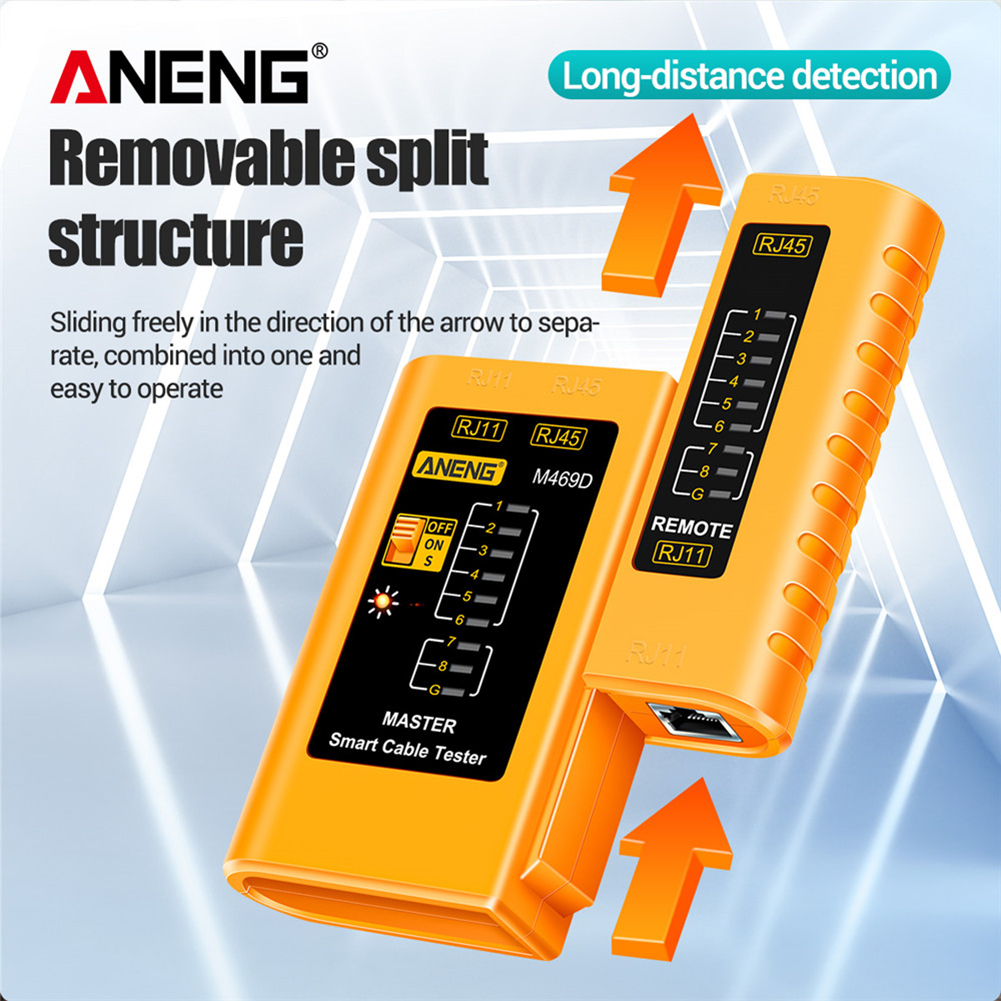

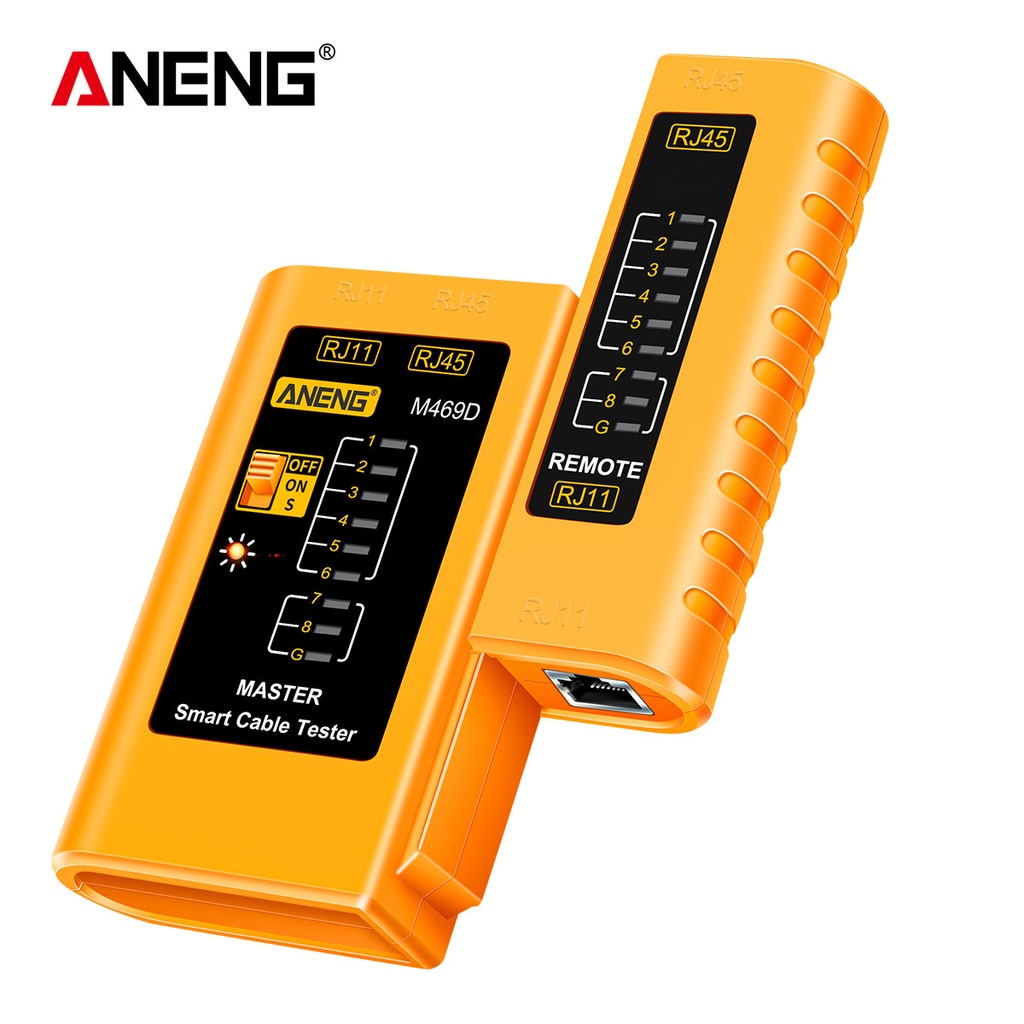

Feature:

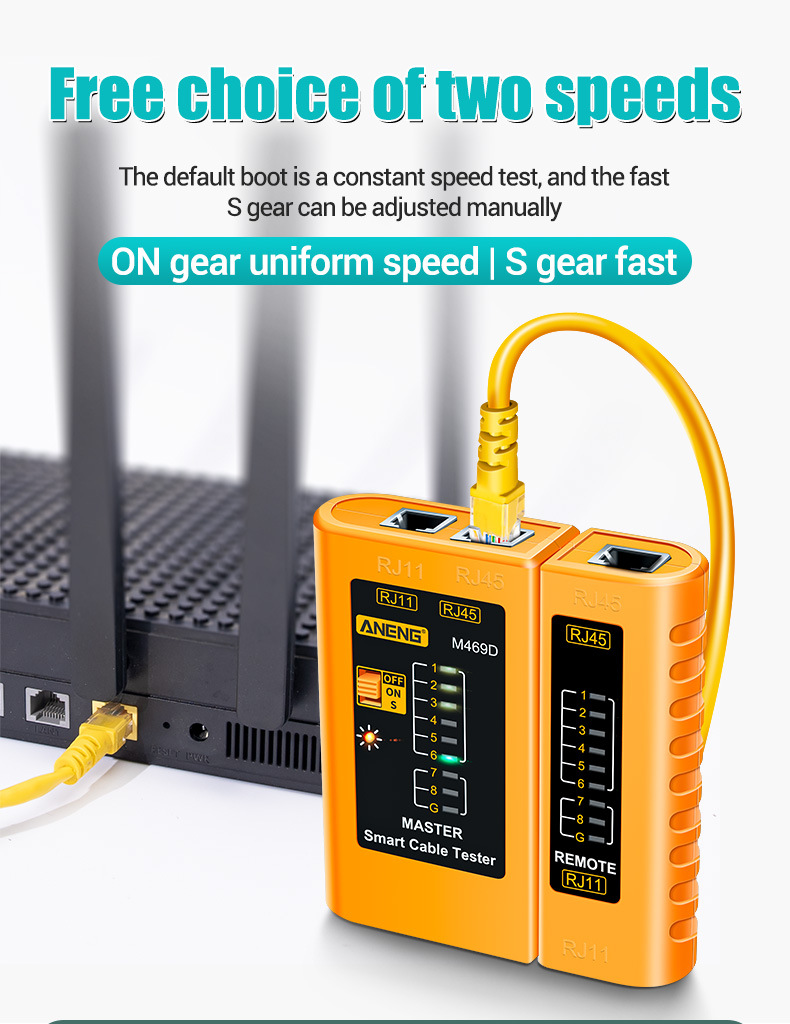

● Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.)

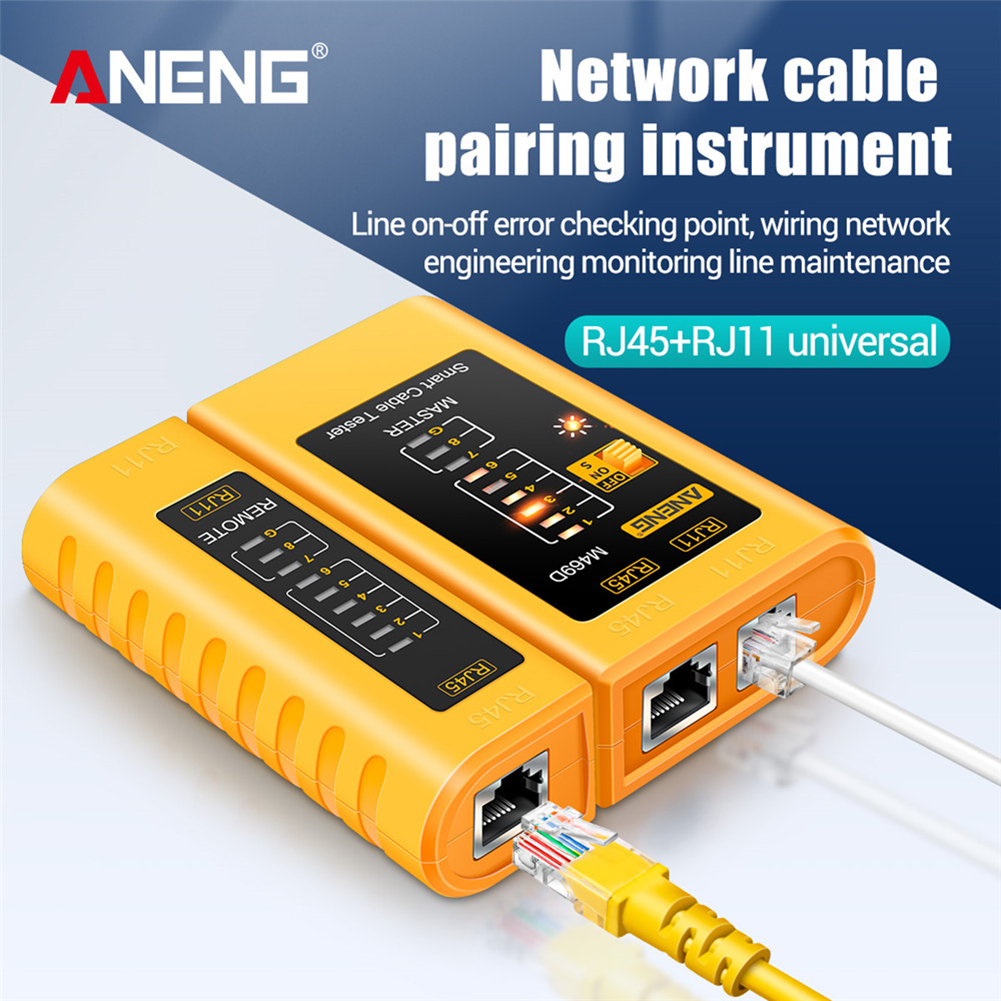

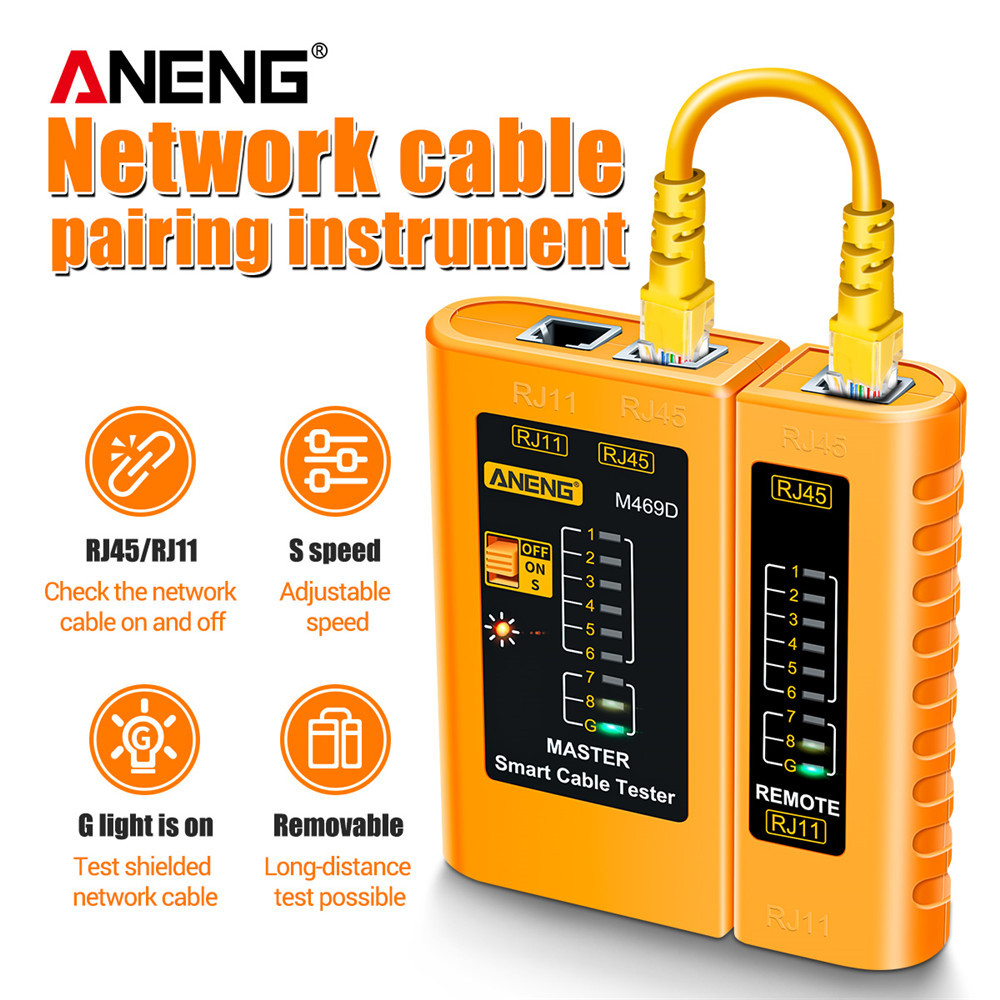

● Put cables into both the main tester and the remote tester.

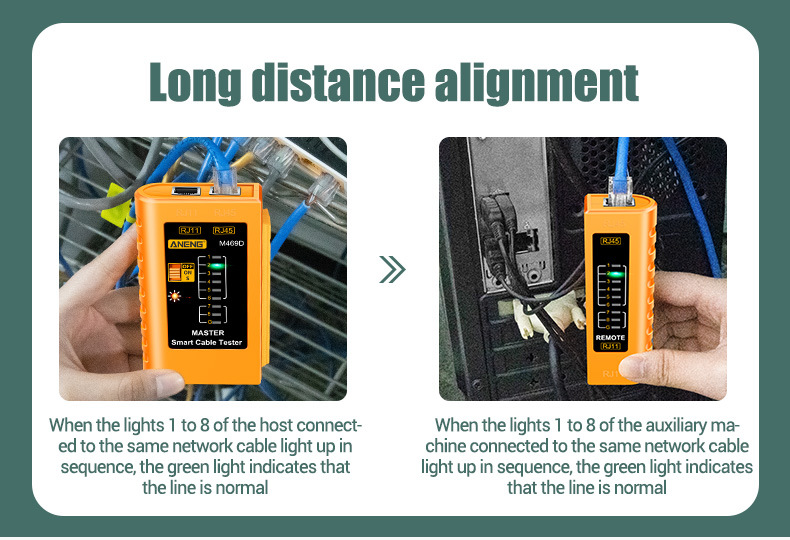

● The lights of the main tester will turn on sequentially from 1 to G.

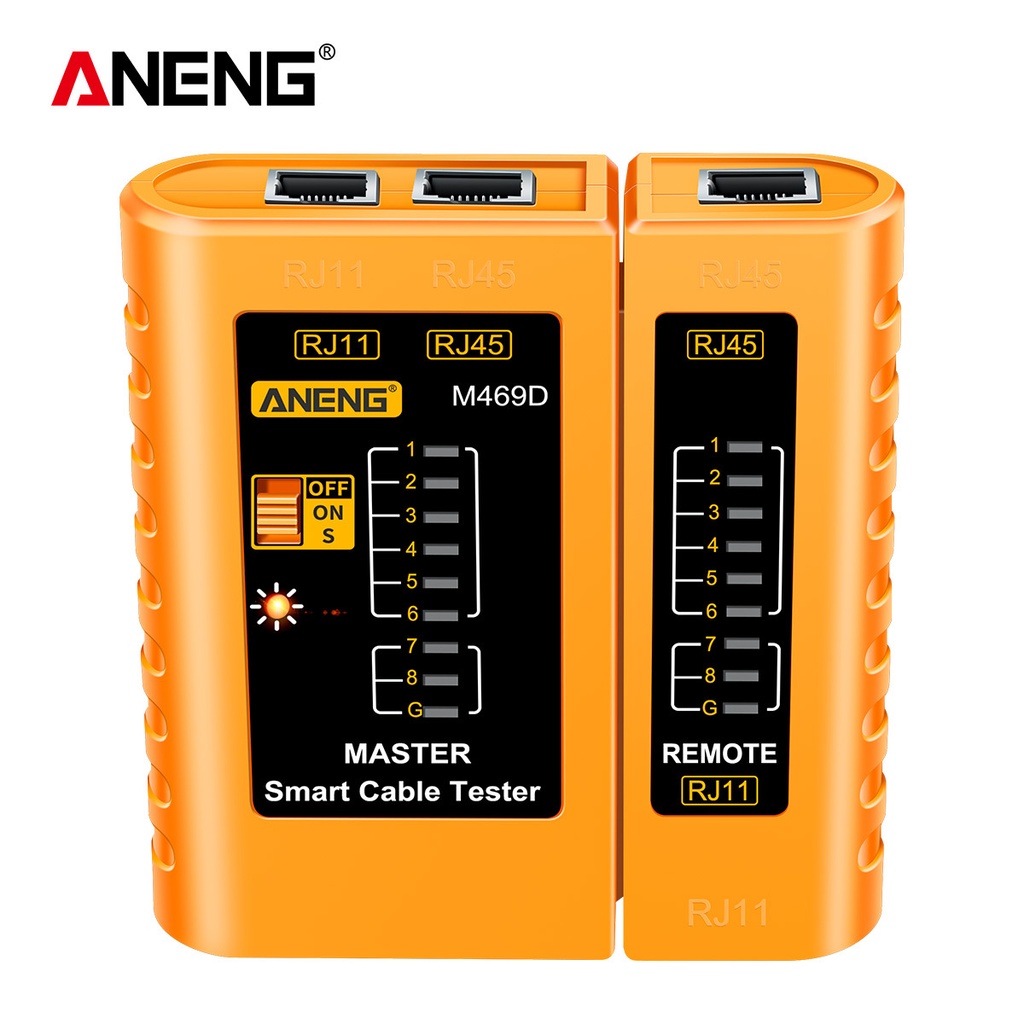

● Main tester: 1-2-3-4-5-6-7-8-G

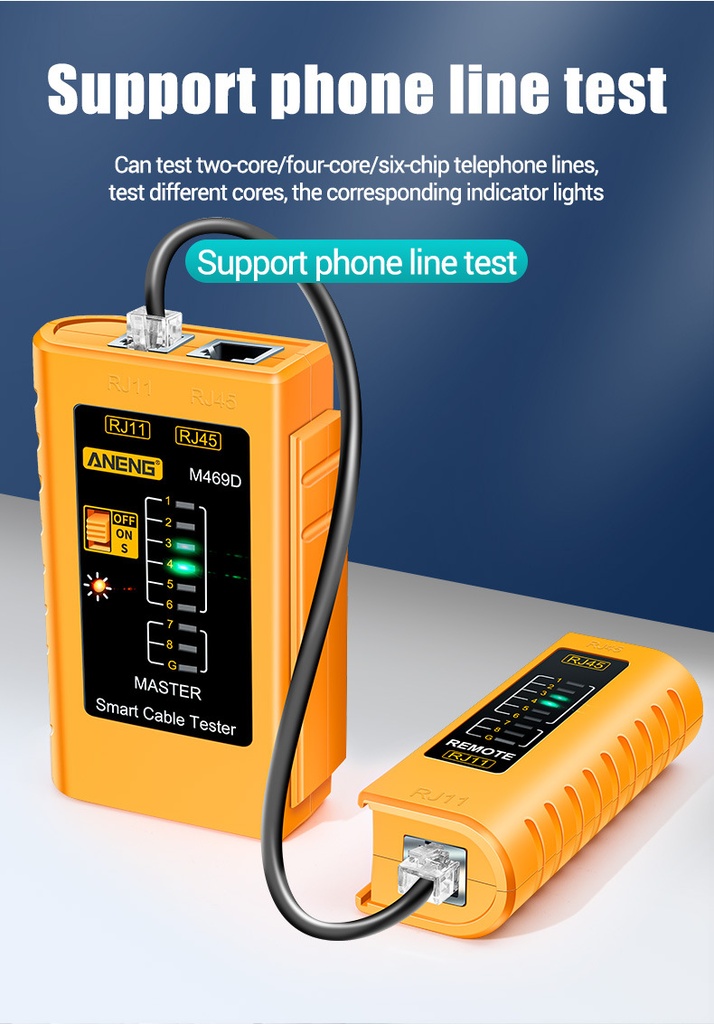

● Remote tester: 1-2-3-4-5-6-7-8-G RJ45, 1-2-3-4-5-6 RJ11
The following are abnormal connections:
● If one cable, for example, cable NO.3 is open-circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
● If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
● If two ends of a cable are disordered, for example, NO. 2 and NO. 4, then displays on:
● Main tester: 1-2-3-4-5-6-7-8-G
● Remote tester: 1-4-3-2-5-6-7-8-G
● If two cables are short-circuited, neither of the corresponding lights is on the remote tester while the main tester remains unchanged. If three cables, including three, are short-circuited, none of the corresponding lights is on.
● If test patch panels or wall plate outlets, two cables that can match each other (RJ45) will be connected to the tester.
● If test cables of the same axes, BNC turns on when the cable works.
