✅About this item

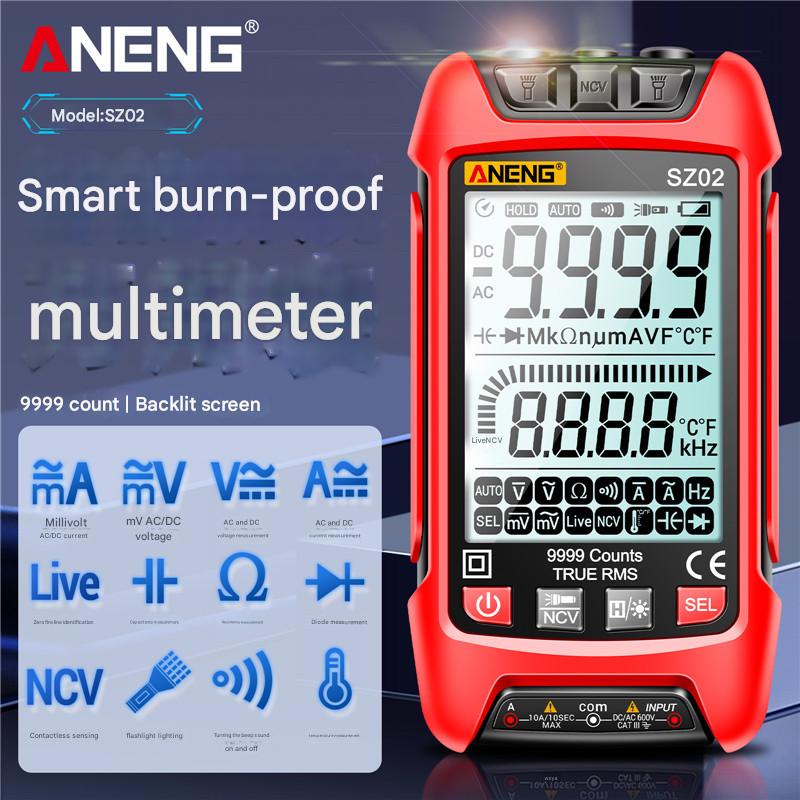

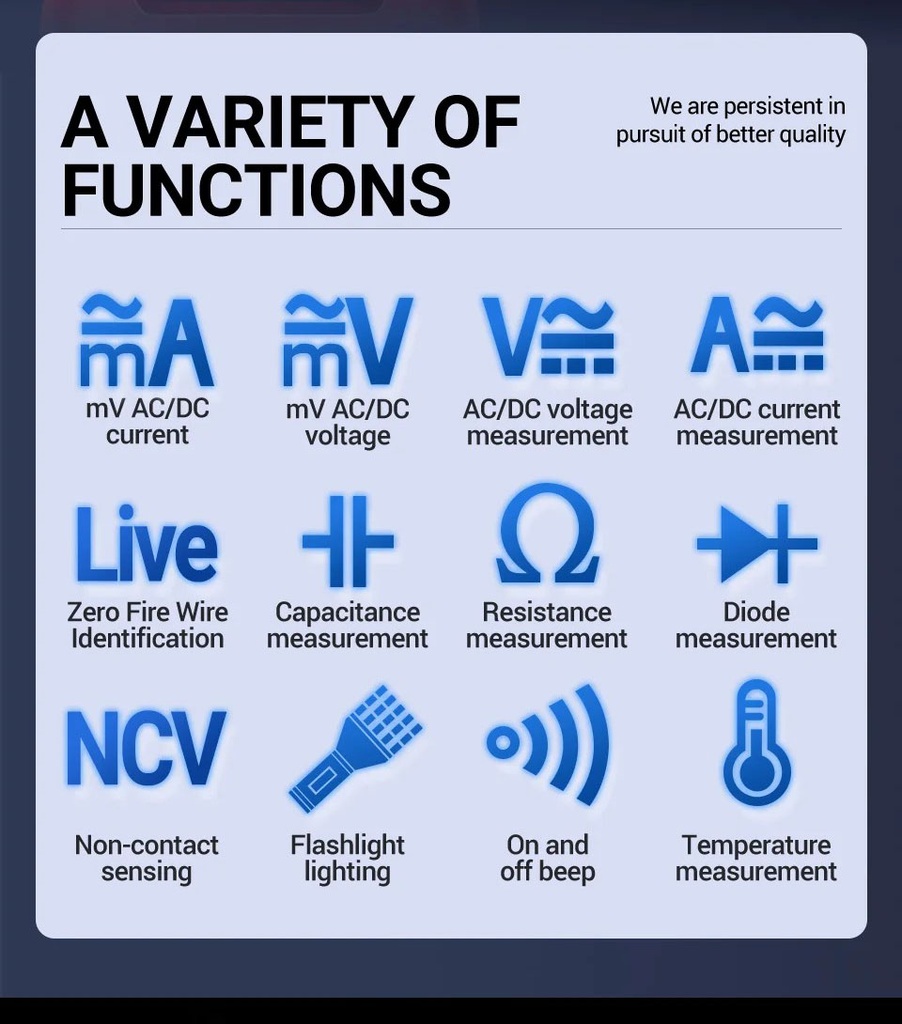

✔【VERSATILE DIGITAL MULTIMETER】ANENG SZ02 Multimeter accurately measures ac/dc voltage, ac/dc current, resistance, continuity,capacitance live/zero wire,frequency ,diode and temperature. This ohm multimeter is a really useful tools for solving industrial and household electrical issues. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging System, Testing electronics in Cars etc

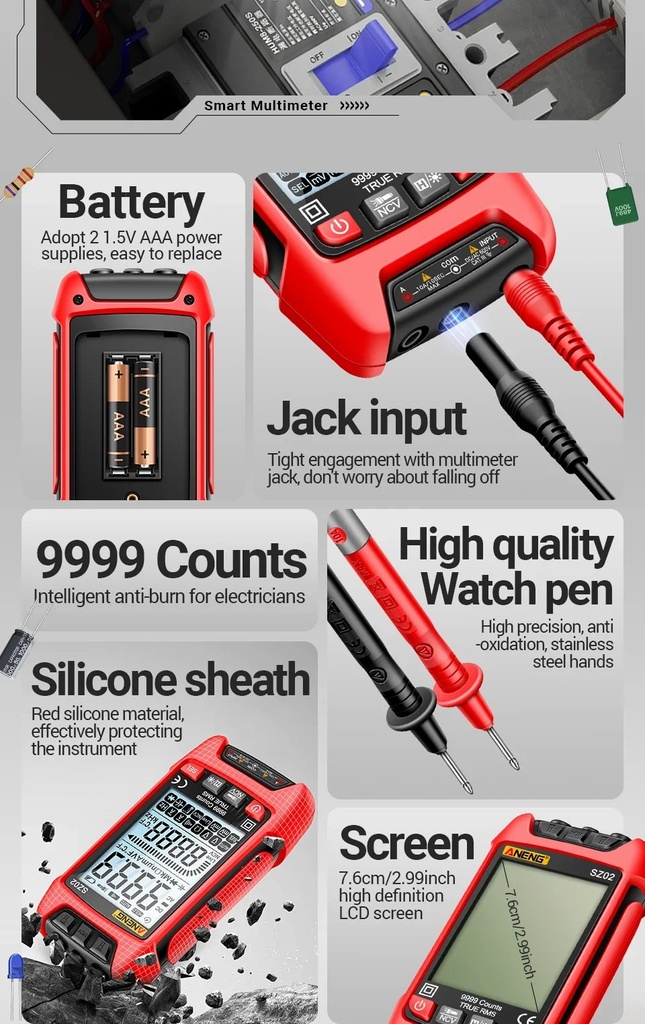

✔【TROUBLESHOOTING WITH ACCURACY】SZ02 voltage tester is with 2 AAA batteries(not included),easy to use, support data hold, low battery indicator and continuity buzzer. Includes Convenient feature like LCD Backlit Screen and Dual Torch Lighting,you are no afraid of the dark when you work,makes it easy to use in dimly light areas or at night.

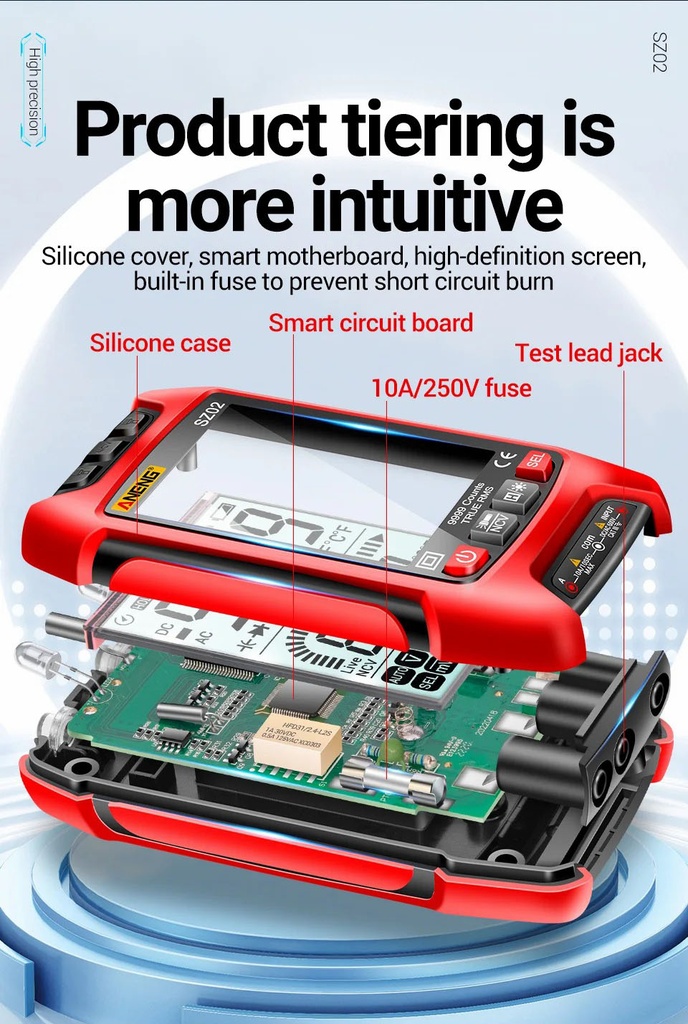

✔【ENSURES SAFETY】Double ceramic fuse is anti-burn and protects from overloading. The silicone cover is able to protect the electrical tools from failing damage.Fully safe non-contact voltage testing with sound and light alarms. You can detects AC voltage without the use of multimeter test leads.
✔【Convenient& Portable】Pocket multimeter is small lightweight design for one-handed use. Perfect palm sized just a little smaller than the phone. If there is no test action of amp meter, the LCD screen will automatically enter the hibernation state. Whether the job is a quick DIY continuity check or a complex problem, with durable design and consistent readings pair well for a both long days in the field or tinkering in the garage,you will never worry about power problem.
✅Operating Instructions
⏩1. AC/DC Voltage Measurement
✔The multimeter automatically identifies AC or DC voltage. Simply connect the test leads to the circuit or component to be measured. The display will show the voltage reading.
⏩2. Resistance Measurement
✔To measure resistance, ensure the circuit is de-energized. Touch the test leads to both ends of the resistor. The multimeter will automatically detect and display the resistance value.

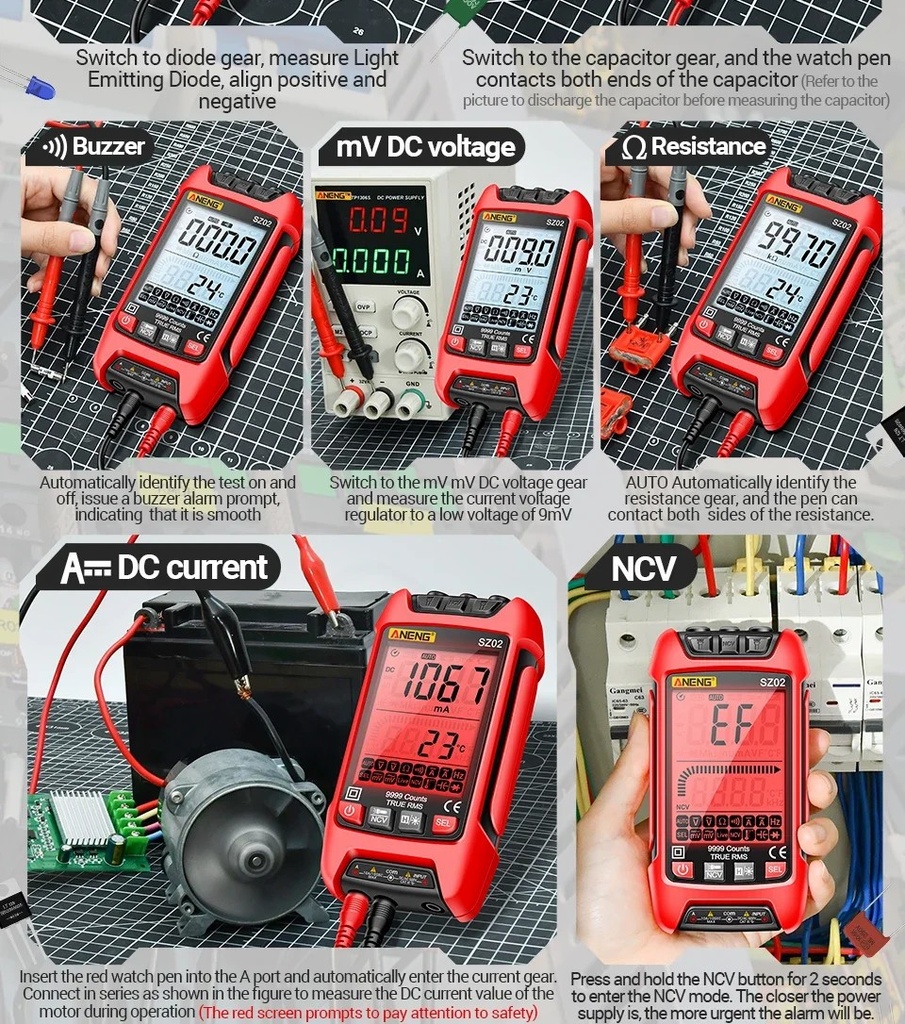

⏩3. Continuity Measurement (Buzzer)
✔For continuity checks, touch the test leads to the points you wish to test. If there is continuity (low resistance), the multimeter will emit a "dididi" beep sound.
⏩4. Diode Measurement
✔When measuring diodes, ensure the positive and negative poles of the test leads are aligned with the diode's polarity for accurate readings.
⏩5. Capacitance Measurement
✔Important: For safety, discharge the capacitor completely before attempting to measure its capacitance. Touch the test leads to both ends of the capacitor, and the multimeter will display the capacitance value.
⏩6. Millivolt Measurement
✔Before measuring millivolts, the displayed value can be reset to zero by pressing the appropriate button (refer to the device's interface for the specific button, usually "REL" or "ZERO").

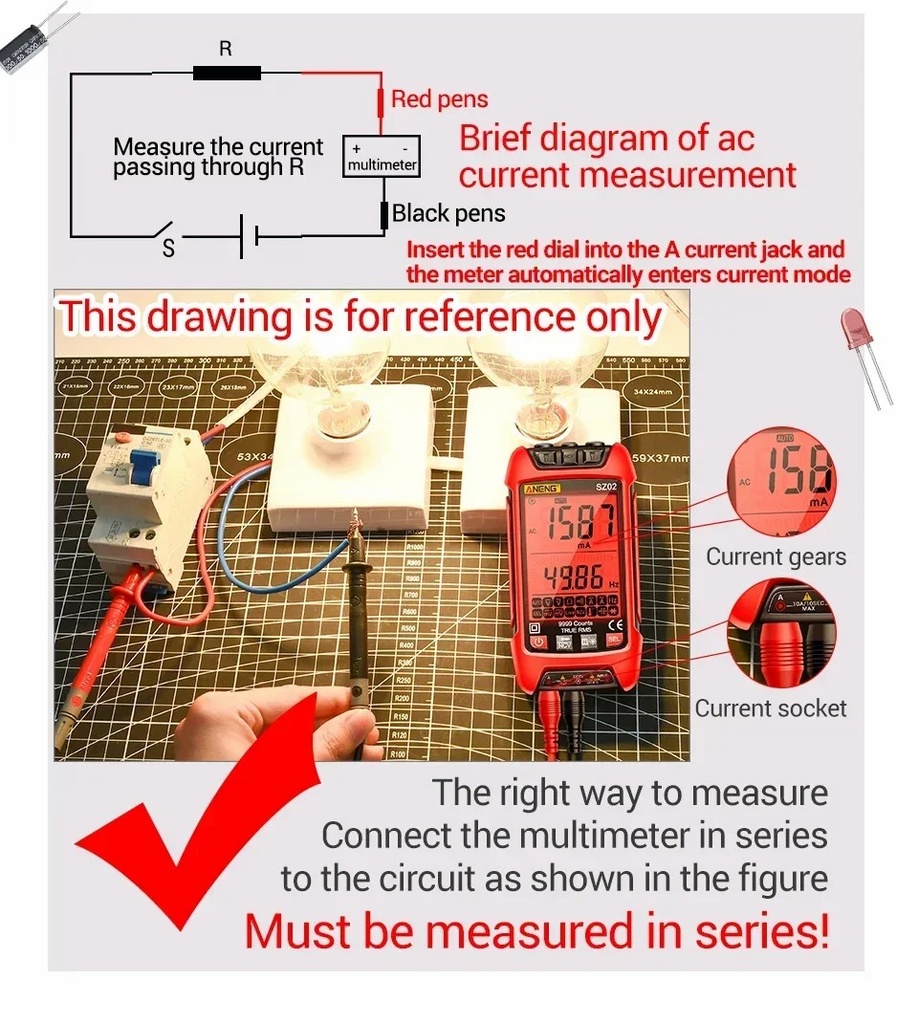

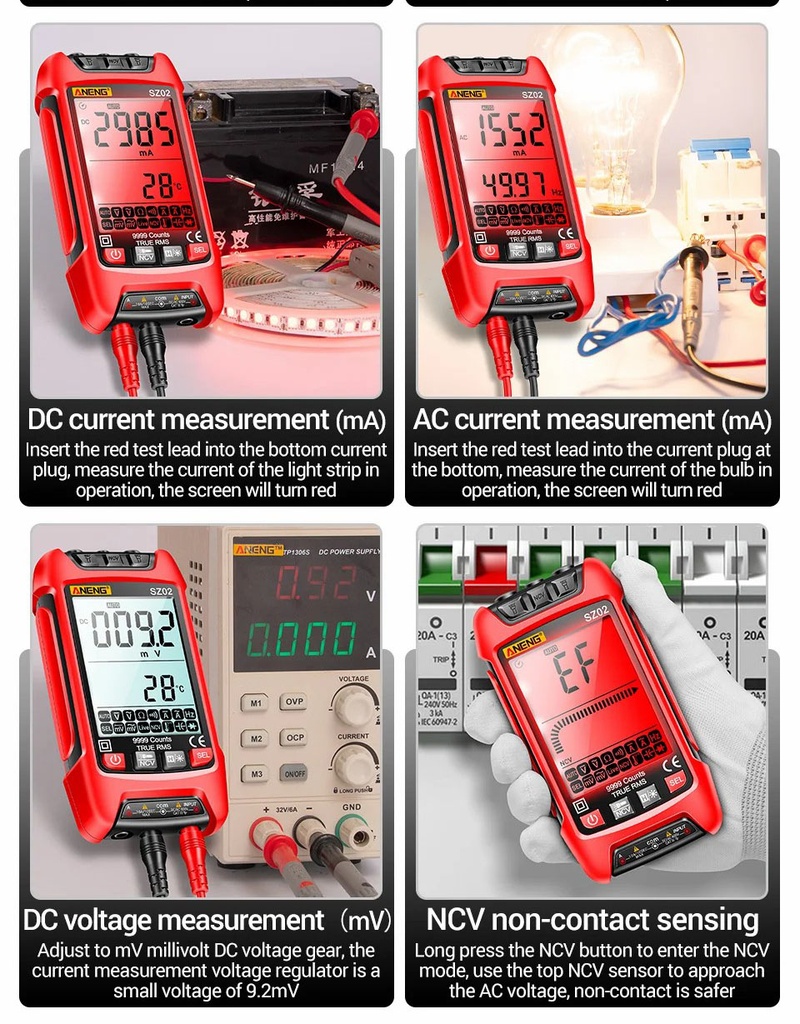

⏩7. AC/DC Current Measurement
✔For current measurements, the test lead needs to be inserted into the 10A jack (for higher currents) or mA jack (for lower currents) as appropriate. Ensure the circuit is broken and the multimeter is connected in series with the load.
⏩8. Non-Contact Voltage (NCV) Detection
✔The NCV function allows for safe detection of AC voltage without direct contact. When voltage is detected, the screen will turn red and an audible alarm will sound. This is particularly useful for identifying live wires.
⏩9. Flashlight Function
✔The multimeter is equipped with dual torch lighting at the top, which can be activated to illuminate dimly lit work areas or for use at night.
⏩10. Temperature Measurement
✔Plug the temperature wire into the designated jacks on the multimeter. Use the probe to measure the temperature of the desired object or environment.
