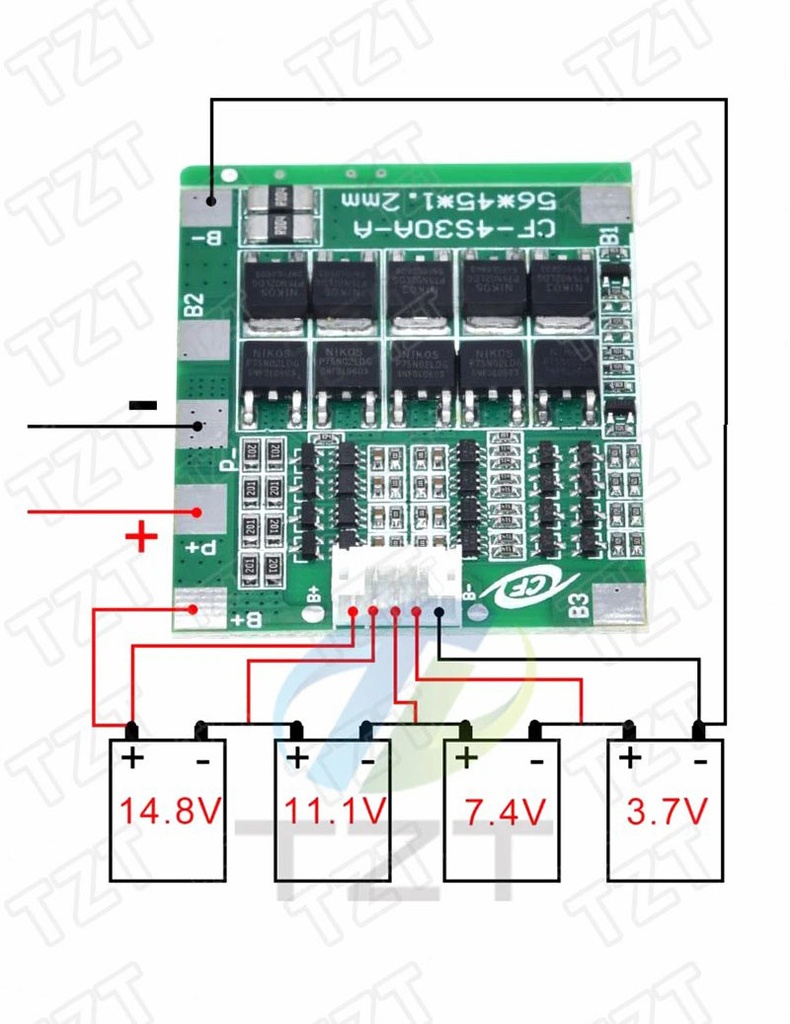

● The wiring of the two color protection boards is the same, and there are two wiring methods.

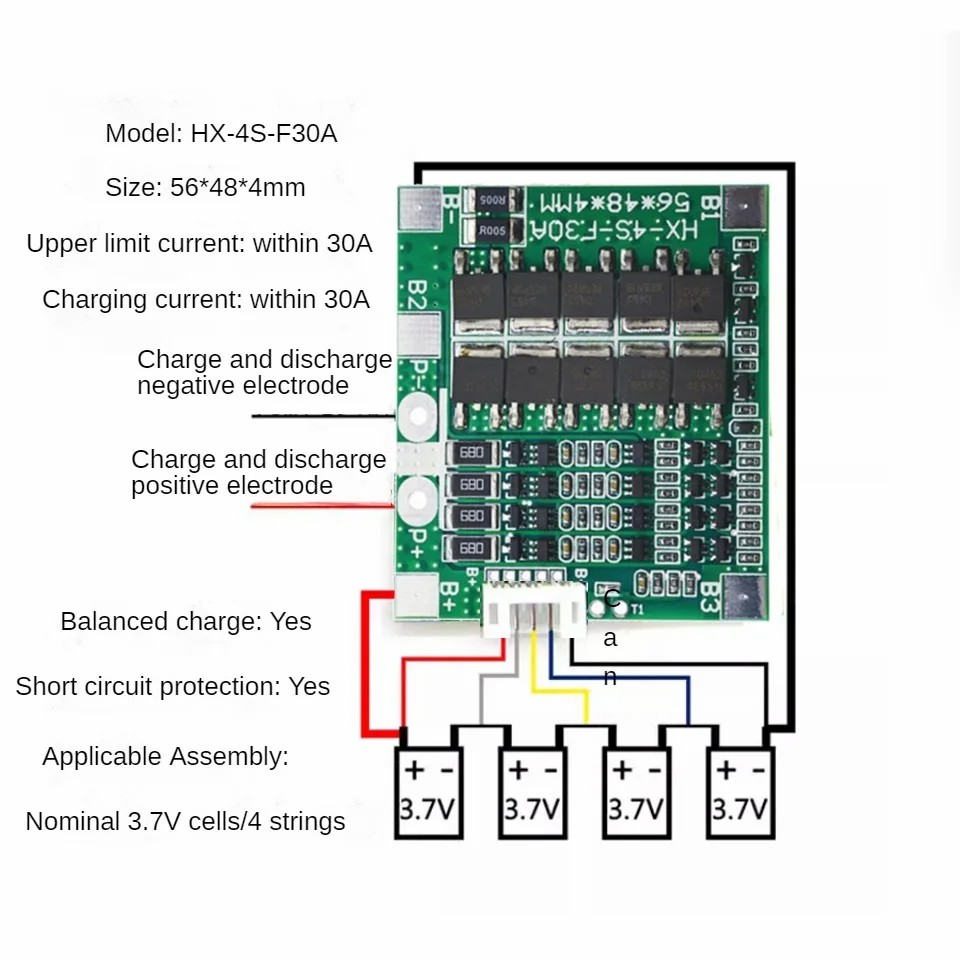

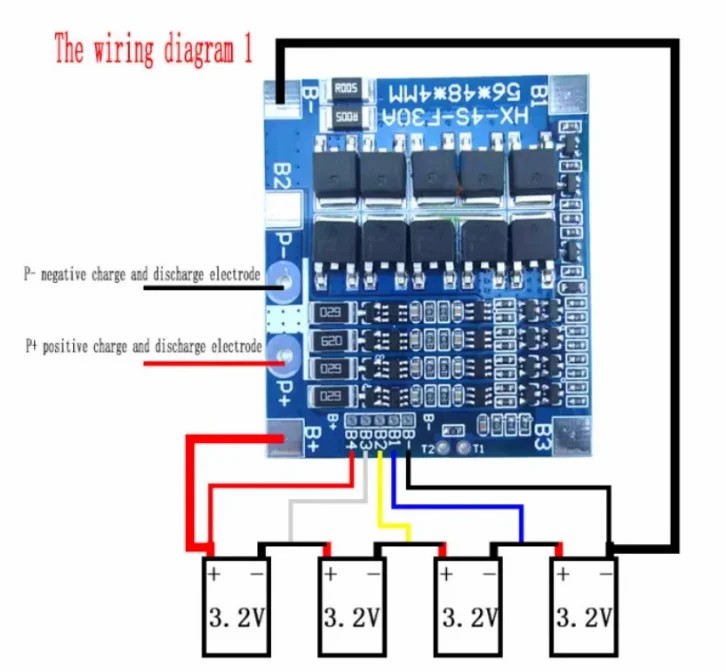

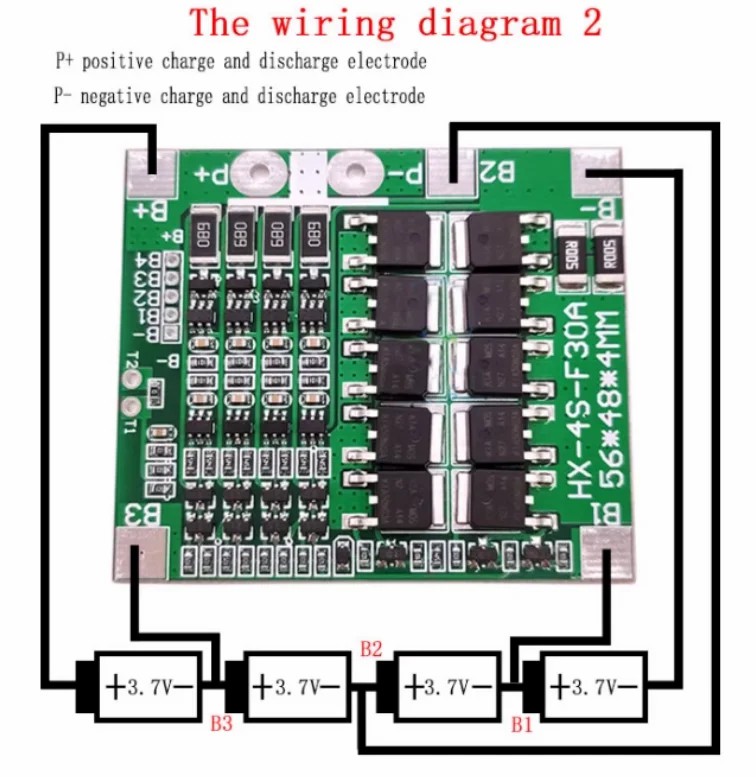

● Please refer to Wiring Diagram 1 or Wiring Diagram 2 for wiring.
● The lithium battery protection plate cannot be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children's car battery, motor or products with motor, 1W fish eye LED lamp.
● Customers who buy the above combination should pay attention!
● The described power range is applicable to the following products: massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring backup power supply, and other products.
● Lithium iron phosphate protective board cannot be used for hernia lamps, hand drill battery packs, power tool battery packs, electric fish machine battery packs, vacuum cleaners, floor sweeper battery packs, electric bicycle battery packs, children's car batteries, motors or products with motors, hers who purchase the above products with motors, 1W fish eye LED lights. Customers who combination should pay attention!

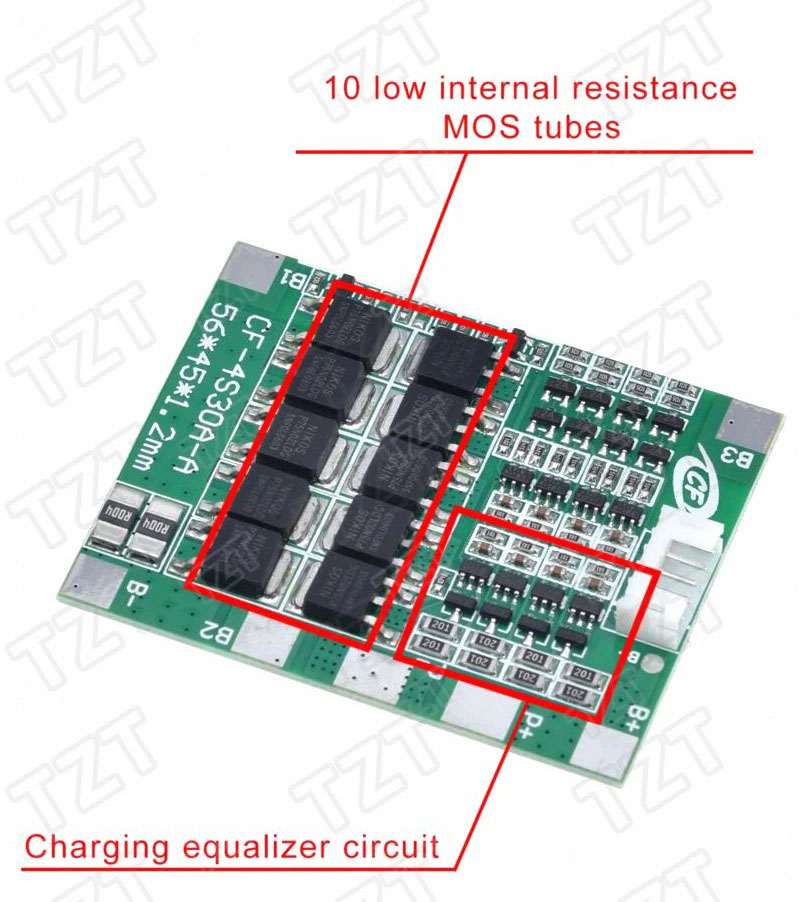

PRODUCT PARAMETERS
LITHIUM BATTERY PROTECTION BOARD
● Product model: HXYP-4S-F30A
● Product size: 56 * 48 * 4MM
● Upper limit working current: 30A
● Upper limit instantaneous current: 40 A
● Overcharge voltage range: 4.25+ 4.25+0.05V
● Overdischarge voltage range: 2.5 ± 0.05V
● Charging voltage: 16.8V-17V
● Self consumption current: less than 30uA
● Product weight: 18.10g
● Basic function: anti overcharge, over discharge, short circuit, over current protection, with charging equalization
LITHIUM IRON PHOSPHATE PROTECTION BOARD

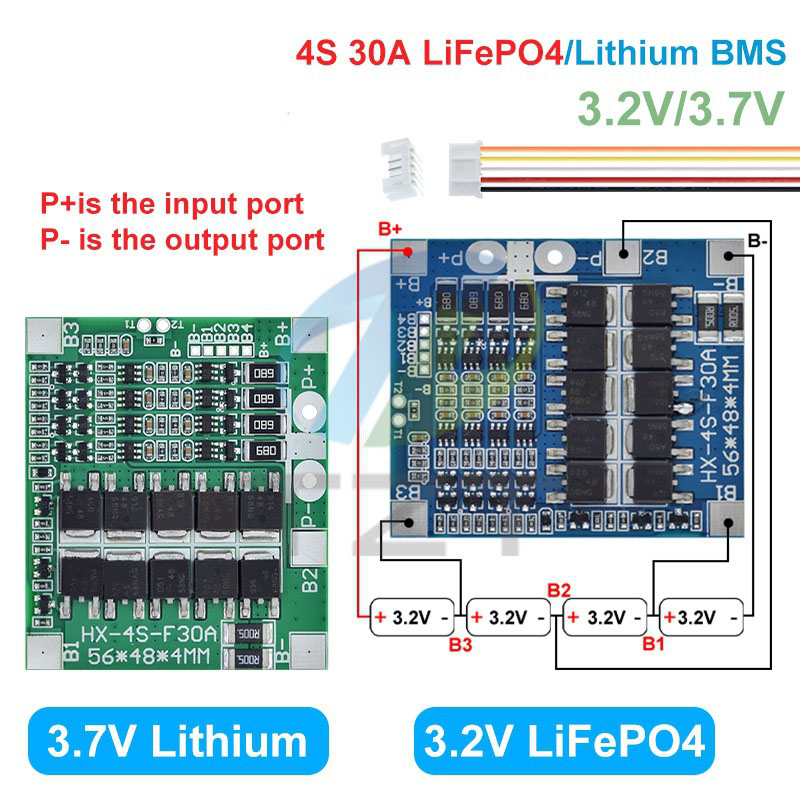

● Product model: HXYP-4S-F30A (3.2V * 4)
● Product size: 56 * 48 * 4MM
● Upper limit working current: 30A
● Upper limit instantaneous current: 40 A
● Overcharge voltage range: 3.75+0.05V
● Overdischarge voltage range: 2.1 ± 0.05V
● Charging voltage: 14.4V-15V
● Self consumption current: less than 30uA
● Product weight: 17.90g
● Basic function: anti overcharging, over discharging, short circuit, over current protection, with balanced protection
