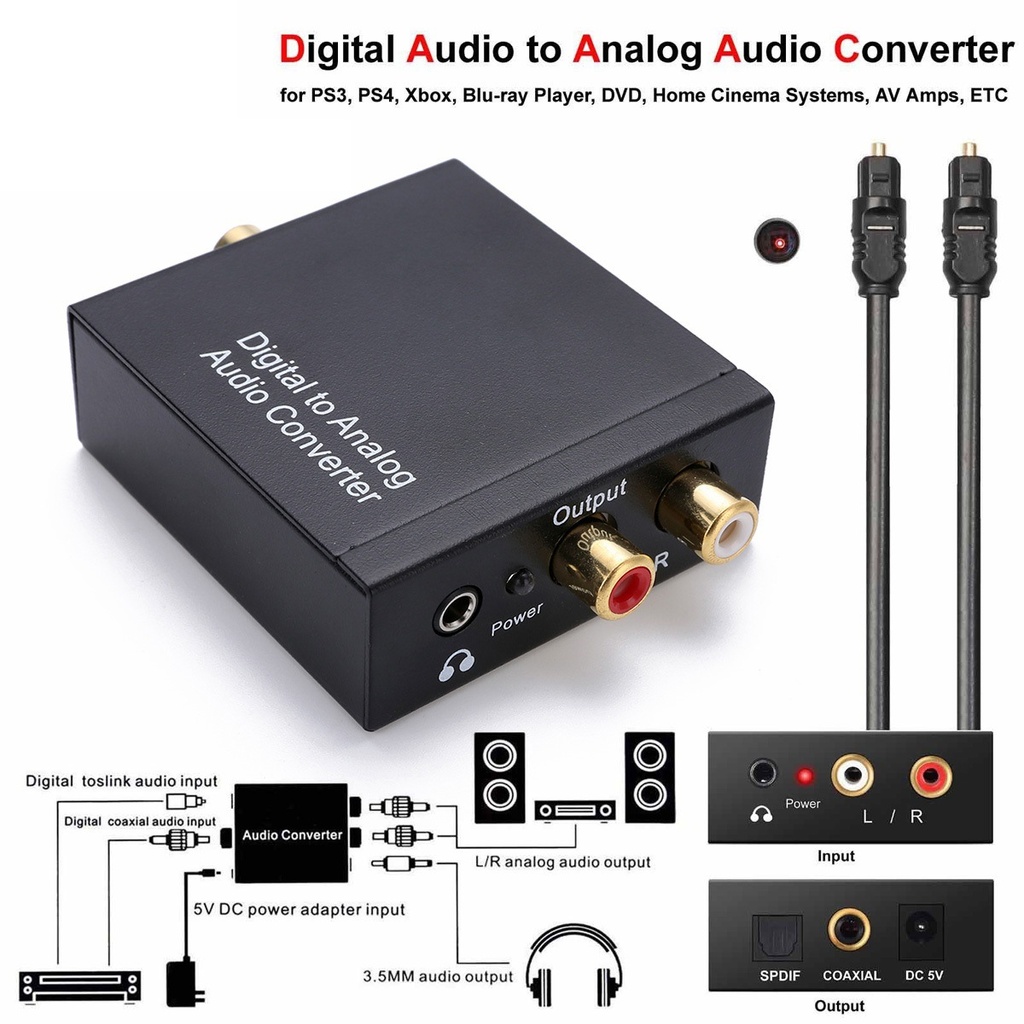

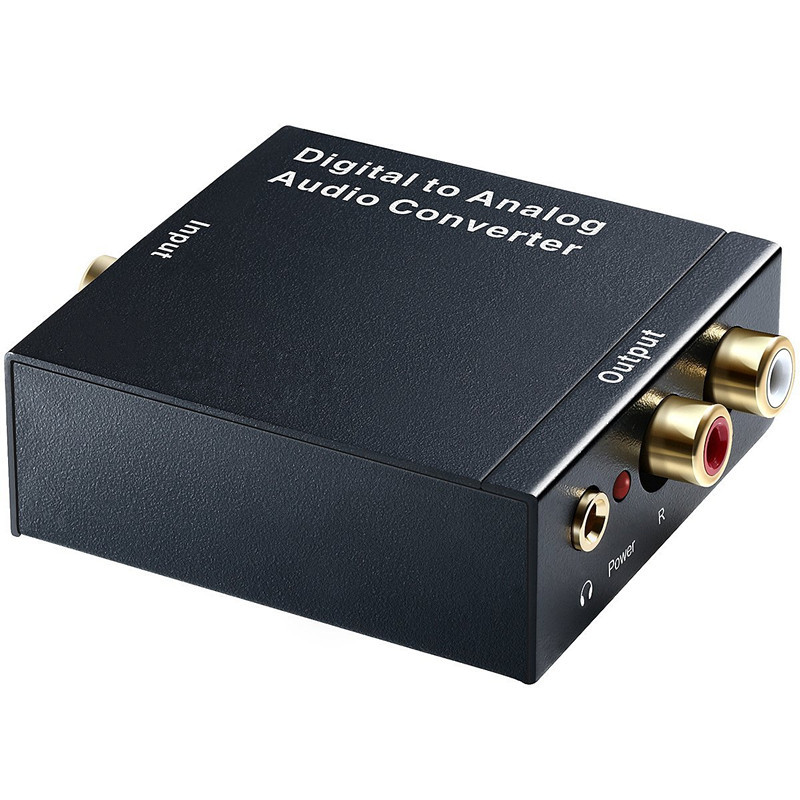

● Digital Audio to Analog Audio Converter
● Designed for either home or professional audio switching
● It converts Coaxial or Toslink digital audio signals to analog L/R audio
● Available for connection to an external device such as an amplifier via standard RCA-style jacks or a headphone via 3.5mm jack cable

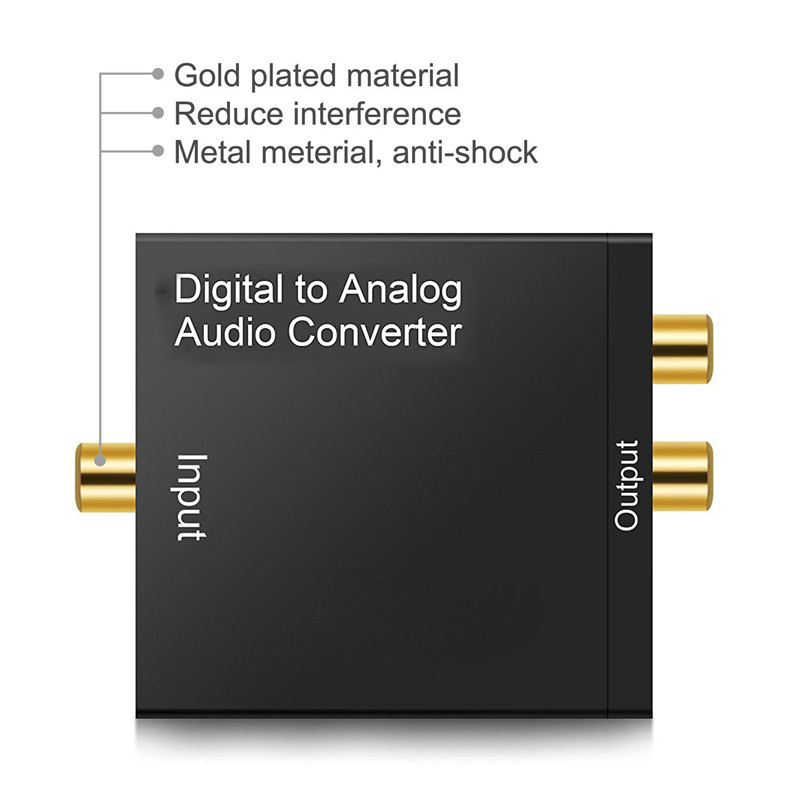

● Full metal body, lightweight size, portable and easy to carry and operate
● Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously (not capable of being reversed)
● Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz
● 24-bit S/PDIF Incoming Bit Stream on Left and Right Channels
● Supports Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output
● Provides Electromagnetic-noise-free Transmission (5.1 channel is incompatible, please set the audio output to PCM or LPCM)

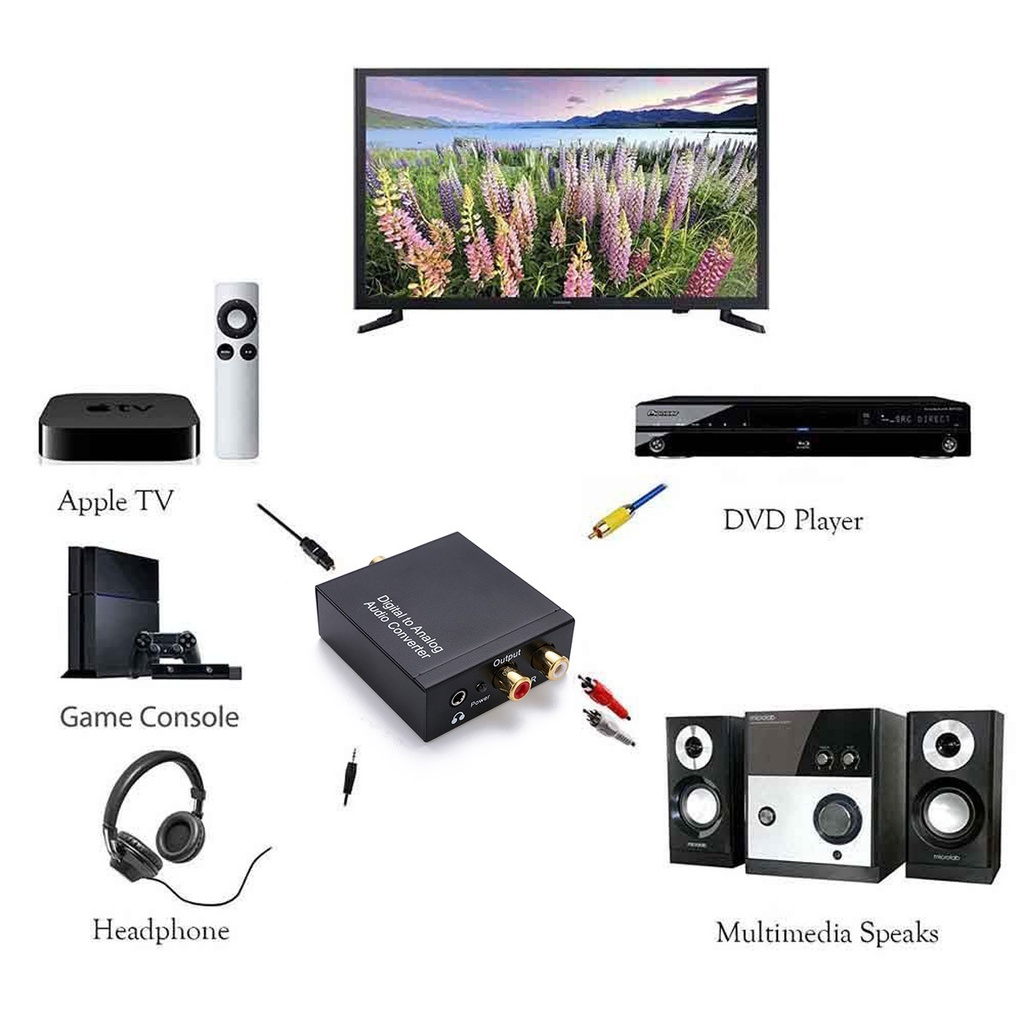

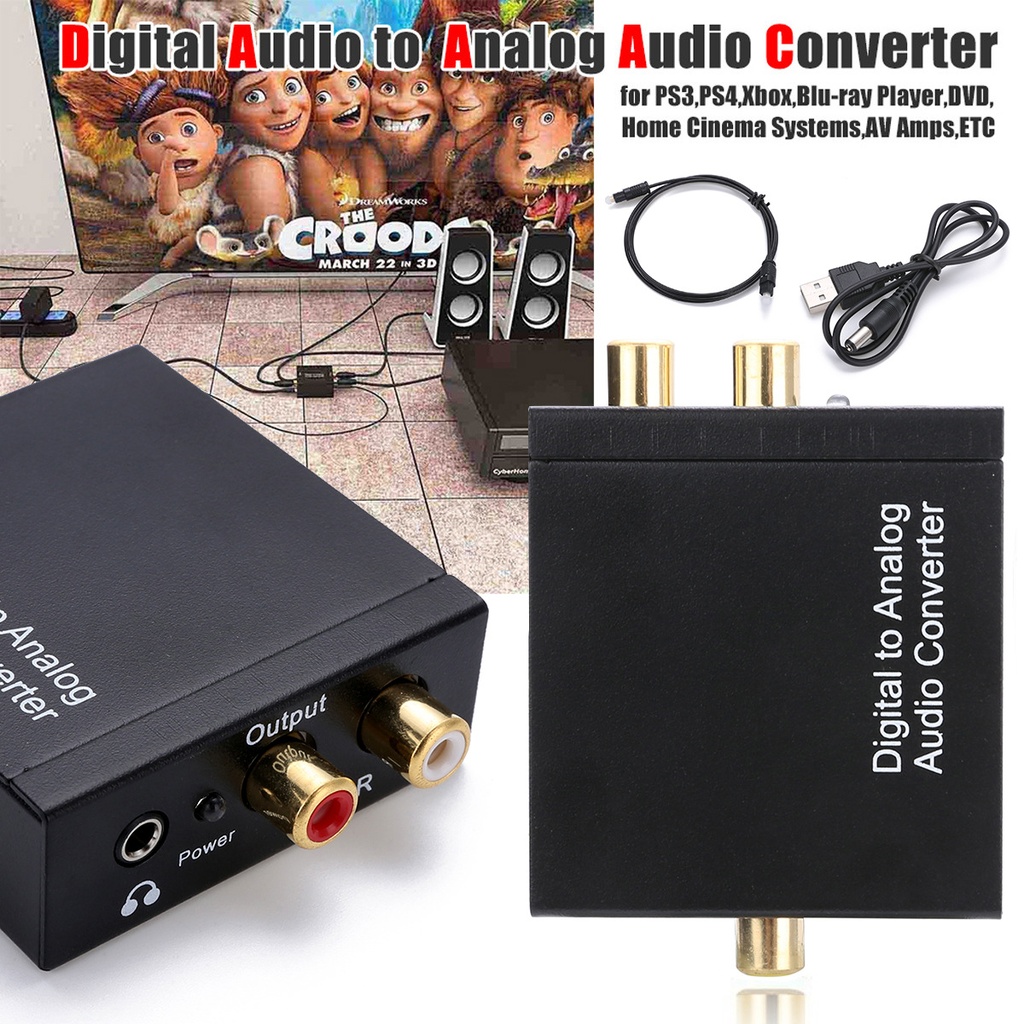

● Can be Used for PS3, PS4, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, etc
● Small in size, very easy to install and simple to operate
Specification:

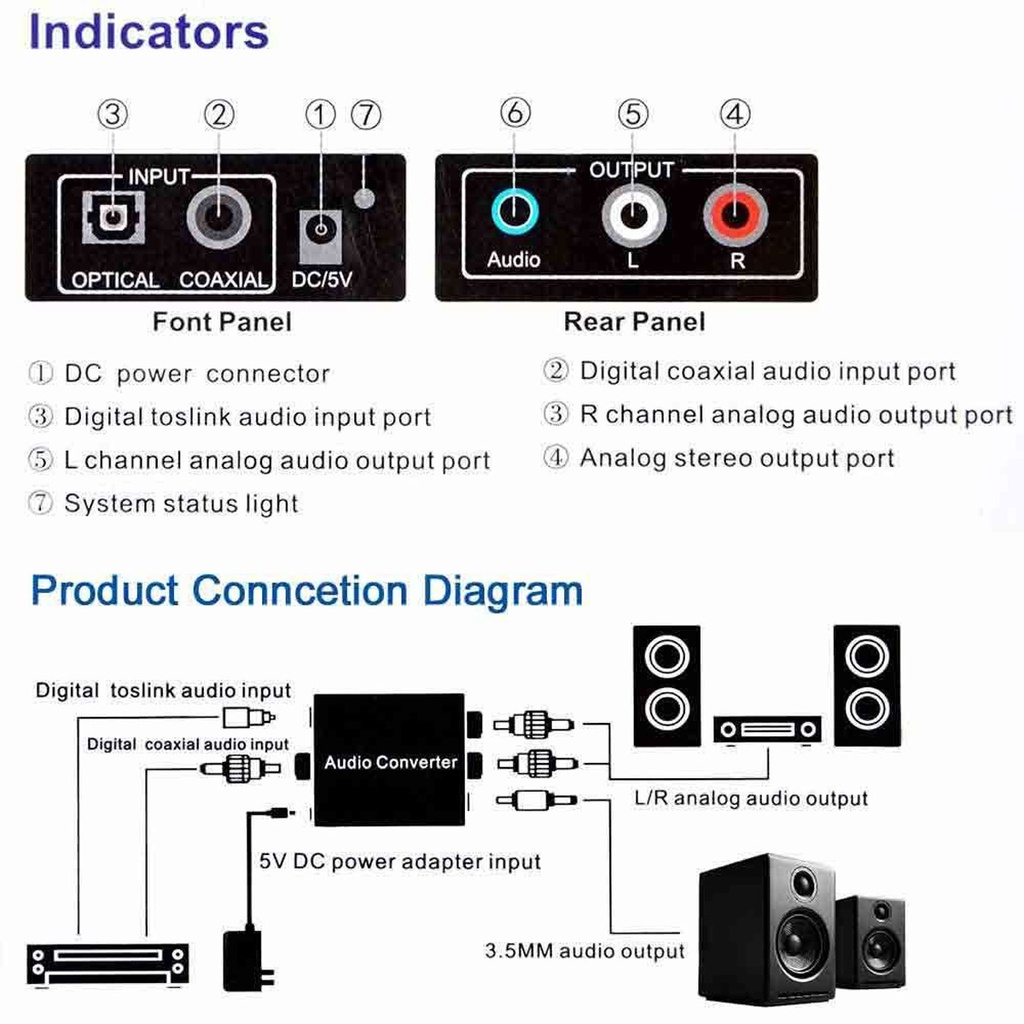

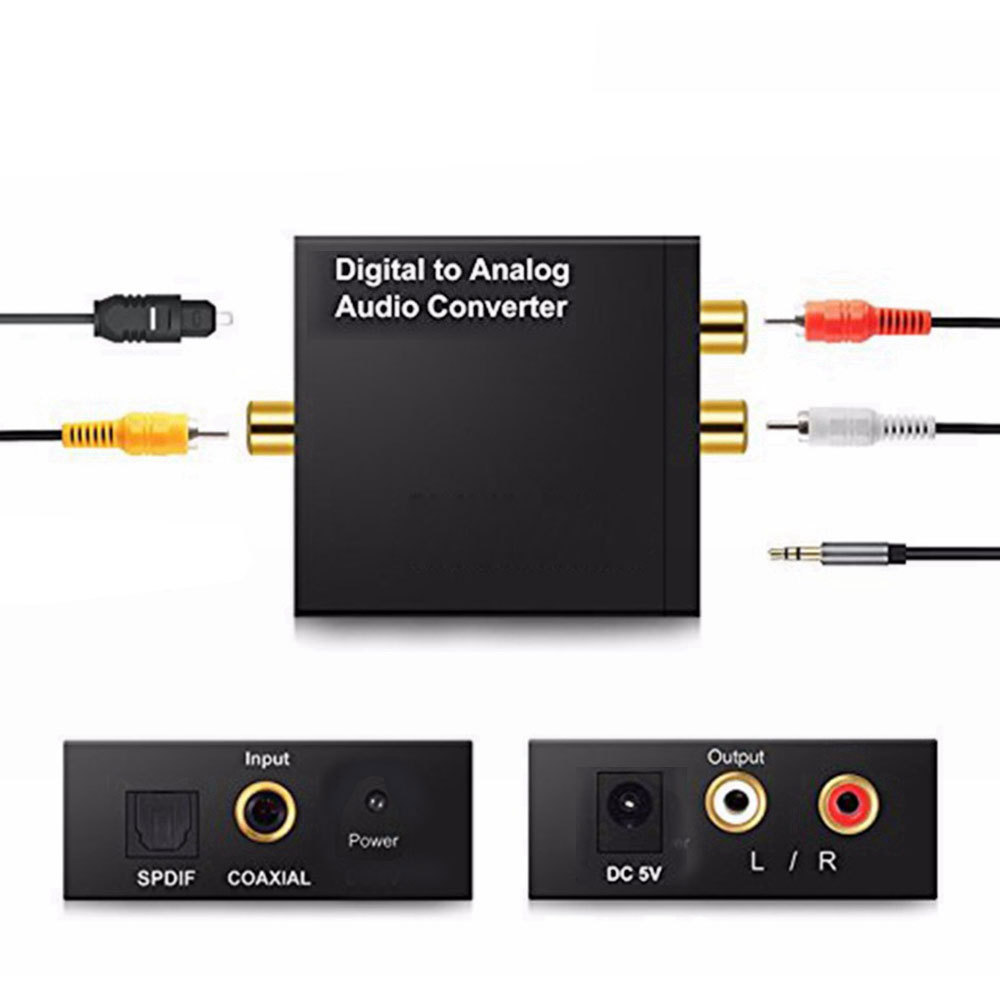

● Input Audio Connector: 1 x Toslink, 1 x RCA (Coaxial)
● Output Audio Connector: 2 x RCA(R/L), 1 x 3.5mm Jack
● Power Supply: DC5V, 1A
● Sampling rate: 32,44.1,48,96 and 192K Hz, up to 24-bit resolution.
● Powered by 5.5mm USB power cable
● Consumption: 0.5W (max)
● Size: approx. 73 x 55 x 22mm
● Color: Black

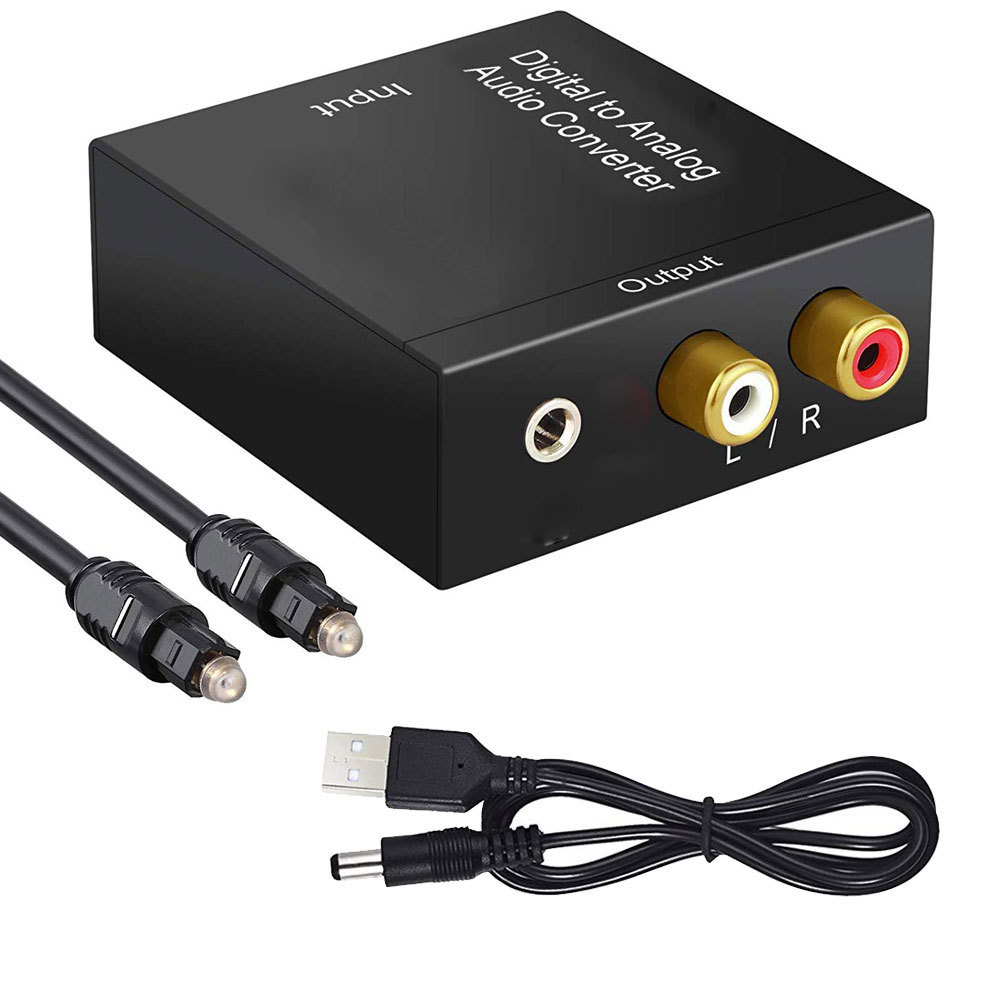

Package Include
● 1 * DAC converter
● 1 * Usb power cable
● 1 * optical cable
● 1 * English manual
