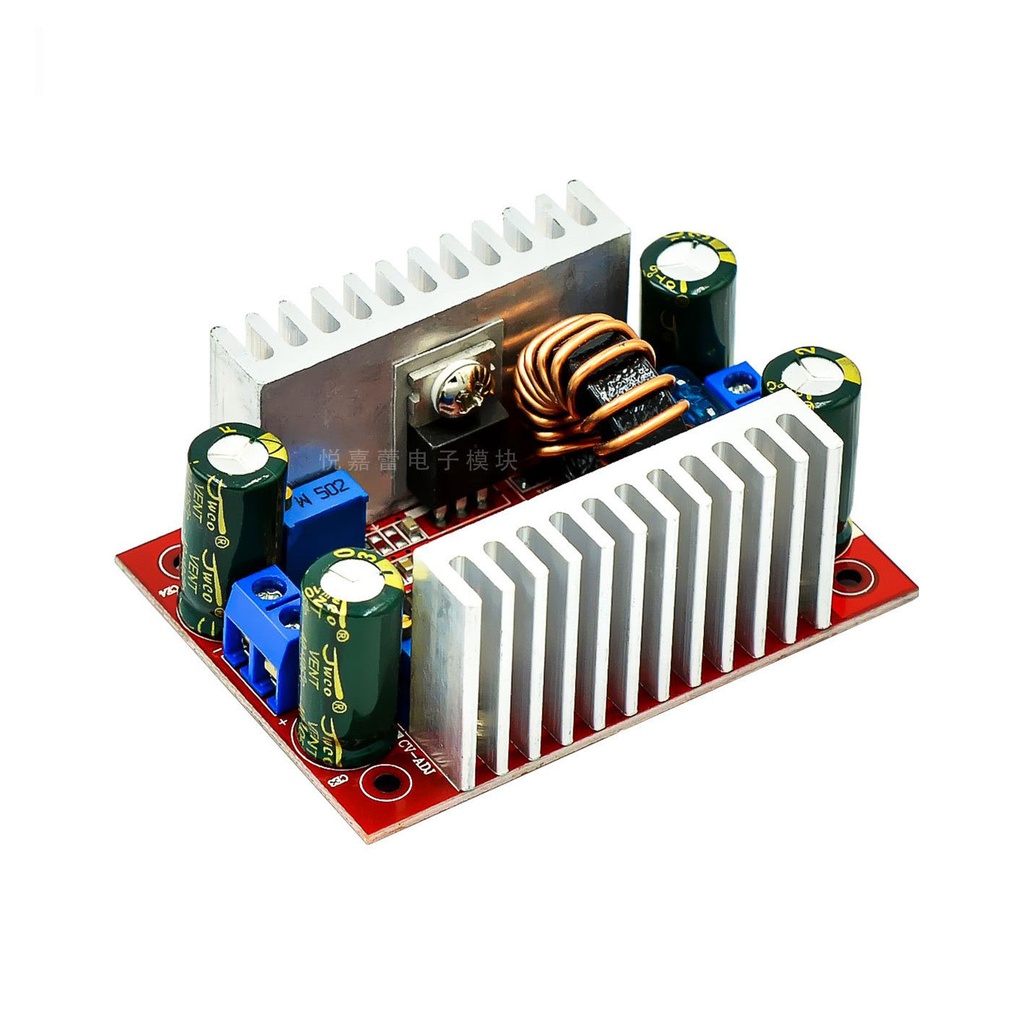

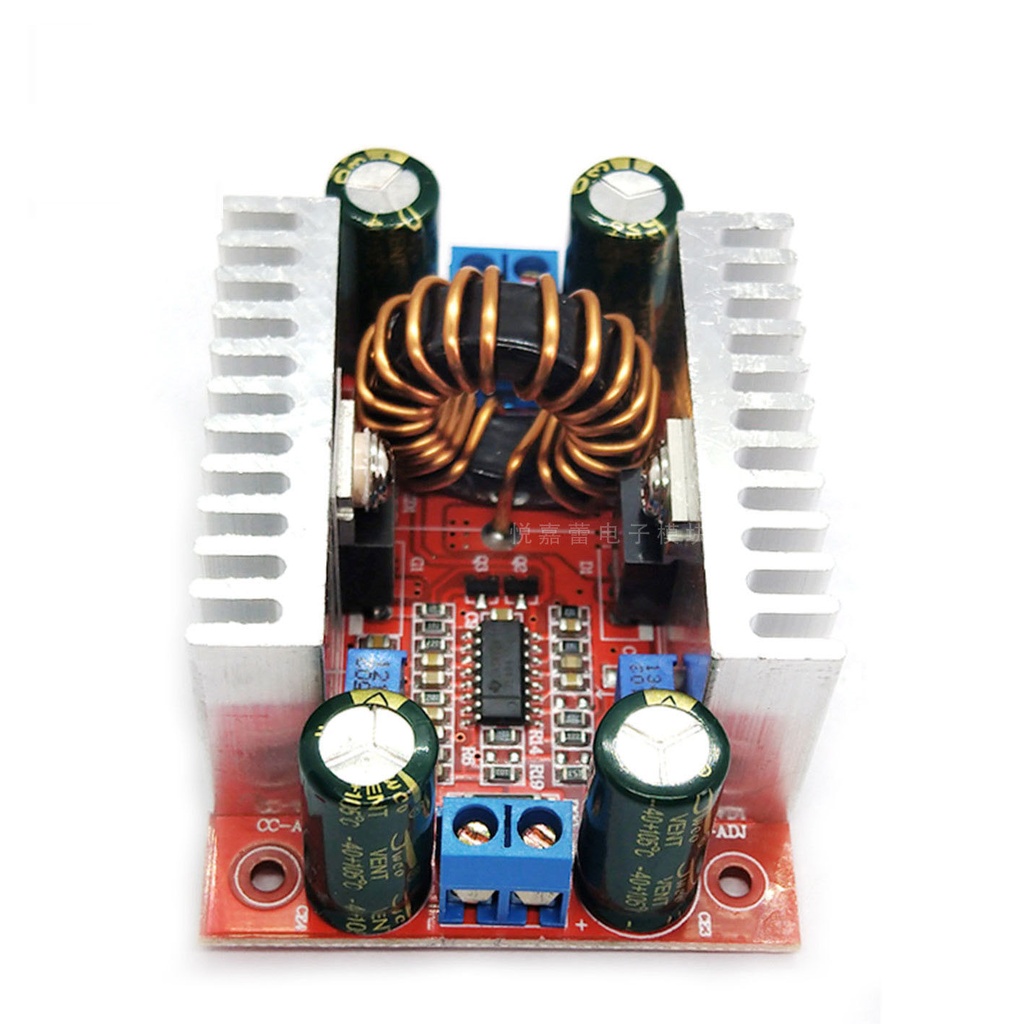

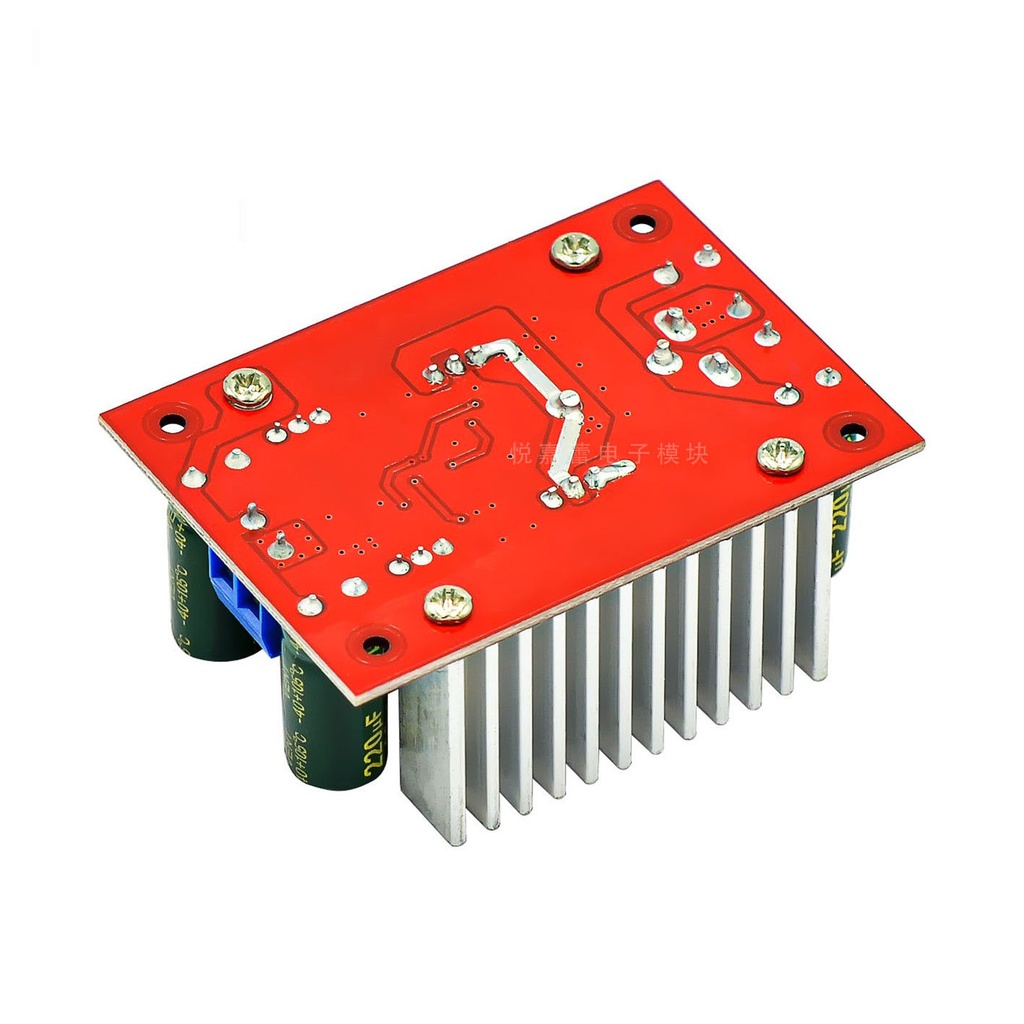

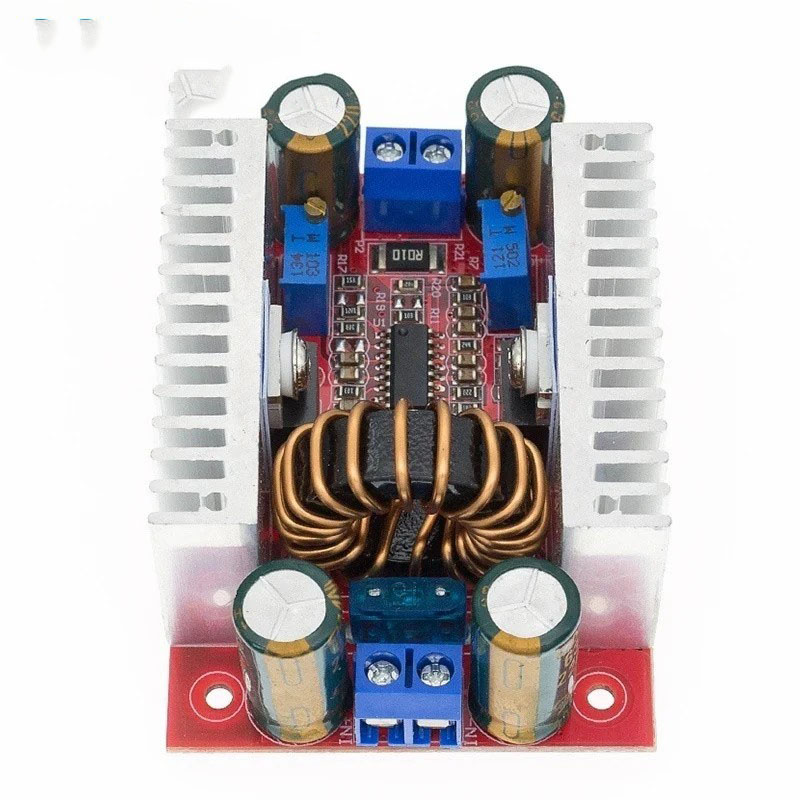

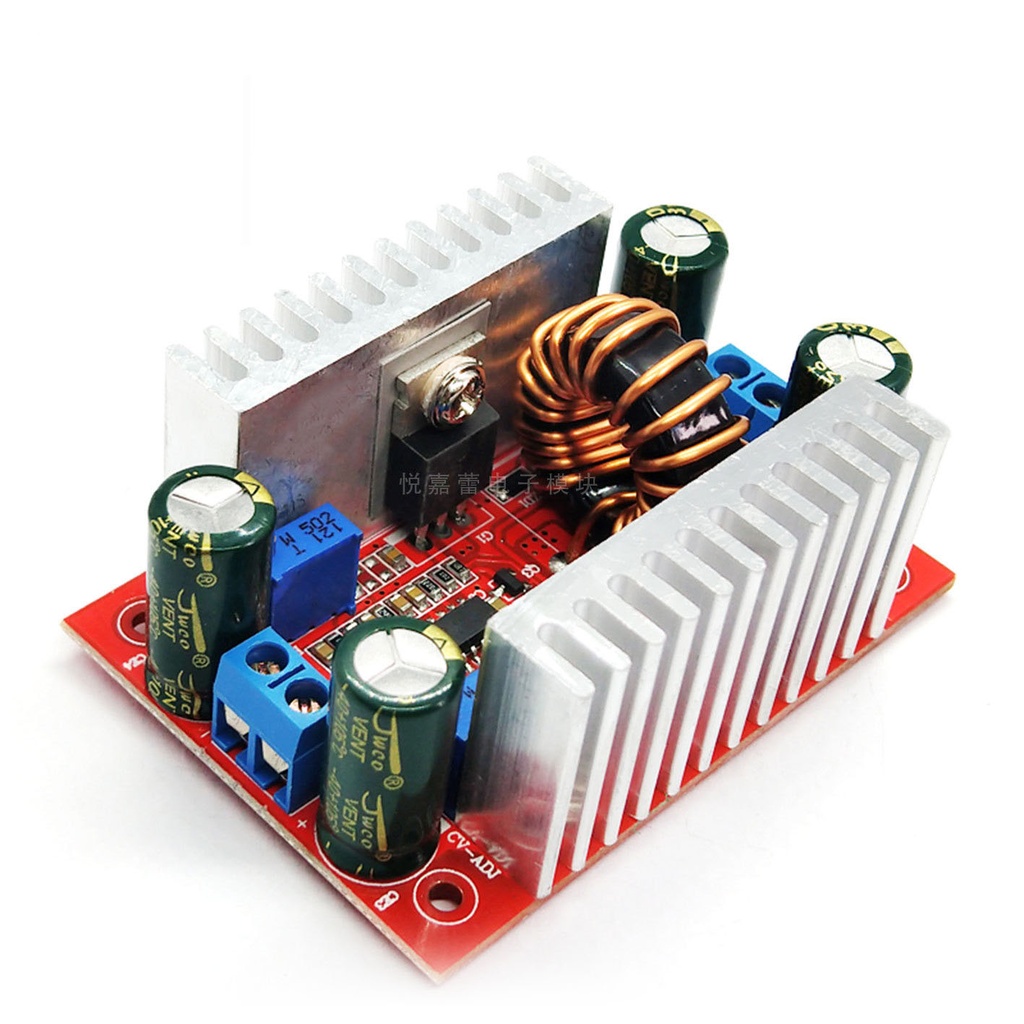

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module

Product Description
1.【Module name】400W boost constant current module

2. [Module properties]: Non-isolated boost module (BOOST)

3.【Input voltage】: DC8.5V-50V

4. [Input current]: 15A (MAX) If it exceeds 8A, please increase heat dissipation

5. [Quiet working current]: 10mA (When the output voltage is increased from 12V to 20V, the higher the output voltage, the higher the static current will be)

6. [Output voltage]: 10-60V continuously adjustable,

12-80V fixed output (for bulk customers)

7. [ Output current]: 12 A MAX. If it exceeds 7A, please increase heat dissipation (related to the input and output voltage difference. The greater the voltage difference, the smaller the output current)

8. [Constant current range]: 0.2-12A

9. [Output power]: = input voltage * 10A, such as: input 12V * 5A = 60W, input 24V * 5A = 120W,

Input 36V*5A=180W, Input 48V*5A=240W,

10. [Working temperature]: -40~+85 degrees (please increase heat dissipation when the ambient temperature is too high)

11. [Working frequency]: 150KHz

12. [Conversion efficiency]: Up to 96% (efficiency is related to input and output voltage, current, and voltage difference)

13. [Overcurrent protection]: Yes (when the input exceeds 15A, the output voltage will be automatically reduced, with a certain range of error.)

14. [Input reverse protection]: None, (If you need a higher reverse current, please connect a diode in series with the input)

15. [ Installation method]: 4 2.5mm screw holes

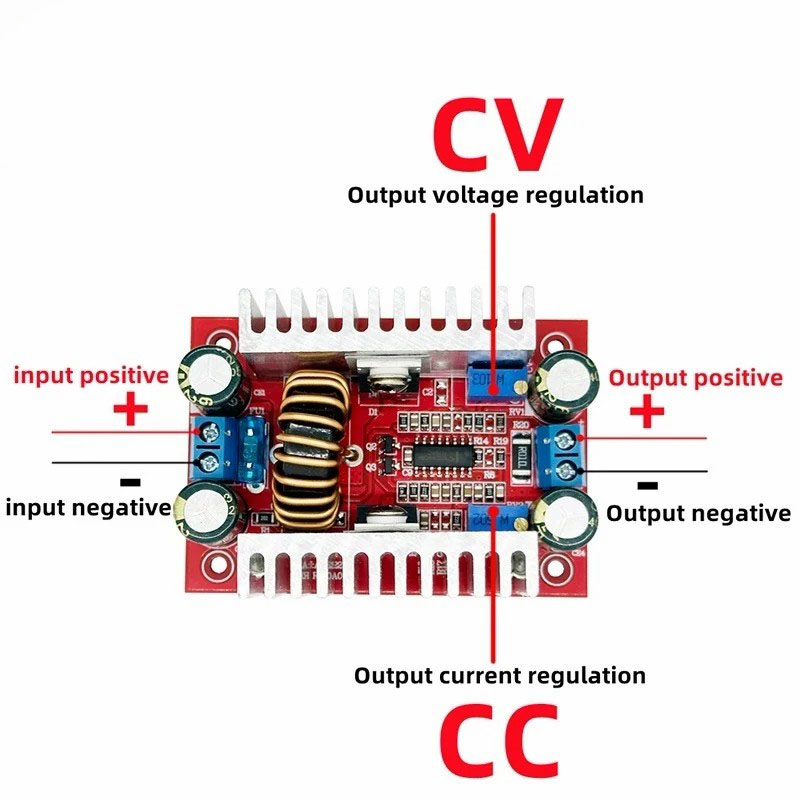

16. 【Wiring method】: Wiring output

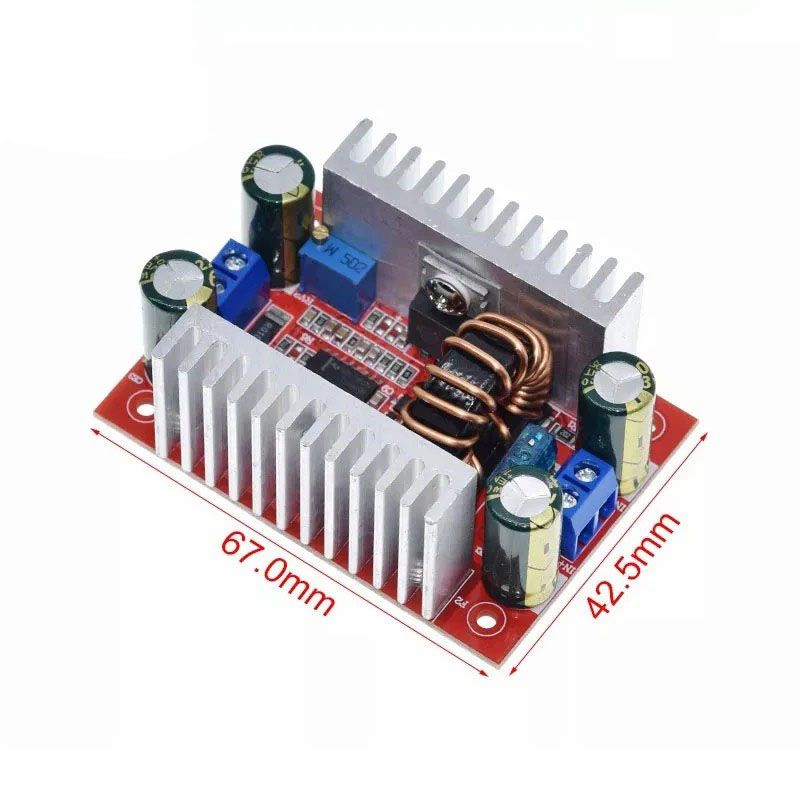

17. [Module size]: Length 67mm, width 48mm, height 28mm

18. [Module weight]: 60g

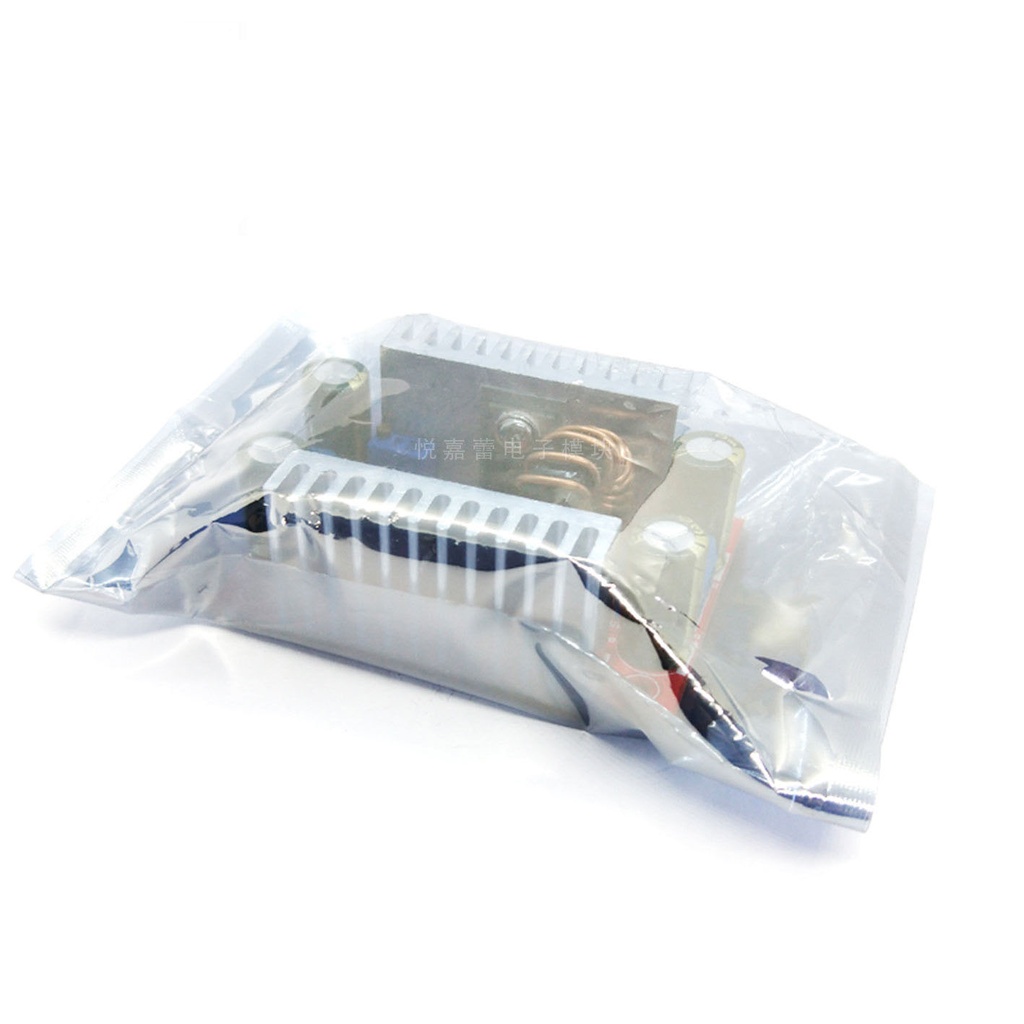

Package Include
1 * DC converter
