✅ Product Description

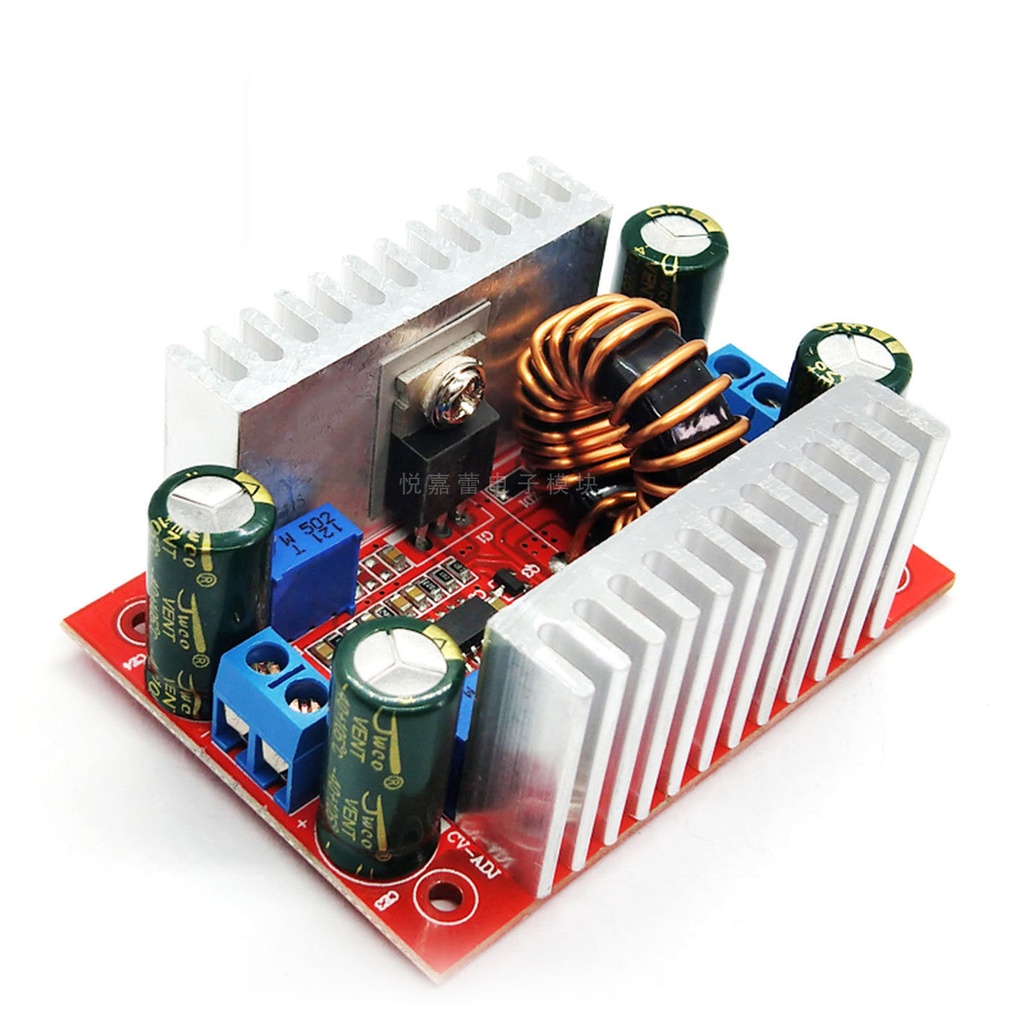

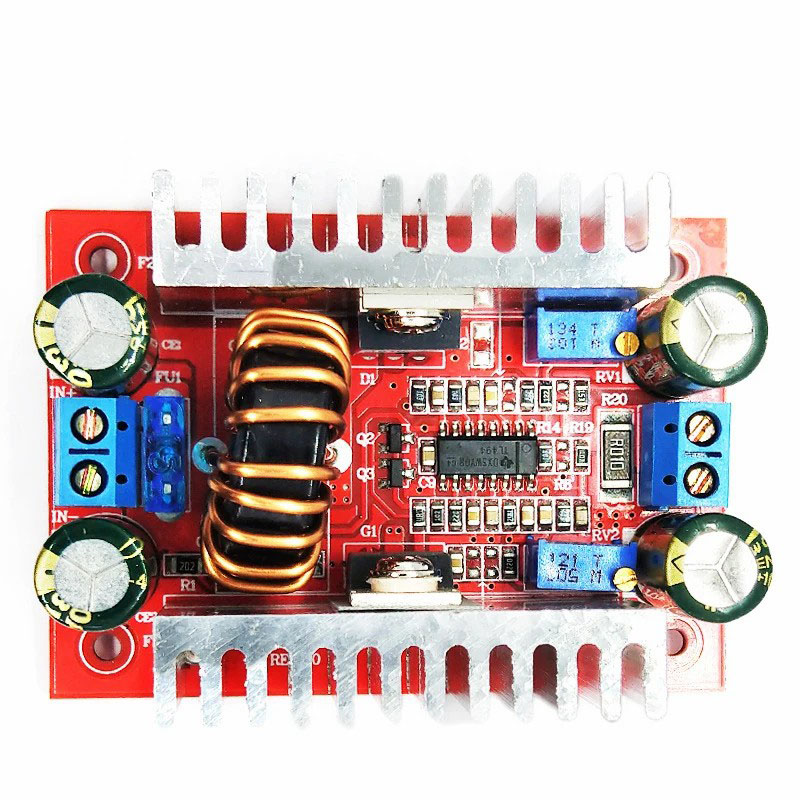

▶️ 1.【Module name】400W boost constant current module
▶️ 2. [Module properties]: Non-isolated boost module (BOOST)
▶️ 3.【Input voltage】: DC8.5V-50V
▶️ 4. [Input current]: 15A (MAX) If it exceeds 8A, please increase heat dissipation
▶️ 5. [Quiet working current]: 10mA (When the output voltage is increased from 12V to 20V, the higher the output voltage, the higher the static current will be)
▶️ 6. [Output voltage]: 10-60V continuously adjustable, 12-80V fixed output (for bulk customers)
▶️ 7. [ Output current]: 12 A MAX. If it exceeds 7A, please increase heat dissipation (related to the input and output voltage difference. The greater the voltage difference, the smaller the output current)
▶️ 8. [Constant current range]: 0.2-12A
▶️ 9. [Output power]: = input voltage * 10A, such as: input 12V * 5A = 60W, input 24V * 5A = 120W, Input 36V*5A=180W, Input 48V*5A=240W,
▶️ 10. [Working temperature]: -40~+85 degrees (please increase heat dissipation when the ambient temperature is too high)
▶️ 11. [Working frequency]: 150KHz
▶️ 12. [Conversion efficiency]: Up to 96% (efficiency is related to input and output voltage, current, and voltage difference)
▶️ 13. [Overcurrent protection]: Yes (when the input exceeds 15A, the output voltage will be automatically reduced, with a certain range of error.)
▶️ 14. [Input reverse protection]: None, (If you need a higher reverse current, please connect a diode in series with the input)

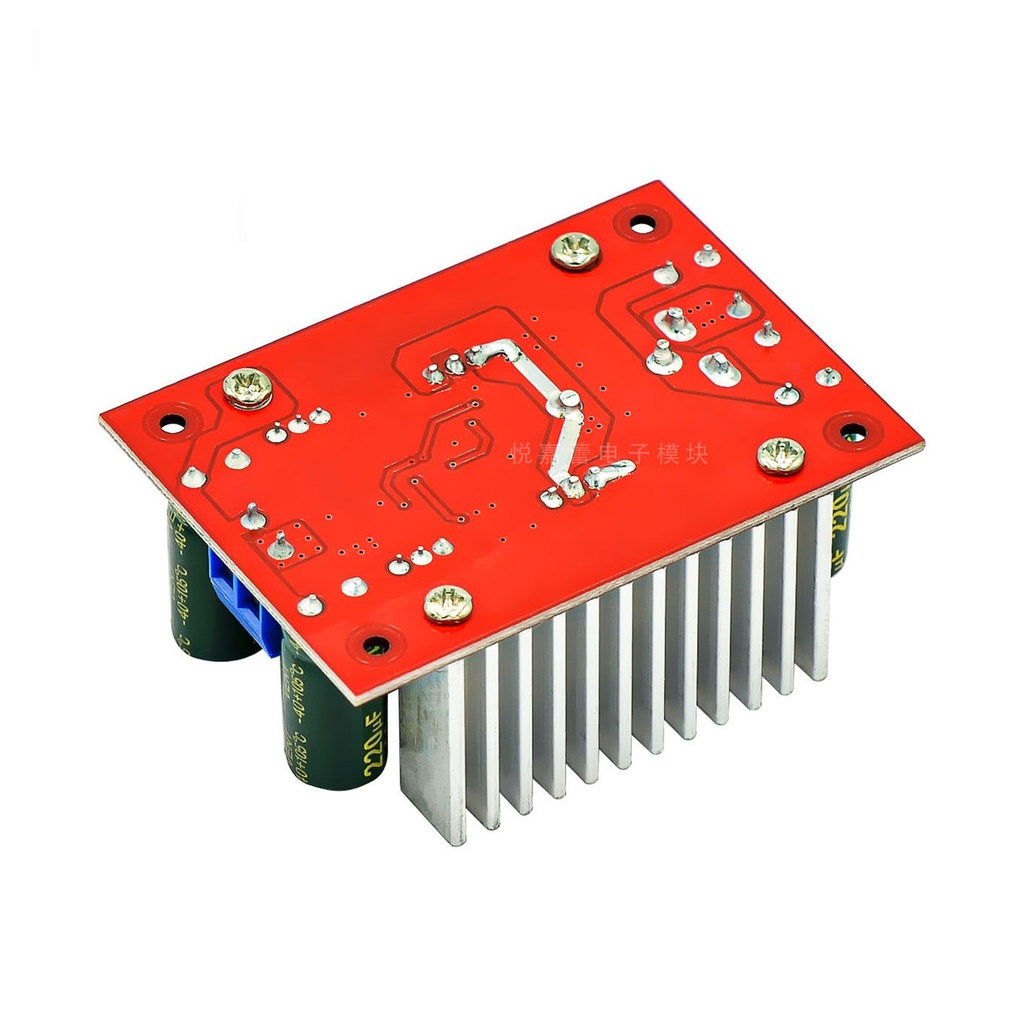

▶️ 15. [ Installation method]: 4 2.5mm screw holes

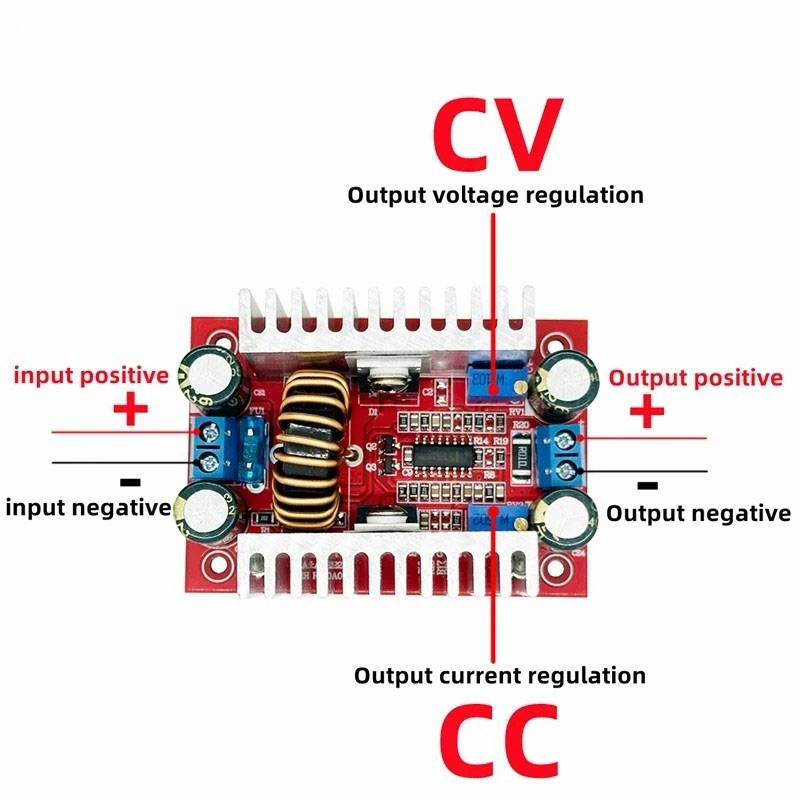

▶️ 16. 【Wiring method】: Wiring output

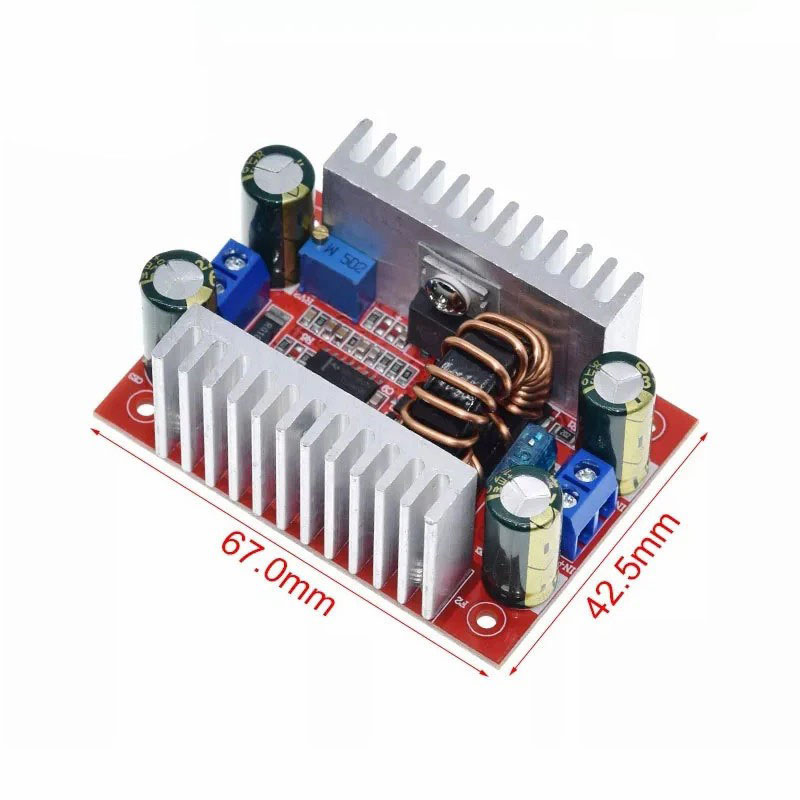

▶️ 17. [Module size]: Length 67mm, width 48mm, height 28mm
▶️ 18. [Module weight]: 60g
