Features:
● 1. Small size, suitable for various products.
● 2. Stable performance, good control of water level.
● 3. Simple operation, easy wiring by reference to the wiring diagram.
● 4. When the water level is lower than the B probe, automatic pumping. Stop pumping when the water level reaches probe C.
● 5. A wide range of applications, according to the actual water consumption of household factories and mining development, through water level induction to achieve automatic pumping when the water level is low, and automatically stop pumping when the water level reaches the set height.
Specifications:
● Working voltage: Transformer: 5/12V (transformer can be directly replaced by 12V DC power supply)
● Maximum current: 10A
● Size: 50*43mm
● Application scenario:
● Automatic water supply system for water tower
● Aquarium tank water supply system
● Conducting liquid
● Automatic control of domestic livestock
● Automatic water supply system Farm automatic water supply system
● Such as the need for water automatic water and water exchange.
● Solenoid valve, water pump, automatic motor control

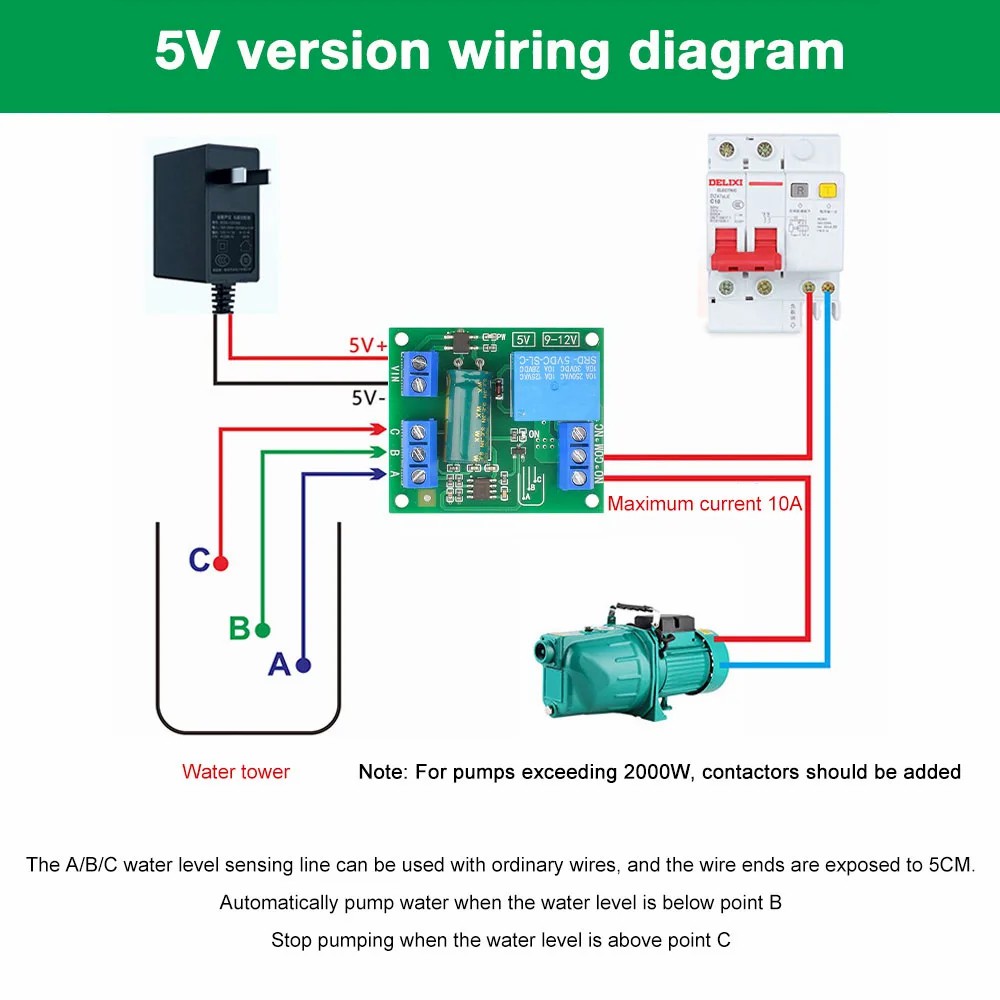

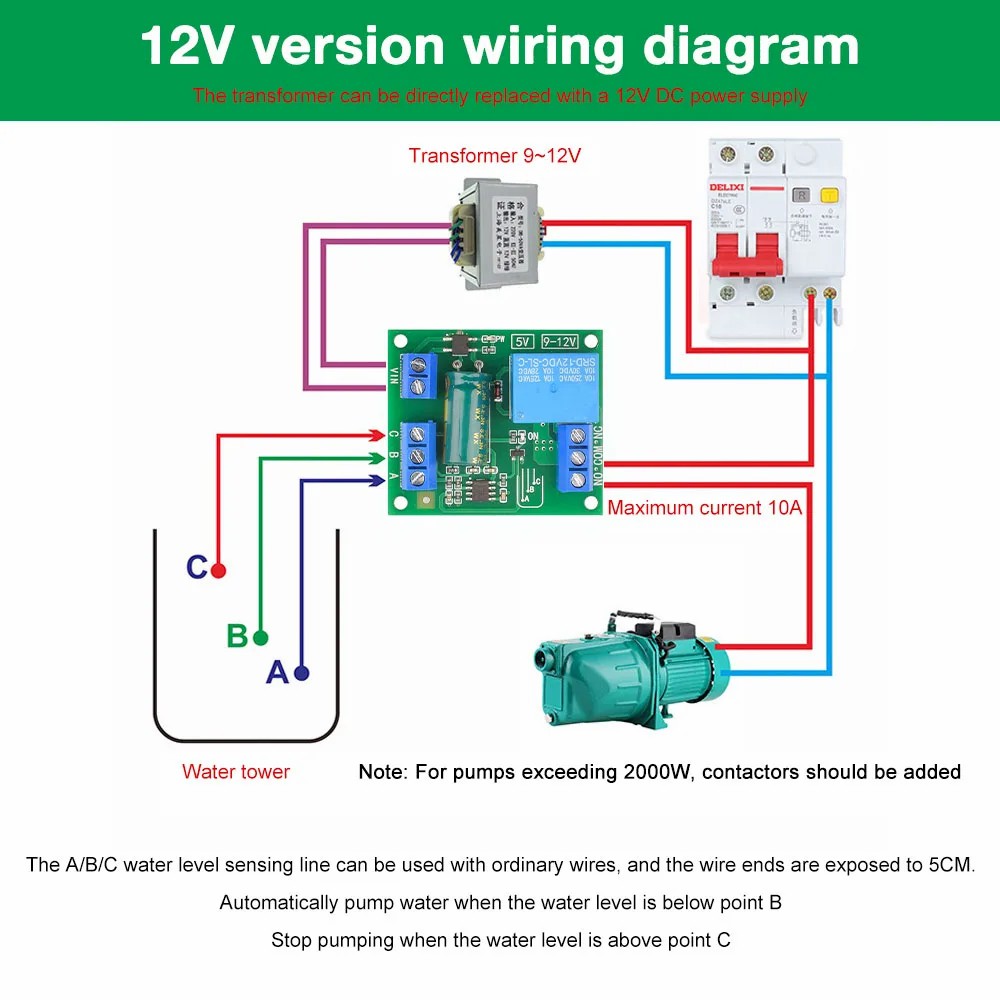

Wiring instructions:
● The A/B/C water level sensing line can be used as an ordinary wire, with the wire tip exposed at 5CM. When the water level is lower than point B, automatic pumping is stopped when the water level is higher than point C.
Attention:
● 1. For safety, use a well-insulated AC/DC power supply.
● 2. For pumps exceeding 2000W, contactors should be added.
● 3. There is no probe (cable) in the package, no need to use a specific probe, the probe can be made of household cable.
