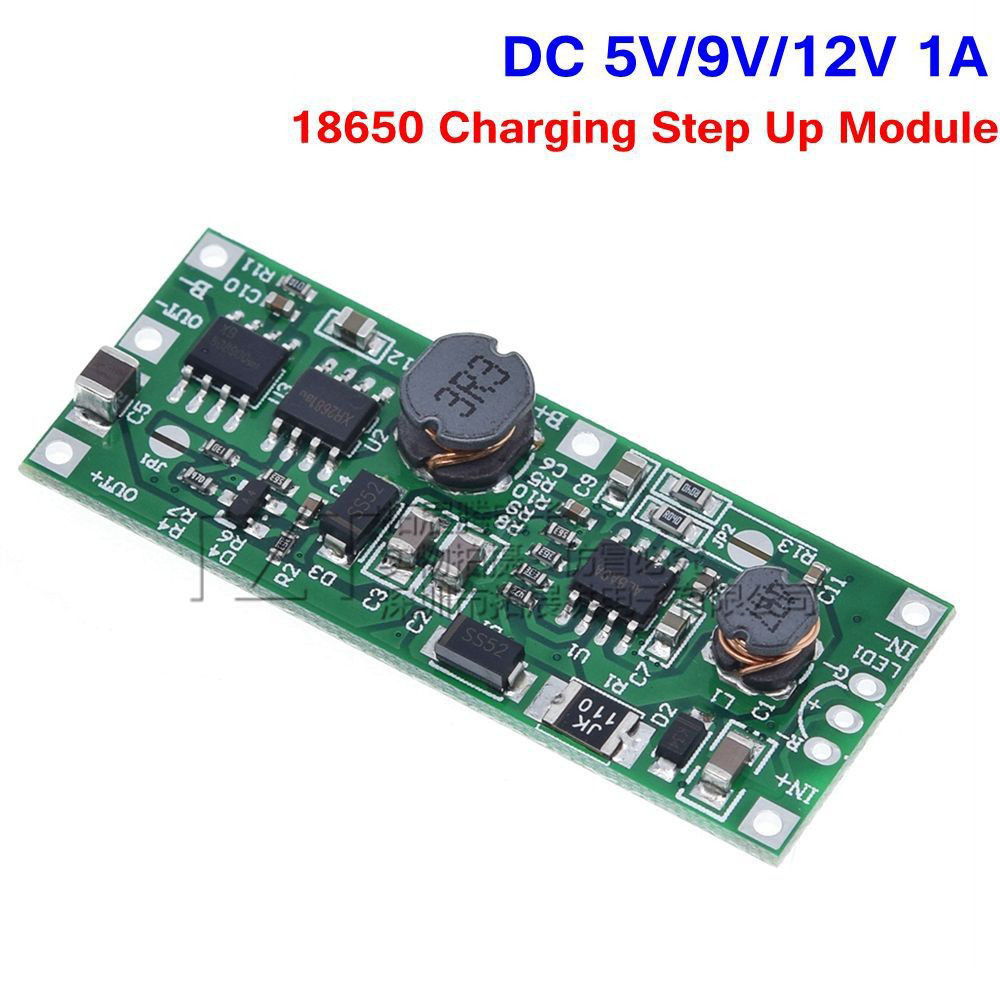

● Product Name: UPS Voltage Converter Module
● Working Voltage: DC 5V 1A
● Output Voltage: DC 5V 1A
● Output Power: 5W
● Support Battery (Not Included): 3.7V Lithium or polymer battery 10Ah (Max)
● Input reverse connection protection: Yes
● Input overvoltage protection: Yes
● Output reverse connection protection: Yes
● Output short circuit protection: Yes
● Working Temperature range: -40°C ~ 85°C
● Working Humidity range: 0%~95%RH
● Size: 33*17*4mm
Parameters (9V)
● Product Name: UPS Voltage Converter Module
● Working Voltage: DC 5.0V-12.0V
● Output Voltage: DC 9.0V
● Output Power: 9W
● Support Battery (Not Included): 3.7V Lithium or polymer battery 15Ah (Max)
● Input reverse connection protection: Yes
● Input overvoltage protection: Yes
● Output reverse connection protection: Yes
● Output short circuit protection: Yes
● Working Temperature range: -40°C ~ 85°C
● Working Humidity range: 0%~95%RH
● Size: 49.8*19*7mm

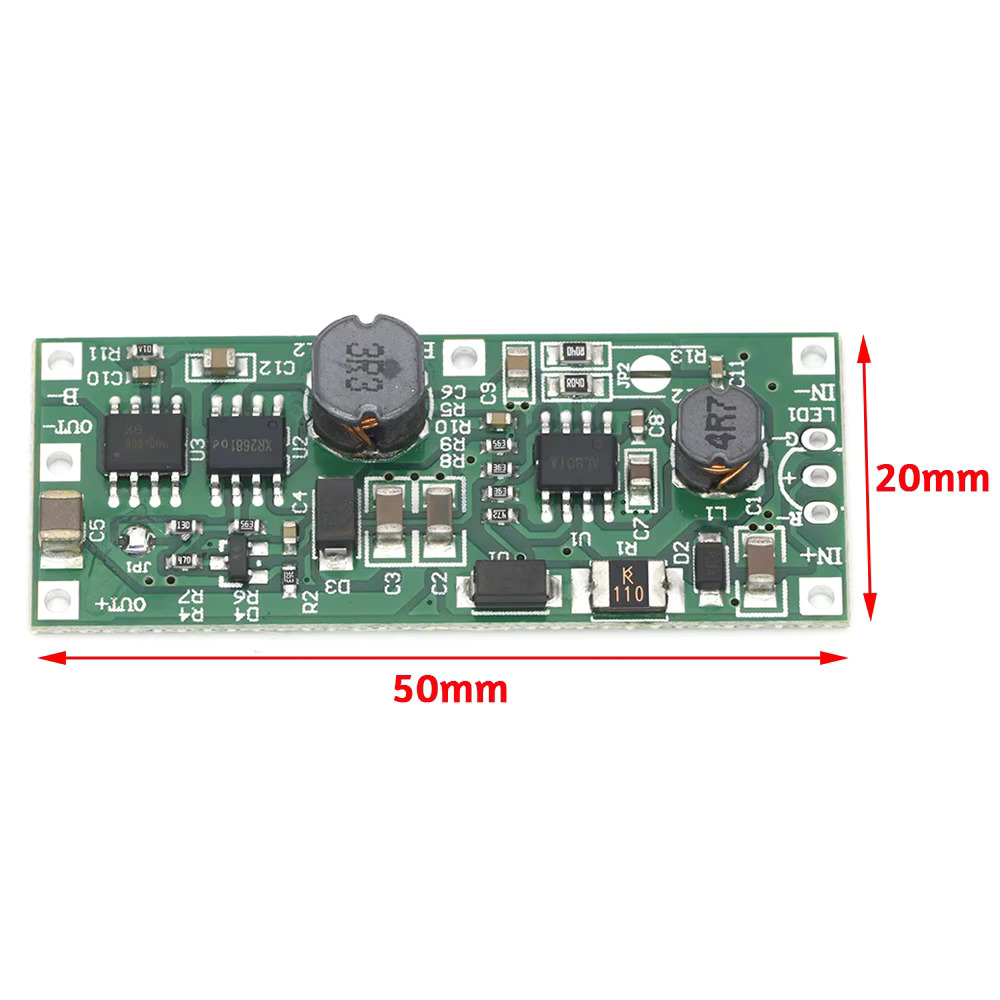

Parameters (12V)
● Product Name: UPS Voltage Converter Module
● Working Voltage: DC 5.0V-12.0V
● Output Voltage: DC 12V
● Output Power: 12W
● Support Battery (Not Included): 3.7V Lithium or polymer battery 15Ah (Max)
● Input reverse connection protection: Yes
● Input overvoltage protection: Yes
● Output reverse connection protection: Yes
● Output short circuit protection: Yes
● Working Temperature range: -40°C ~ 85°C
● Working Humidity range: 0%~95%RH
● Size: 50*20*6.3mm
Note
● Its max output current is 1A and cannot keep output 1A.
● The positive and negative poles of the input power supply cannot be reversed; otherwise, the module will be damaged.

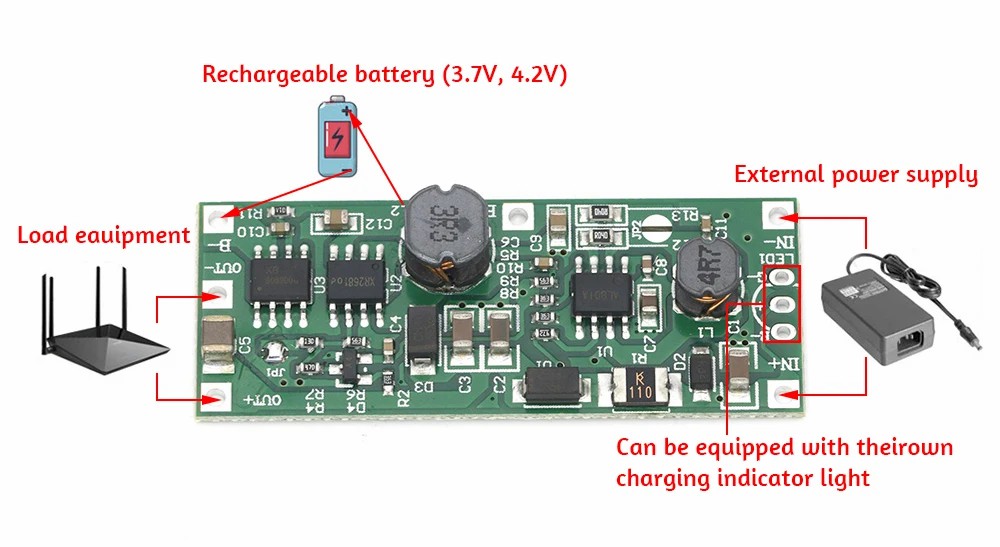

● Users can install a common cathode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Red light indicates charging. Red flashing indicates no battery. Red OFF indicates fully charged.
● Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.
● Please read the user manual and description before use.
● JP1 is to change the output voltage (short circuit is 12V output, disconnected is 9V output).
● JP2 is to set the charging current for the battery (short circuit is about 1A, disconnected is about 0.5A)
