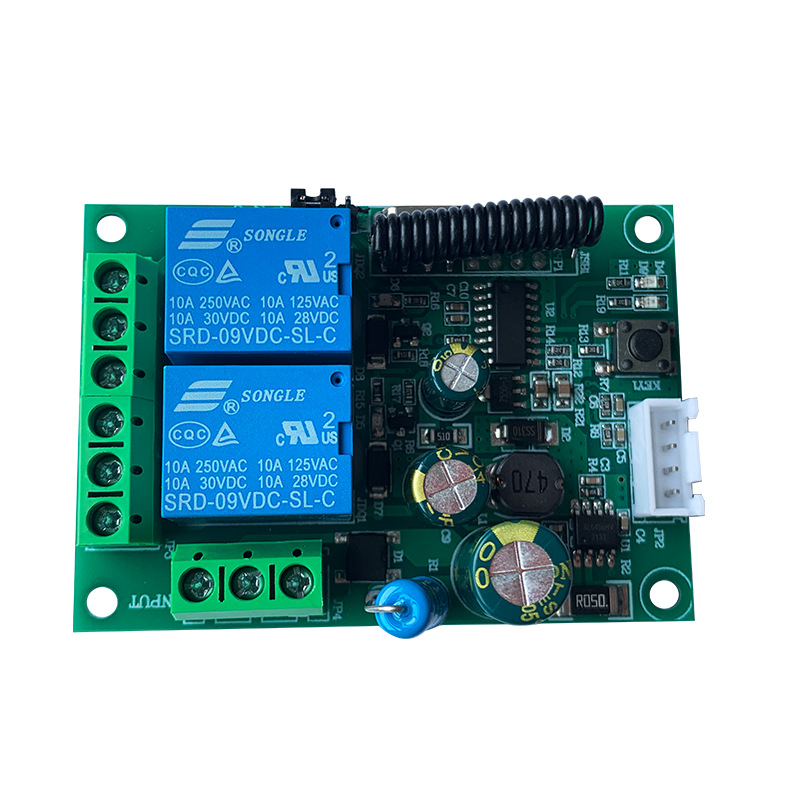

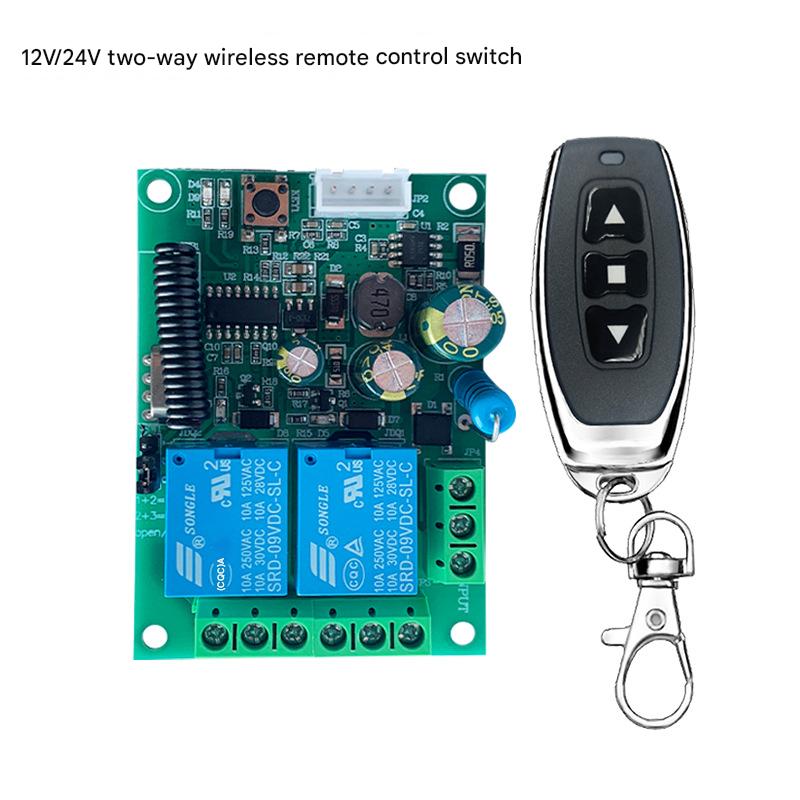

Specifications
● Working Voltage: DC 9-72V
● Frequency: 433MHz
● Sensitive Reception: -105Db
● Maximum Load: 10A
● Encoding Type: Learning Type - Jump cap conversion mode
● Working Method: Inching, interlocking, self-locking
● Weight: 110g

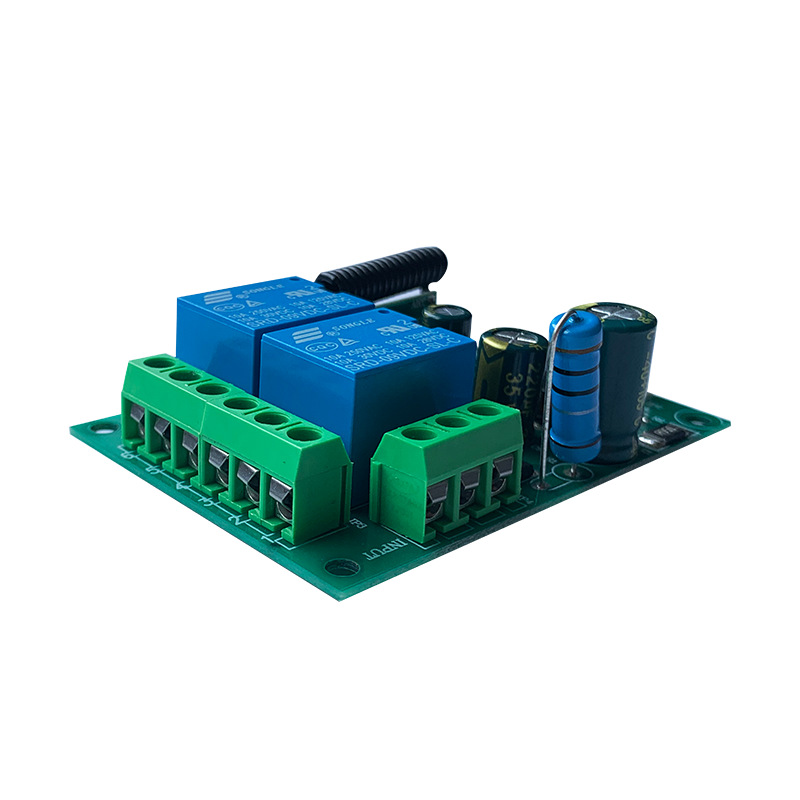

● PCB size: 48*68*18mm

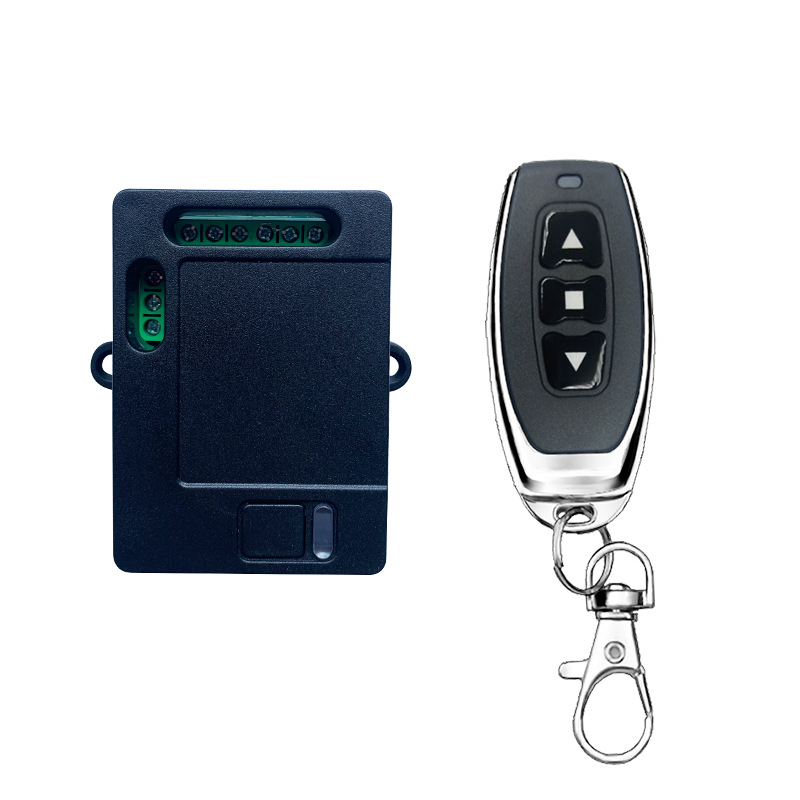

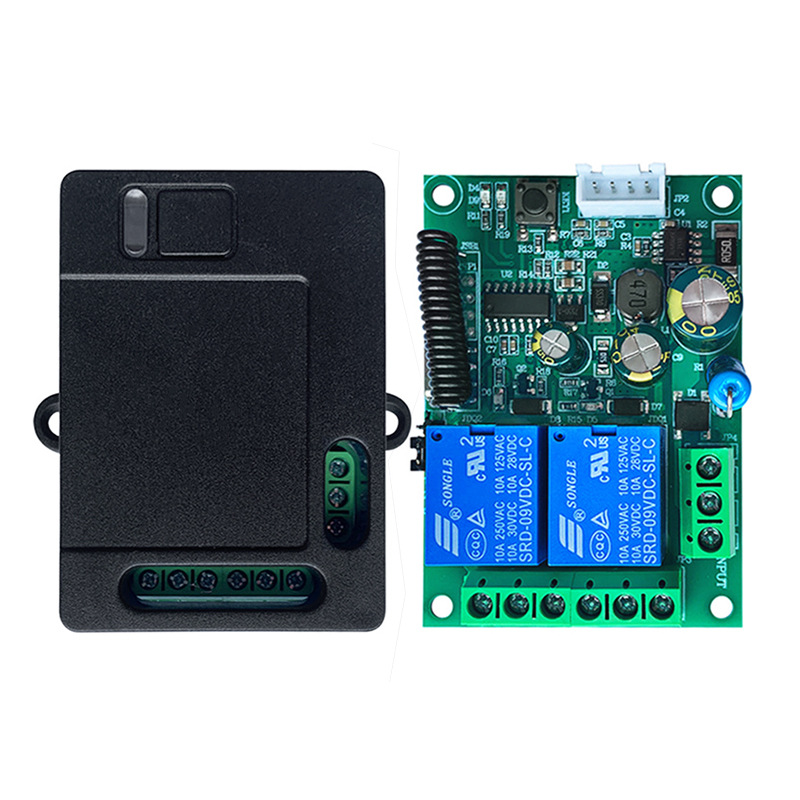

● Housing size: 55*74*25mm

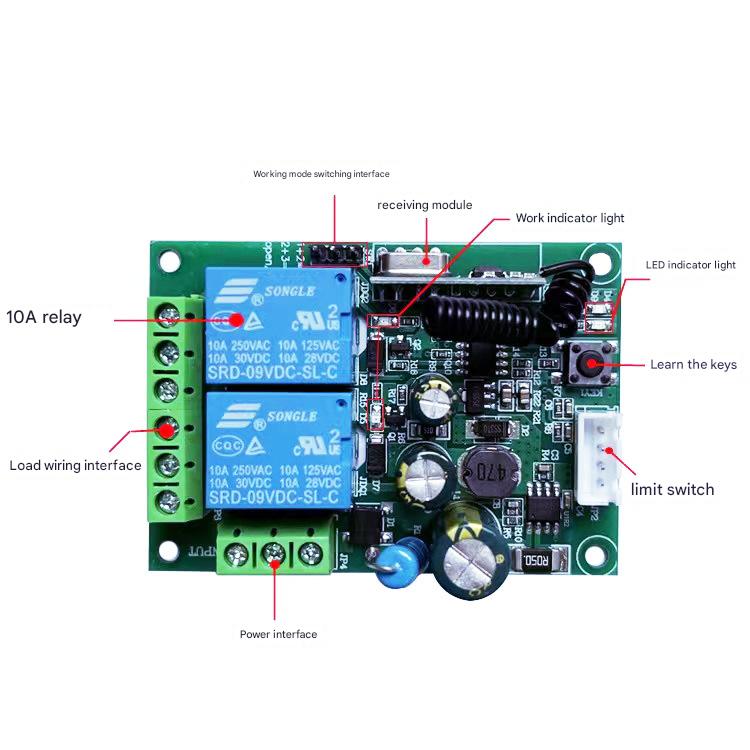

Working mode

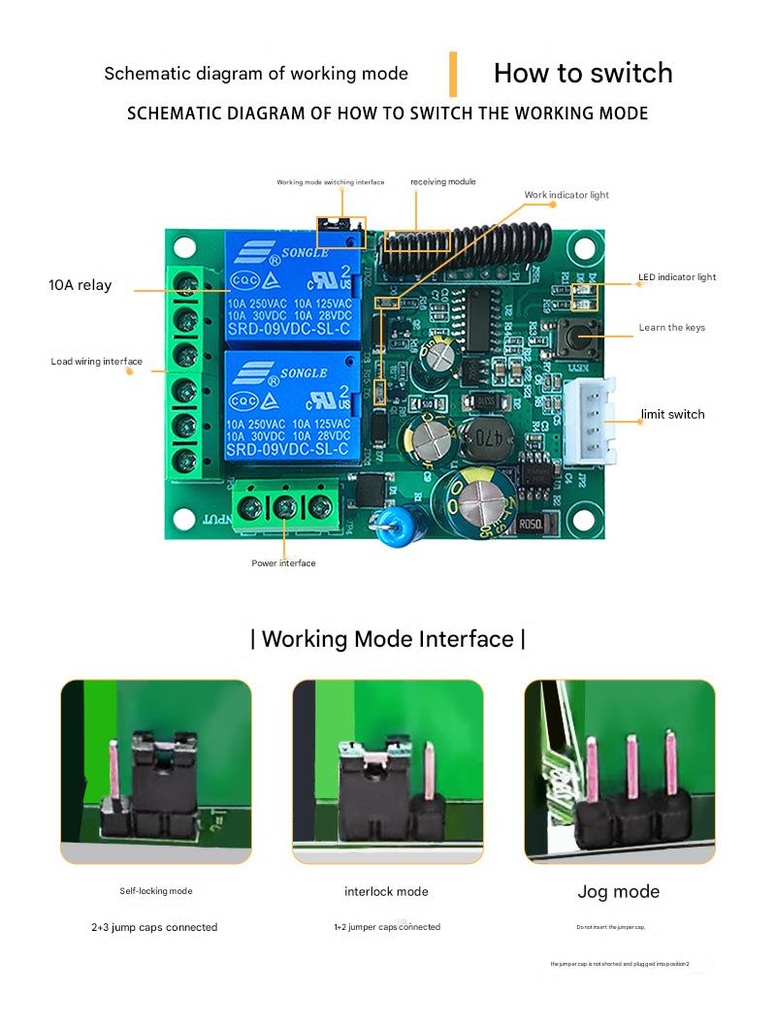

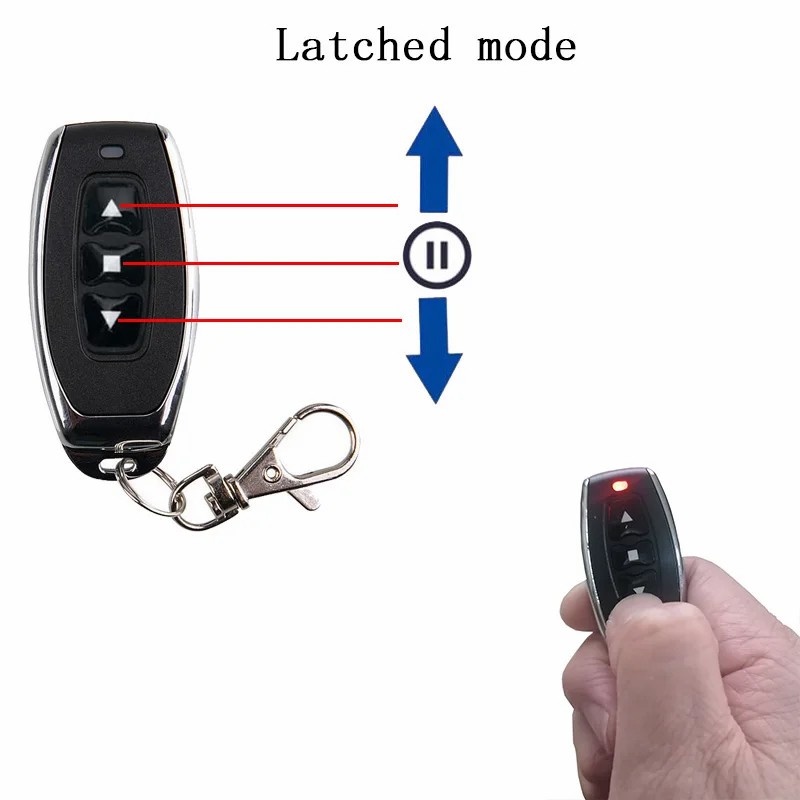

● Self-locking mode: 2+3 jumpers connected
● Interlocking mode: 1+2 jumpers connected
● Inching mode: no jumper inserted, jumper not shorted, plug in 2 positions
● In the inching/self-locking mode, M1 and M2 work independently.
● In interlock mode: M1 and M2 cannot output at the same time
learning methods
STUDY METHOD
● Adjust the working mode. Inching, self-locking, and interlocking outputs.
● Power on and press the learning button on the control panel, the indicator light flashes once, press the A button on the remote control to indicate the light flashes twice and then goes out, and the 1-way relay is learned successfully;
● Press the learning button on the control panel twice again, the indicator light flashes twice, press the B button on the remote control, the indicator light flashes twice and then goes out, and the 2-way relay learning is successful:
● Clear: Press and hold the learning button for about 8 seconds, and the indicator light will turn from off to solid on, indicating that all stored information has been successfully cleared.
