▶️1. Input voltage: 3 ~ 35V DC ( Note: If the input voltage is less than 4V , the onboard voltmeter will fail )
▶️2. Input current: 9A ( max )
▶️3. Output voltage: 3.5 ~ 35V DC ( this board is a step-up board, the output voltage must be greater than or equal to the input voltage )
▶️4. Output current: 6A ( max )
▶️5. Output power: 75W ( can reach 128W when both input and output voltages are greater than 20V )
▶️6. Conversion efficiency: 96.7% ()
▶️7. Output ripple: 24mV (TYP)
▶️8. Onboard voltmeter range: 4~40V , error +-0.1V
▶️9. Short-circuit protection: Yes (current limit 14A ) . Tips: When connecting to high-power loads, the current limit self-locking protection will be activated due to the large inrush current at the beginning of power-up. It is recommended to turn on the power first and then connect the load.
▶️10. Input reverse polarity protection: None (if necessary, please connect a high-current diode in series with the input).

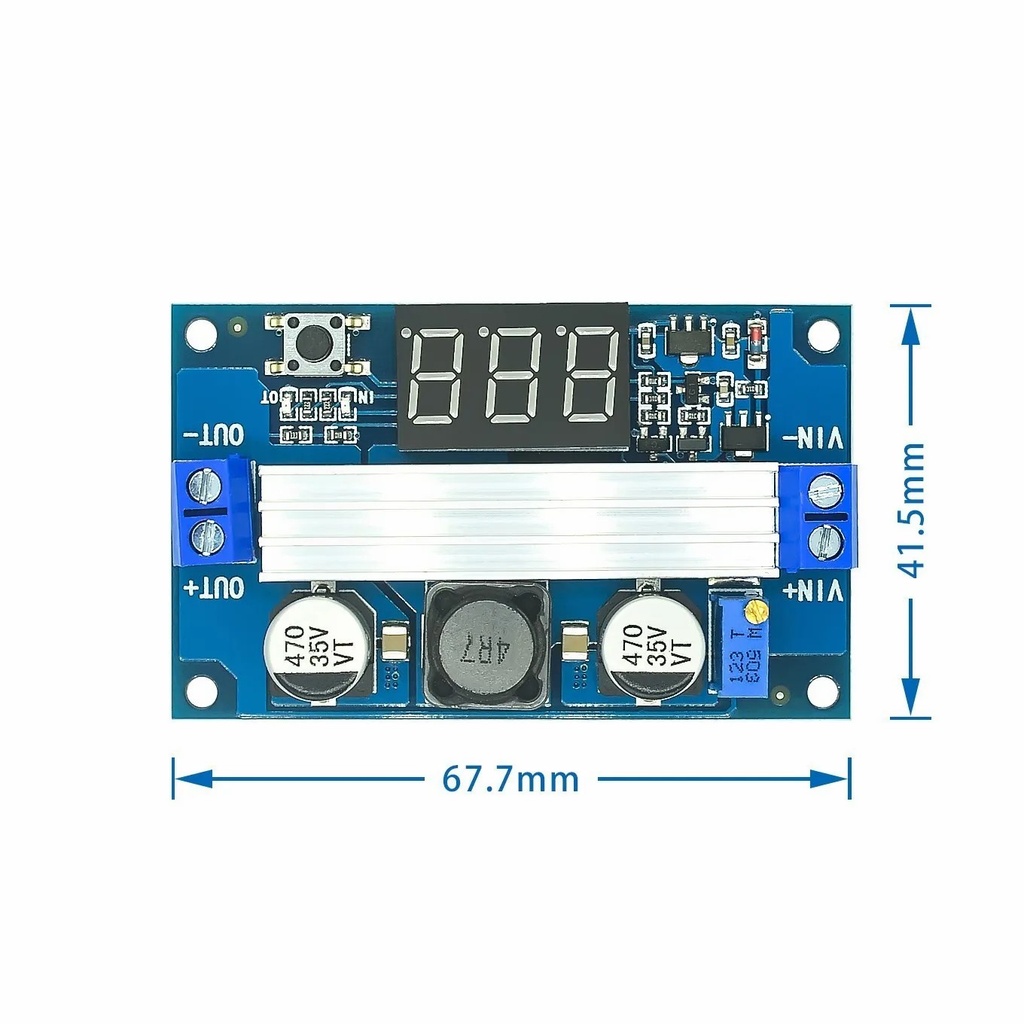

▶️11. Length x width x height = 67*43*12MM (excluding copper pillars)
