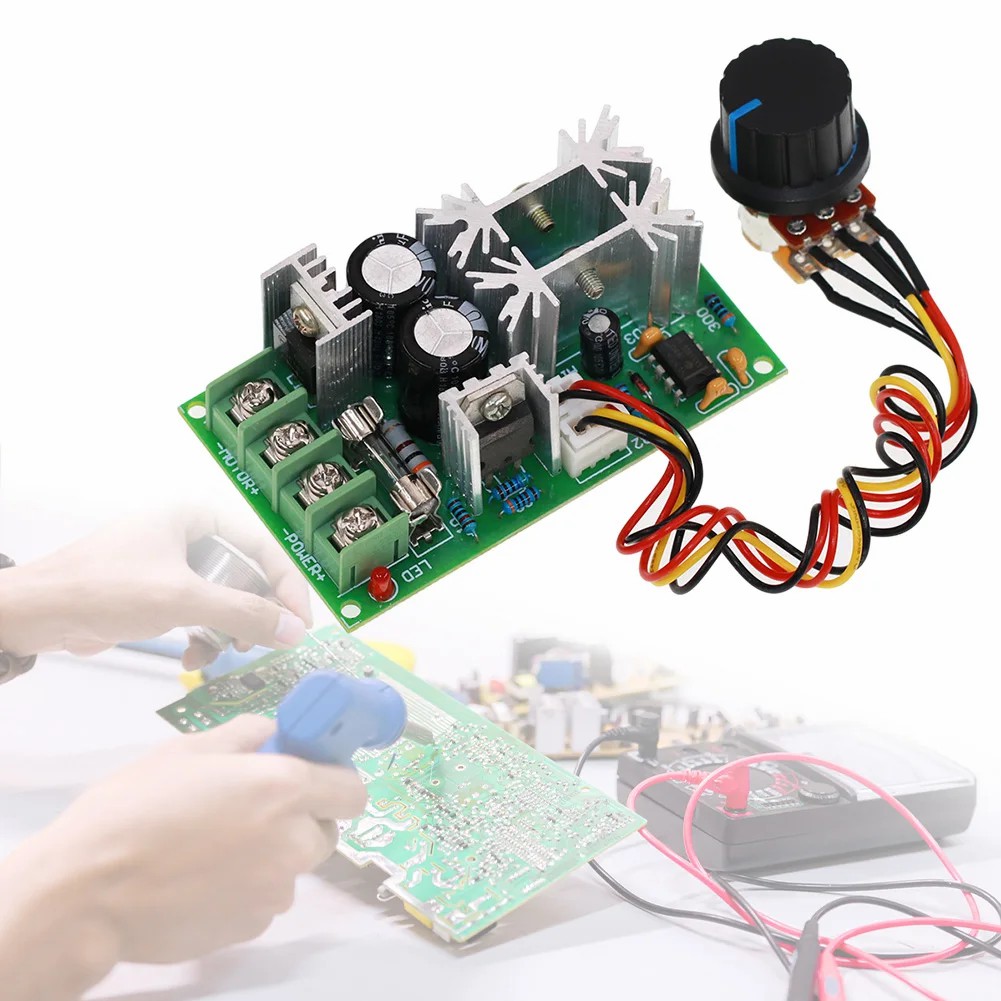

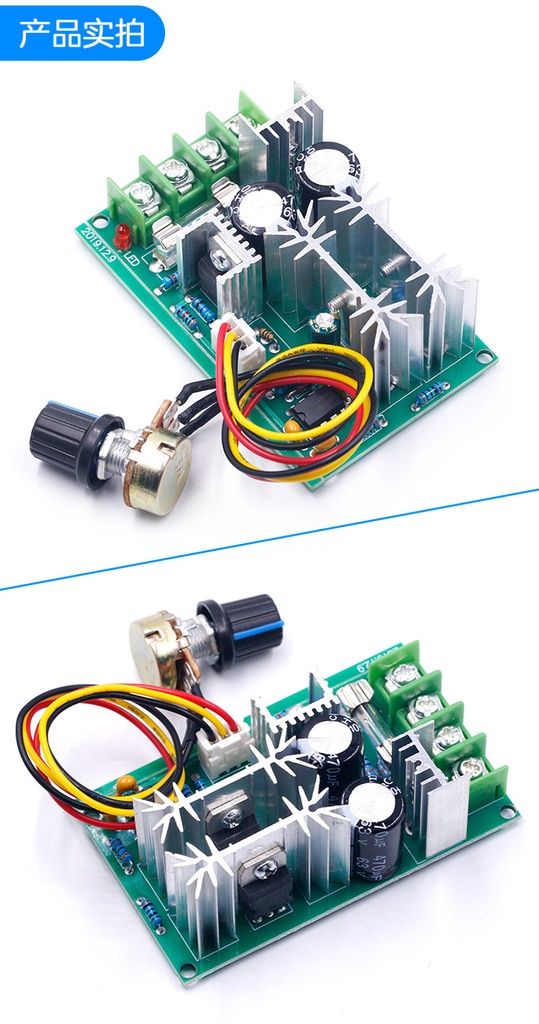

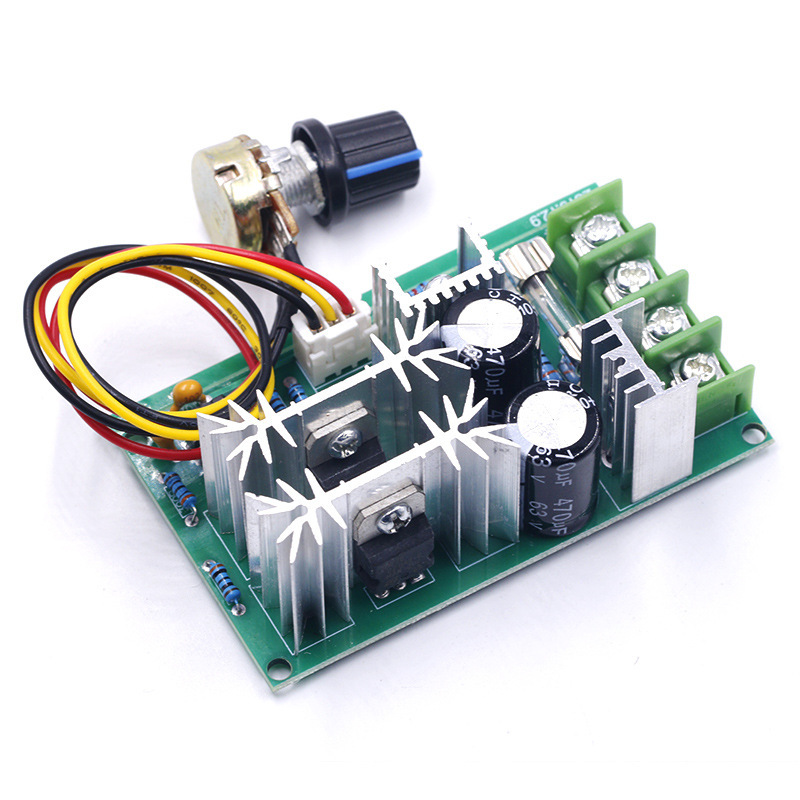

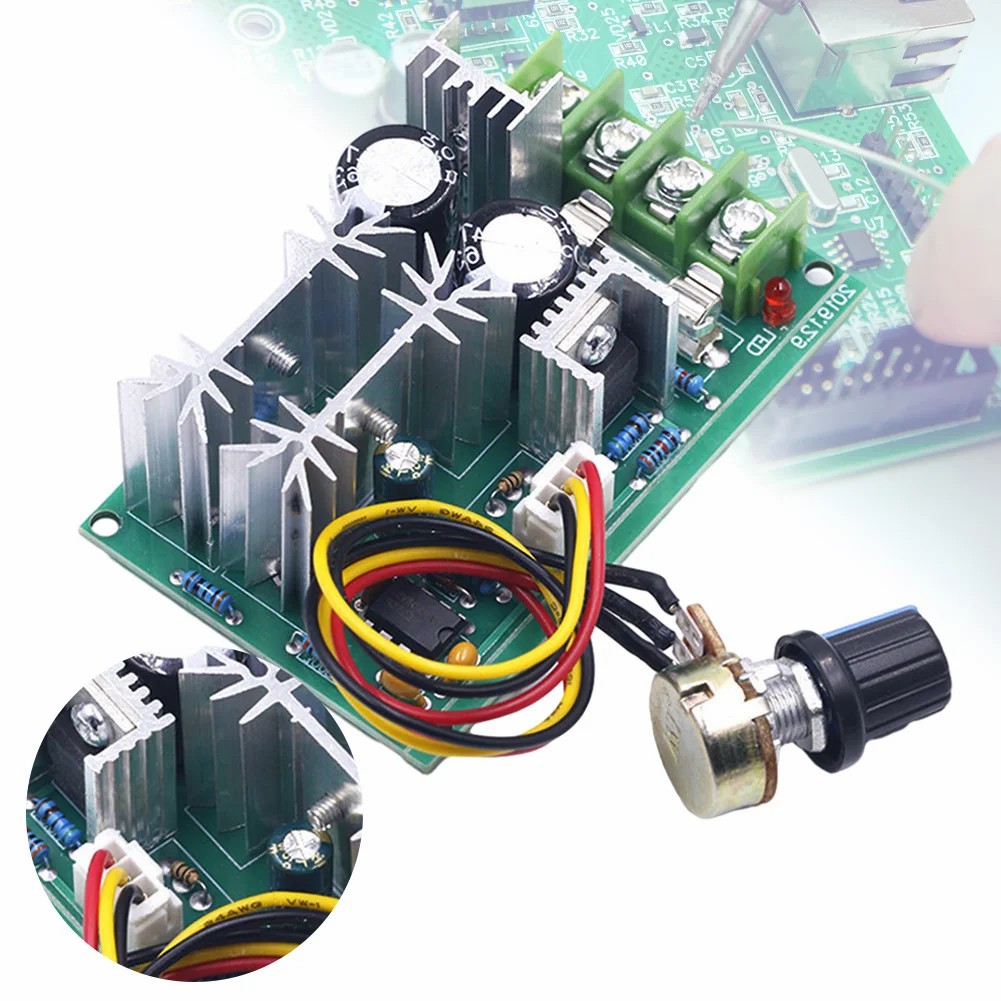

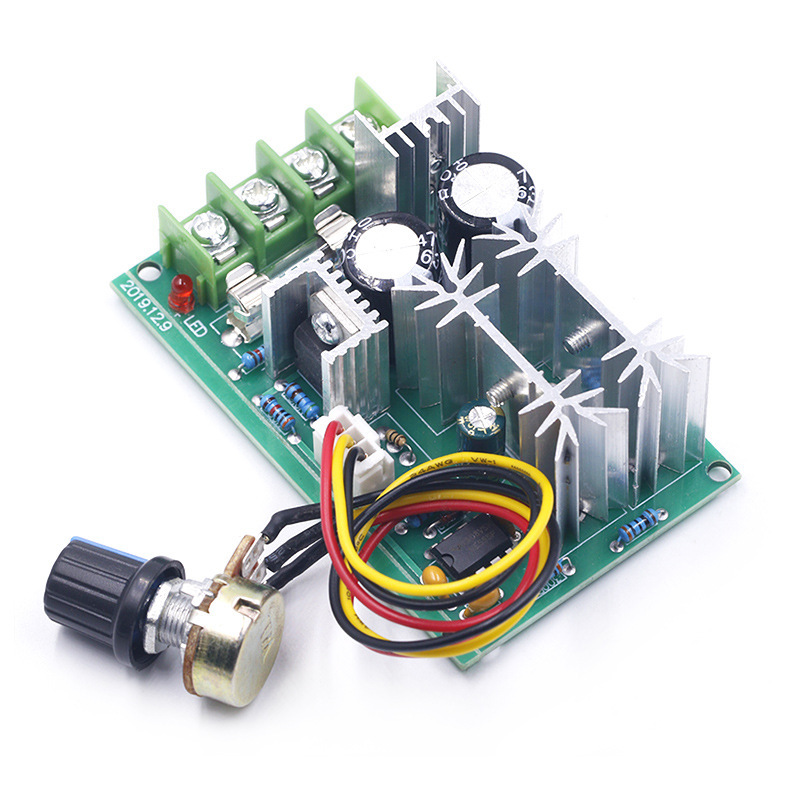

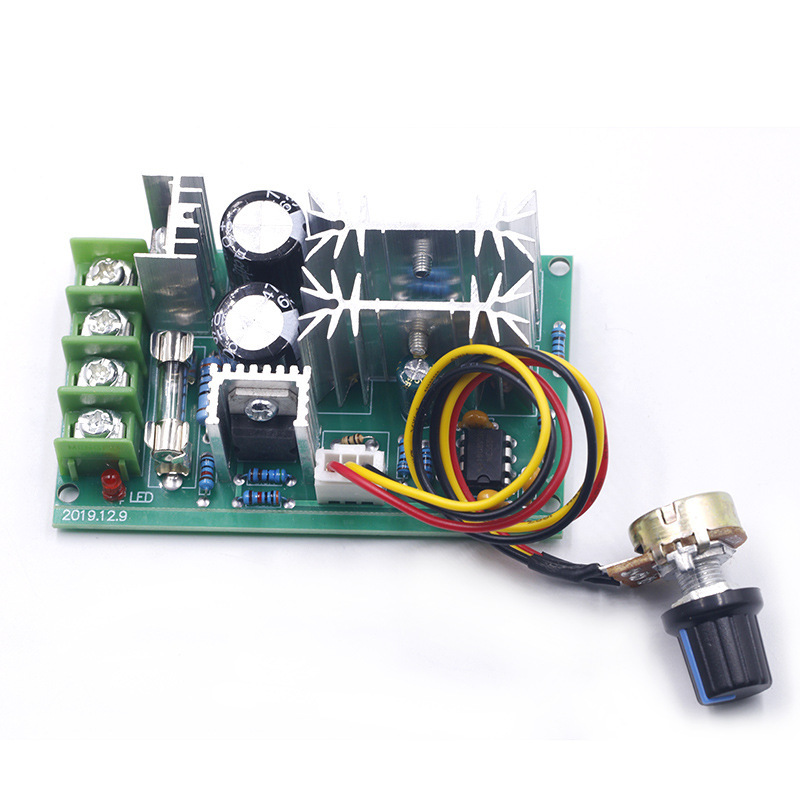

Motor Speed Regulator Controller Switch DC10-60V Regulating Current DC Speed Controller 20A for Electronic DIY
Features:
1. Enhanced Voltage Regulation: Precisely control motor speed with our PWM motor speed controller switch, boasting an adjustable output voltage for optimal speed management.
2. High-Power Output Capability: Engineered for demanding applications, this current voltage regulator module supports continuous power up to 1200W and sustains a maximum current of 20A.
3. Wide Operational Range: Our high-power motor drive module operates efficiently across a vast voltage range of 10V to 60V, accommodating a wide array of DC motors. The device ensures smooth and stable motor control, ensuring precise speed adjustments from start to finish.
4. Advanced Protective Features: Safeguard your motor and controller with built-in overcurrent and overheating protections. These safety measures of this motor speed regulator controller switch are critical in maintaining the longevity of both the motor and the controller, making sure your operations run smoothly without the risk of damage.
5. Versatile Application Usage: Tailored for versatility, this regulating current DC speed controller is ideal for an array of DC motor applications, including mechanical equipment, automation systems, and robotics.
Specification:
1. Origin: Mainland China
2. Type: Module
3. Condition: New
4. Operating Voltage: Dc 10v-60v
5. Output Current: 0 To 20a
6. Frequency: 25khz.
7. Continuous Power: Maximum 1200w
8. Speed Range: Motor Zero Speed To Motor Maximum Speed
9. Maximum Current Up To 20a Heat Sink Or Additional Fan Required For Heat Dissipation
10. Material: Plastic, Metal

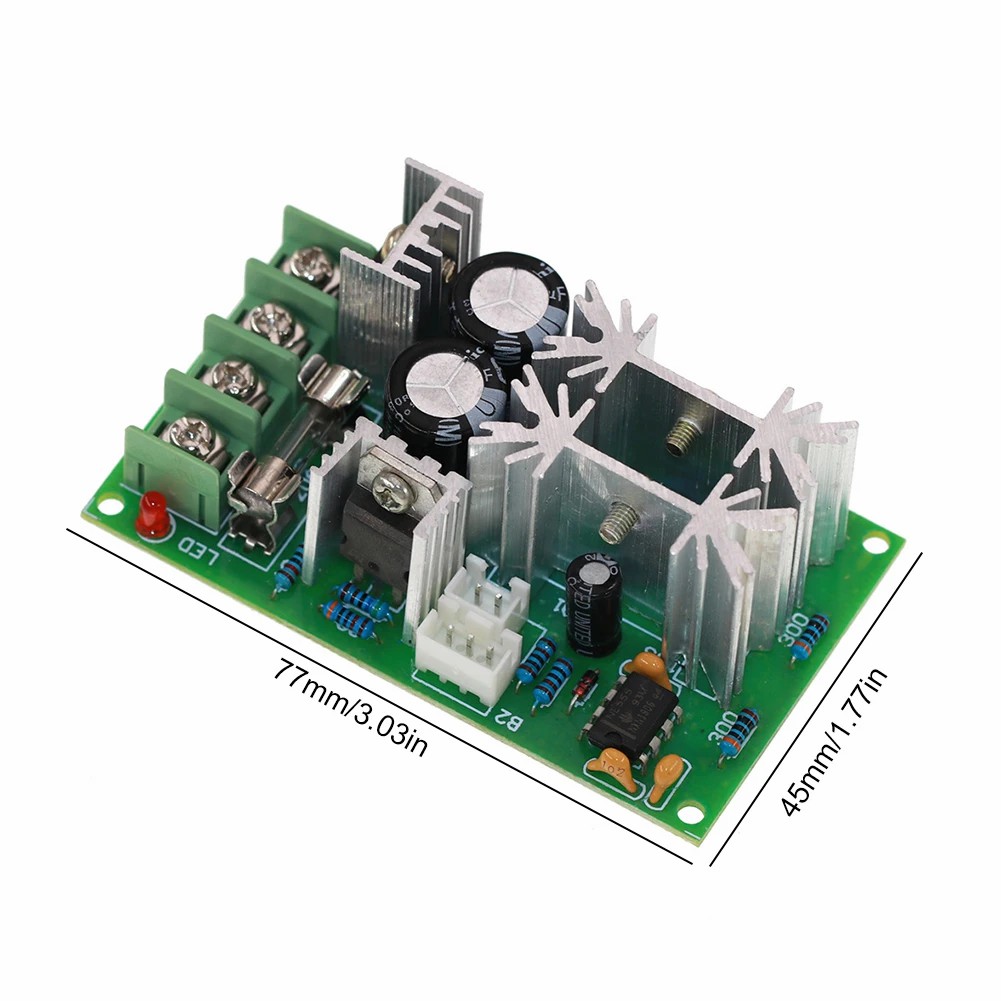

11. Size (L*W*H): 77*45*28mm/3*1.76*1.09in
12. Make sure the positive and negative connections are correct before powering on and do not touch the wiring to the heat sink, which may burn the circuit board.
13. Note that this is not a power module, must be connected to the motor in order to speed, not connected to the motor multimeter output did not change.
14. Input is 9-60V DC

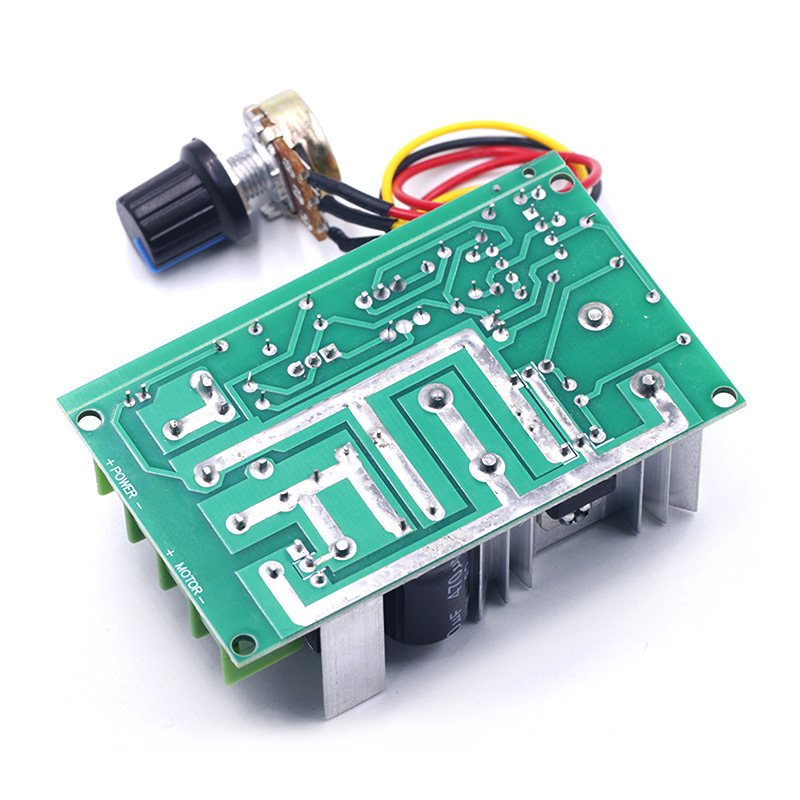

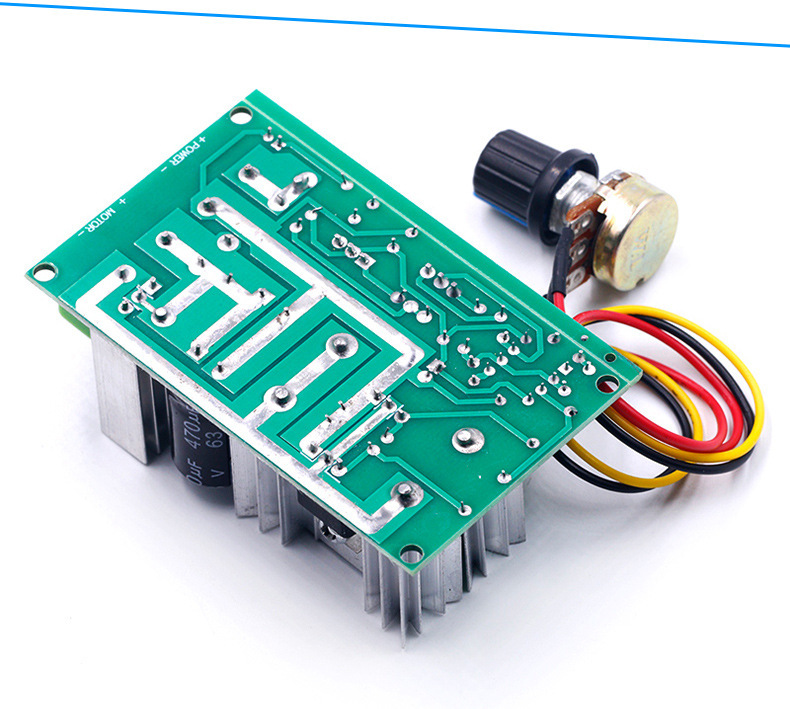

15. Power supply: POWER+ POWER-
16. Motor: MOTOR+ MOTOR-
Note:
1. This governor is for the use of DC brush motors.
2. It is not suitable for DC brushless motor speed regulation; nor can it be used as a regulator or voltage regulator!
