Features:

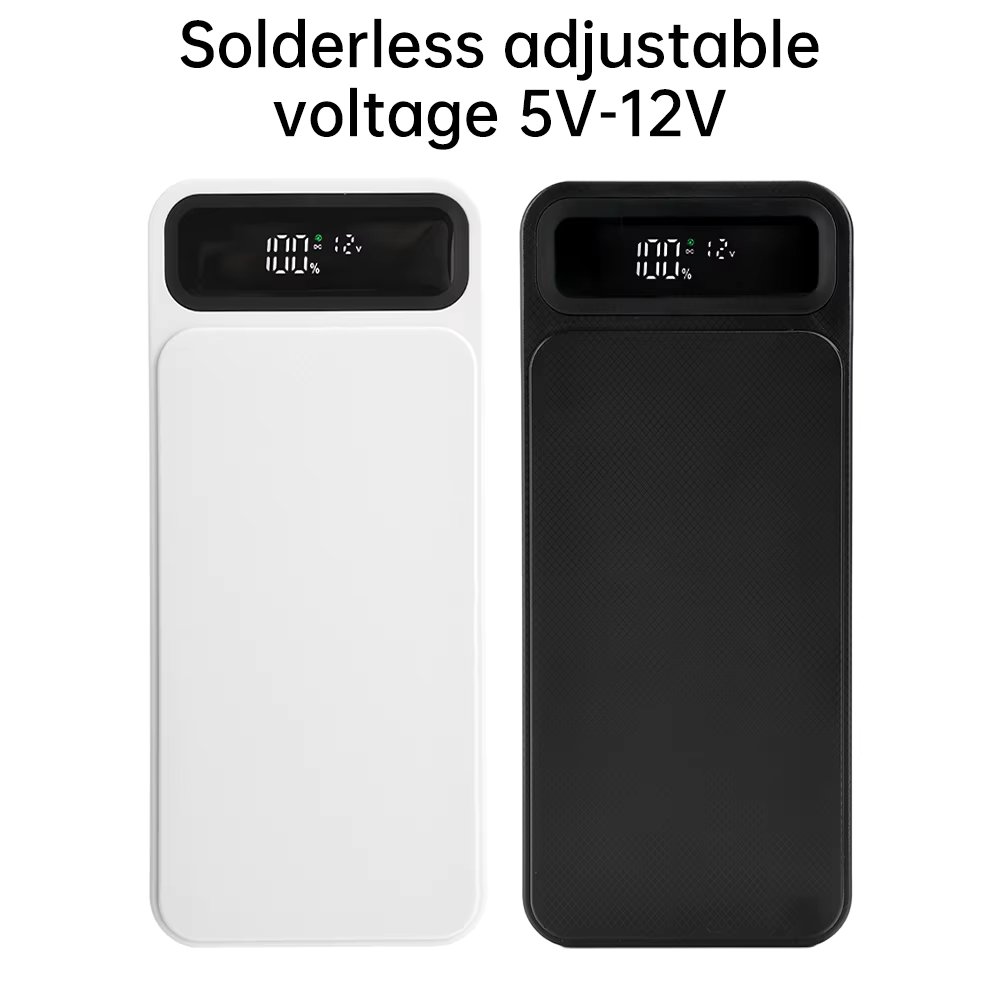

● 1.Support 5-12V multi-file output, flexible to adapt to different equipment needs.

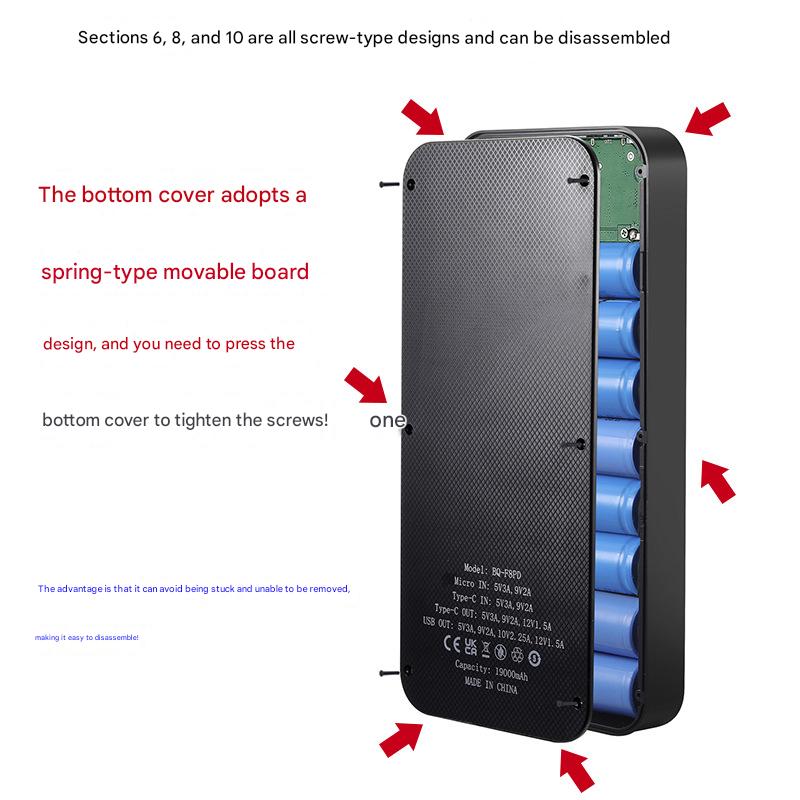

● 2. No welding, easy to assemble, suitable for DIY enthusiasts easy to operate
● 3. Built-in 8 18650 high-capacity batteries, providing long-lasting battery life.
● 4. Equipped with high efficiency voltage regulator circuit to ensure stable output and protect the connected equipment.
● 5. Built-in multiple protection functions to ensure the safety and stability of the use process
● 6. 6. Support battery capacity: 19000mAh

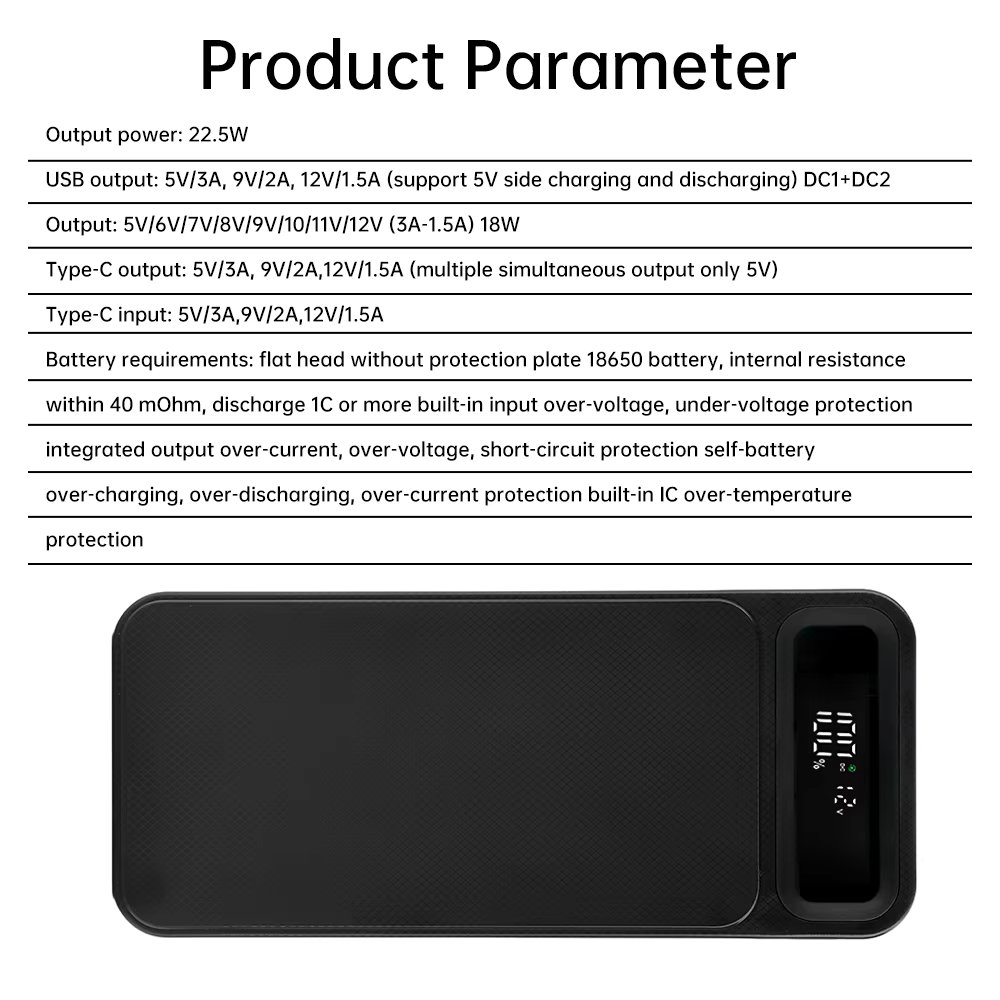

Parameter:

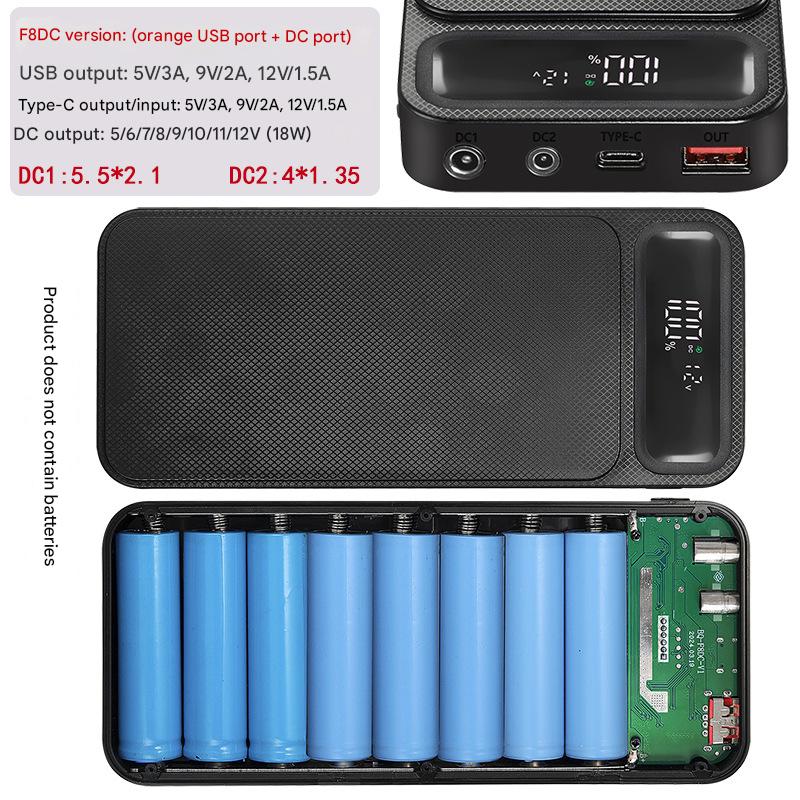

● Output power: 22.5W
● USB output: 5V/3A, 9V/2A, 12V/1.5A (support 5V side charging and discharging)
● DC1 + DC2 output: 5V/6V/7V/8V/9V/10/11V/12V (3A-1.5A) 18W
● Type-C output: 5V/3A, 9V/2A,12V/1.5A (multiple simultaneous output only 5V)
● Type-C input: 5V/3A,9V/2A,12V/1.5A

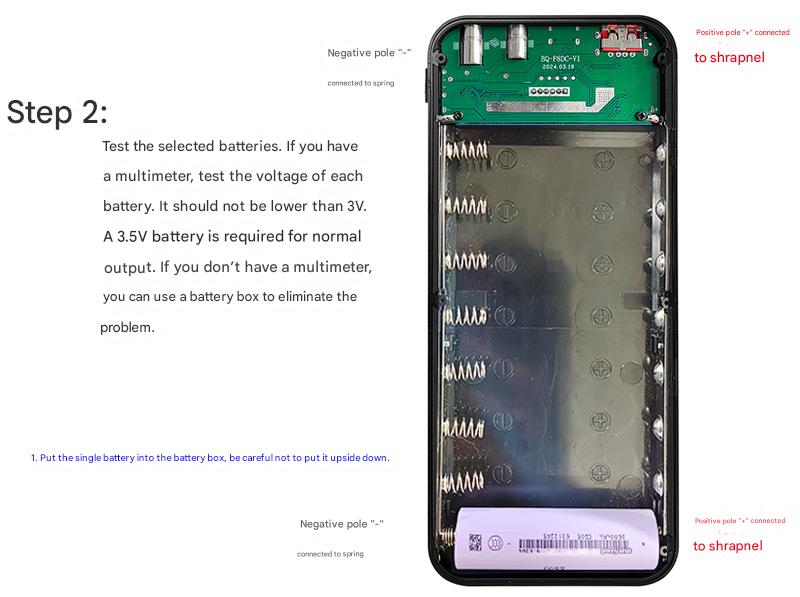

● Battery requirements: flat head without protection plate 18650 battery, internal resistance within 40 mOhm, discharge 1C or more built-in
● Input over-voltage, under-voltage protection
● Integrated output over-current, over-voltage, short-circuit protection
● Self-contained battery overcharge, overdischarge, overcurrent protection
● Built-in IC over-temperature protection

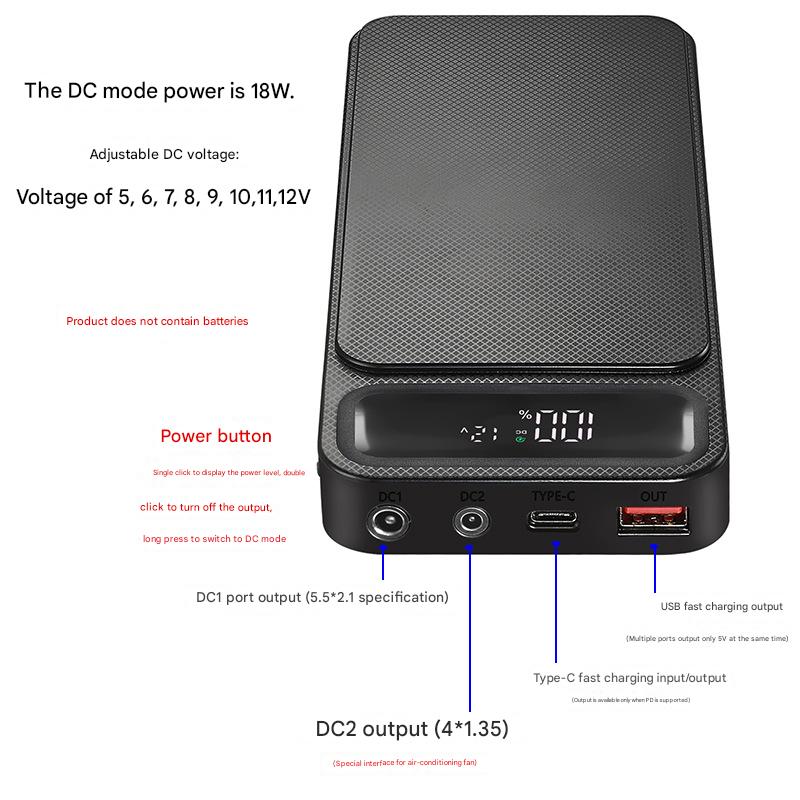

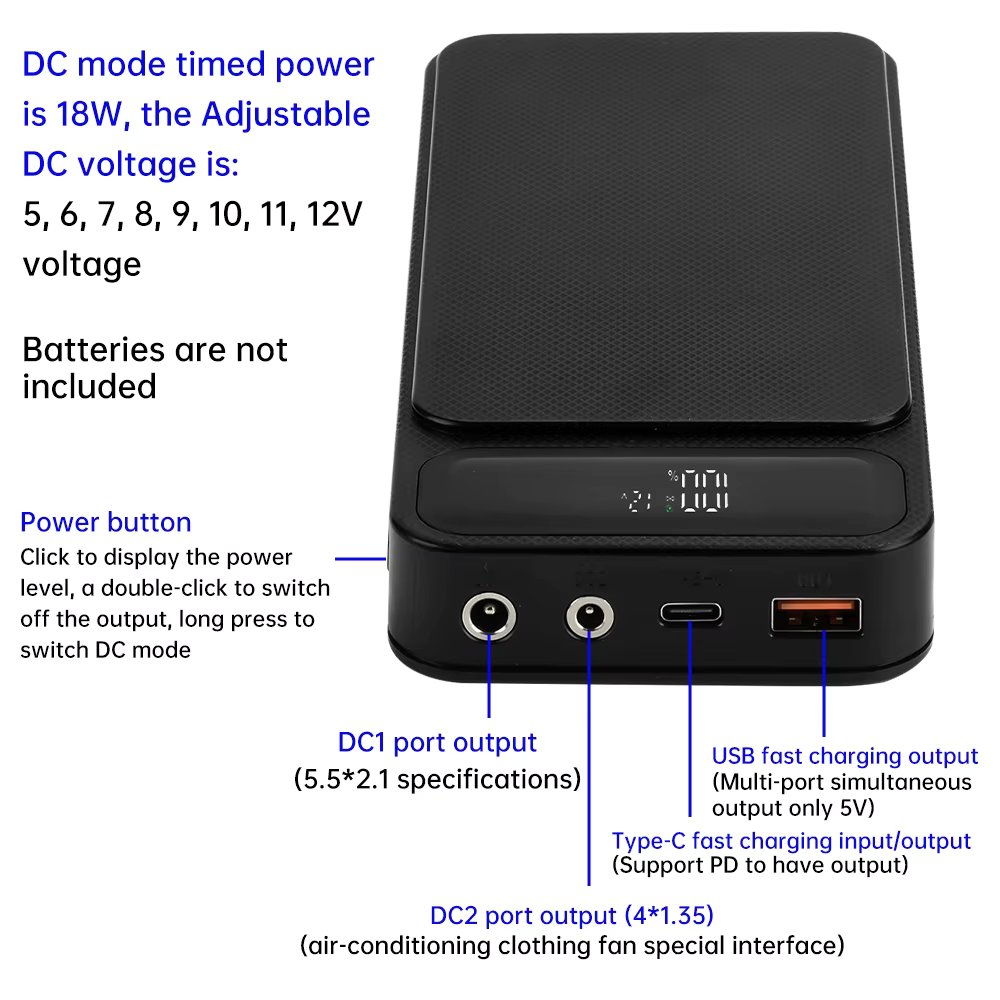

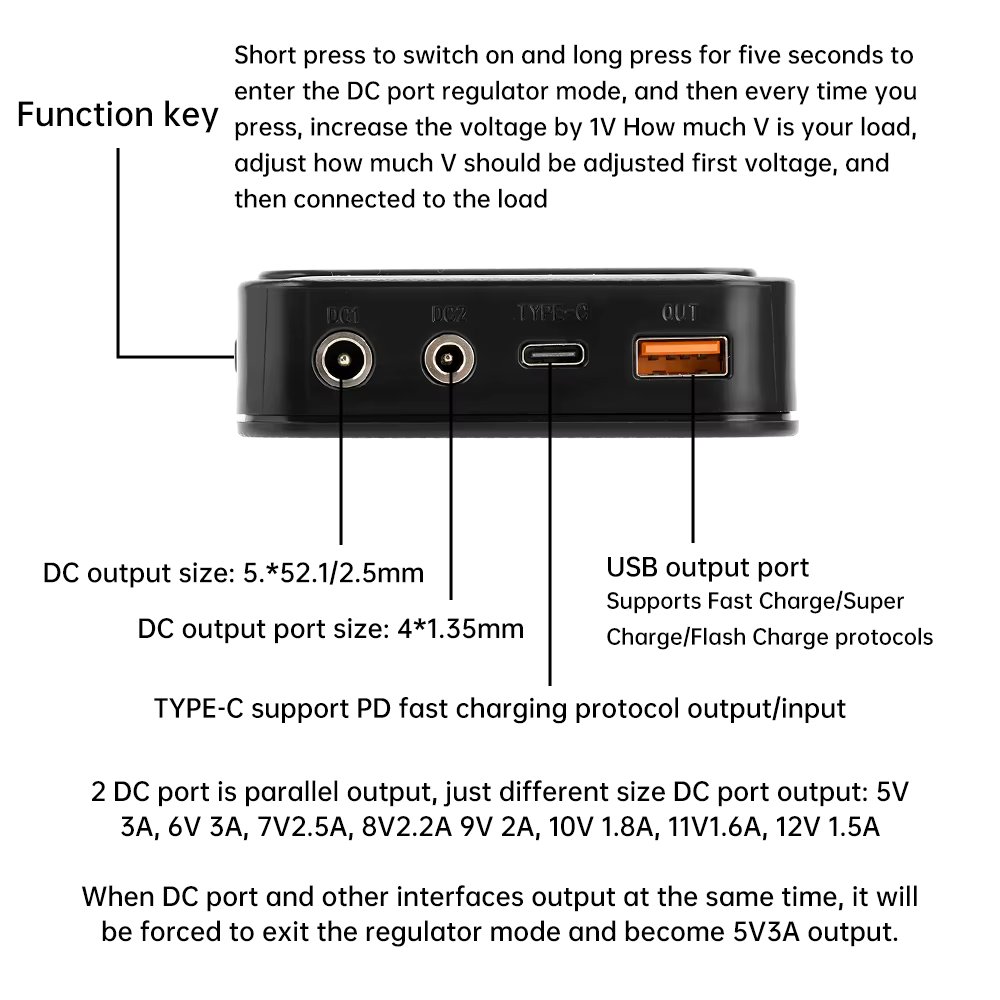

DC function operation instructions:
● 1. Long press the button to enter DC mode (there is an eye-catching “DC” icon lit up in the center of the screen)
● 2. Default output starts from 5V, DC1 and DC2 are connected in parallel.
● 3. Click the power button incremental voltage, should not be too fast because of double-click (quickly press two) to close the output
● 4. Voltage display order: 5V-6V-7V-8V-9V-10V-11V-12V-12V cycle output
● 5. DC mode is continuous output, not automatic sleep, to exit, please double-click the button or long press the button to switch to USB mode.
● 6. If you start DC mode after fast charging output, you need to wait 30 seconds for DC boost to take effect.
● 7. If you want to supply power to devices larger than 12W for a long period of time, it is recommended to use a single power battery of not less than 2200mA.
● 8. Be sure to use the voltage range in line with the requirements of the device, do not recommend too high a voltage selection, otherwise there is a risk of burnout
● 9. The product is only suitable for DC equipment within 18W, beyond 18W can not support, if access to ultra-high-power equipment, will burn the motherboard
● 10. Applicable equipment: routers, switches, monitors, fish lights, LED lights, small pumps, air conditioning clothing, heating clothes, small stereos, small fans, radios, massage equipment, and other 5V to 12V charging equipment at the right time!
