Features：
● *If the temperature detected by the temperature sensor exceeds 130'C or the temperature sensor short-circuited, "E-1" is displayed
● *If the temperature detected by the temperature sensor is lower than-30'C or the temperature sensor is disconnected, "E-2" is displayed
● *Temperature measurement sensor parameters:10k/25"C3950k
● *Temperature setting:
● *"Up and down" press these two keys to adjust the starting temperature;" Up and down", press these two keys to adjust the stop temperature;
● *Working modes include heating mode and cooling mode:
● *Heating mode: start temperature
● *When the real-time temperature is lower than the start temperature, there is a power output. Until the real-time temperature is higher than the stop temperature, turn off the power output.
● *Cooling mode: start temperature>stop temperature
● *When the measured temperature is higher than the start temperature, there is power output. Until the real-time temperature is lower than the stop temperature, turn off the power output.
● *Temperature correction:
● *Press and hold "up and down" for 3 seconds at the same time, and flash alternately. The correction value is 0. Use these two keys to correct the real-time temperature at-9.9-+9.9＂℃，
● *Restore factory settings:
● *Press and hold "up and down" for 3 seconds at the same time to clear the set start temperature, stop temperature, and temperature correction value.

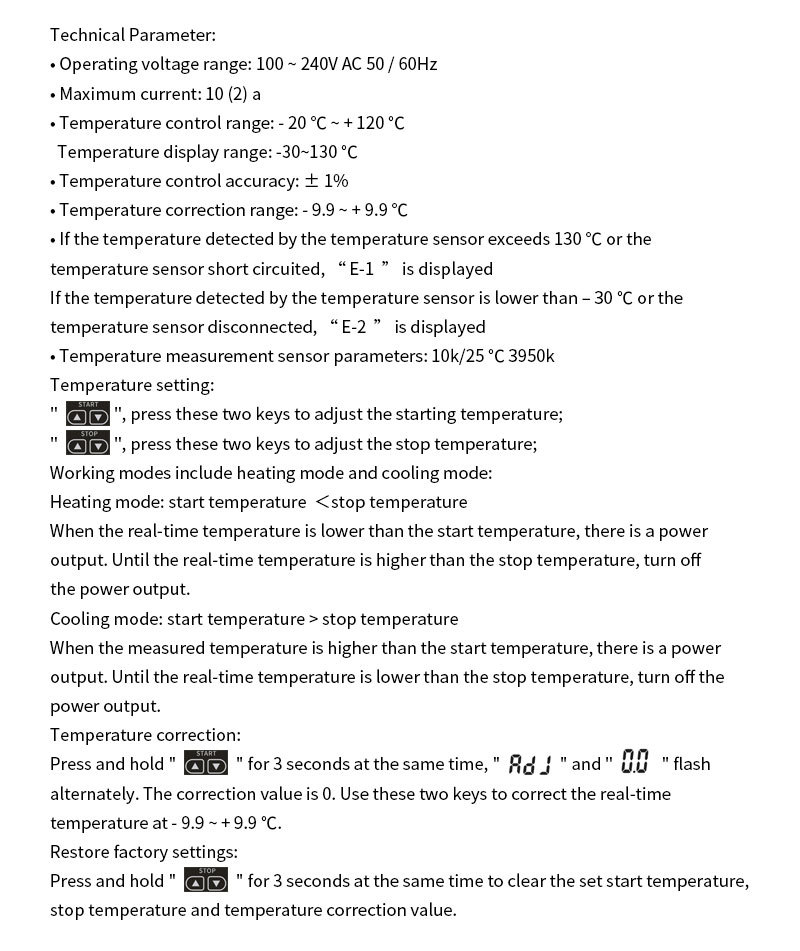

Specifications：
● *Operating voltage range:100~240V AC 50/60Hz
● *Maximum current:10(2)a
● *Temperature control range:-20C~+120'C
● *Temperature display range:-30-130'C
● *Temperature control accuracy:+1%
● *Temperature correction range:-9.9-+9.9C
● *Plug: EU

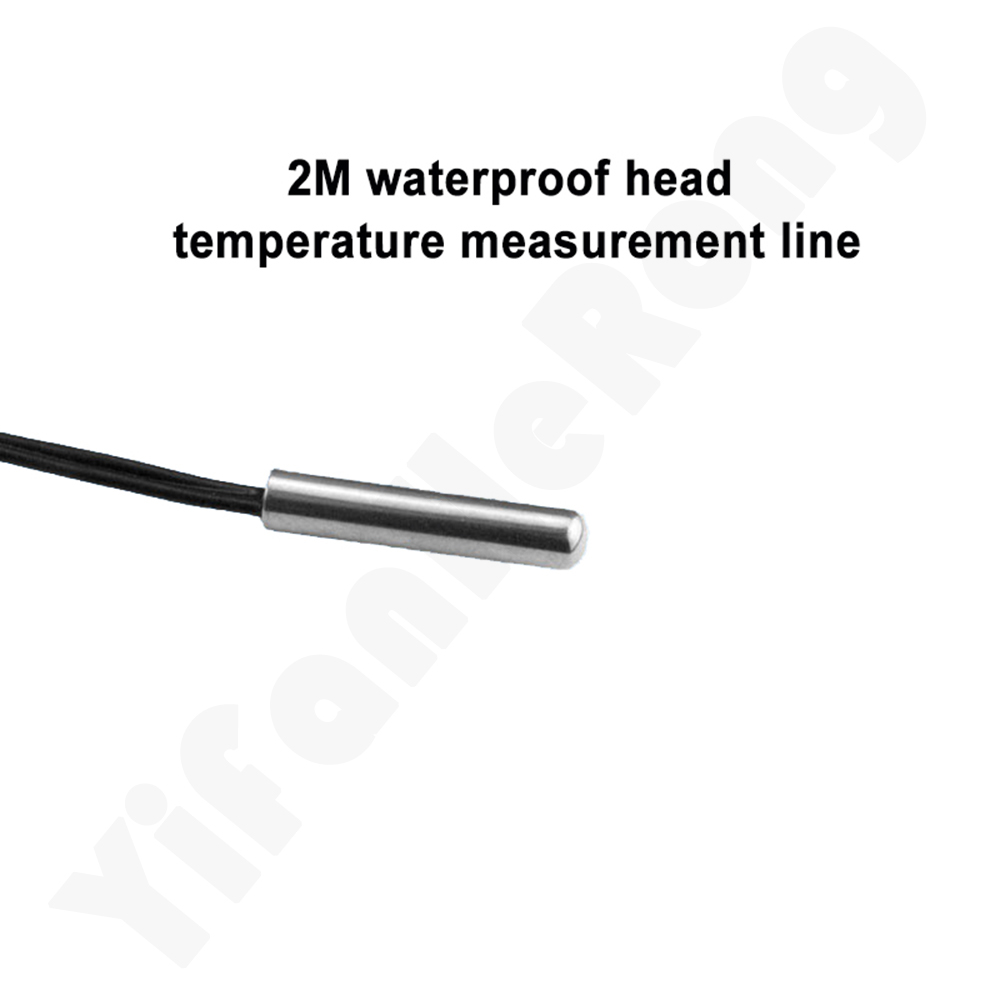

● *Temperature measuring head: waterproof head
● *Shell material: plastic
Package Contents:
● 1PCS Temperature control socket
