Descriptions
1. The resolution supports 1080P 60Hz, and the transmission distance can reach 3 meters.
2.DisplayPort version 1.2, supports 1.62 and 2.7Gbps transmission bandwidth.
3. Support HDMI-compatible/ DVI-D with 12bit color depth per channel
4. Compliant with VESA specification
5. Each HDMI-compatible channel supports 2.25Gbps transmission bandwidth
6. HDMI-compatible supports 5.1 channel transmission (for MAC)
7. Support enable/disable TMDS power saving mode
8. Direct link, no need to make any settings
Product Specifications
1. HDMI-compatible resolution supports 1920 x 1080 60Hz
2. DVI-D/VGA resolution supports 1920 x 1200 60Hz
3. HDMI-compatible video supports 2.25Gbps/225MHZ transmission bandwidth per channel
4. DVI-D video supports 2.7Gbps/270MHZ transmission bandwidth per channel

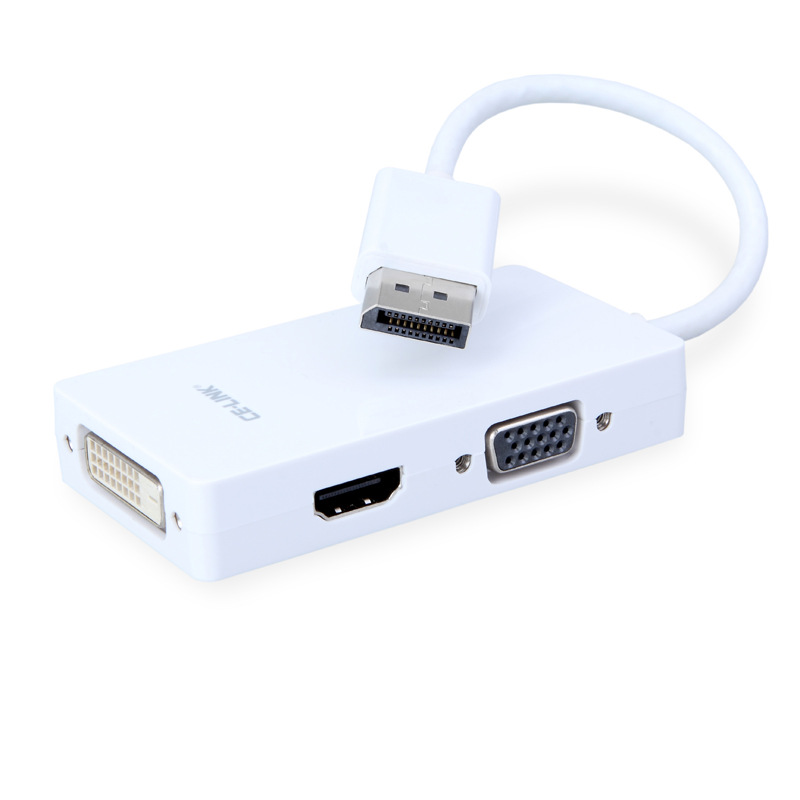

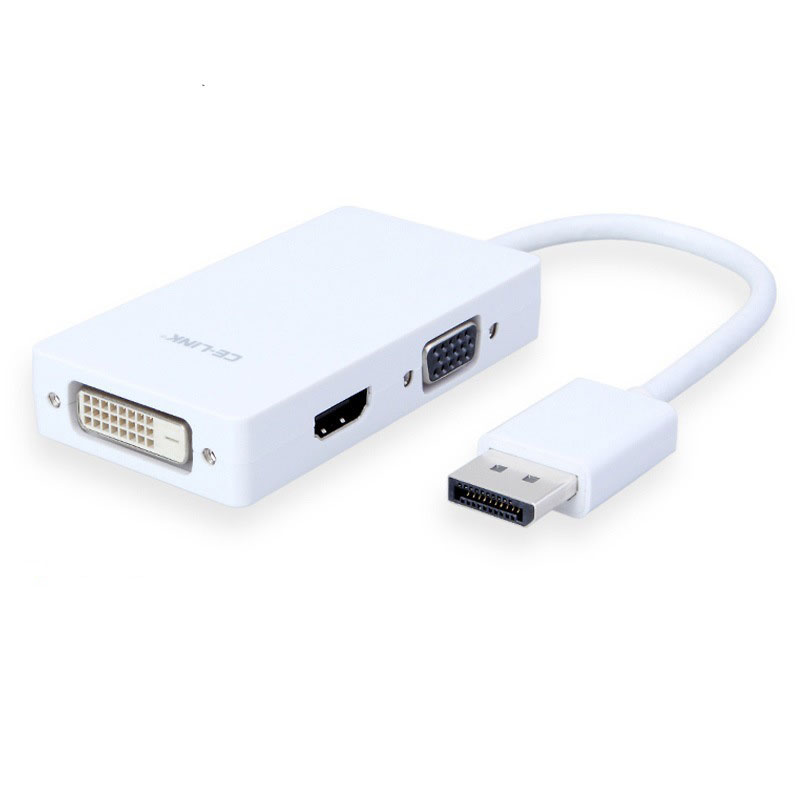

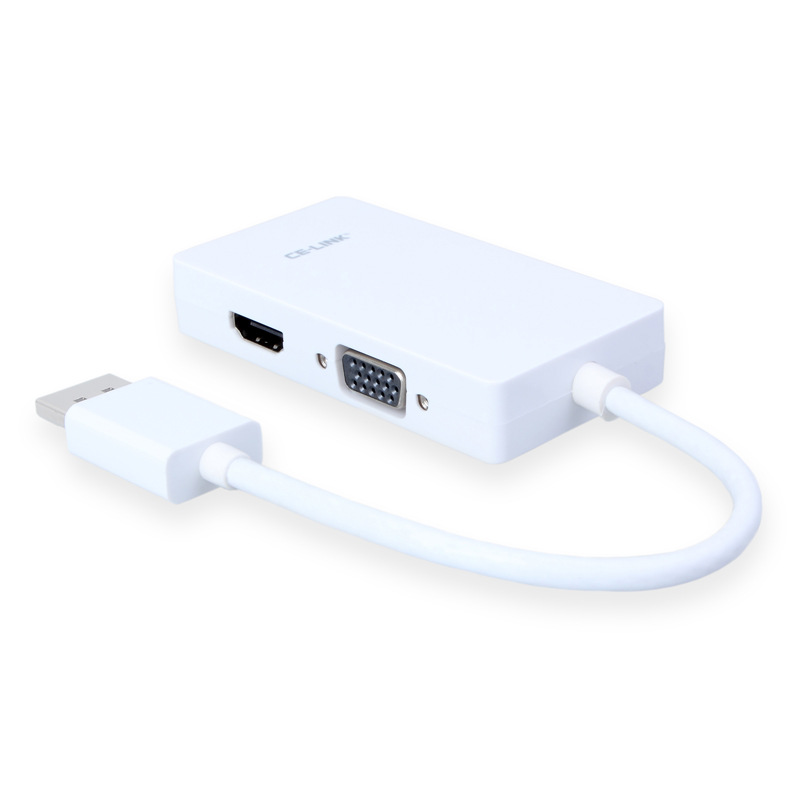

5. Input interface: DisplayPort

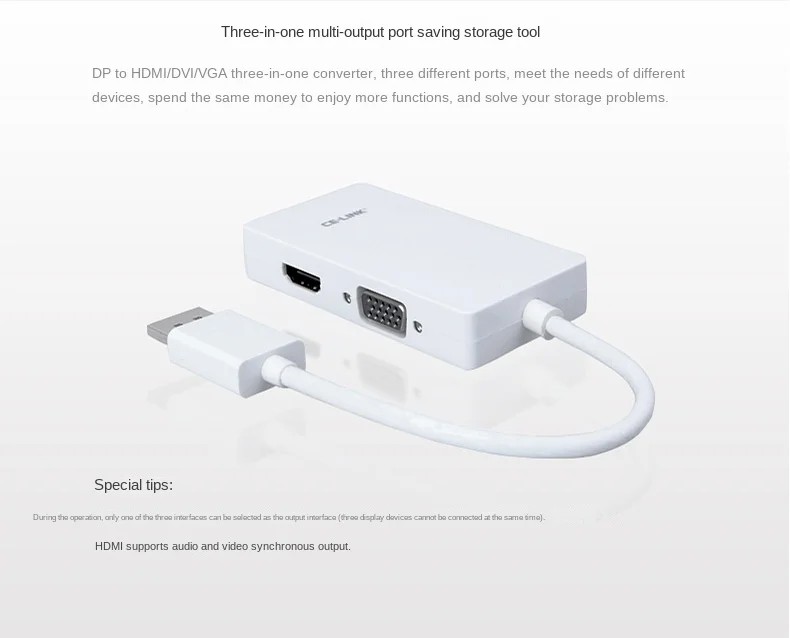

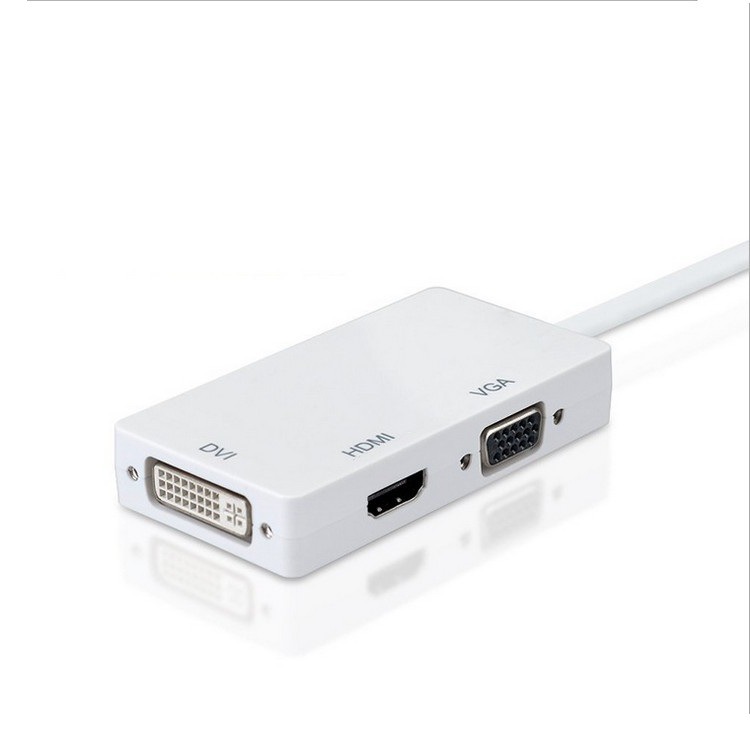

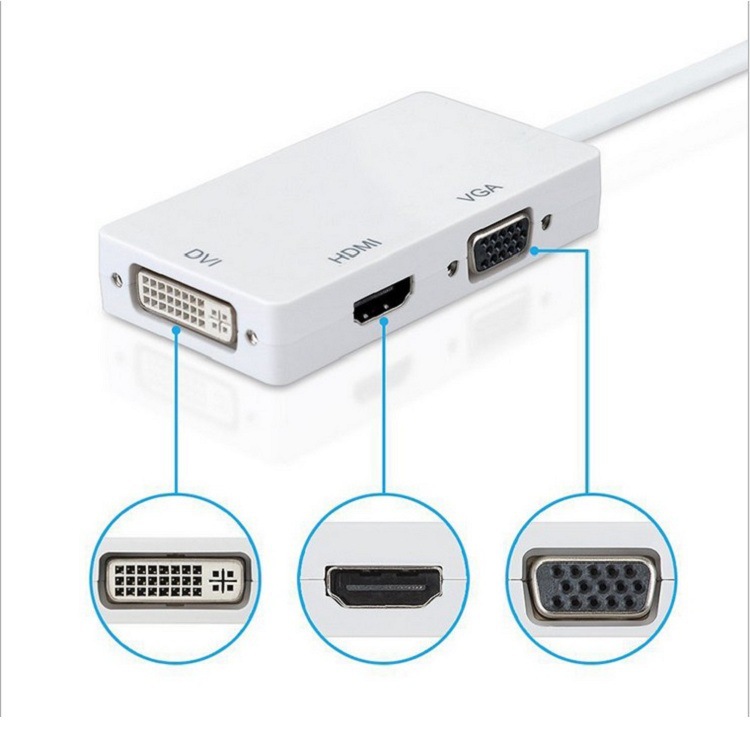

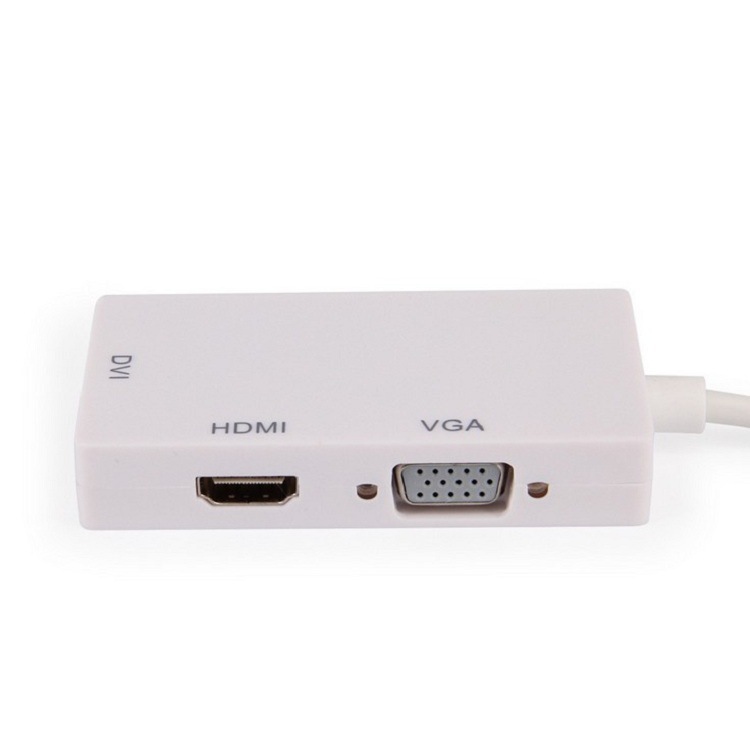

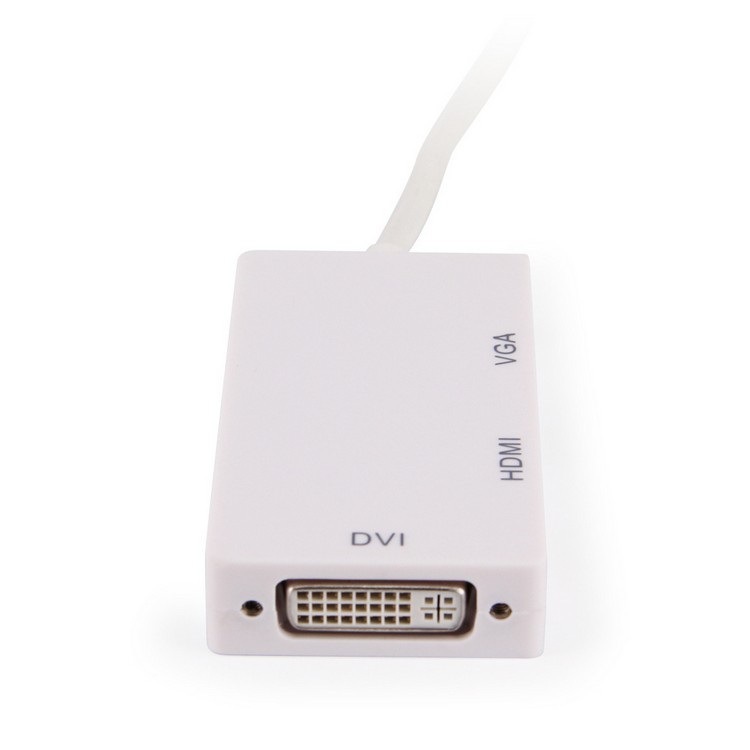

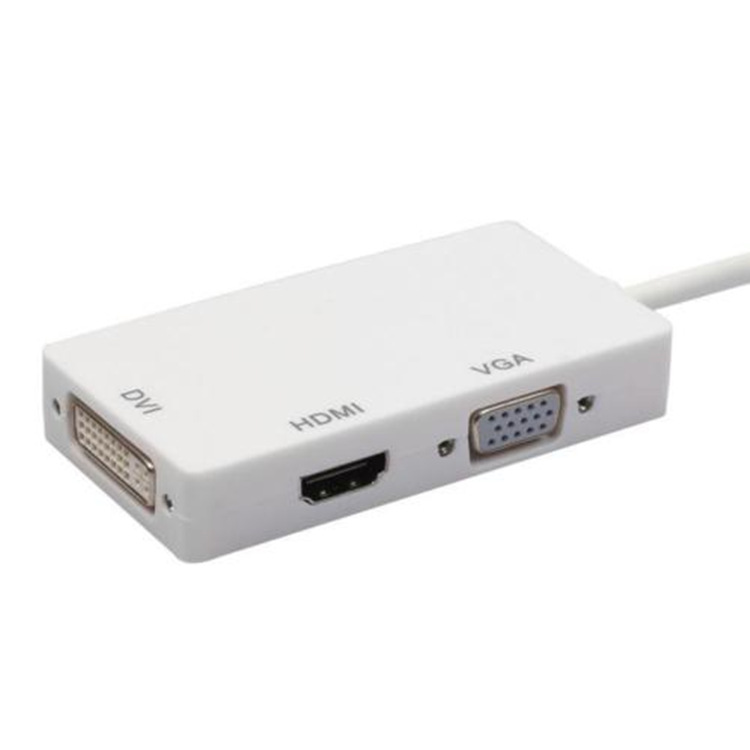

6. Output interface: HDMI-compatible/DVI-D/VGA female (only one interface can be output at the same time)
7. Operating temperature: 0°C to +70°C
8. Working humidity: 10% to 85 % RH
9. Line length: about 18cm
Supported resolutions
output interface
Resolution
1. HDMI-compatible:
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
2. DVI-D:
1280 x 1024, 1360 x 768, 1920 x 1080, 1920 x 1200
3. VGA:
1024 x 768, 1280 x 1024, 1680 x 1050, 1920 x 1080
