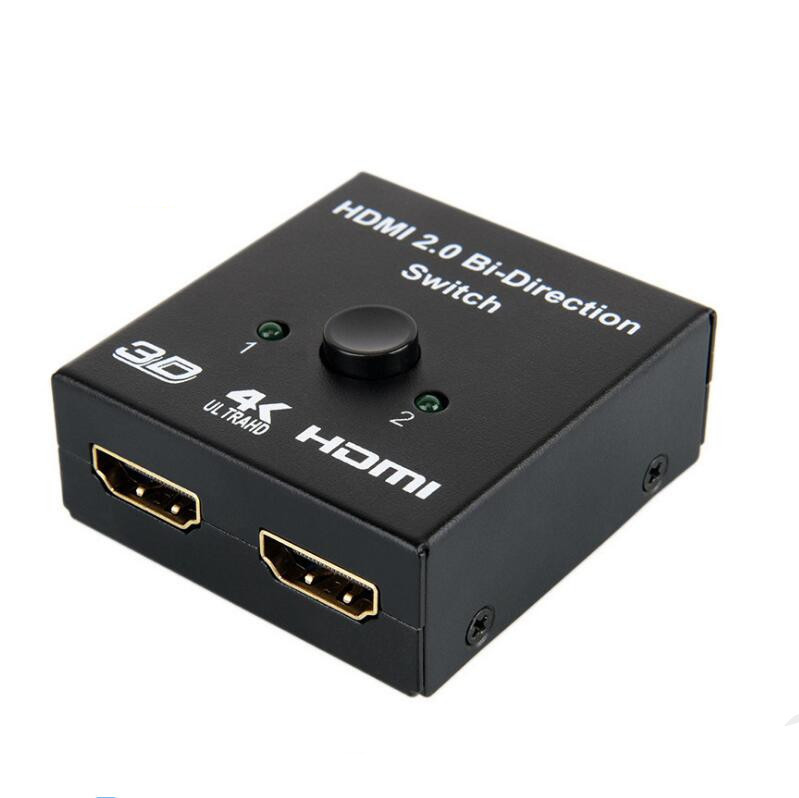

Product Description
● HDMI two-way intelligent switcher scope of use:
● digital LED TV/cloud TV/Apple TV/Blu-ray player/network player/XBOX360/digital set-top box/network set-top box and other devices with HDMI interface, you can use this high-definition converter to enjoy the perfect HD experience!
Function introduction:
● 1. It has the ability of signal buffering and amplification.
● 2. The long-distance transmission (extension) of more than 15 meters can be realized through the method of serial connection.
● 3. By stacking, the number of HDMI output ports can be significantly increased.
● 4. Support 480P, 576P, 720P, 1080i, 1080P resolutions.
● 5. Support high-definition video, high-quality, clear HDTV resolution up to 1080P.
● 6. Easily connect to multi-channel audio receiving equipment.
● 7. Perfect support for the HDMI1.3 version.
● 8. Perfectly compatible with HDCP.
● 9. Quick installation and simple operation.
● 10. The vertical pixels of DM-HF25 bidirectional intelligent switcher output image can reach up to 1080 lines, which complies with HDMI1.3 standard, supports the 3D function of HDMI1.4 version, and is compatible with HDCP protocol.
Technical specifications:
● 1. HDMI version: HDMI1.4 version
● 2. HDCP version: HDCP1.2 version
● 3. Supported HDMI resolution: 1080P24fs/1080P/1080i/720P/576P/576i/480P/480i
● 4. Supported video color Format: 24bit
● 5. Supported audio format: LPCM7.1/Dolby-AC3/DTS/DSD
● 6. Data transmission speed: 5.1Gbps
● 7. Input video signal: 5.0Volts pp
● 8. Input line support: <25Mhdmi AWG26
● 9. Output Line Distance: ≤40mCAT6
● 10. Supported output line: 25mAWG24or20mAWG26
● 11. Maximum operating current: 1500mA
● 12. Power adapter: no power supply is required
● 13. Power adapter specifications: Input: AC (50Hz, 60Hz) 100V~220V; Output: DC 5V
● 14, Operating temperature range: -15to+55℃
● 15, Operating humidity range: 5 to 90%RH (non-condensing state)
Product Features

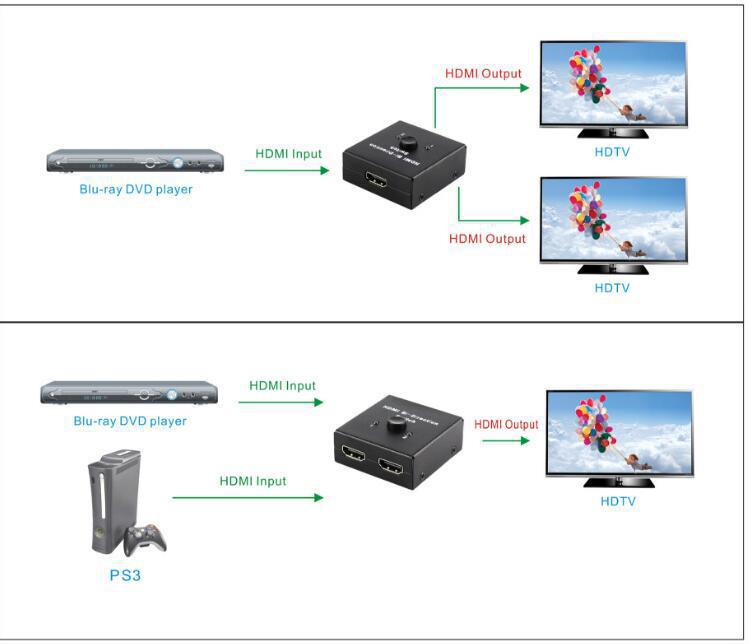

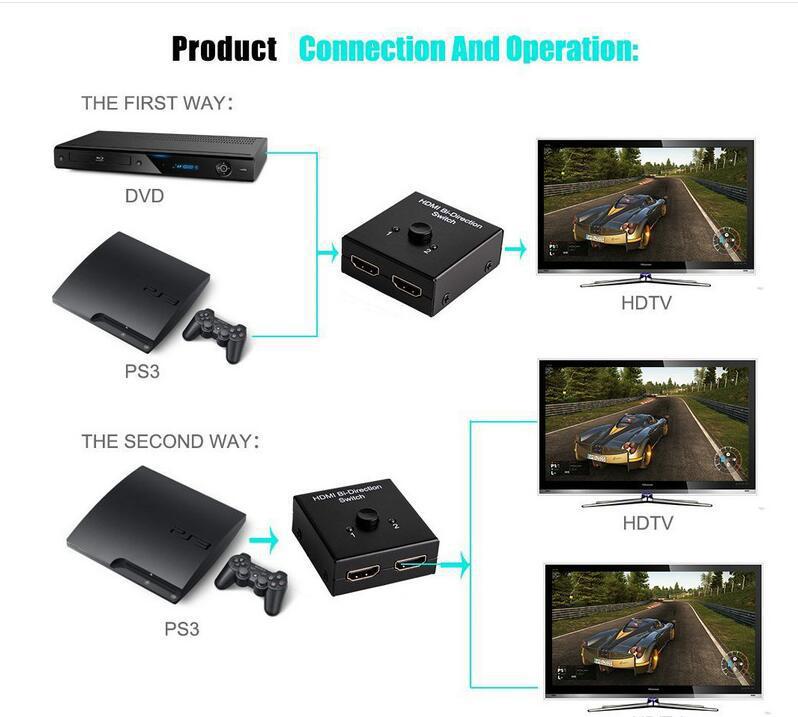

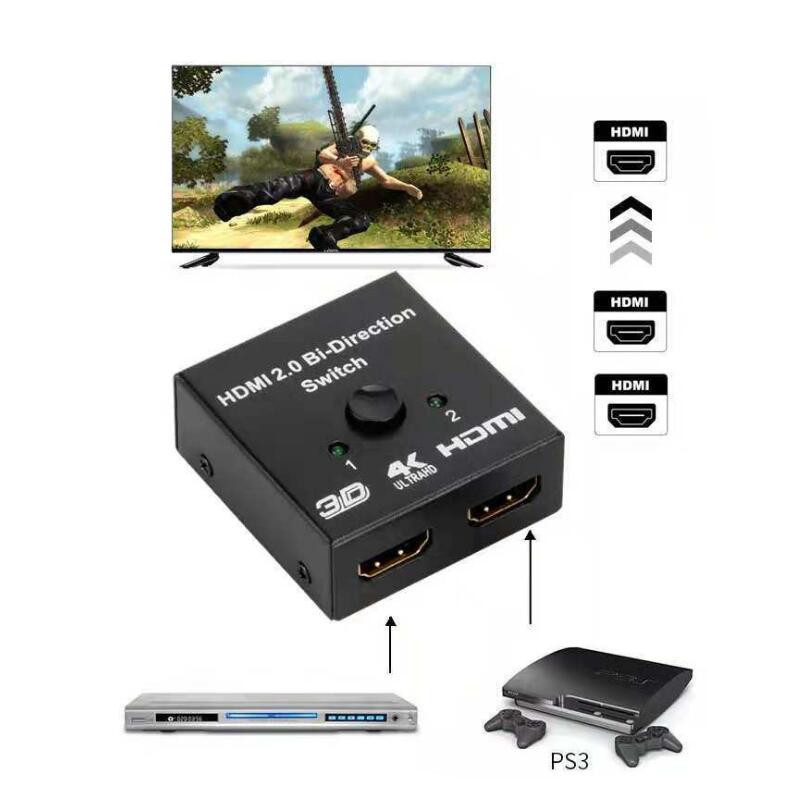

● 2 HDMI signal sources (DVD player or PS3), 1 HDMI display device or TV

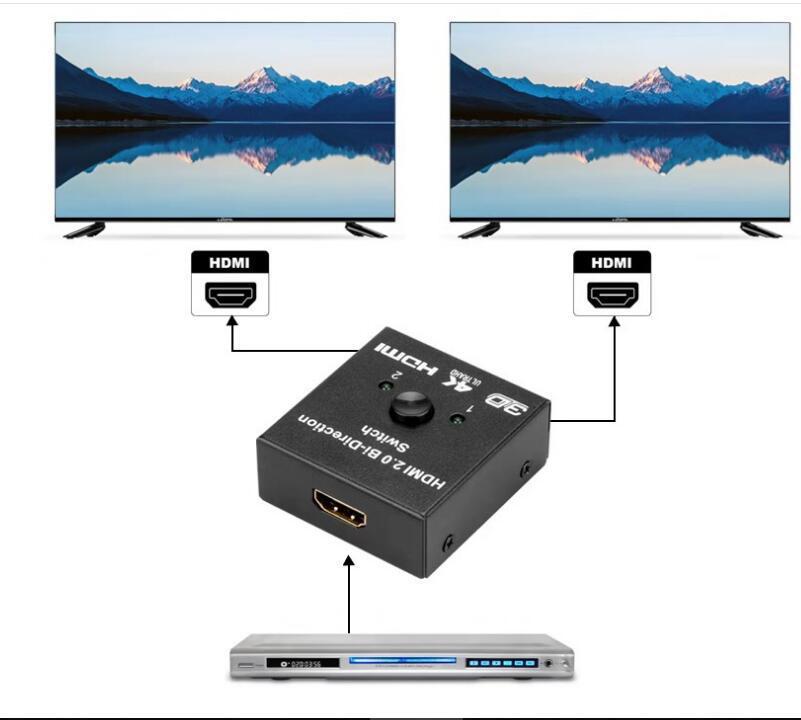

● 1 HDMI signal source (DVD player or PS3), 2 HDMI display devices or TV
● No external power supply, maximum operating current: 15mA
● fully complies with HDMI specification V1.0, V1.1 ,V1.2, V1.3, V1.4
● DM-HF25 control: manual electronic switch to select
● the working port 2 LED indicators display, 3 HDMI connection port
● LED: working The corresponding indicator light is on (blue),
● easy to install and easy to operate, supports 3D signal
● using AWG26 HDMI standard cable, the input transmission distance can reach 5 meters, the output transmission distance can reach 5 meters

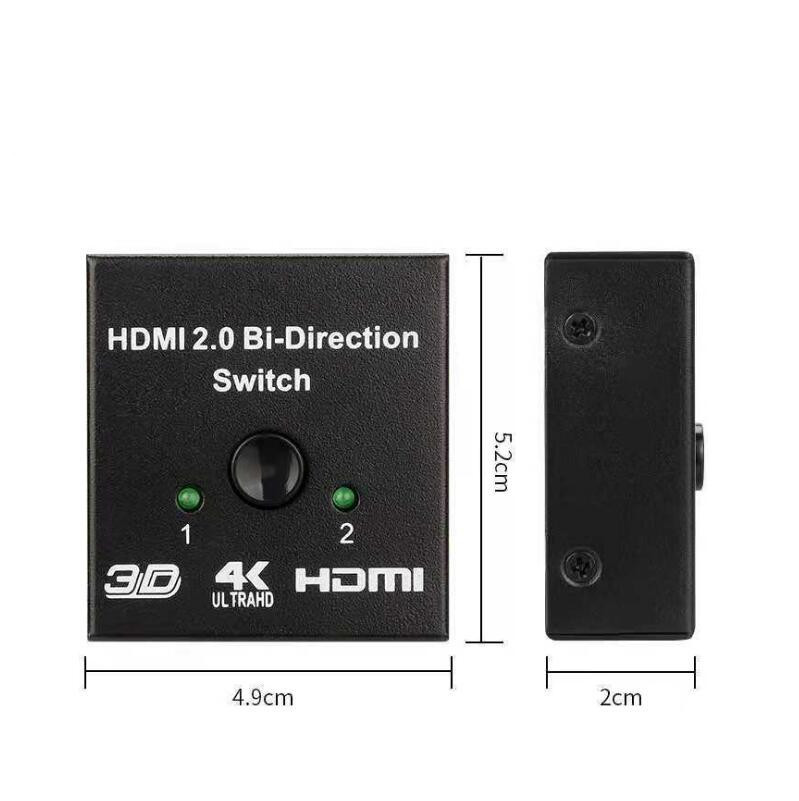

● Dimensions: 52*45*20 mm( Length, width, height)
● Weight: 35G Shell: iron box
