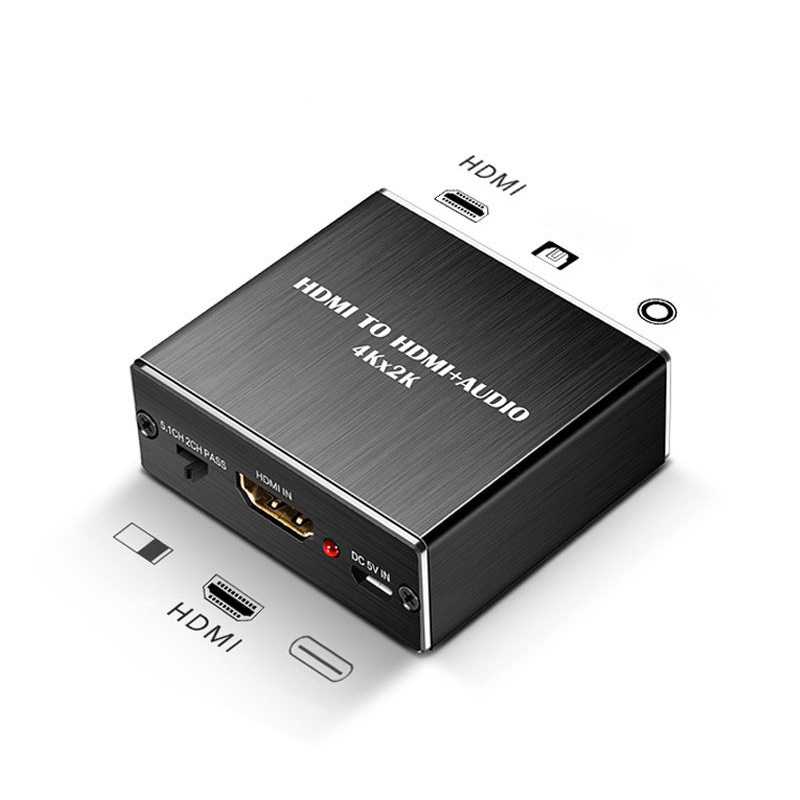

HDMI-compatible Audio Extractor + Optical TOSLINK SPDIF + 3.5mm Stereo Audio Converter 4K x 2K Audio Splitter

Notes:
● - Does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
● - For devices with low-power HDMI-compatible ports, a 5V / 1A telephone adapter can be used to connect the.
● - does not support copyright-protected content.

Description:
● 1. This HDMI-compatible audio extractor not only meets the ideal image of the HDTV but also meets the need for an extract of audio from an HDMI-compatible source.

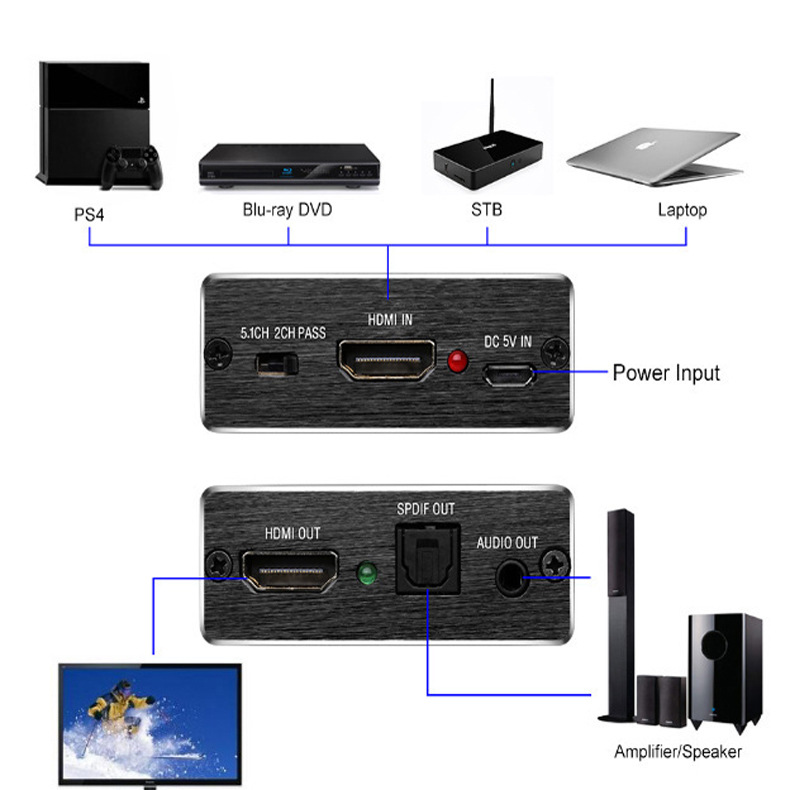

● 2. It can extract the digital audio signal embedded in an HDMI-compatible source and convert it through 3.5mm L/R analog output and SPDIF output at the same time.
● 3. The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(NOT support Dolby Digital Plus)

Three switching audio EDID settings:
● 1. Pass: HDMI-compatiblepass mode. The audio and video can be converted from the HDMI-compatible output. SPDIF and L/R will not output any sound.
● 2. 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatible input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
● 3. 5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

Features:

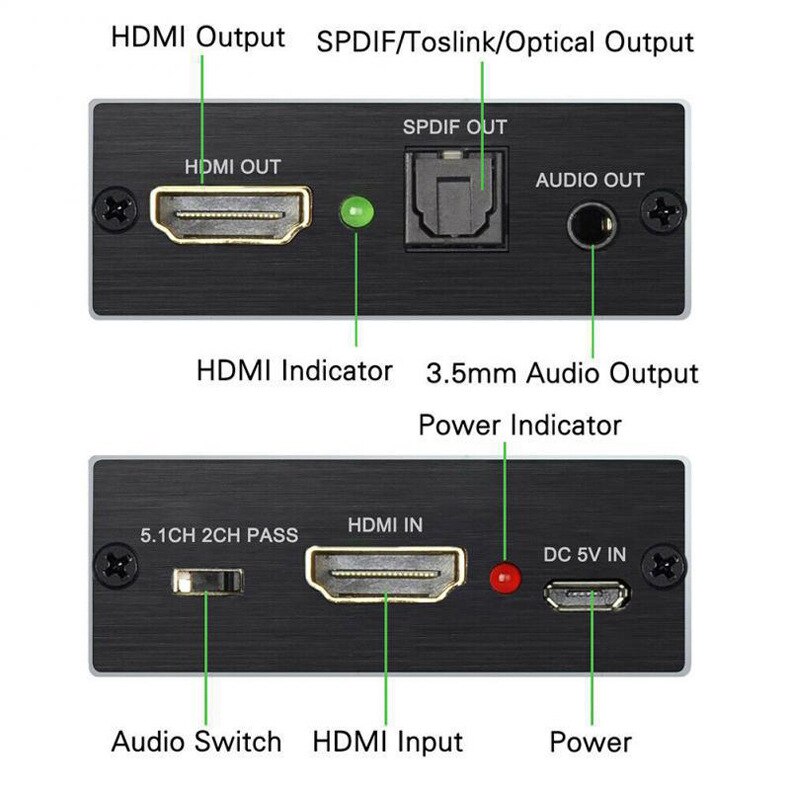

● * Convert 1 HDMI-compatibleInput to 1 HDMI-compatible+ 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output
● *Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
● *HDMI-compatible to achieve the synchronization of audio signal separation.
●  *There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.
● *LED clearly indicate the working state of the Extractor.



Specifications:

● 1. HDCP Version...........................................HDCP1.4
● 2. HDMI-compatibleVersion...........................................HDMI-compatible1.4b
● 3. HDMI-compatible resolution................................2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
● Support Video Color Format.........24bits/deep color 30bit,36bit
● 4. Audio Output...........................SPDIF+3.5mm Audio
● 5. Max Bandwidth...........................................340MHz
● 6. Max Baud Rate.........................................10.2Gbps
● 7. Input/ Output TMDS signal.....0.5-1.5Volts p-p(TTL)
● 8. Input/ Output DDC signal.................5Volts p-p(TTL)
● 9. Input Cable Distance...........................<=7m AWG26 standard cable HDMI-compatible
● 10. Output cable distance........................<=8m AWG26 standard cable HDMI-compatible
● 11. Max Working Current....................................500mA
● 12. Working Voltage......................................DC +5V
● 13. Operating temperature range............(-15 to +55°C)
● 14. Operating humidity range...........................5 to 90% RH(NO Condensation)
● 15. Dimension (LxWxH)..................58 x 53 x 21.9(mm)

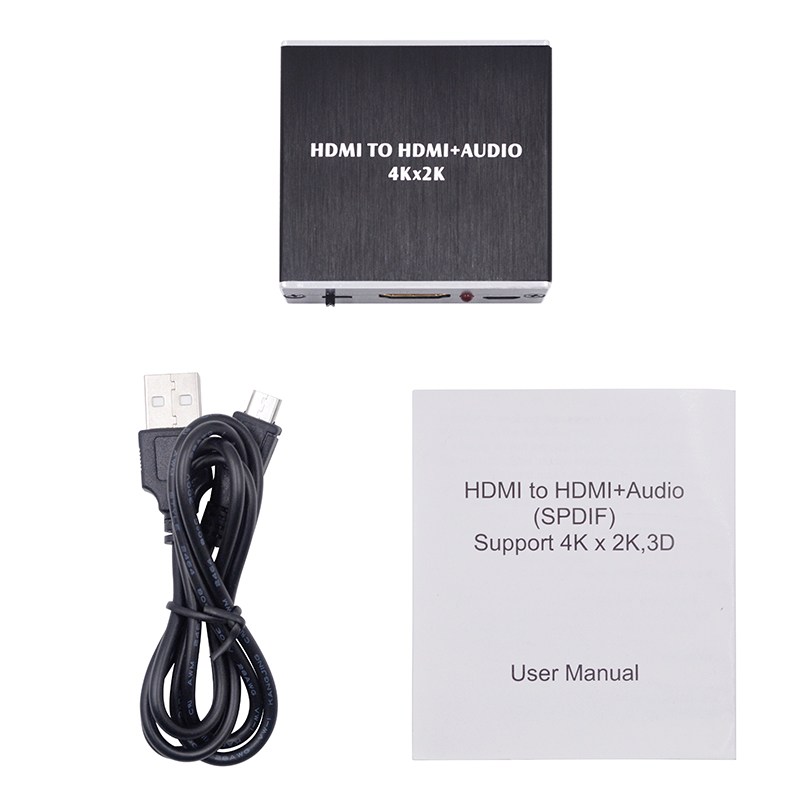

Package Included:
● 1 X HDMI-compatible audio extractor
● 1 x micro USB cable
● 1 X User Manual
