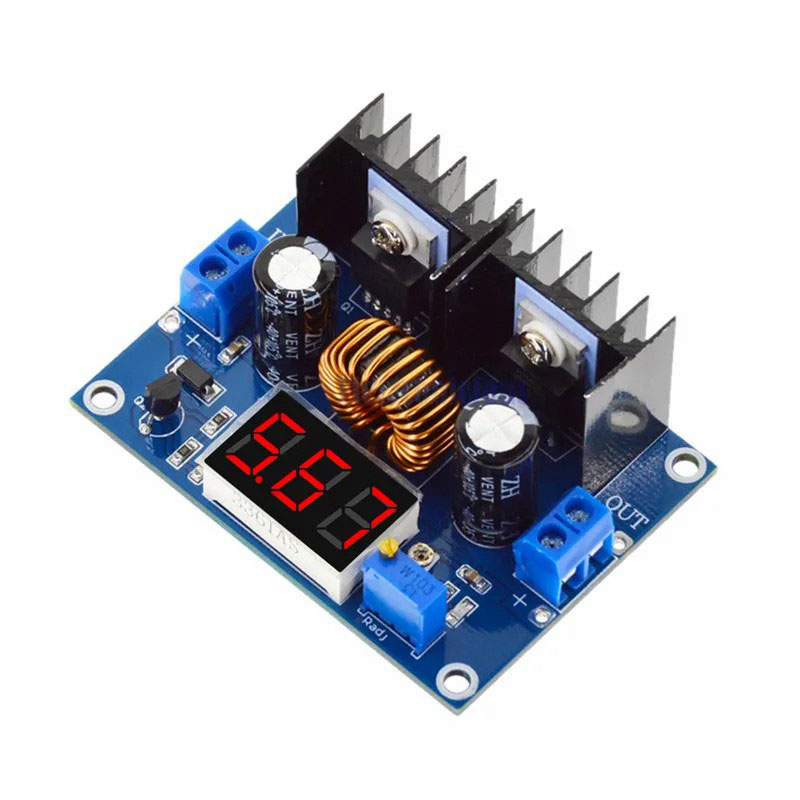

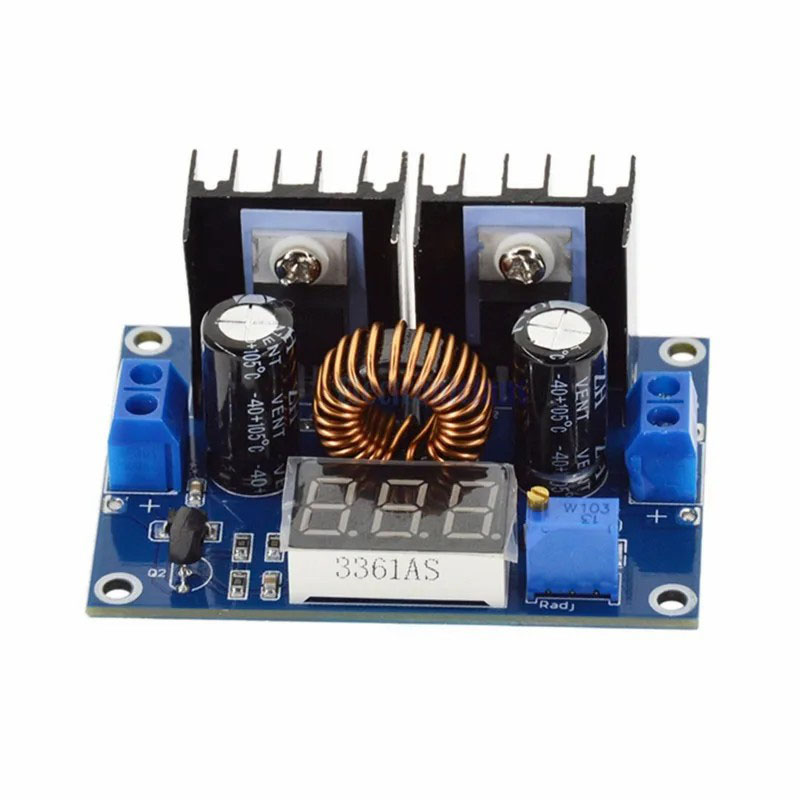

LED Voltmeter PWM Adjustable 4-36V To 1.25-36V Step-Down Board Module XL4016 8A 200W DC-DC

Description


Product Parameters

XL4016 5A DC-DC adjustable step-down module
1. Input voltage (Vin): DC 4~38V

2. Output voltage (Vout): DC 1.25~36V

3. Output current (Max) Iout (Aax): 8A (Suggest using <5A for a long time)

4. Switching Frequency: 180KHz

5. Efficiency: 95% (MAX)

6. Power (MAX): 250W (MAX)

7. Operating temperature: (-45℃)~(+85℃)

8. Make sure that the input and output differential pressure is above 2v;

9. Long-running current is recommended in 5A, in case of power is too large, Please increase the fan or other means to enhance the heat;

10. This module is a step-down module that is not a boost module.

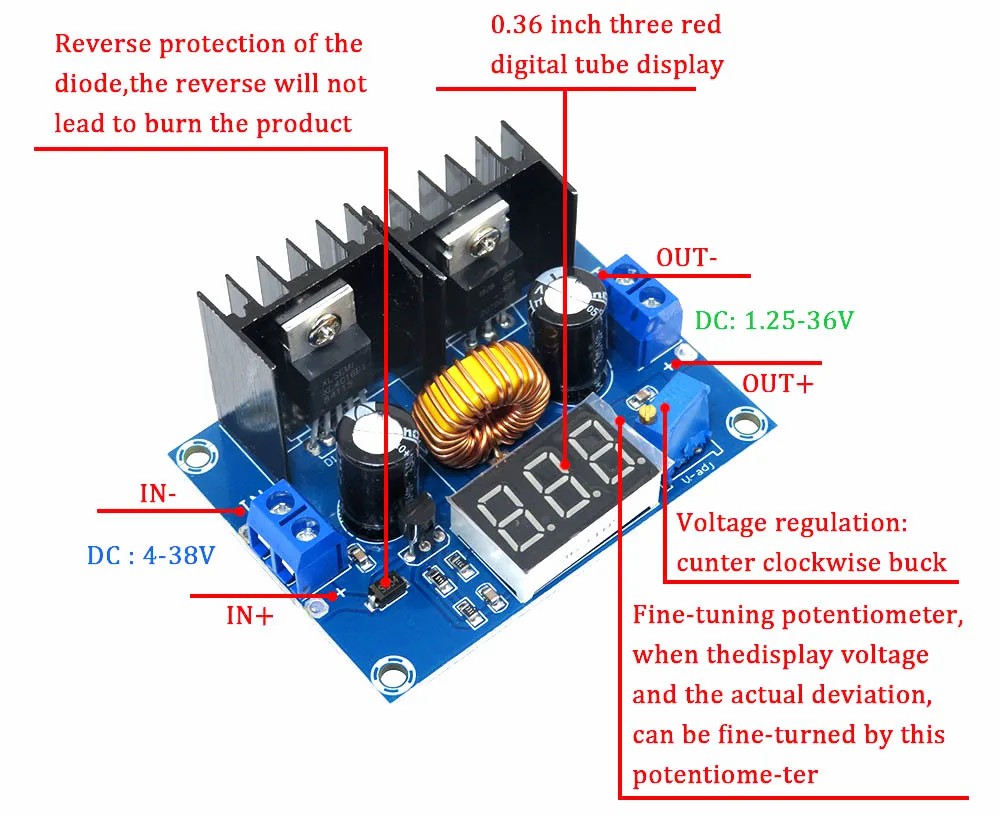

11. Display method: 0.36 inch 3 red digital tube

12. 0.36 inch three red digital tube display;

13. Voltage regulation: counterclockwise buck;

14. Reverse protection of the diode, the reverse will not lead to burning the product;

15. Zener diodes to ensure that the display circuit is working properly;

16. Fine-tuning potentiometer, when the display voltage and the actual deviation, Can be fine-tuned by this potentiometer;

17. Red work power indicator.



Package Include
1 * Step Down Module
