✅ Input micro USB DC 5V/2A နဲ့ အားသွင်းအသုံးပြုရပါမယ်။
✅ Output charging အတွက် 4 slot x 500mA, 3 slot x 700mA, 2 slot x 1000mA, 1 slot x 2000mA ထိအားသွင်းပေးနိုင်ပါတယ်။
✅Charging current ကို လည်းရွေးချယ်ပေးလို့ရပါတယ်။
✅Indepedent slot ဖြစ်တဲ့အတွက် slot တခုချင်းစီတိုင်းကို အမျိုးအစားမတူတဲ့ battery တွေ တပြိုင်တည်း ထည့်ပြီး အားသွင်းပေးနိုင်ပါတယ်။ indicator ကတခုချင်းစီအတွက်ပြပေးပါတယ်။
✅5V1A usb output ပါလို့ အရေးပေါ်ဖုန်းအားသွင်းချင်လည်း power bank လိုအသုံးပြုနိုင်ပါတယ်။
✅26650, 26350, 25500, 21700, 20700, 18650,18490,18350, 17670, 17500, 16340, (RCR123), 14500, 10440, AA, AAA Battery အမျိုးအစားတွေကို အားသွင်းနိုင်ပါတယ်။
✅Protection အတွက် over-charge and over-discharge and short circuits functions တွေပါဝင်ပါတယ်။
Product Description

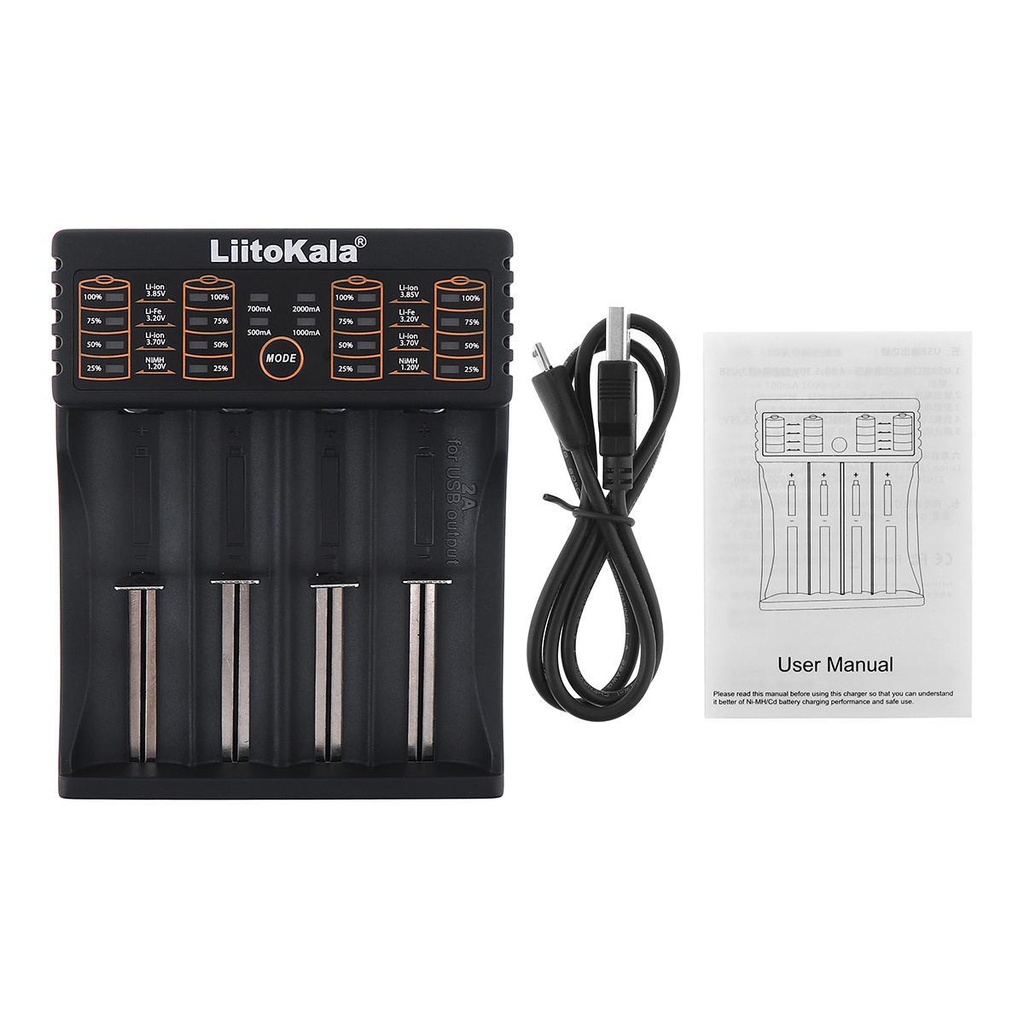

Charger manual
Warning
● 1. This charger can only charge cylindrical lithium-ion batteries (3.7V, 3.8V), nickel metal hydride/nickel cadmium, lithium iron phosphate batteries ;
● 2. Before use, please refer to the manual carefully, pay attention to the recommended charging current of the rechargeable battery, and do not charge beyond the recommended current;
● 3. Use a 5V USB adapter to charge (the adapter current is recommended to be 2A);
● 4. The charger may generate heat when charging and discharging, be careful not to burn yourself;
● 5. When you stop using it, please unplug the power and unplug the battery;
● 6. It can only be used indoors.
● 7. The test data of this product is for reference only, please refer to professional instruments for actual conditions.
Charger requirements and functions :
● 1. Micro USB DC 5V input, four independent charging, and micro computer management system
● 2. Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current mode is fixed only on the fourth slot
● 3. The LED indicators display the charging progress: 25% - 50% - 75% -100% and battery type (size): Ni-MH 1.2V, Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.85 V
● 4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries
● 5. Refresh for OV battery. It doesn't charge any battery of1.65 -1.85V (refresh current can be detected only)
● 6. Protection for over-charge and over-discharge and short circuits. Identify broken battery and polar reverse inspection
● 7. Charing under constant voltage and current
● 8. Input by DC interface and working voltage is 5V-2A (Micro plug)
● 9. Built with 5V/1000mAh USB discharge (output) function
Features
● 1. Adopt Micro USB DC 5V input, two independent charging slots, and a microcomputer management system
● 2. There are 4 charging current options (500mA/700mA/1000mA/2000mA) and 2000mA is designated as the fourth slot.
● 3. LED display charging status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V.
● 4. Can automatically identify Li-ion battery and Ni-MH battery, manually select iron phosphate (Liepo4) battery and Li-ion 3.85V battery
● 5. There is a 0V voltage activation function, and 1.65-1.85V cannot be charged (but there will be an activation current trickle charging).
● 6. There are overcharge and over-discharge, short circuits, intelligent identification of bad batteries and reverse battery detection protection.
● 7. Charging mode, constant current, and constant voltage
● 8. With DC input, the working power of the charger is 5V-2A ( Micro plug )
● 9. With standard 5V/1000mA USB automatic identification output function,

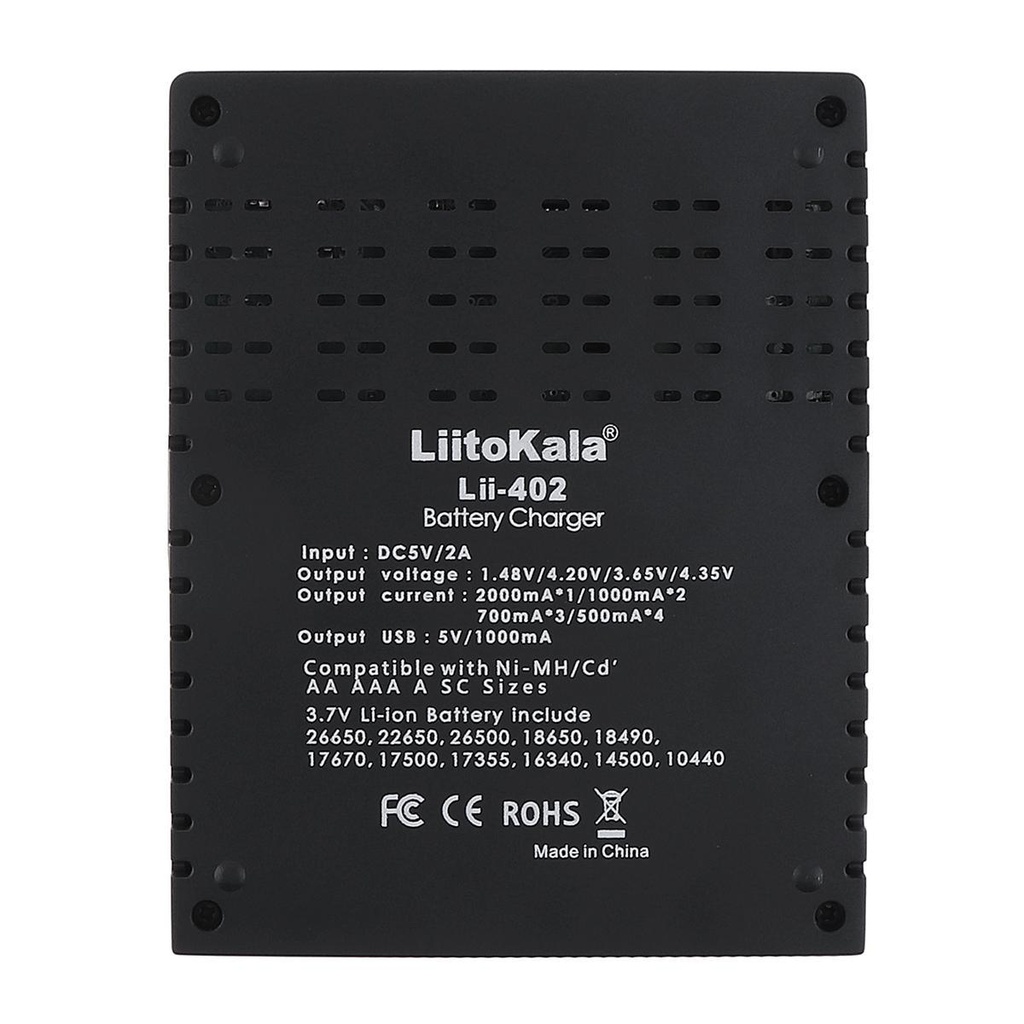

Technical specifications
● 1. Input: Micro USB DC 5V/2A
● 2. Output: 1.42V, ``4.2V±0.05V, ``3.65±0.05V, ``4.35±0.05V
● 3. Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
● 4. Constant voltage, cut-off current: less than 100mAh
● 5. Standby current: less than 15mAh

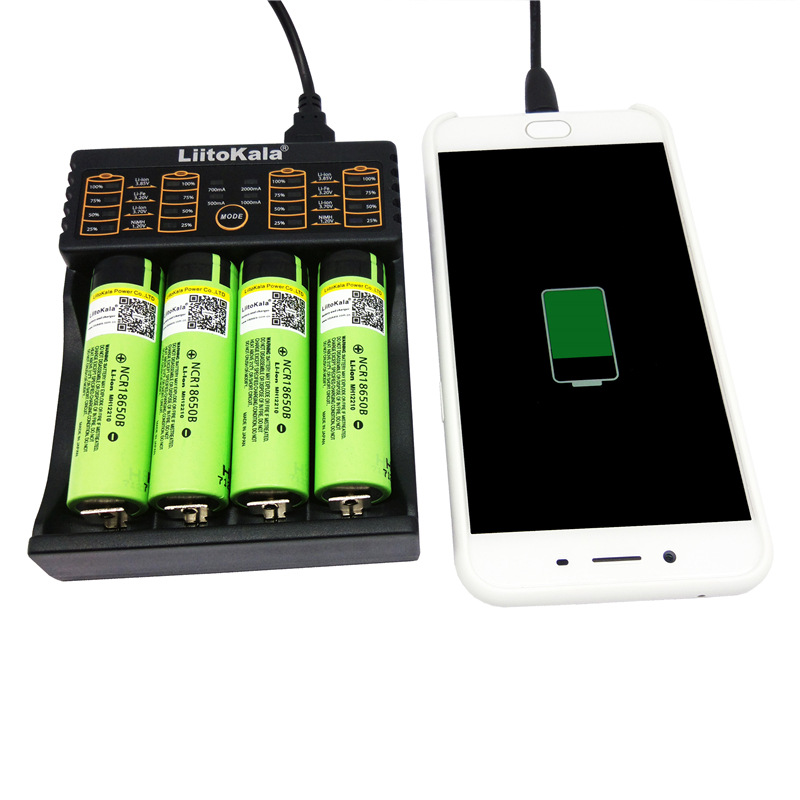

USB Output function
● 1. 0pen-circuit voltage of USB output: 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
● 2. Output current: 1000mAh
● 3. Open circuit current: <1mAh
● 4. The corresponding voltage is 4.75-5.25V under 1000mAh current
