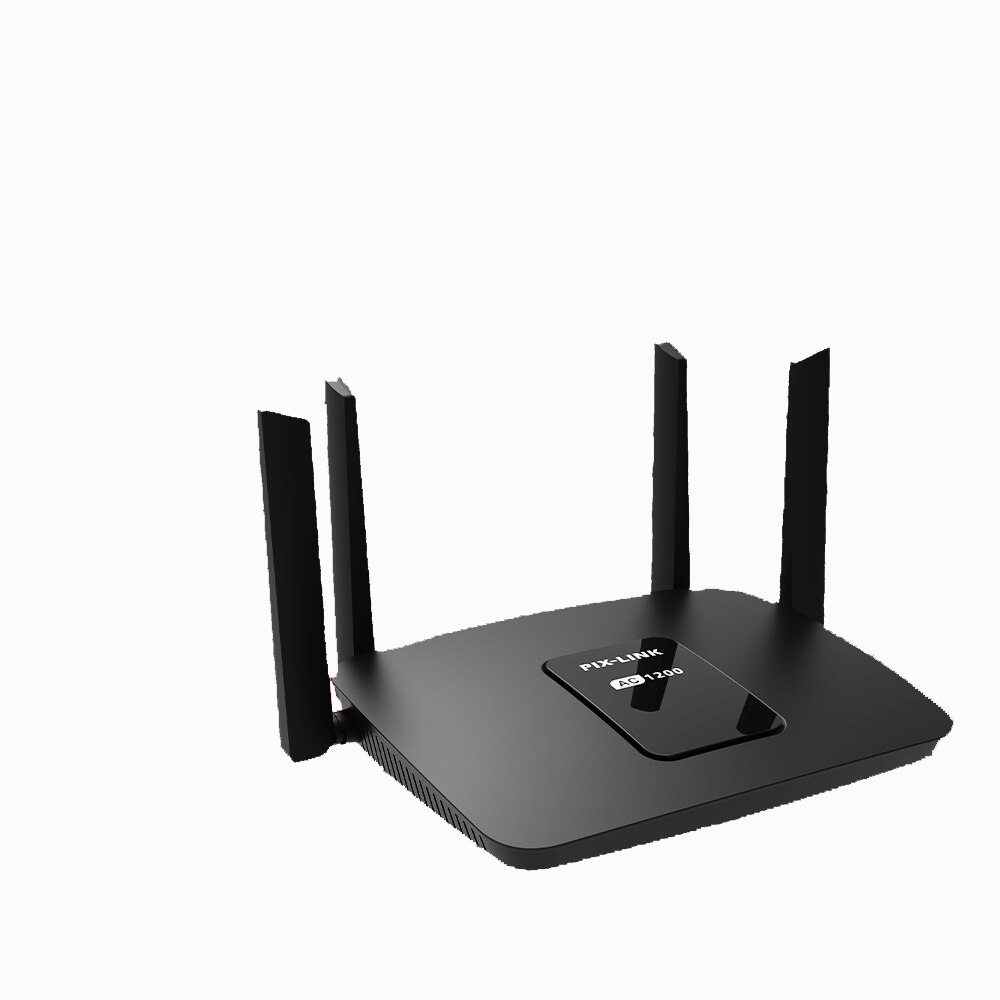

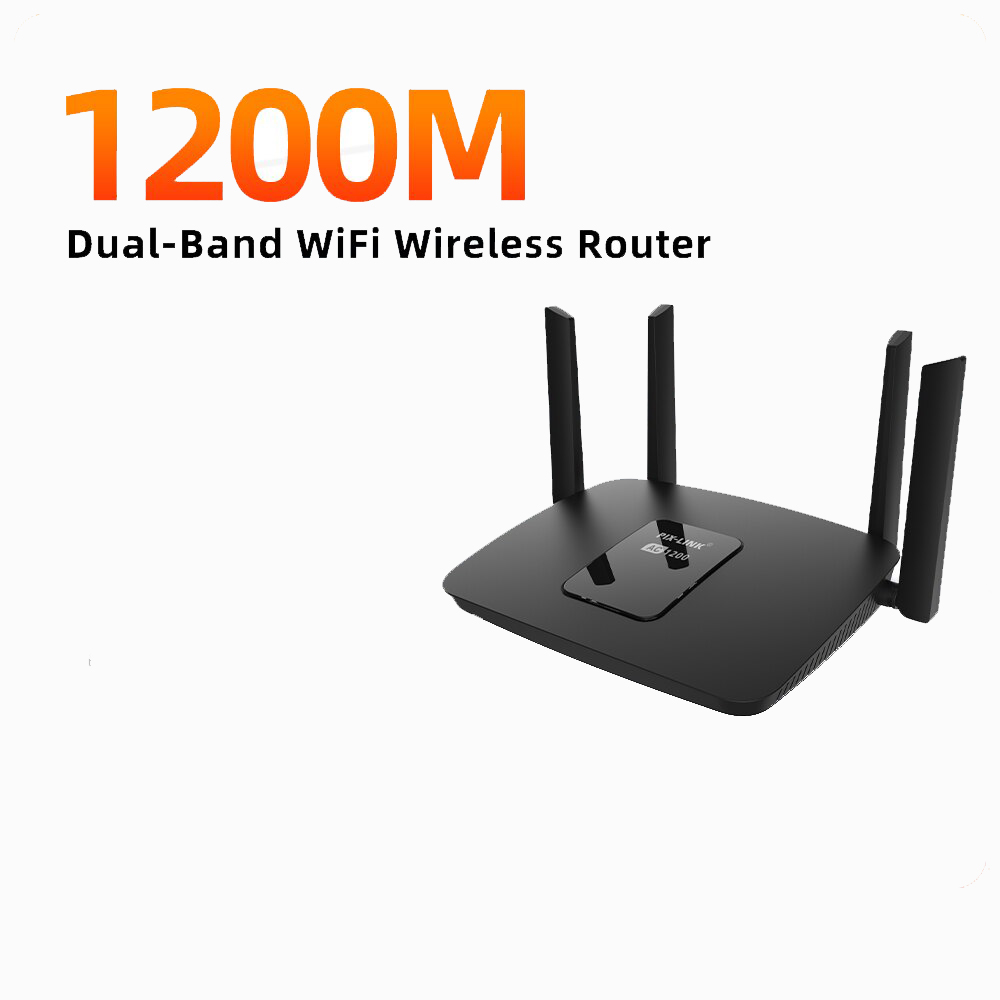

PIXLINK AC1200 Wifi Router Gigabit 2.4G 5.0GHz Dual-Band 1200Mbps Wireless Router Wifi RPT With 4 High Gain Antennas

Descriptions

● 1. Supports 802.11ac standard - the next generation of Wi-Fi.

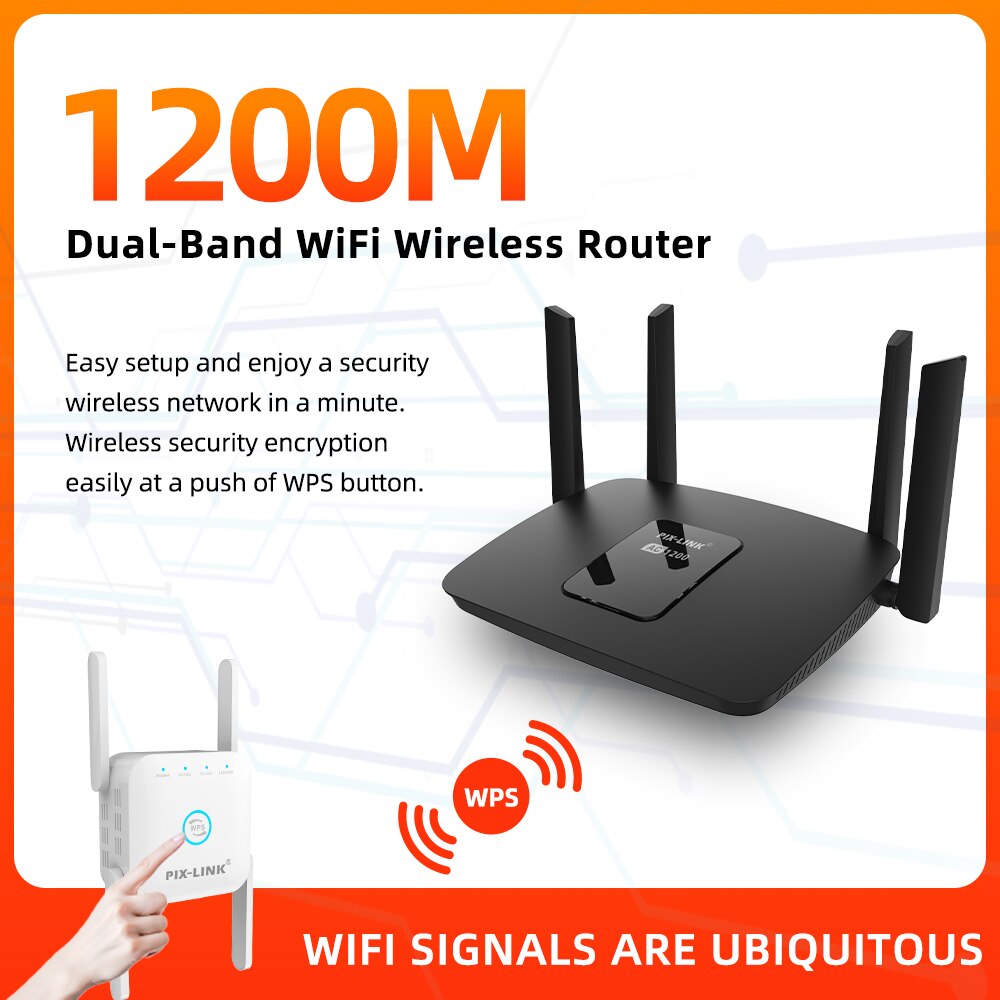

● 2. Easy setup and enjoy a security wireless network in a minute.

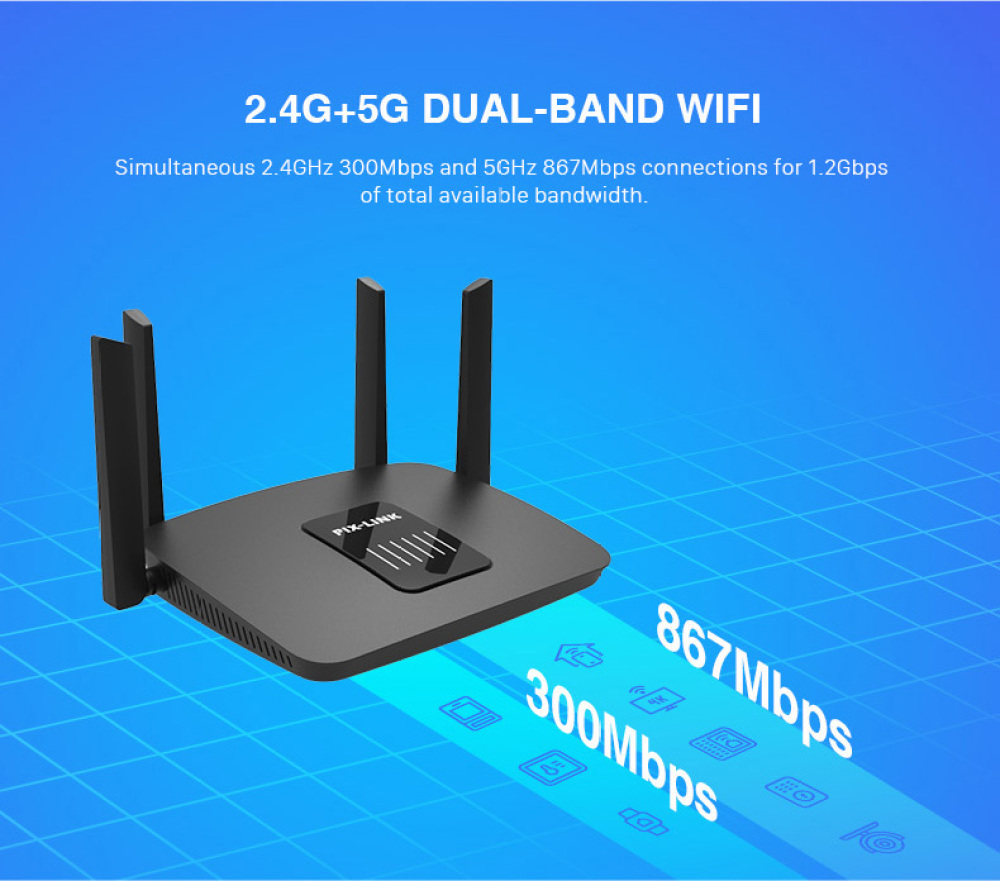

● 3. Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth.
● 4. 2 dual-band external antennas provide stable wireless connections and optimal coverage.




HARDWARE FEATURES

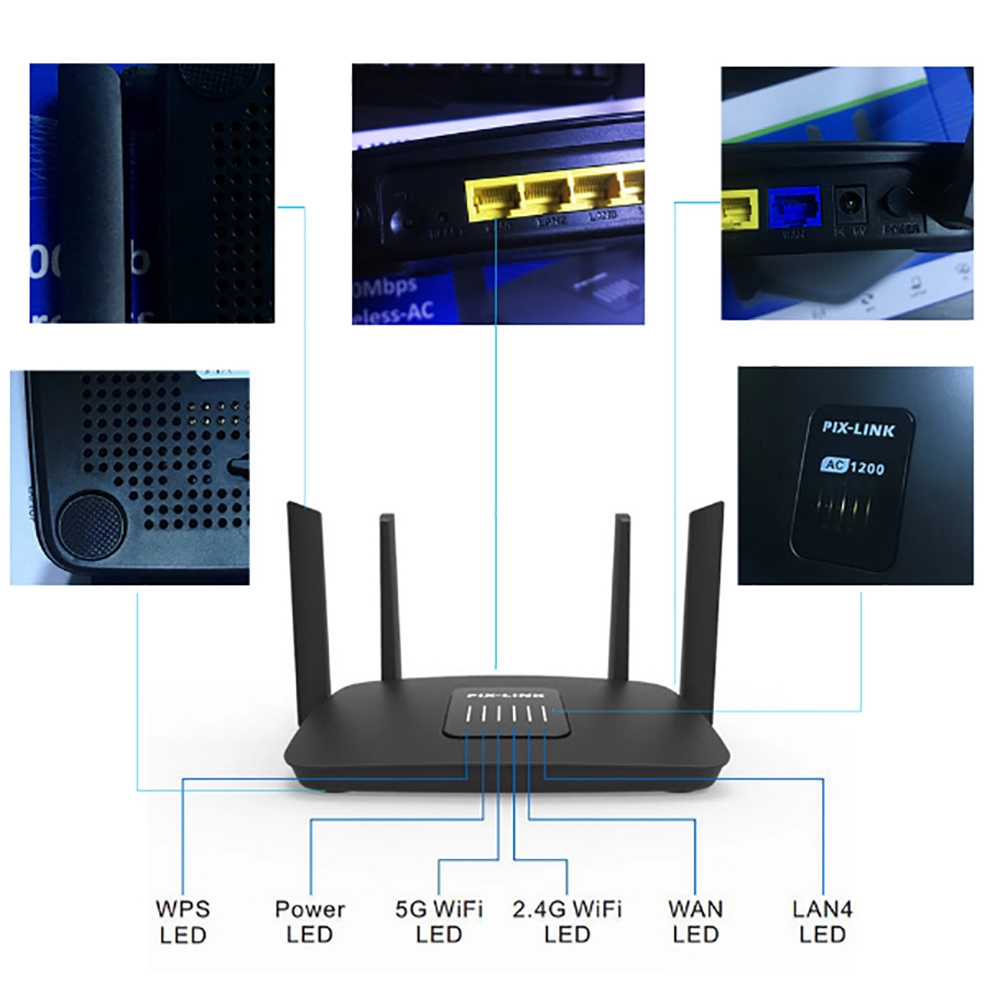

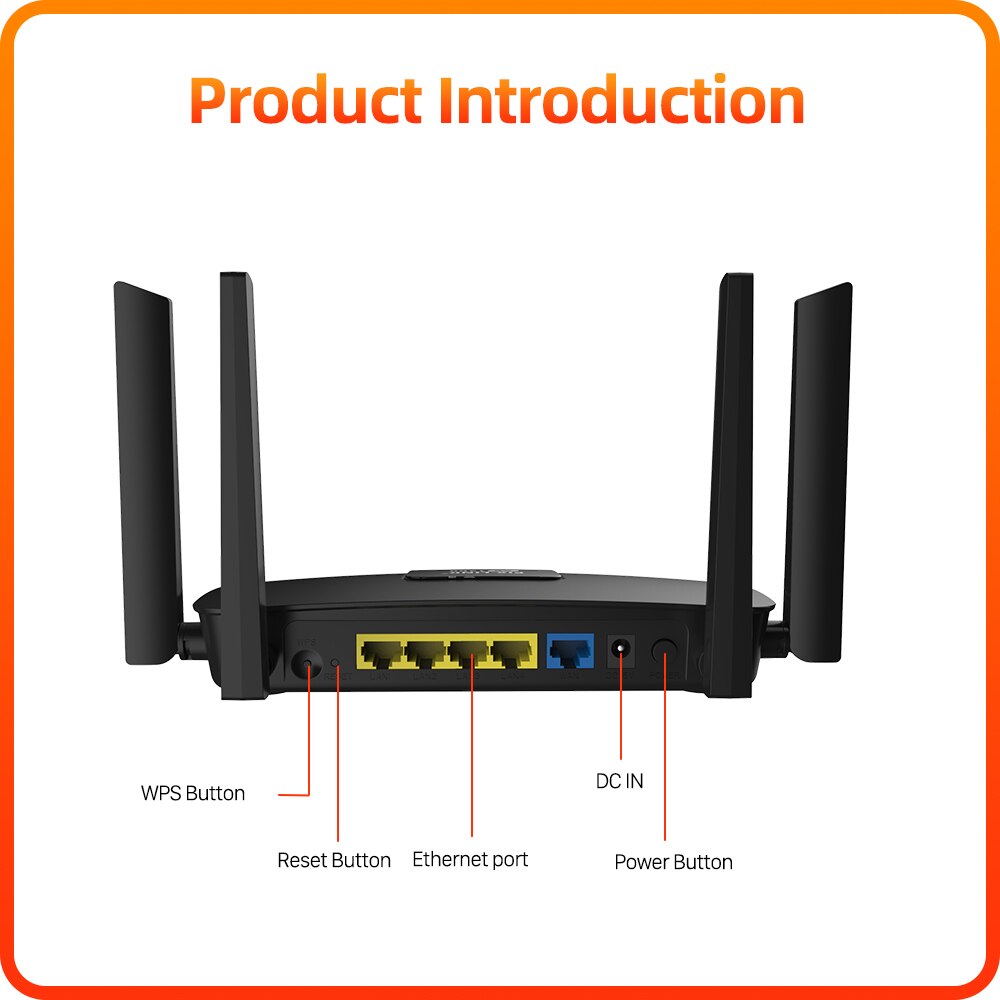

- Interface: 4x10/100Mbps LAN PORTS,1x10/100Mbps WAN PORT
- Button: WPS,Reset
- Antenna: 4*External Antenna
- External Power Supply: 5 VDC /  2 A
- Wireless Standards: IEEE 802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Dimensions ( W x D x H ): 220.0 x 210.0 x 30.5 mm

WIRELESS FEATURES

- Frequency: 2.4GHz and 5GHz
- Signal Rate: 2.4GHz: Up to 300Mbps, 5GHz: Up to 867Mbps
- Reception Sensitivity: 270M: -70dBm@10% PER
-Transmit Power: <20dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2, WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

- Quality of Service: WMM, Bandwidth Control
- WAN Type: Dynamic IP/Static IP/ PPPoE/PPTP/L2TP/ BigPond
- DHCP: Server, Client, DHCP Client List
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
- Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding

OTHERS

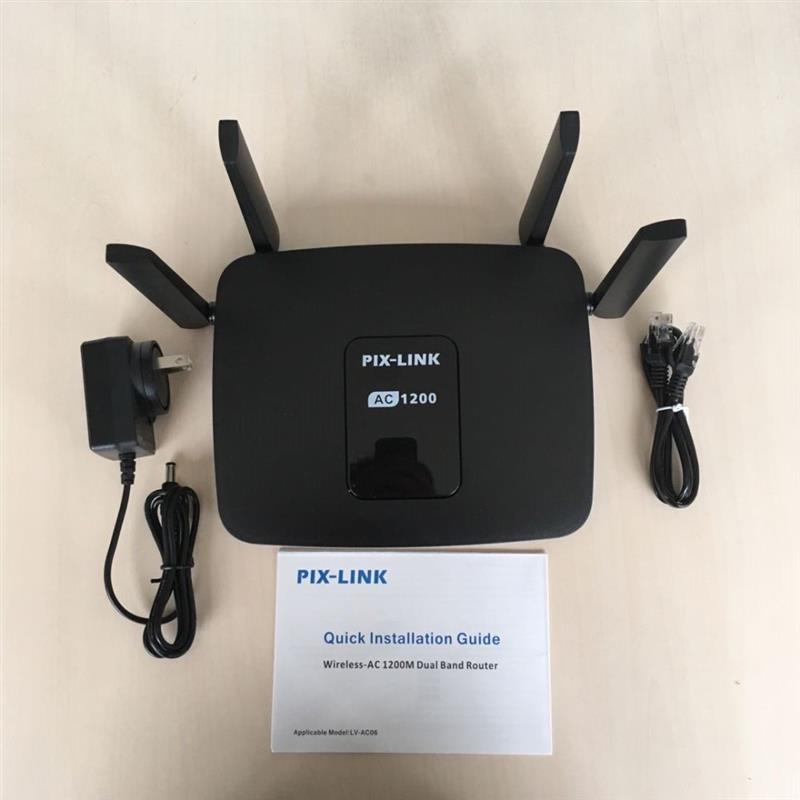

- Package Contents
● 1xWireless-AC Router
● 1xPower Adapter
● 1xEthernet Cable
● 1xQuick Installation Guide

- Environment
● Operating Temperature: 0℃~40℃ (32℉~104℉)
● Storage Temperature: -40℃~70℃ (-40℉~158℉)
● Operating Humidity: 10%~90% non-condensing
● Storage Humidity: 5%~90% non-condensing

Package Include
● 1x Dual Band Wireless AC1200 Range Extender
● 1x Quick Installation Guide
● 1x RJ-45 Ethernet Cable
