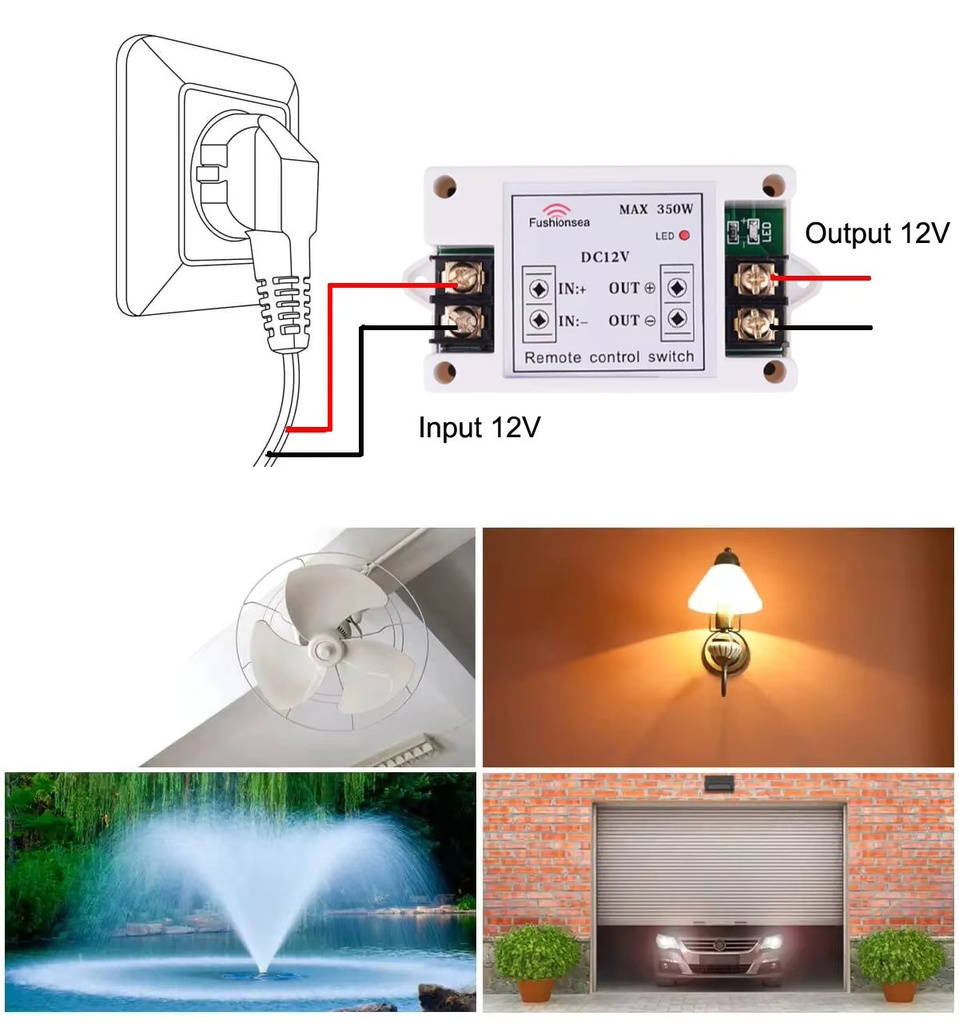

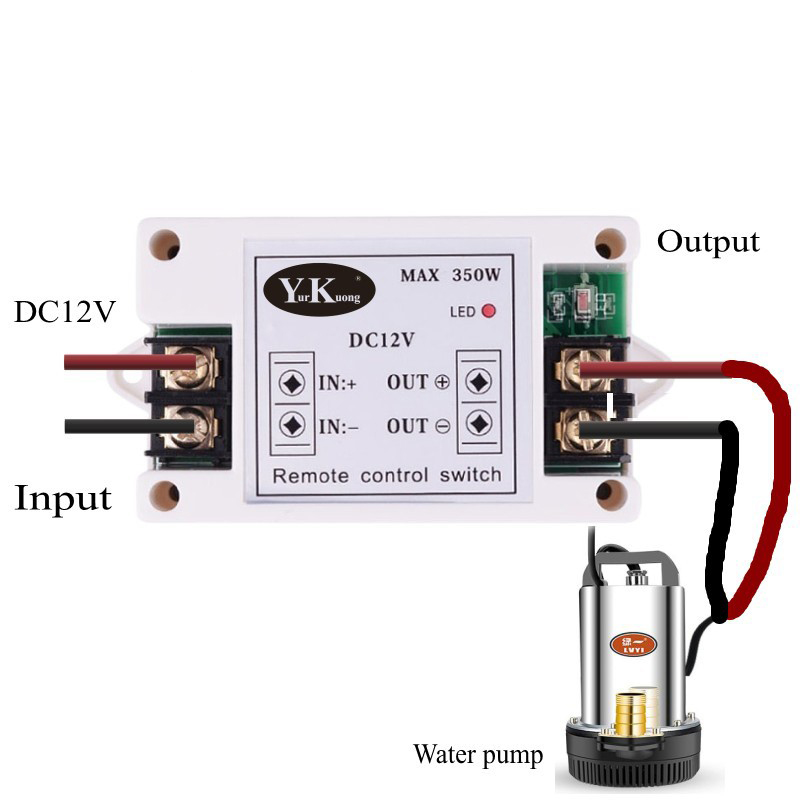

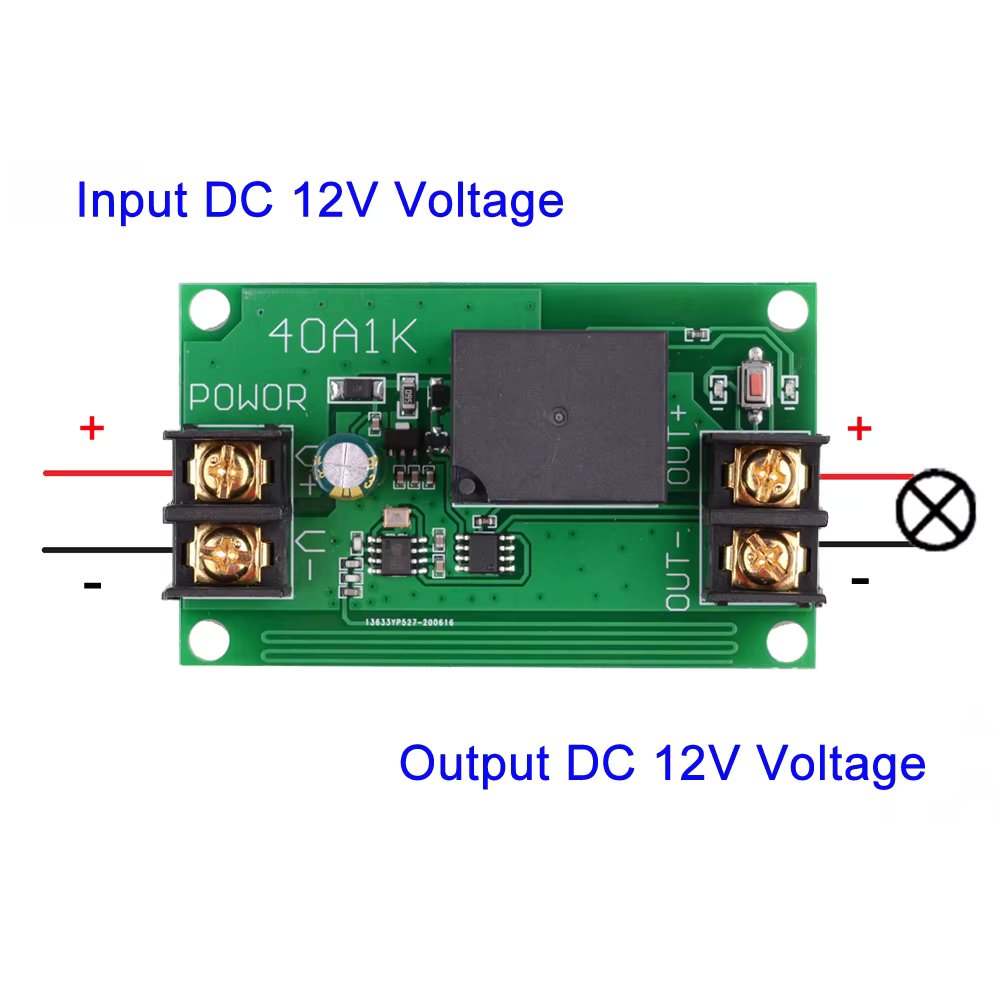

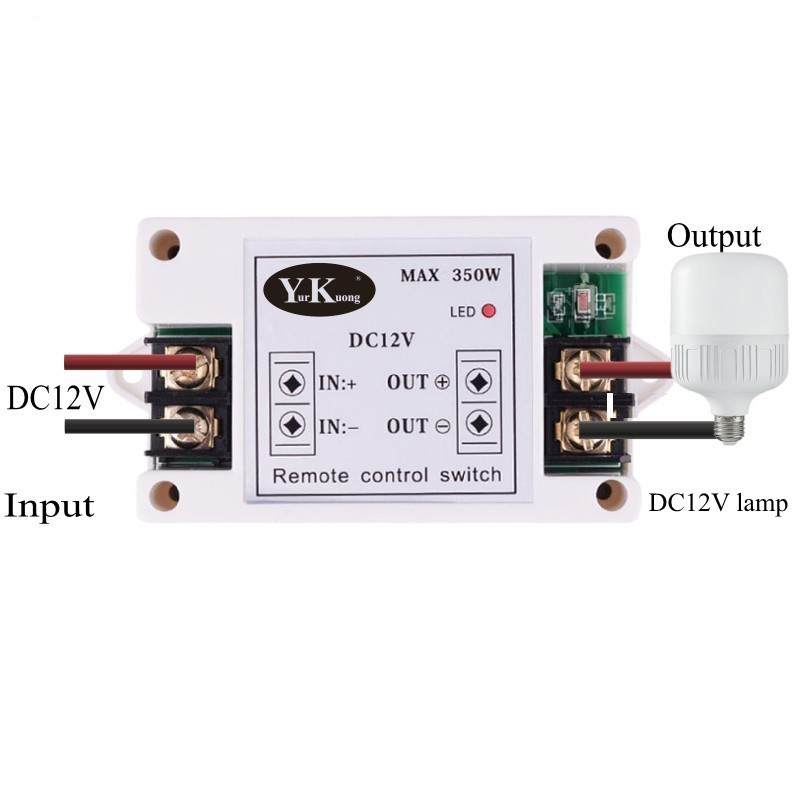

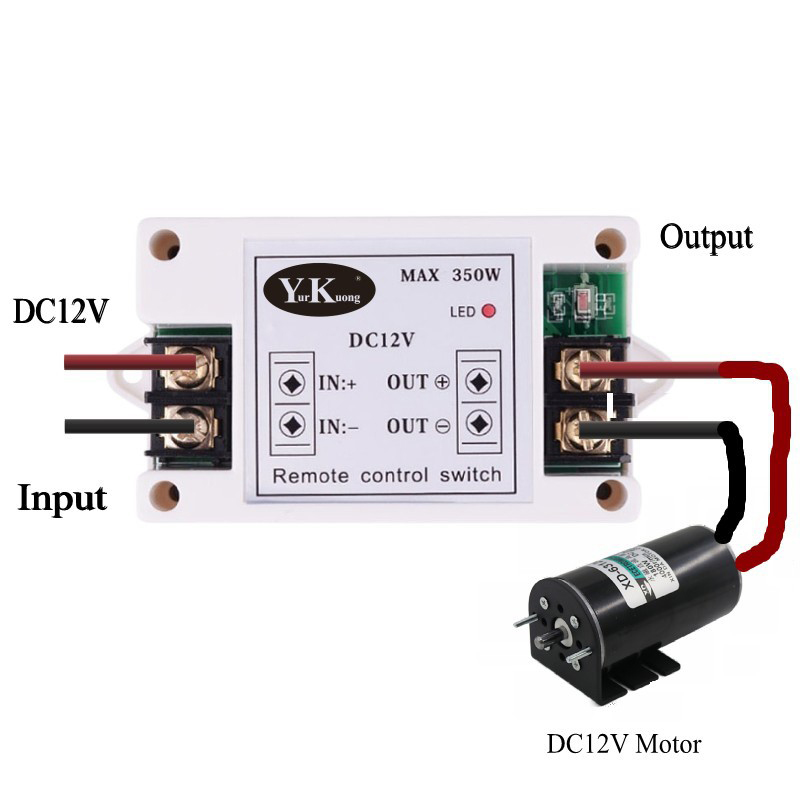

● Input DC12V
● Output DC12V
● Working voltage DC9V-15V

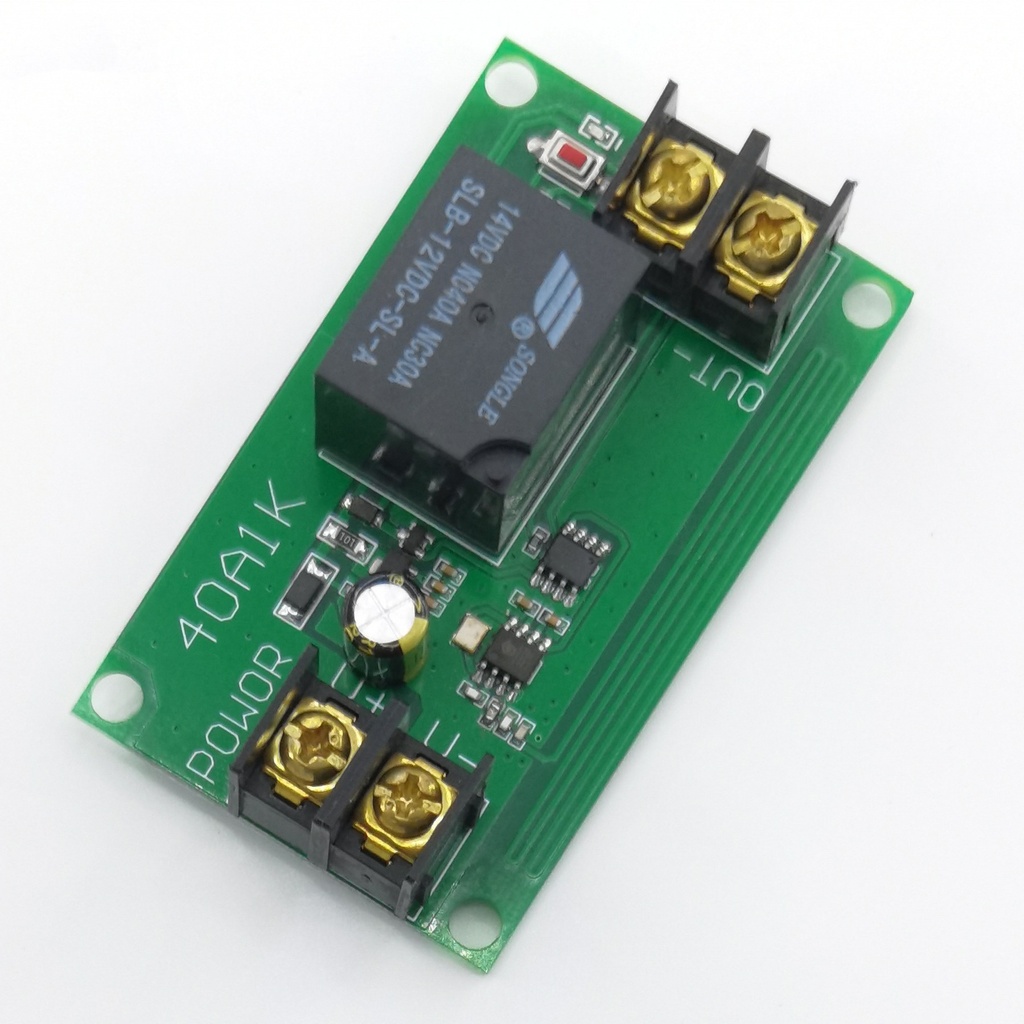

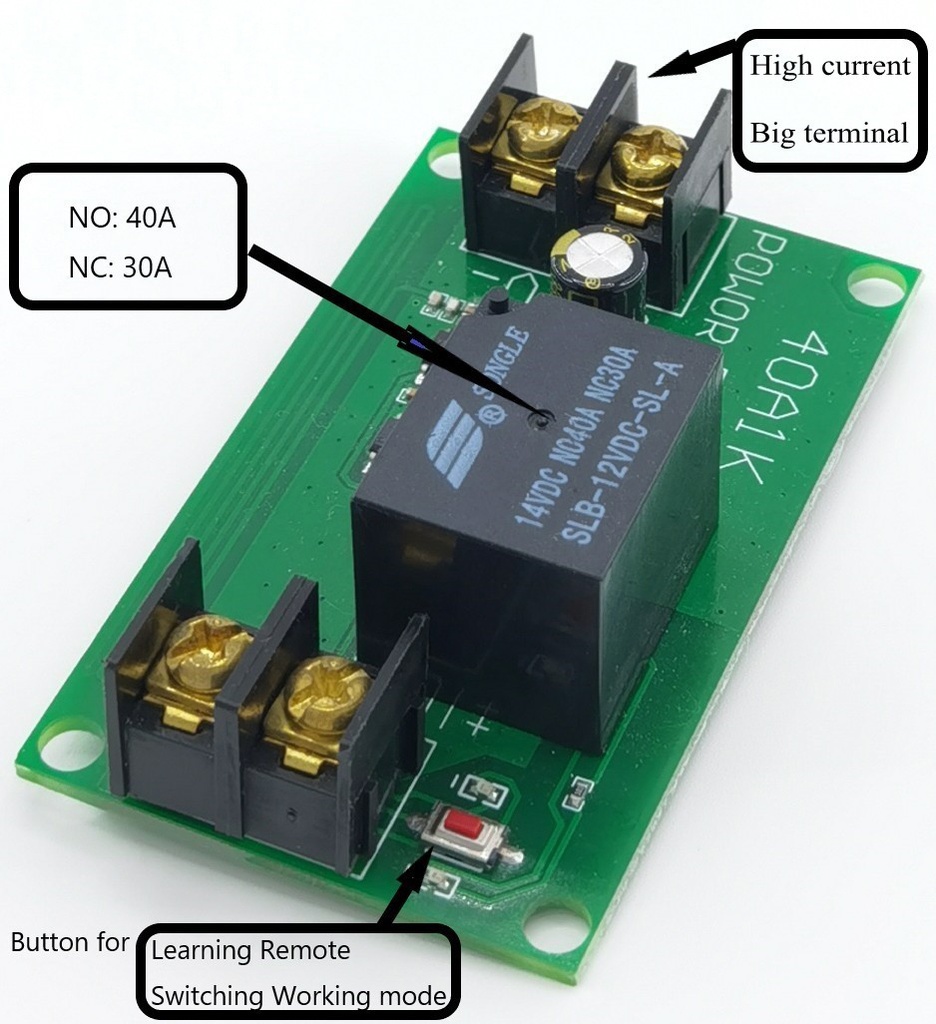

● Relay: 40A (normally open 40A normally closed 30A)
● Inductive load ≤20A Resistive load ≤30A
● Recommended load ≤350W
● Industrial-grade large and thick terminal blocks that can handle large currents

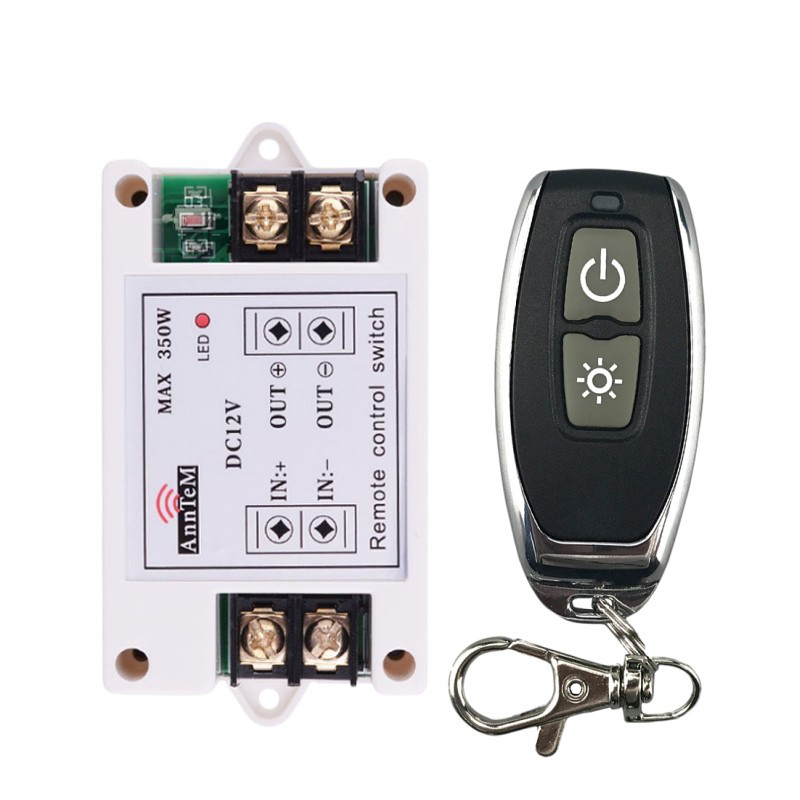

● Coding method: learning button plus remote control, learning button switches working mode
● Frequency: 433.92MHZ

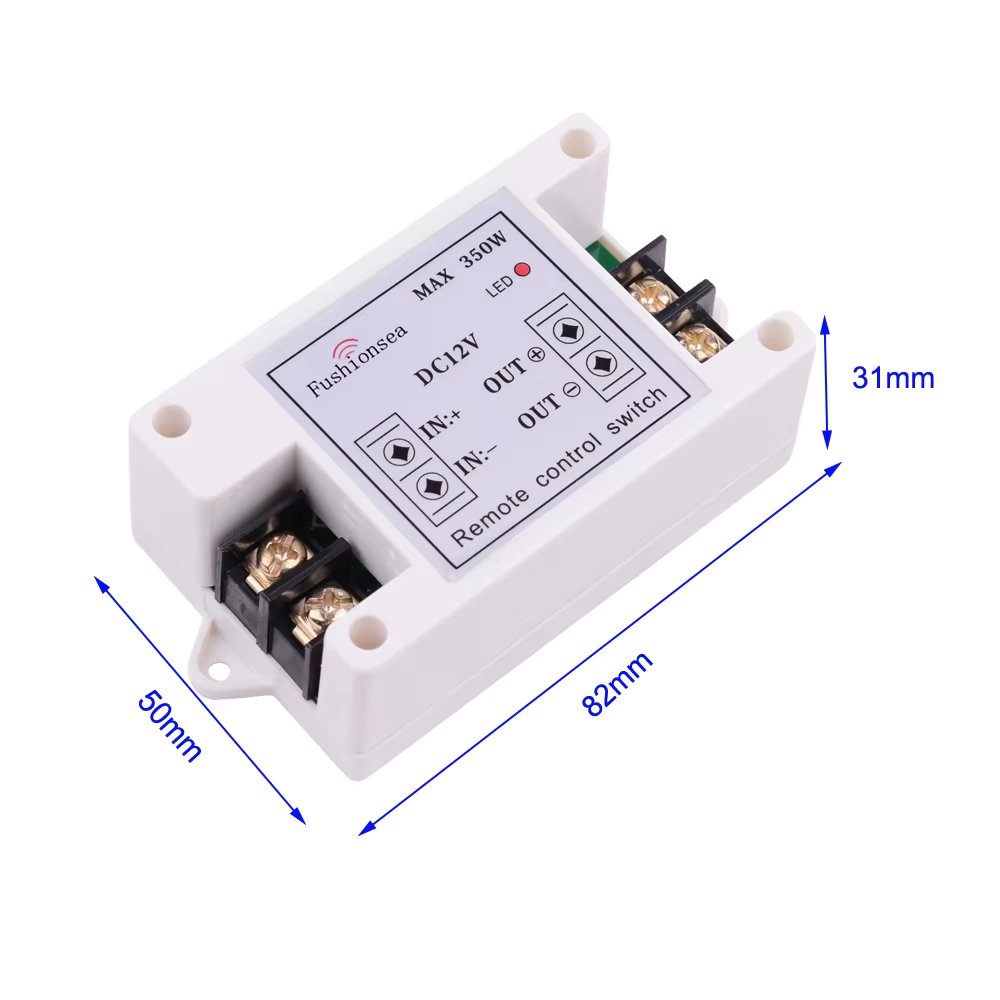

● Size: 82*50*32mm
● Working Distance: 20-50M
About Working way:
Working way changed by learning button
● Latched: Press learning button . Until the receiver Led indicator flash for 1 times, it mean Change Latched successfully.
● Relay: Press -> On; Press other button -> Off.
● Momentary: Press learning button . Until receiver Led indicator flash for 2 times, it Change Momentary successfully.
● Relay: Press and hold -> On; Release -> Off.
● Toggle: Press learning button . Until the receiver Led indicator flash for 3 times, it mean Change Toggle successfully.
● Relay: Press -> On; Press same button again -> Off·
● 10 seconds delay: Press learning button . Until the receiver Led indicator flash for 4 times, it mean Change Delay time successfully.
● Relay: Press -> On , relay actuates and keeps working until the time out.(10S)
● 60 seconds delay: Press learning button . Until the receiver Led indicator flash for 5 times, it mean Change Delay time successfully.
● Relay: Press -> On , relay actuates and keeps working until the time out.(60S)
● 300 seconds delay: Press learning button . Until the receiver Led indicator flash for 6 times, it mean Change Delay time successfully.
● Relay: Press -> On , relay actuates and keeps working until the time out.(300S)
About Learning and clearing Method:
● Learning: Input 12V for the Receiver , Press learning button , The receiver Led indicator ON. Press remote button “ON” 1 time, Led indicator flash for 1 times , Then Press remote button “OFF” 1 time , Led indicator flash for 1 times again , it mean learning successfully
● Clearning: Press learning button . Until the receiver Led indicator flash for 7 times, it mean Clearing Code
