RF 433Mhz DC 12V 1CH Universal Wireless Remote Control Switch Relay Receiver Module

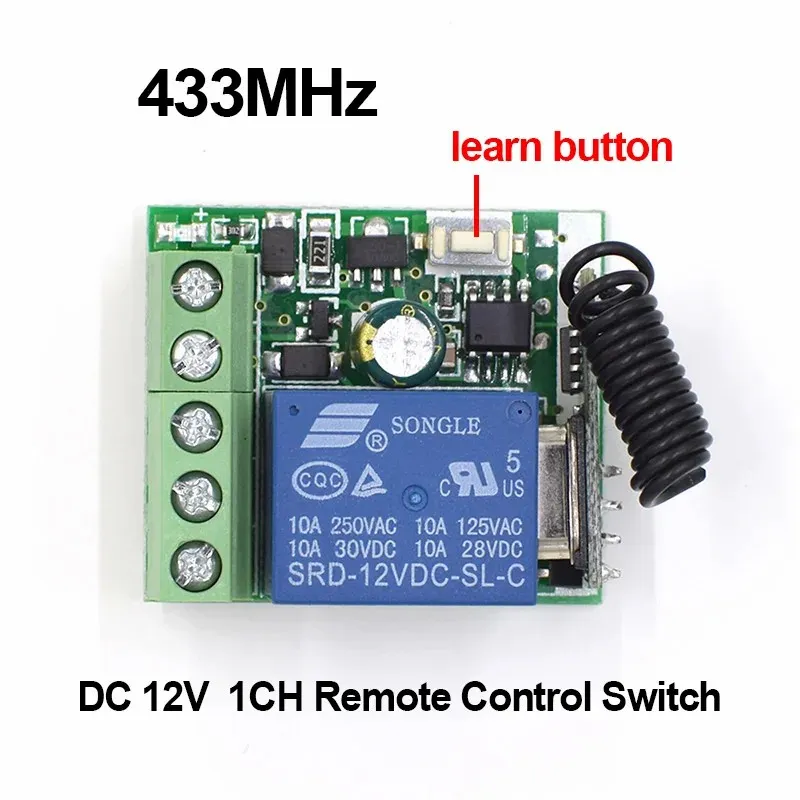

**DC 12V 433MHz RF Wireless Remote Control Relay Switch (1CH Receiver + Remote)**
အိမ်သုံး၊ ဆိုင်သုံး၊ DIY Project များအတွက် အဝေးကနေ Wireless နဲ့ ON/OFF ထိန်းချုပ်နိုင်တဲ့ RF Relay Module လေးဖြစ်ပါတယ်။
**အဓိက Features များ**
• Frequency – 433MHz RF Wireless Control
• Input Voltage – DC 12V
• Receiver Sensitivity – >97dBm
• Remote Distance – Open Space တွင် 100m+ အထိ အသုံးပြုနိုင်
• Remote Storage – Remote 20 ခုအထိ မှတ်သားနိုင်
• EV1527 Learning Code Remote များ Support လုပ်ပေးသည်
• Working Modes အမျိုးမျိုး ပါဝင်
**Working Modes (4 မျိုး)**
• **Momentary (Inching) Mode** – Remote Button ကို ဖိထားသရွေ့ Relay ON ဖြစ်ပြီး လွှတ်လိုက်တာနဲ့ OFF ဖြစ်မည်။
• **Toggle (Self-Locking) Mode** – တစ်ချက်နှိပ် ON ၊ နောက်တစ်ချက်နှိပ် OFF ဖြစ်မည်။
• **Interlock Mode** – Button A နဲ့ ON ၊ Button B နဲ့ OFF လုပ်နိုင်သည်။
• **Delay Mode** – နှိပ်ပြီးနောက် 5s / 10s / 15s အလိုအလျောက် OFF ဖြစ်မည်။

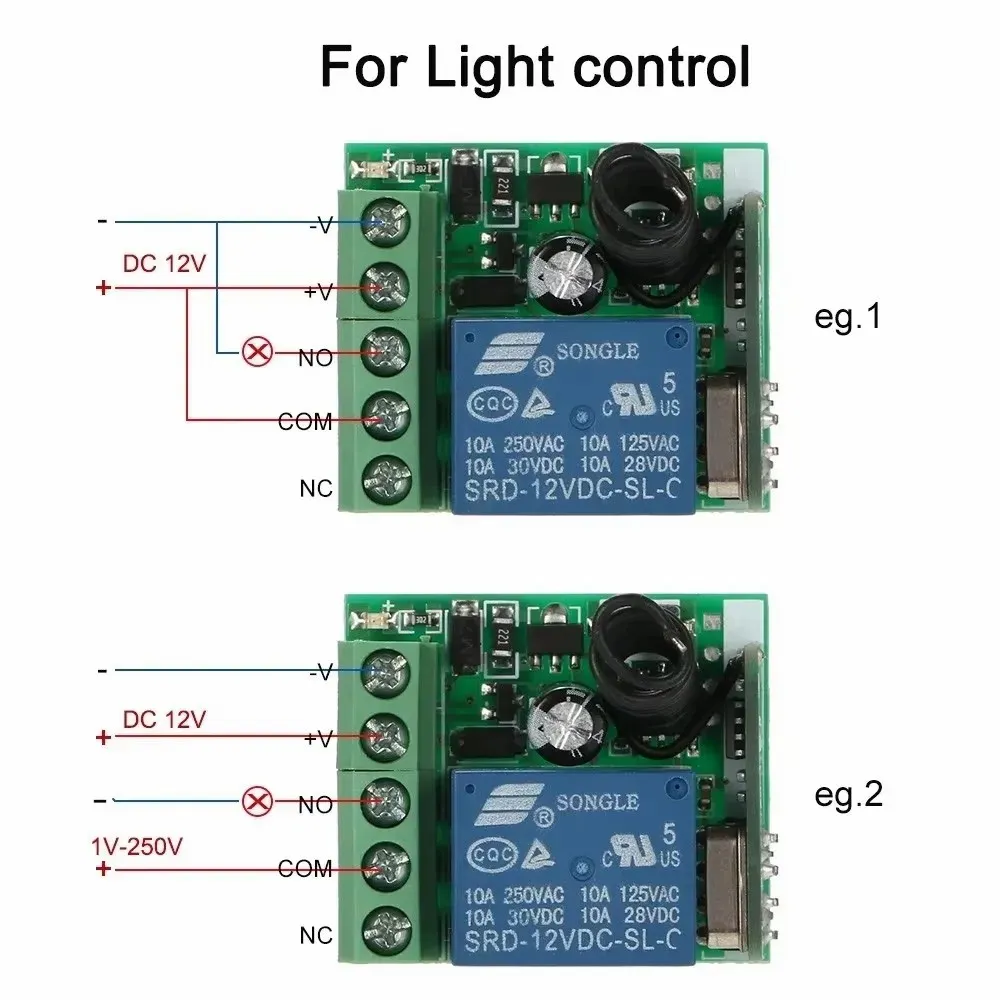

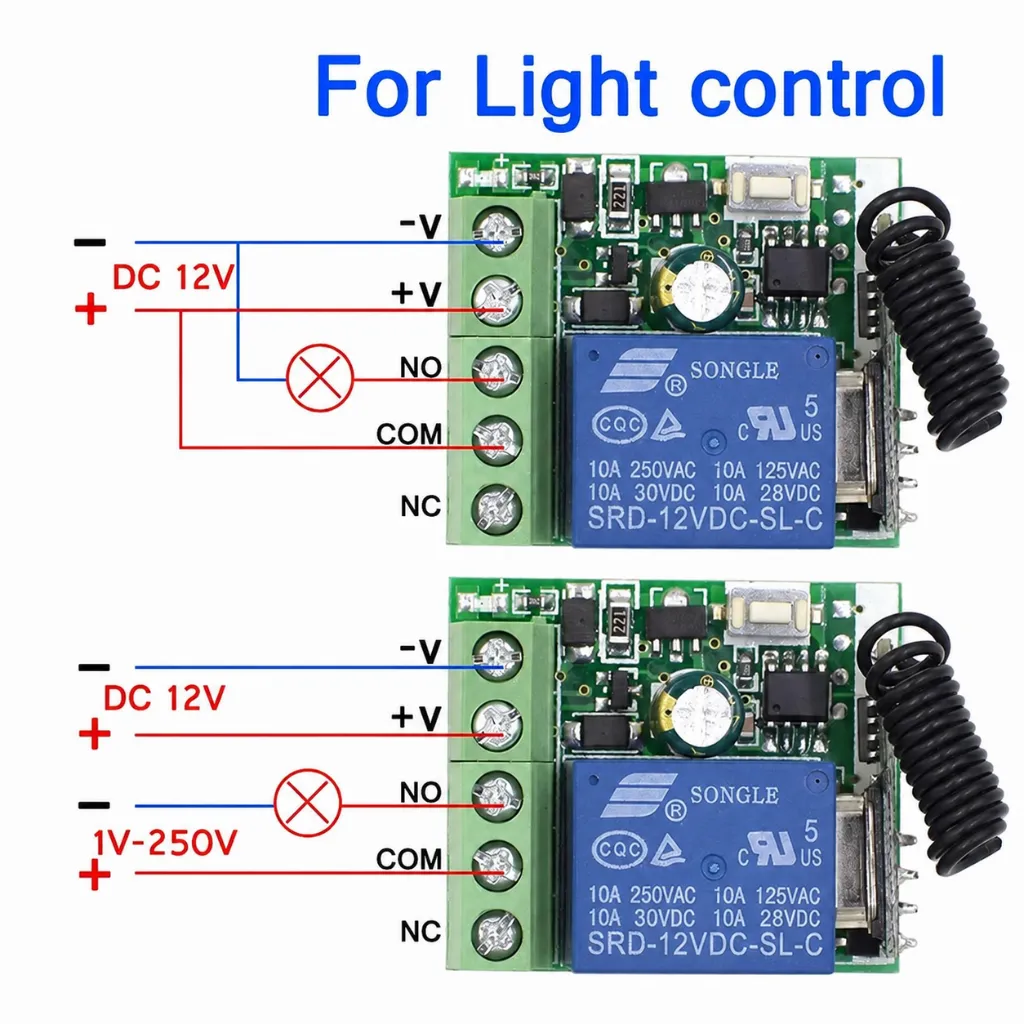

**Relay Output Terminal**
• NO (Normally Open)
• NC (Normally Closed)
• COM (Common)
**Load Capacity**
• AC 250V အထိ (10A)
• DC 30V အထိ (10A)
(သတ်မှတ်ထားသော Load Limit အတွင်းသာ အသုံးပြုရန်)

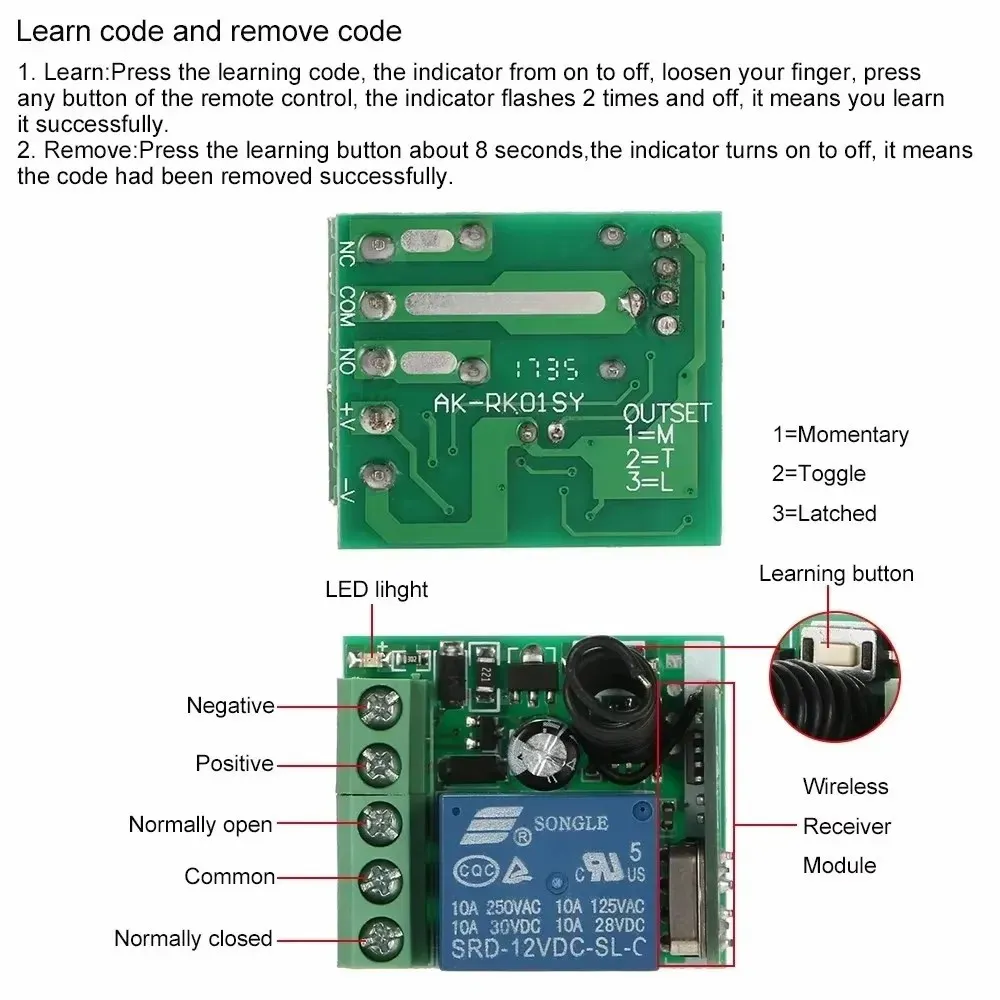

**Remote Pairing လုပ်နည်း**
• Learning Button ကို 1 ကြိမ်နှိပ် → Momentary Mode
• Learning Button ကို 2 ကြိမ်နှိပ် → Toggle Mode
• Learning Button ကို 3 ကြိမ်နှိပ် → Interlock Mode
• Learning Button ကို 4 ကြိမ်နှိပ် → 5 Seconds Delay
• Learning Button ကို 5 ကြိမ်နှိပ် → 10 Seconds Delay
• Learning Button ကို 6 ကြိမ်နှိပ် → 15 Seconds Delay
LED Indicator မီးလင်းတာ ငြိမ်သွားရင် Remote Button ကိုနှိပ်ပါ။ LED 3 ချက် Flash ဖြစ်လျှင် Pairing အောင်မြင်ပါသည်။
**Reset / Clear Code**
• Learning Button ကို 8 ကြိမ်နှိပ်ပါ
• သိမ်းထားသော Remote အားလုံး ဖျက်သွားမည်ဖြစ်ပြီး ပြန်လည် Pairing ပြုလုပ်ရပါမည်။
**အသုံးပြုနိုင်သော နေရာများ**
• မီးအဖွင့်/အပိတ် Control
• Gate / Door Control
• Water Pump Control
• DIY Smart Home Projects
• Security & Automation Systems
Package တွင်
• 1 × 433MHz Receiver Module
• 1 × Wireless Remote Control
အသုံးပြုရလွယ်ကူပြီး Wireless Control လိုအပ်တဲ့ Project မျိုးစုံအတွက် အဆင်ပြေတဲ့ RF Relay Switch Module လေးဖြစ်ပါတယ်။
Wireless remote control 12V RF receiver RF receiver and remote
16,500.00 K 16,500.00 K
16,500.00 K

  • Type
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Type 12V
