● Working Voltage: DC5V-30V
● (DC 5V 6V 7.4V 9V 12V 14V 16V 18V 24V 26V 28V) All is ok
● Quiescent /Standby Current: 3.6-10ma
● Working Current: 70-130ma ( if your power supply is mini battery , you must care how long can it work for you)
● Relay Standard : 10A
● Maximum Load: 800W
● Max Load:10A Relay, Resistive load≤8A,Inductive load≤3A
● Board Size : 31.3*34.8*17mm Case Size: 40*37*25mm
● Working Frequency: 433.92MHZ
● Learning Code: Learning Button to add Transmitter
● Output mode: Contact output (can control AC and DC)
● The system can store for 16 pcs of remotes
● Range: 30-70m
Working Mode: Momentary Toggle Latched adjusted by Learning Button
● Momentary----- Press and Hold---ON, Release----OFF
● Toggle-------Press one time ----ON. Press it again ----OFF
● Latched--------Press A ----ON, Press B-----OFF (Latched Mode will ship with 2 Button Transmitter)
● Momentary 5s Time Delay OFF----- Press and Hold---ON, Release----5s laterOFF
● Momentary 10s Time Delay OFF----- Press and Hold---ON, Release----10s laterOFF
● Momentary 15s Time Delay OFF----- Press and Hold---ON, Release----15s laterOFF
● Momentary 20s Time Delay OFF----- Press and Hold---ON, Release----20s laterOFF
● Power ON Receiver ON -----Input power -----ON, Press Remote -----OFF

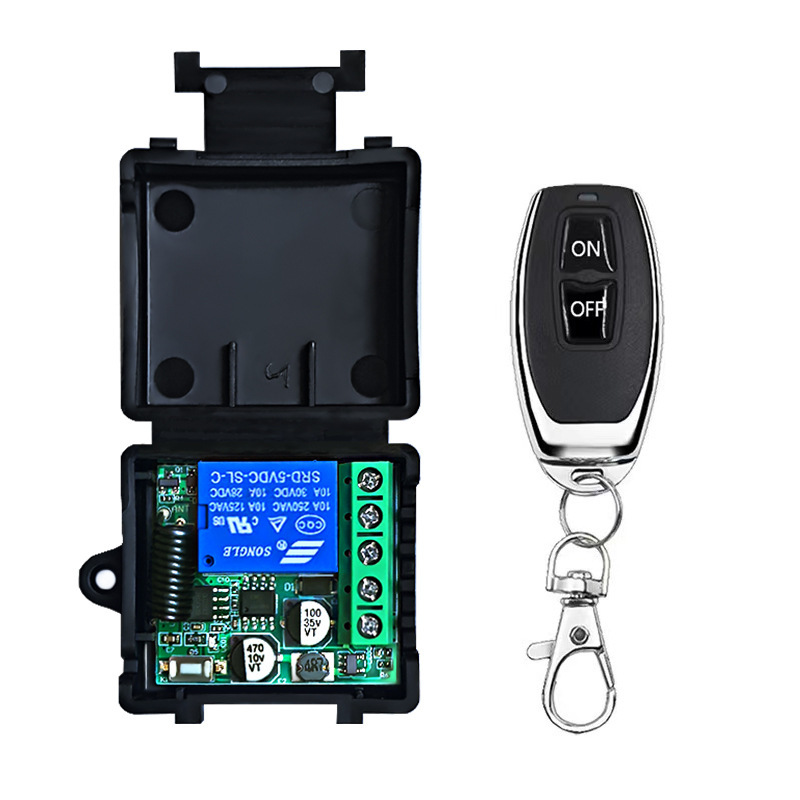

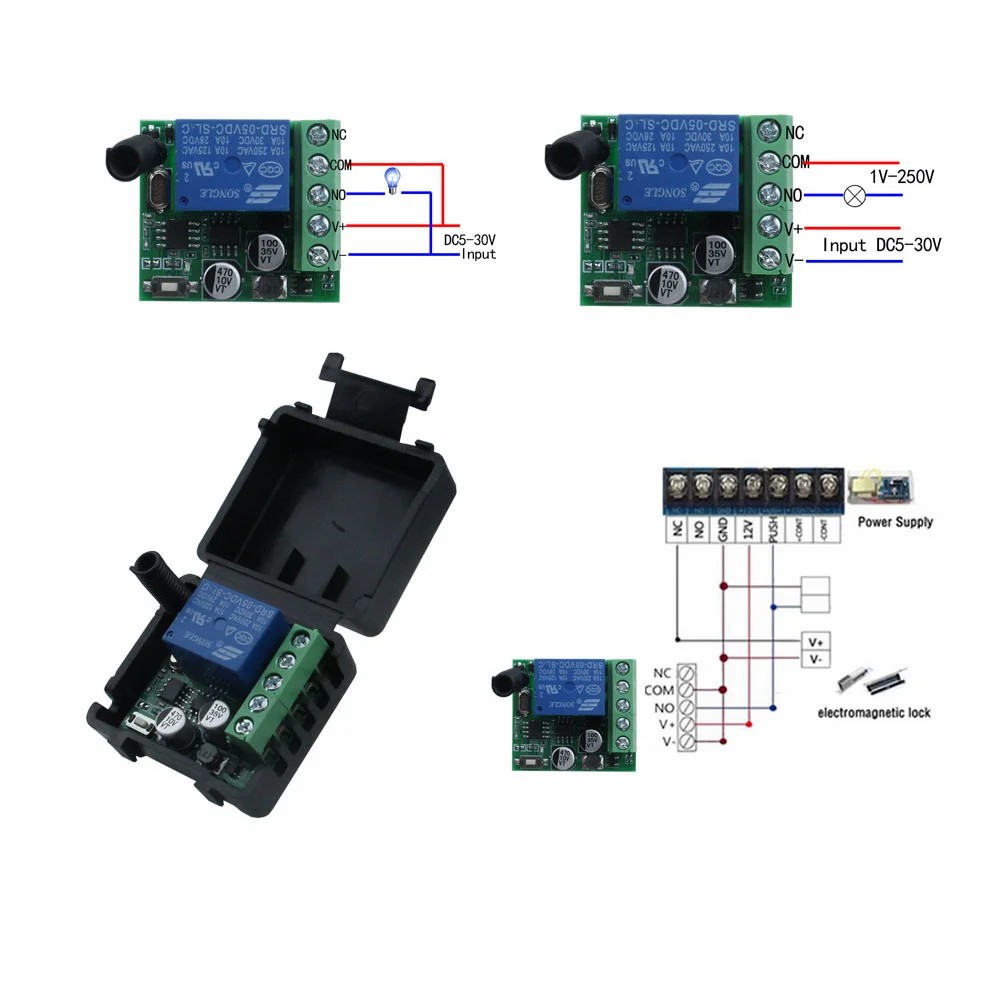

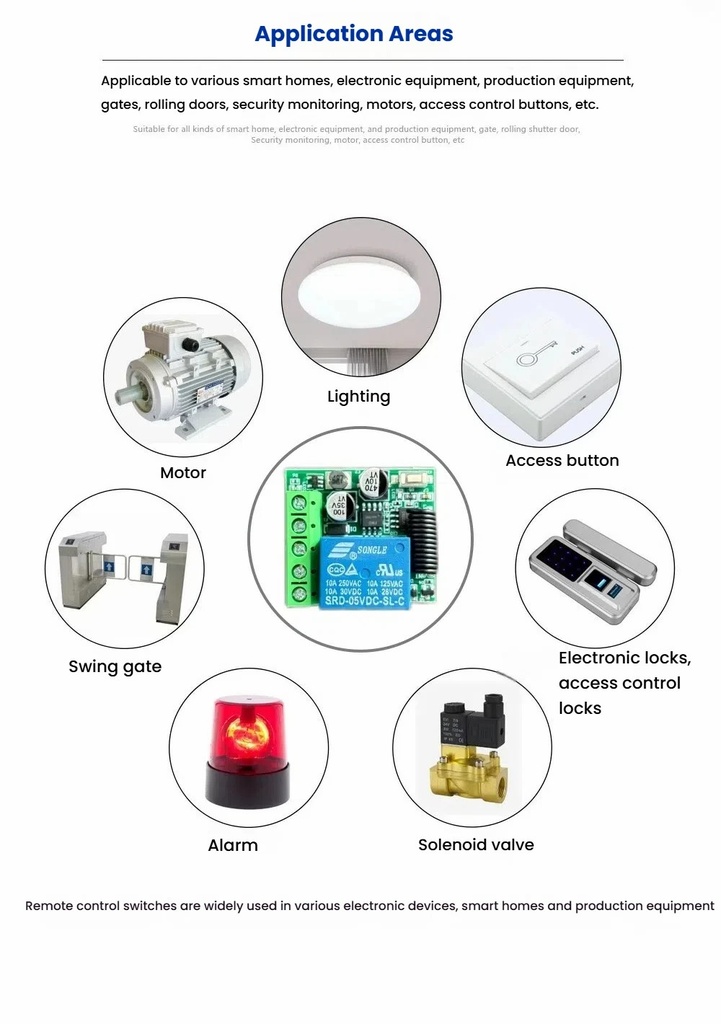

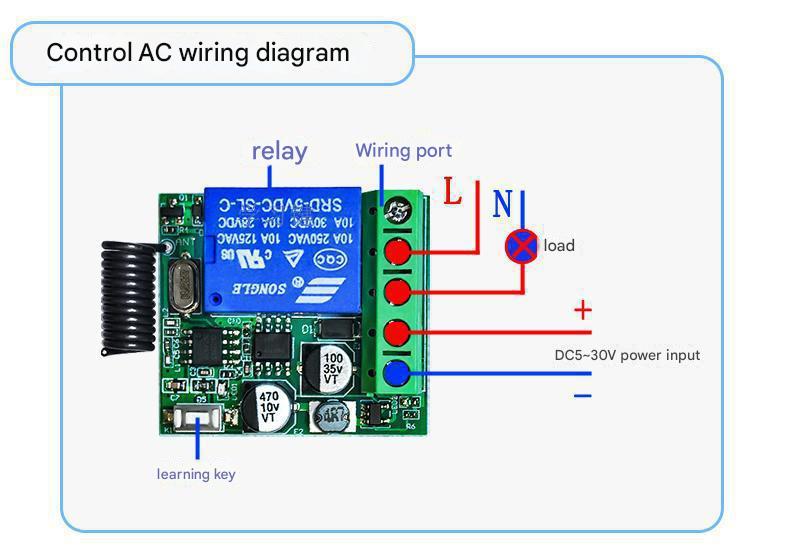

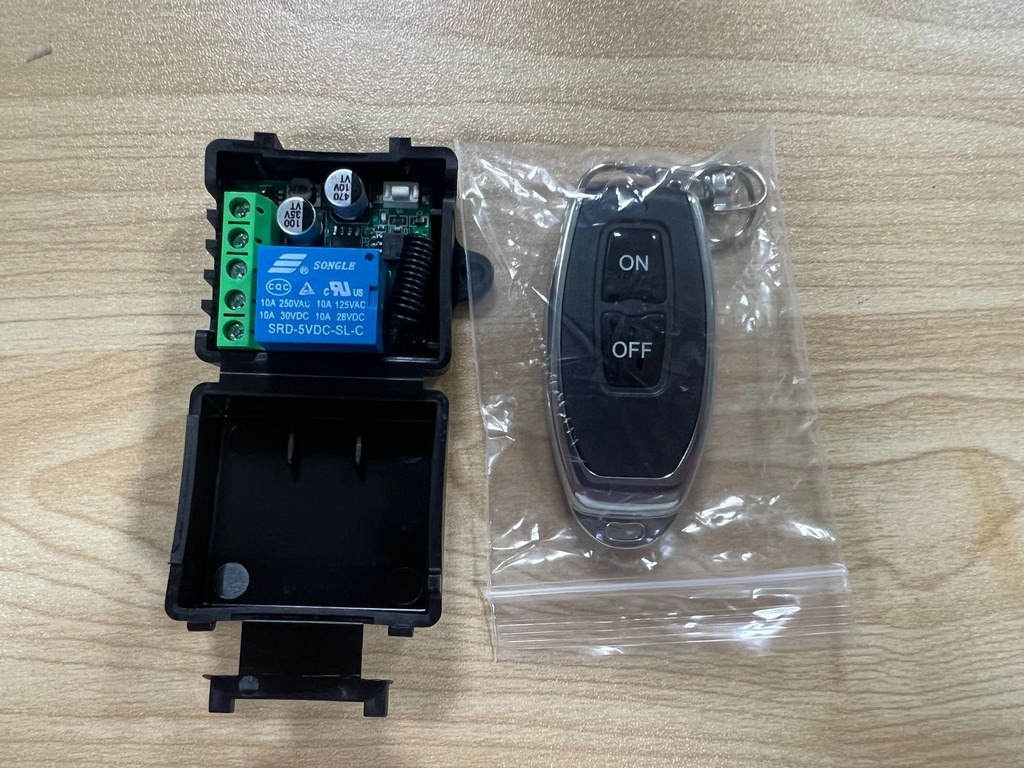

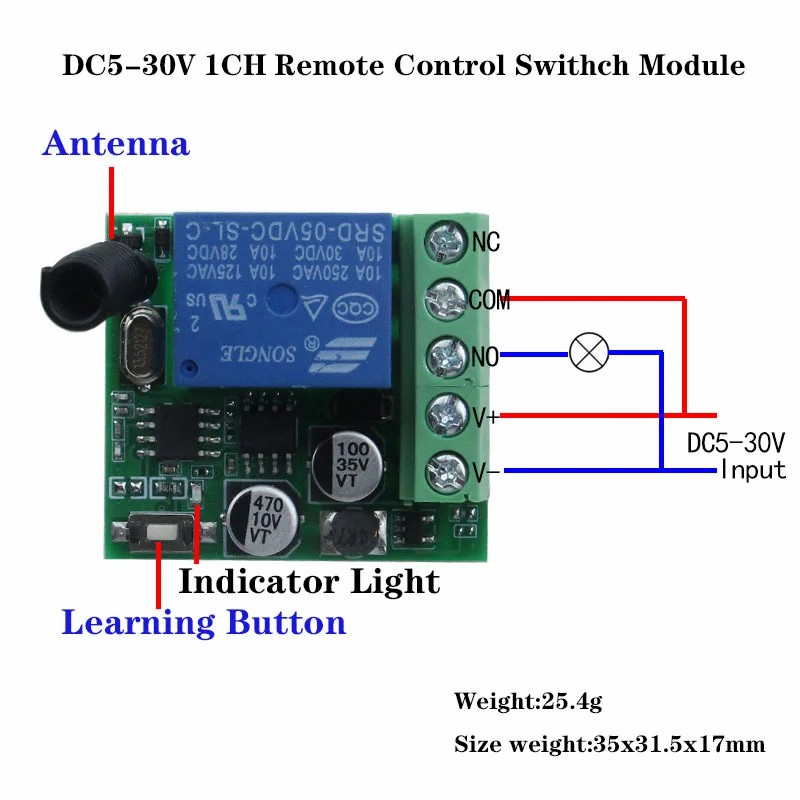

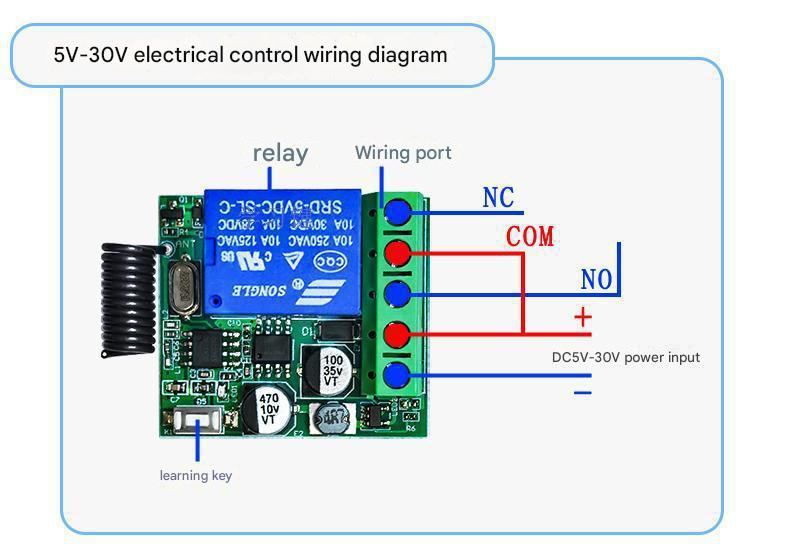

Wire Connections
● V- -------------------Input GND –
● V+ -------------------Input VCC +
● NC---------------------Normally Close
● COM------------------Common
● NO---------------------Normally Open
Momentary Toggle Latched adjusted by learning Button
Clearing Code
● Press the Receiver learning button for 9 times, LED indicator off and flash 5 times , it means the code have been cleared
● (with the same remote ,if you need change working mode, you must clear the code first ,then relearn it again)

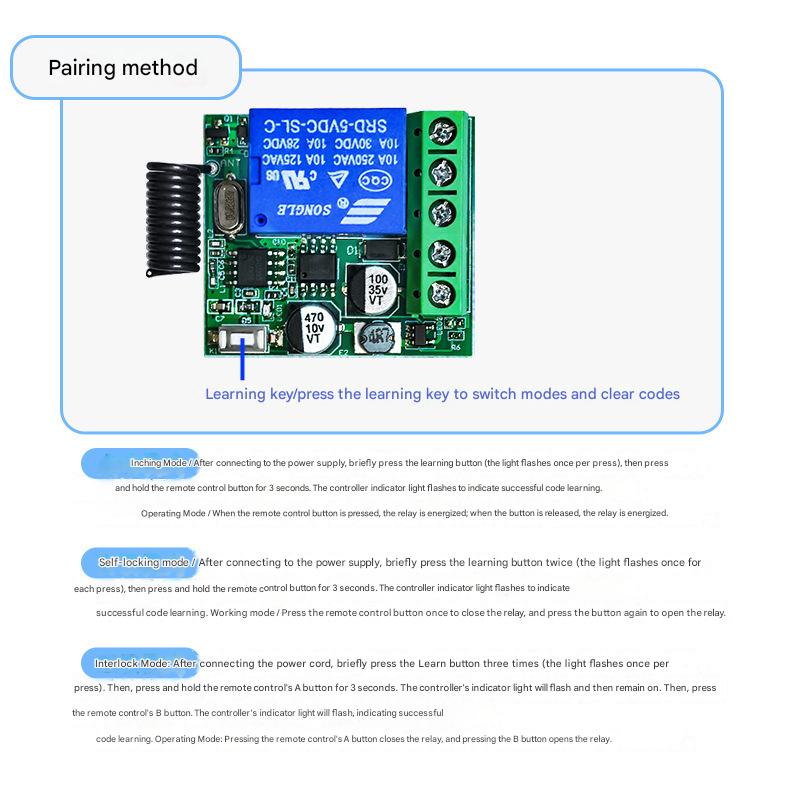

Learning Code
● Momentary------Press the learning button for 1 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Toggle------Press the learning button for 2 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Latched-------Press the learning button for 3 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Momentary 5s time delay off-----Press the learning button for 4 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Momentary 10s time delay off-----Press the learning button for 5 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Momentary 15s time delay off-----Press the learning button for 6 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Momentary 20s time delay off-----Press the learning button for 7 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
● Power ON Receiver ON-------Press the learning button for 8 time , LED indicator flash 1 time and on, press remote button ,LED indicator flash 3 times
