✅ Description
▶️Arduino Series Type: As part of the Arduino Series, this sensor is compatible with various Arduino boards, enhancing its versatility.
▶️Compact Design: With a 7mm outer diameter, this sensor fits seamlessly into your existing setup without causing any disruption.
▶️Silicone Hose Compatibility: Designed for use with silicone hoses, this sensor provides a durable and reliable connection for your milk meter.
▶️High Precision: The qiyikuo High-Precision Water Flow Sensor offers accurate measurement, ensuring optimal performance in your coffee machine.
✅ Features
▶️1. This product has a light and flexible appearance, small size and is easy to install.
▶️2. The impeller is inlaid with a stainless steel shaft, which penetrates up and down to disperse the stress points and is always wear-resistant.
▶️3. The sealing ring is made of butyl rubber imported from Japan, and the structure with upper and lower forces will never leak.
▶️4. The Hall element is imported and sealed with potting glue to prevent water ingress and never age.
▶️5. All raw materials comply with ROHS testing standards
✅ Product Introduction:

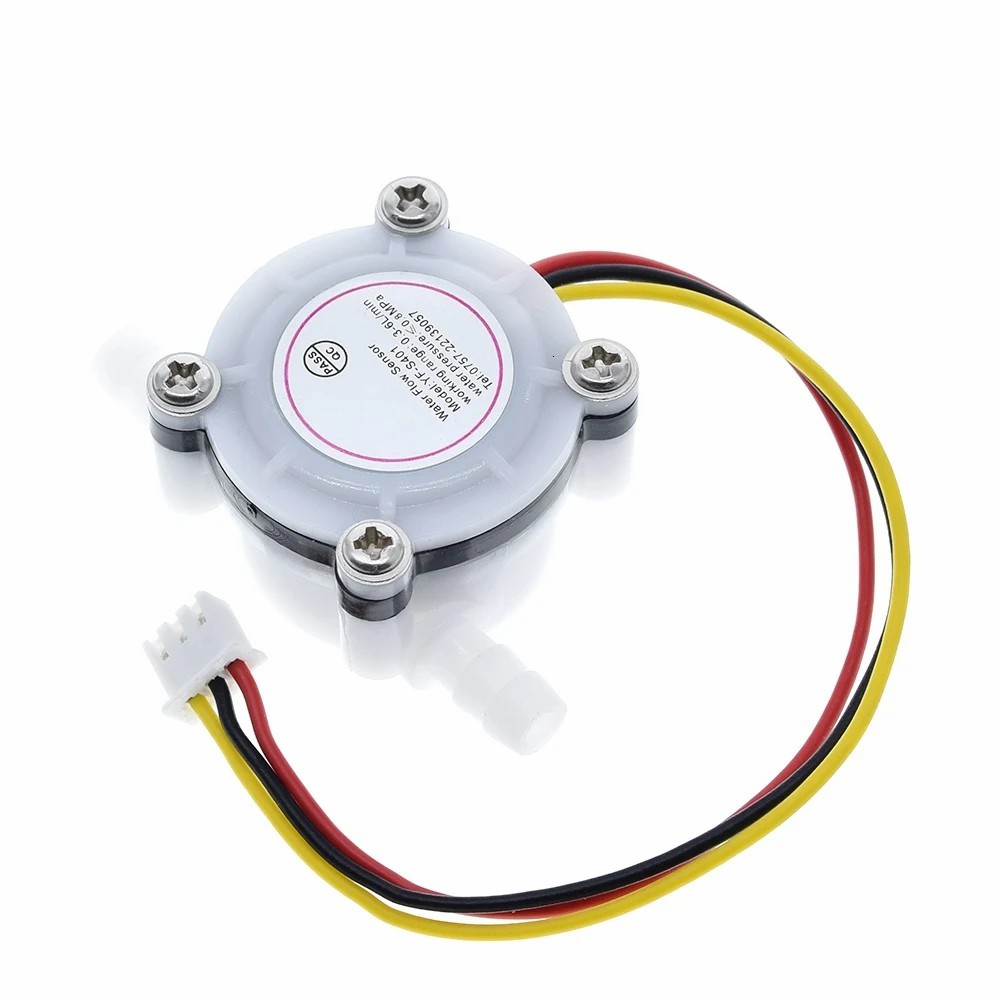

▶️The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor.
▶️It is installed at the water inlet end of the water heater and is used to detect the water flow. When water passes through the water flow rotor assembly,
▶️The magnetic rotor rotates and the speed changes with the flow rate, and the Hall sensor outputs corresponding pulses
▶️The signal is fed back to the controller, which determines the water flow rate and regulates it.
✅ Precautions for use:
▶️Severe impact and chemical corrosion are strictly prohibited.
▶️Throwing or collision is strictly prohibited.
▶️The medium temperature should not exceed 120 degrees.

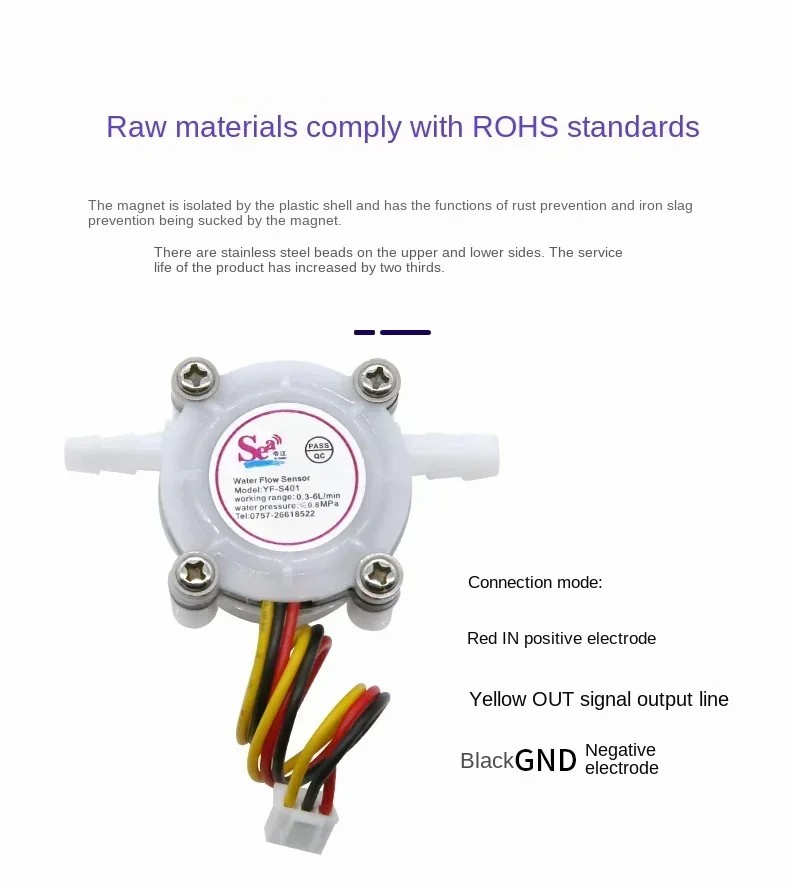

✅ Lead-out method:
▶️1 Red IN connects to the positive pole
▶️2 Yellow OUT signal output line
▶️3 Black GND connects to the negative pole
✅ Specifications
▶️Output signal: the default output NPN pulse signal
▶️Model: YF-S401

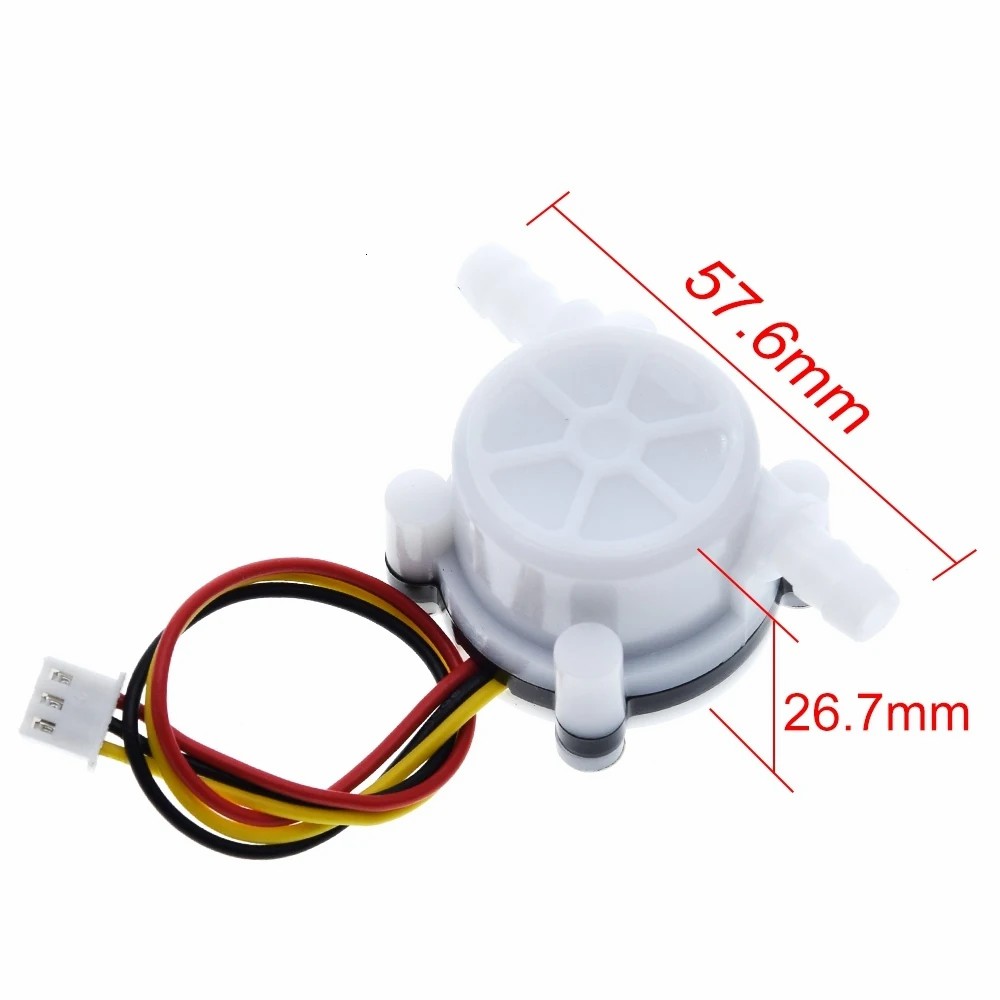

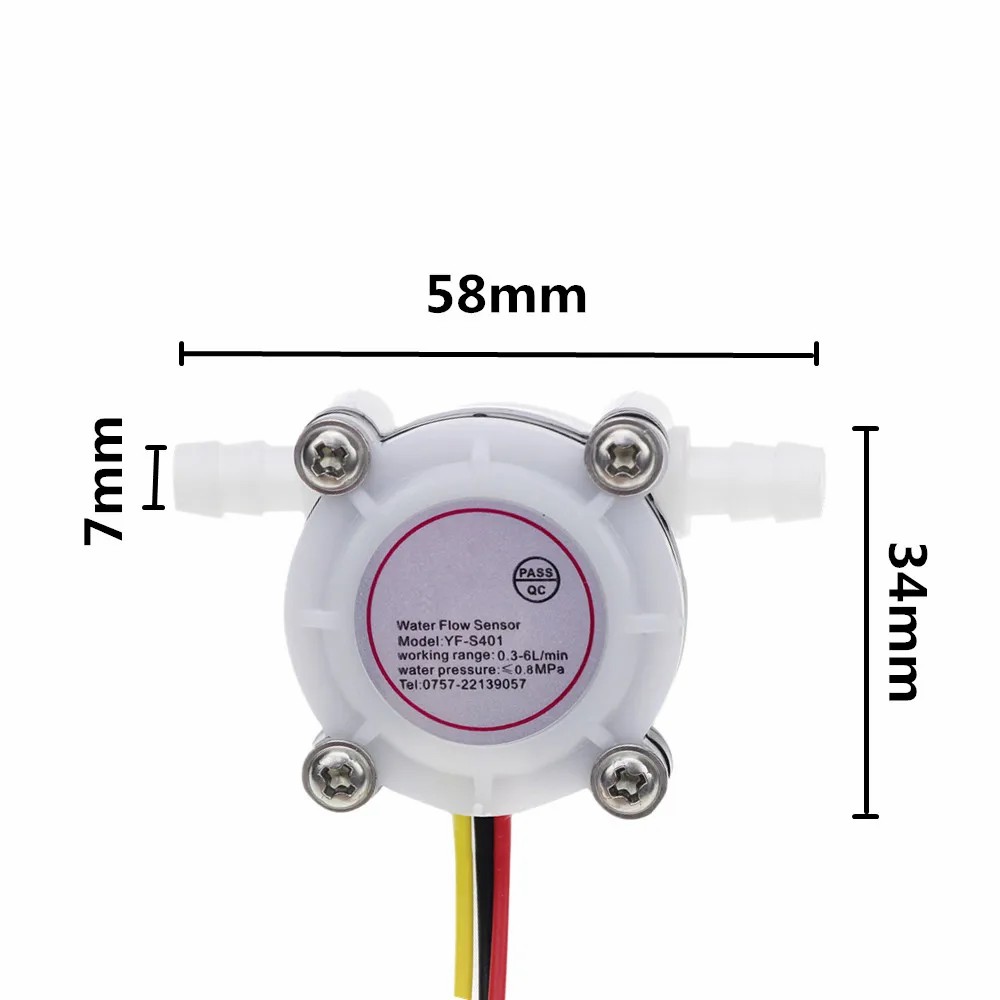

▶️Interface size: 7MM
▶️Working voltage range: DC 5～18V
▶️Material: POM
▶️Medium temperature: ≤120℃
▶️Water pressure resistance: ≤1.75MPa
▶️Output pulse high level: >DC 4.7V (input voltage DC 5V).
▶️Output pulse low level: 100MΩ

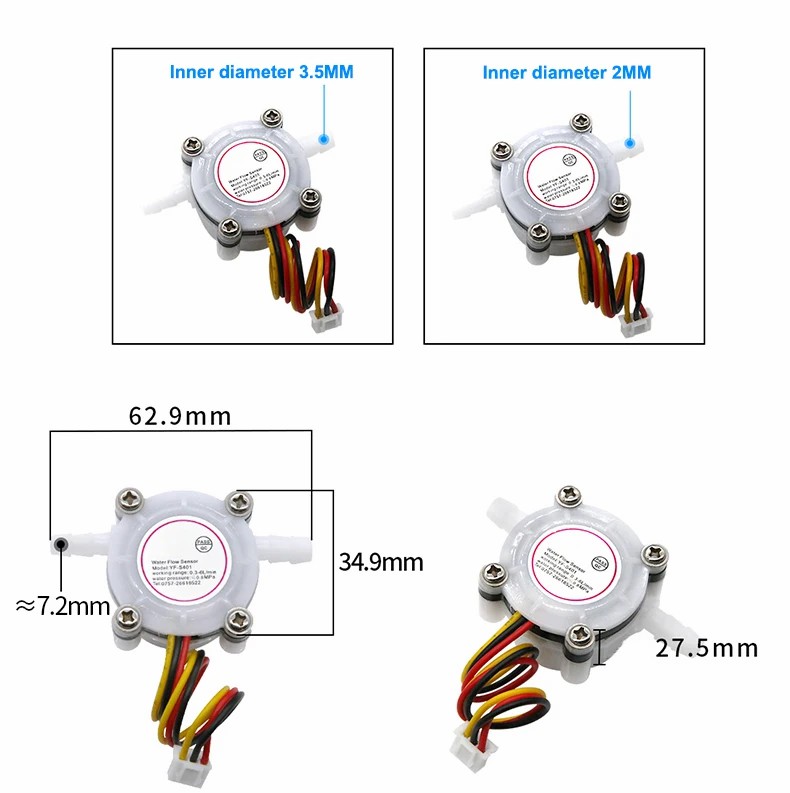

▶️Flow range: Inner diameter 2.0MM 0.5~3L/min，Inner diameter 3.5MM 0.5~5L/min
▶️Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.
▶️Flow pulse characteristics: Inner diameter 2.0MM F=(98*Q)±2%，Inner diameter 3.5MM F=(43*Q)±2% Q = L/Min
