● After the battery is put in, use the mobile phone charger to charge the charging treasure before outputting;
● Output power: 22.5 W (dual USB output + TYPE-C port/Android port dual input solution)
● Peak power: 25W (MAX)
● OUT1 output: 5V/3.7A, 9V/2.5A, 12V/1.87A (support 5V while charging);
● OUT2 output: 5V/3.7A, 3.3-5.5V/4.5A(VOOC/SCP), 9V/2.5A, 12V/1.87A
● ( Support 5V while charging and discharging);
● IN input (micro): 5V/3A, 9V/2A, 12V/1.5A ;
● Type-C output: 5V/3.7A, 9V/2.22A, 3.3-11V/2A(PPS), 12V/1.67A
● (Output only when PD protocol is supported);
● Type-C input: 5V/3A, 9V/2A, 12V/1.5A ;
Other functions:
● Long press or double-click to turn on the LED light; reverse installation does not burn the motherboard.

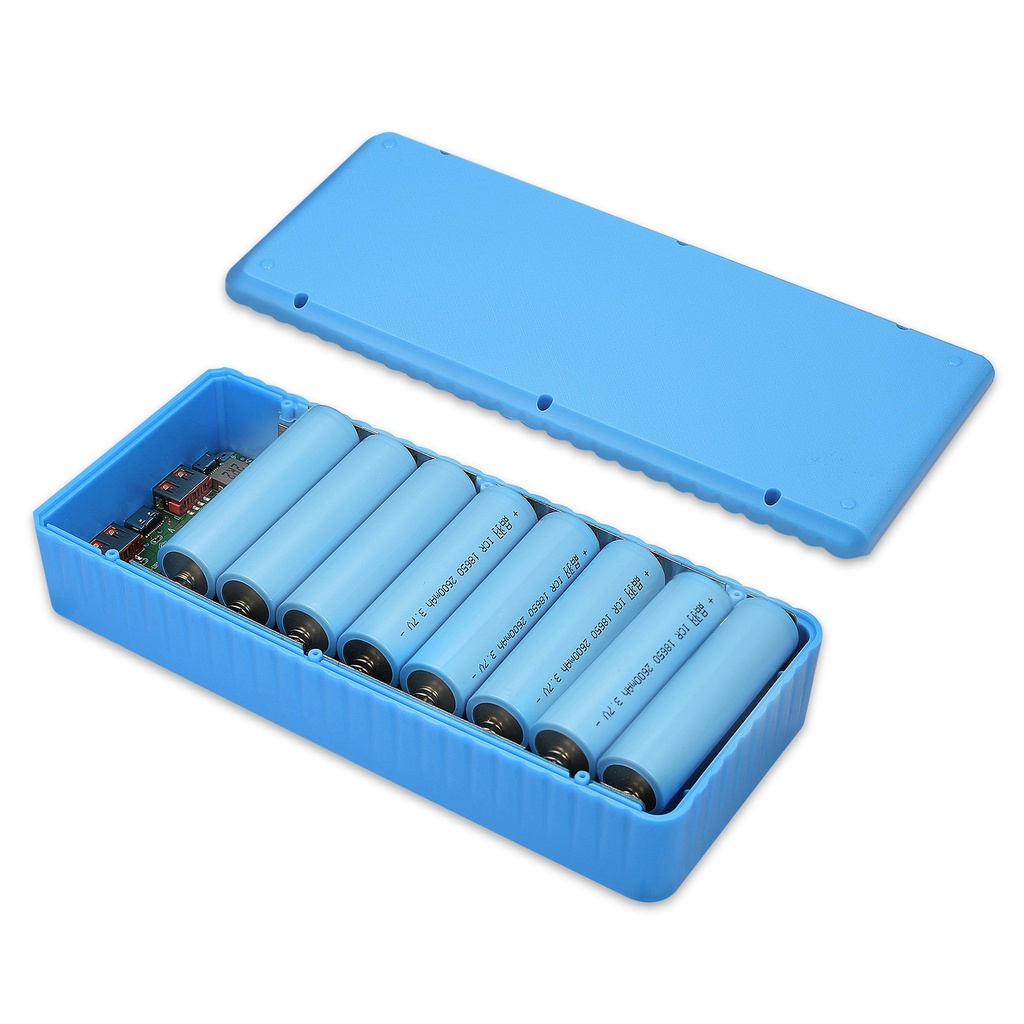

● Battery requirements: 18650 battery with a flat head and no protective plate (65MM long), internal resistance within 60 milliohms, discharge above 1C; fast charging power is high, using a poor battery will affect the output, charging is intermittent, Undervoltage protection, and cannot be fully discharged It won't work even after a few minutes of charging.
Fast charging specification (support protocol):
● ( With a data transmission charging cable, one of the following protocols can communicate and handshake successfully )
● Any interface supports fast charging;
● Compatible with BC1.2, Apple, and Samsung mobile phone fast charging
● Integrated VOOC flash charging, SCP Huawei super fast charging output protocol;
● Integrated QC2.0/QC3.0 Qualcomm input/output fast charge protocol;
● Integrate FCP Huawei, AFC Samsung, and SFCP input/output fast charging protocol;
● Integrated MTK PE+ 1.1&2.0 Meizu output fast charging protocol;
● Integrated USB C DRP protocol, support input/output fast charging;
● Integrated USB Power Delivery (PD2.0/3.0) protocol
● Support PD2.0/3.0 input/output protocol
● Support USB C PD3.0 PPS output protocol
● PPS supports 5~11V, 20mV/step output voltage range
● Bidirectional Mark Codec (BMC) protocol with integrated hardware
● Integrated Physical Layer Protocol (PHY)
● Integrated hardware CRC
● Support Hard Reset
Charging Specifications:
● Battery side: Adaptive charging current regulation, the charging current can reach 5A.
● (The first charge to 99% will be slower to 100% because the identified battery can reach a safe voltage, please wait patiently)
Discharge specification:
● Support line compensation, synchronous switch discharge 5V/2A efficiency can reach more than 95%
● Multiple protection, high reliability:
● Built-in input overvoltage and undervoltage protection;
● Integrated output overcurrent, overvoltage, and short circuit protection;
● Built-in battery overcharge, over-discharge, overcurrent protection
● Built-in IC over-temperature protection;
● Integrated charging and discharging battery temperature NTC protection;
● ESD 4KV, input (including CC pin) withstand voltage 25V
Note:
● Only 18650 batteries are allowed to be installed in the product, modification, and welding are not supported, and the use of batteries that do not meet the requirements is not responsible for after-sales.

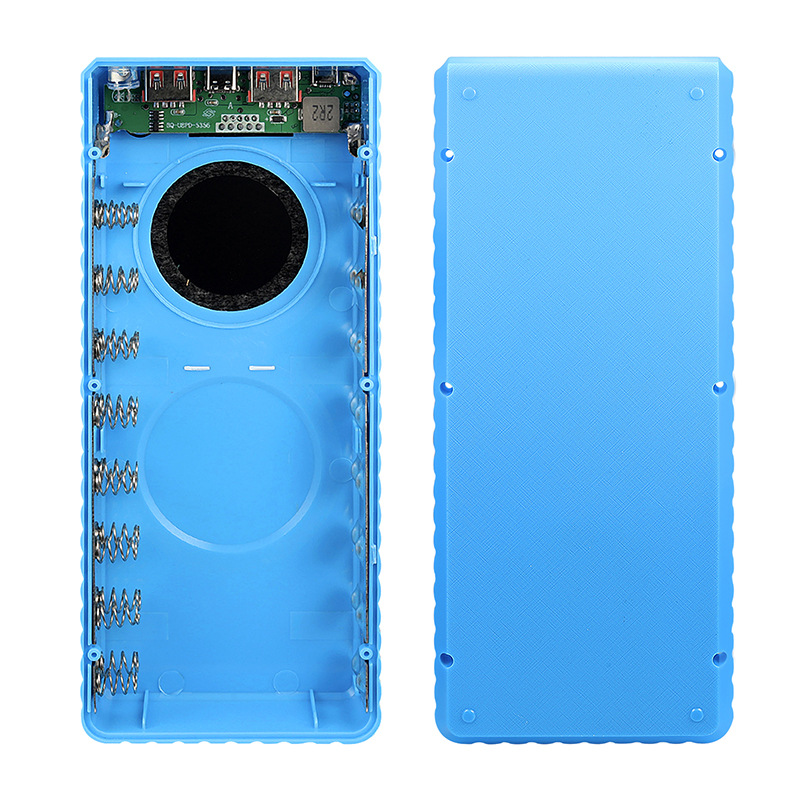

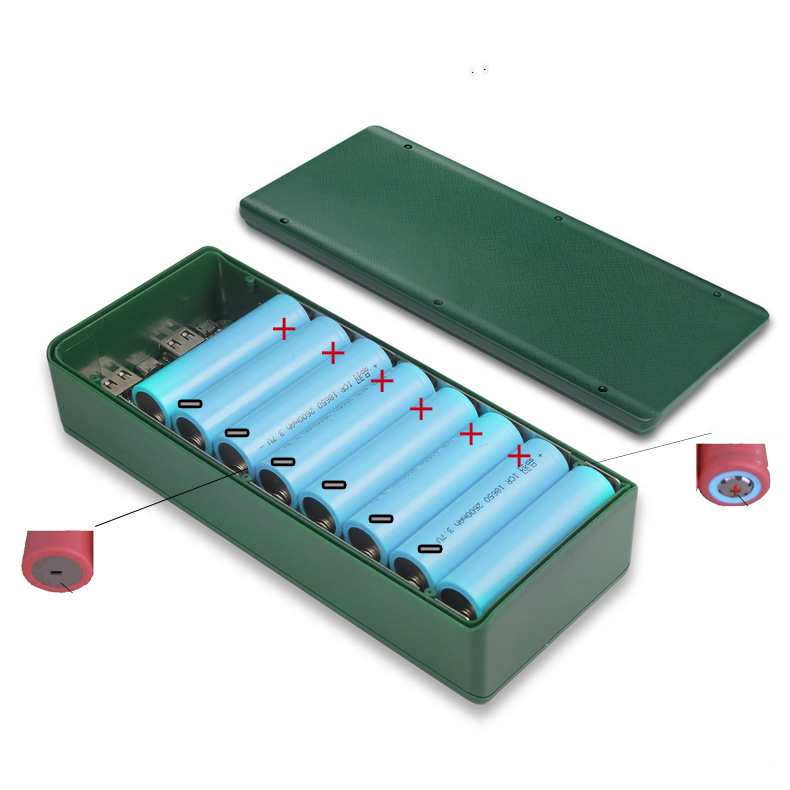

● The main board is equipped with an anti-installation anti-chip, which will not burn the main board. Still, because the spring shrapnel is integrated, the battery is broken, the battery is short-circuited, one positive and one negative, and a series connection will cause the spring to burn, but after reinstalling correctly, the main board can always be Normal use, will not burn.
Package Included:
● 1 * DIY 50000mah power bank (without battery)
