ā” **DIY Battery Spot Welder PCB Kit (12Vā14.6V)**
š **18650 / 26650 / 32650 Lithium Battery Spot Welding Board**
Battery Pack DIY įį¼įÆįįÆįįŗįį»įįŗįį°įį»į¬įøį Battery Repair & Rebuild įįÆįįŗįį°įį»į¬įøį”įį½įįŗ į”įįÆį¶įøįįįŗįį²į· **DIY Spot Welder PCB Kit** įį±įøįį¼į
įŗįį«įįįŗį High Current Spot Welding Principle įįįÆ į”įįÆį¶įøįį¼įÆįį¬įøįį¬įį¼į±į¬įį·įŗ **0.1mm ~ 0.12mm Nickel Plated Strip** įį»į¬įøįįįÆ Spot Weld įį¼įÆįįÆįįŗįį¬įį¾į¬ į”įįÆį¶įøįį¼įÆįįįÆįįŗįį«įįįŗį
āØ **įį°įøįį¼į¬įøįį»įįŗįį»į¬įø**
š¹ **DIY Battery Spot Welding Board**
ā¢ 18650, 26650 įį¾įį·įŗ 32650 Lithium Battery Cell įį»į¬įøį”įį½įįŗ Spot Welding įį¼įÆįįÆįįŗįįįÆįįŗįį«įįįŗį
ā¢ Portable Design įį¼į
įŗįį¼į®įø DIY Project įį»į¬įøį”įį½įįŗ į”įįįŗįį¼į±įį«įįįŗį
ā¢ Stable Performance įį²į· Reliable Design įį¼į
įŗįį«įįįŗį
š¹ **12V ~ 14.6V Input Voltage**
ā¢ System Voltage : **12V ~ 14.6V DC**
ā¢ Working Current : **90A ~ 150A**
ā¢ High Current Output įį¼įį·įŗ Spot Welding įį¼įÆįįÆįįŗįįįÆįįŗįį«įįįŗį

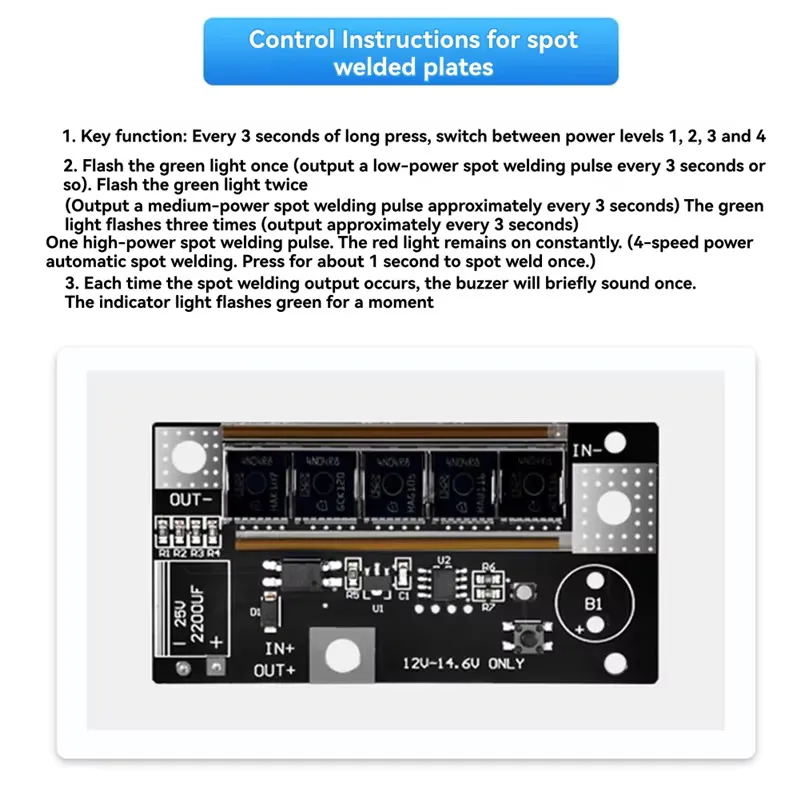

š¹ **4-Level Power Adjustment**
Power Level įįįÆ įįįÆį”įįŗįįįįÆ įį½į±įøįį»įįŗį”įįÆį¶įøįį¼įÆįįįÆįįŗįį«įįįŗį
ā¢ š¢ Level 1 ā Low Power (Green LED 1 Blink)
ā¢ š¢ Level 2 ā Medium Power (Green LED 2 Blinks)
ā¢ š¢ Level 3 ā High Power (Green LED 3 Blinks)
ā¢ š“ Level 4 ā Automatic Mode (Red LED Steady On)
š¹ **įį½įįŗįį°įį²į· į”įįÆį¶įøįį¼įÆįįÆį¶**
ā¢ Power įį»įįįŗįį¼į®įøįį±į¬įįŗ Switch įįįÆ **2 į
įį¹įįį·įŗ** įįįį¬įøįį«į
ā¢ Mode įį¼į±į¬įįŗįøįįįÆįį«į Switch įįįÆ **3 į
įį¹įįį·įŗ** įįįį¬įøįį¼į®įø Power Level įį¼į±į¬įįŗįøįįįÆįįŗįį«įįįŗį
ā¢ Automatic Mode įį¾į¬ Red LED į”įį¼į²įįįŗįøįį±įį«įįįŗį
ā¢ Device įįįįŗįįįÆįį«į Red LED įįįŗįøįį±įį»įįįŗ Switch įįįÆ įįįį¬įøįį¼į®įø Power Off įį¼įÆįįÆįįŗįįįÆįįŗįį«įįįŗį
š¹ **Power Supply Recommendation**
į”įį±į¬įįŗįøįįÆį¶įø Performance įįį¾įį
į±įįįŗ Current įįÆįįŗįįįÆįįŗįį²į· Battery įįįÆ į”įįÆį¶įøįį¼įÆįįį·įŗįį«įįįŗį
ā 12V **20Ah ~ 45Ah Lead Acid Battery**
ā **3S 45C LiPo Battery Pack (3.5Ah ~ 5.5Ah)**
ā **3S High-Rate Lithium Battery Pack**
ā **30Ah ~ 35Ah 18650 Battery Pack**
ā Car Starting Battery (12V Automotive Battery)

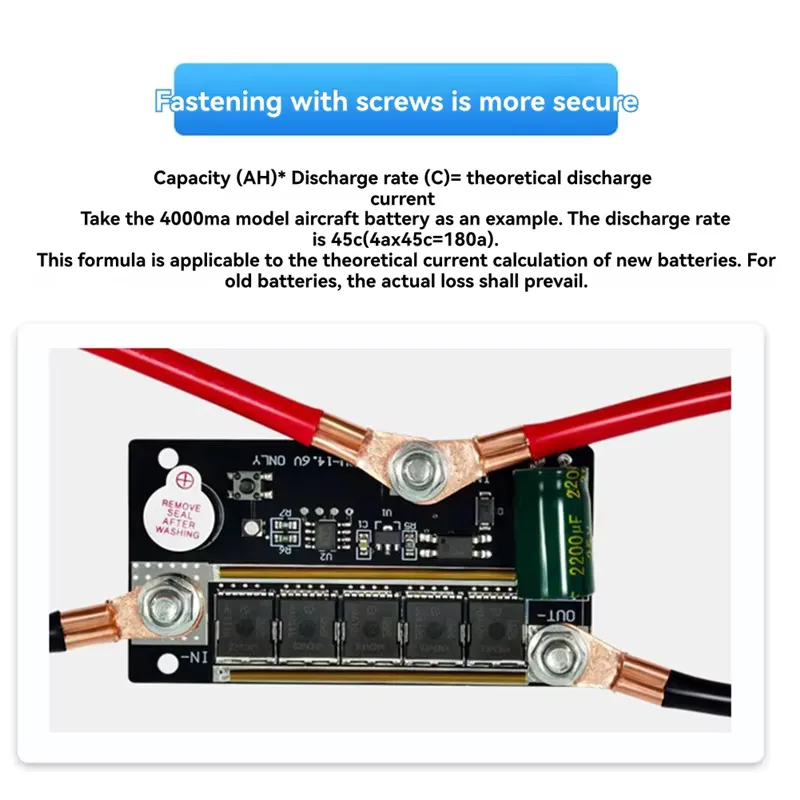

š” **į„įįį¬**
4000mAh Battery įįįÆ **45C** įį¼į
įŗįį«į
**4A Ć 45C = 180A (Theoretical Maximum Current)** įį¼į
įŗįįįÆįįŗįį«įįįŗį
š¹ **Spot Welding Performance**
ā¢ **0.1mm ~ 0.12mm Nickel Plated Strip** įį»į¬įøį”įį½įįŗ į”įįÆį¶įøįį¼įÆįįįŗ įįį·įŗįį±į¬įŗįį«įįįŗį
ā¢ Spot Welding į”įį½įįŗ įįÆį¶įį±į¬įįŗįį²į· Current Supply įįį¾įįįįÆį· į”įį±įøįį¼į®įøįį«įįįŗį

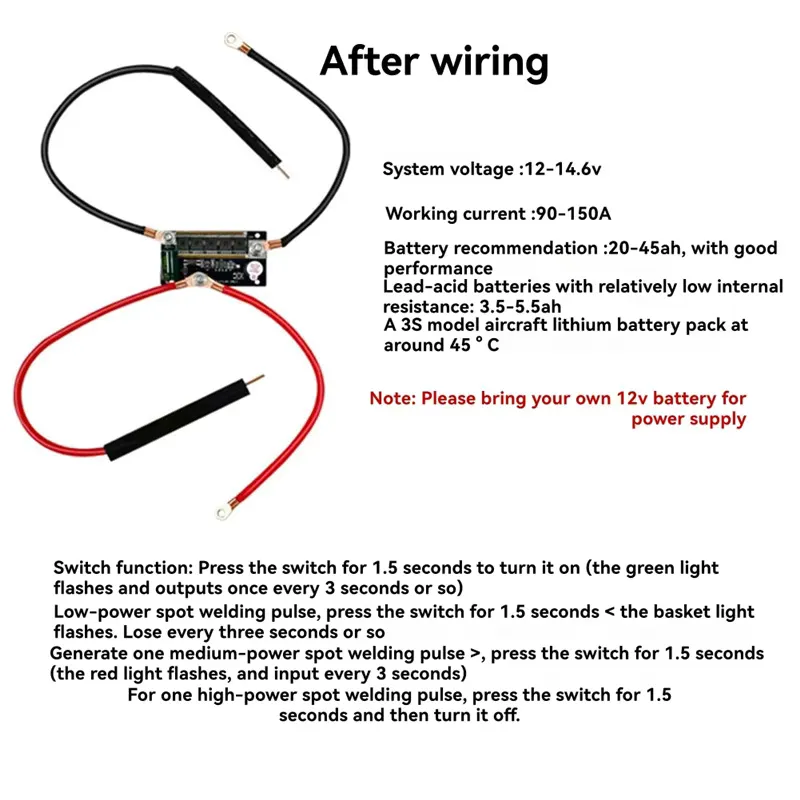

ā ļø **Installation Notes**
ā¢ Welding Pen **Negative (-)** įįįÆ PCB įį²į· įįįŗįį¾įįŗįį¬įøįį²į· Negative Terminal įį½įįŗ įį»įįįŗįįįŗįį«į
ā¢ Battery **Negative (-)** įįįÆįįįŗįø PCB įį²į· įįįŗįį¾įįŗįį¬įøįį²į· Negative Input įį½įįŗ įį»įįįŗįįįŗįį«į
ā¢ Connection įįį¼įÆįįÆįįŗįį® Wiring įįįÆ įį±įį»į¬į
į
įŗįį±įøįį¼į®įø į”įįÆį¶įøįį¼įÆįį«į

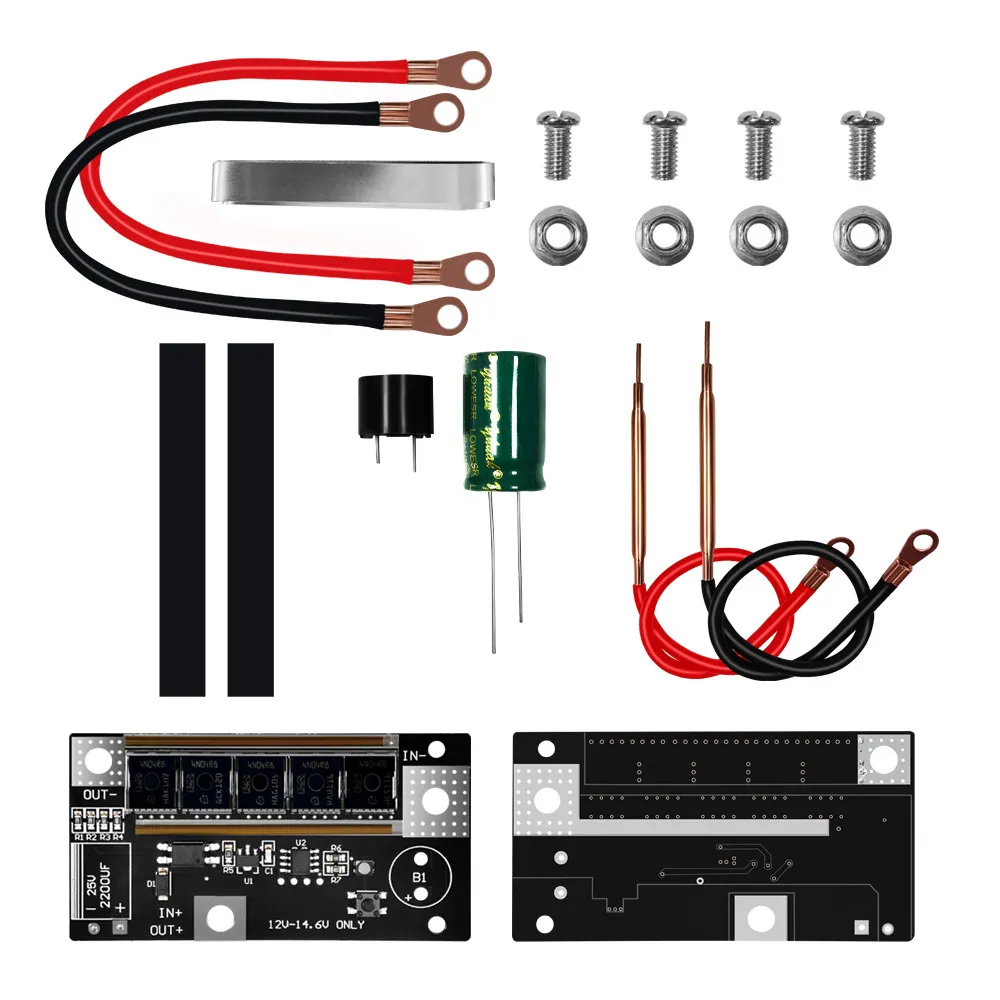

š¦ **Package Includes**
ā¢ Spot Welder PCB
ā¢ Copper Welding Pens
ā¢ Power Cables
ā¢ Capacitor
ā¢ Buzzer
ā¢ Nickel Strip
ā¢ Mounting Screws & Accessories
