● 1. Mute: in alarm status, press the 'TEST' button to mute the buzzer, only the LED indicator flashes.
● 2. Testing: in normal status, long press the 'TEST' button for 2s to trigger the sound & light alarm, an alarm message is pushed to the mobile APP
3. WiFi Configuration & Networking

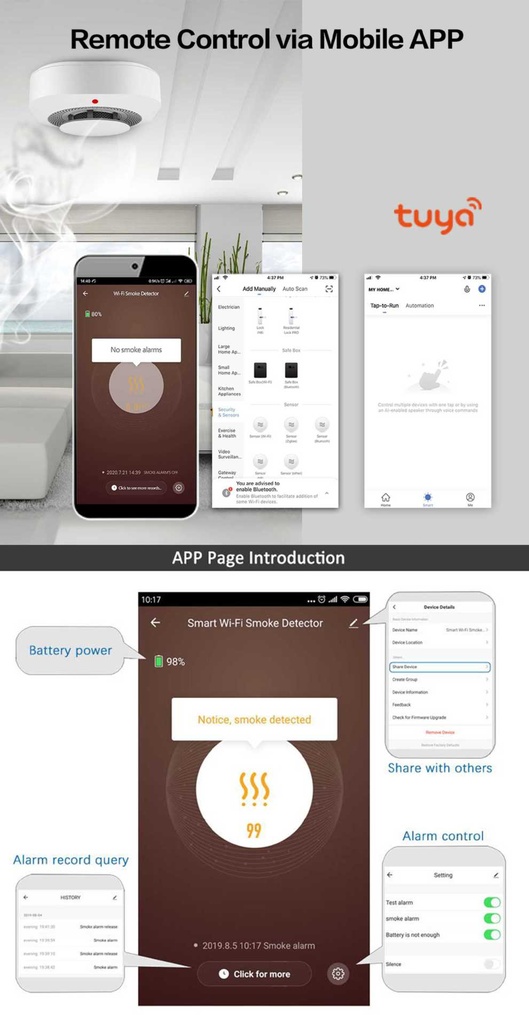

● 1. Install the 'Tuya Smart' APP on your smartphone the first time you use the detector.
● 2. Make sure your smartphone is connected to the 2.4G WiFi (5G is not support)
a) Launch the APP, click 'Add device'---' Security Sensor'---' Sensor (WiFi)' / "Smoke(WiFi)".
b) Long press the 'TEST' button for 5s until the LED flashes with a short beep of 'Di' (long press the button within the 20s of loading the battery to enter WiFi configuration mode).
c) Click 'OK' in the APP---input password for the WiFi and click 'OK', the detector enters configuration mode which lasts for 60s maximum.
● 3. A long beep of 'Di' with an LED indicator on for 10s means the WiFi configuration is completed. When WiFi configuration fails, the detector exits configuration mode with a short beep of 'Di Di Di'.
● 4. WiFi configuration is done based on the 3 steps above.
● 5. WiFi Networking Status: when the LED indicator is on for 10s after the battery is loaded, it means the detector is successfully connected to WiFi.
4 Installing method
● a. Make a hole on the ceiling by using the percussion drill
● b. Install the expansion tube on the ceiling
● c. Fix the installation board by using the screw
● d. Aiming the alarming device with the installing board and connecting them, rotating clockwise till heard the "kaca" sound, means installing correctly
