Features:
● 1.Bidirectional charging and discharging with the same port: single interface realizes charging and discharging, simplifying the connection design
● 2.LED status indicator: real-time monitoring of charging and working status, convenient for users to operate
● 3.Stable high power output: rated 4A output current, peak 6A, to ensure stable operation of the equipment
● 4.Intelligent charging protection: Built-in professional charging chip to ensure safe and efficient charging of the battery
● 5.Comprehensive protection mechanism: with overload, short-circuit and battery over-discharge multiple protection functions
Parameter:

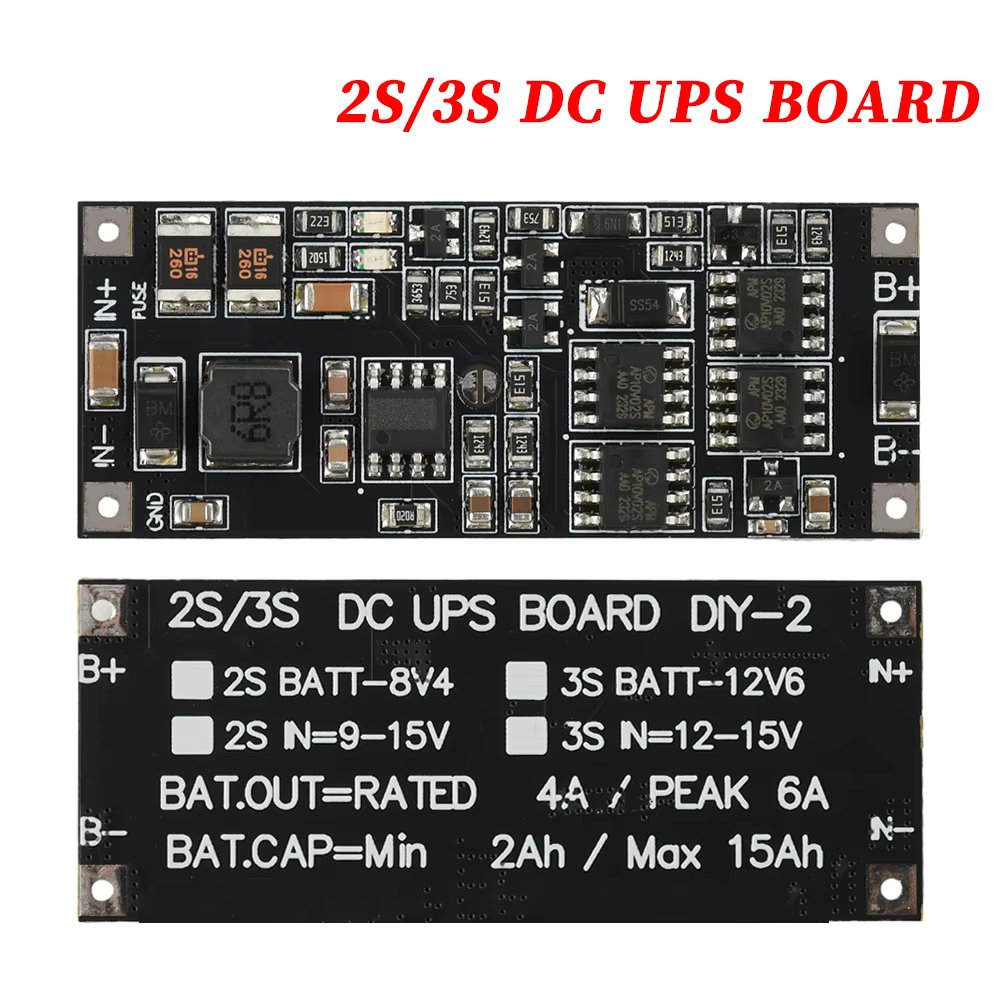

● Product Name: 2S/3S Charge Protection Module (UPS Power Module)
● Product Function: Charging + path + battery protection
● Input voltage: DC 12V/12.6V/15V, input current should be more than 6A, on-board indicator light
● 2S version: input voltage DC 9V-10V, also can input 9V-15V
● 3S Version: Input voltage DC 12V-12.6V, can also input 15V
● Output voltage: DC 6V/9V-12.6V
● Output current: rated 4A (about 50W), peak current 6A, recommended load below 4A
● Applicable batteries: support 2 or 3 series batteries
● No-load power consumption: 0.3-0.5mA/0.6-0.8mA
● Indicator light: Main board integrated LED indicator light
● External size: 50mm*20mm
Description:
● The product is the second version of the same port equal voltage uninterruptible power supply (UPS) control module, with bidirectional charging and discharging functions, built-in battery charging and protection mechanisms. It is suitable for network devices, intelligent devices and LED lights that support wide voltage.
Product Version:
● 2S version: connect to 7.4V-8.4V battery
● 3S version: connect with 11.1V-12.6V battery
