Features:
● 1.No software required
● 2. Support SVGA, VGA, and Multi-sync Monitors
● 3. LED displays monitor the status
● 4.No external power needed
● 5. Computer Port: 4
● 6. Console Port:3
● 7. USB Port: 7
● 8. Computers Supported: 4
● 9. Keyboard Emulation: USB
● 10. Mouse Emulation: USB
● 11. Keyboard Input / Output: USB
● 12. Mouse Input / Output: USB
● 13. VGA Input / Output: High-Density D-Sub 15 pin
● 14. LED indicators: 4
● 15. Support: DOS, Win 3. X, Windows 95/ 98/ 98SE/ ME/ 2000/ XP/ Vista/7, WinNT, Netware, Unix, Linux.
● 16. Shares USB devices such as USB Printers, USB Scanners, USB Flash Drives, USB HUB and etc ...
● 17. This KVM switch can control multiple PCs from One Keyboard, Mouse, and VGA Monitor. It has complete keyboard and mouse emulation for a simultaneous PC boot-up process.

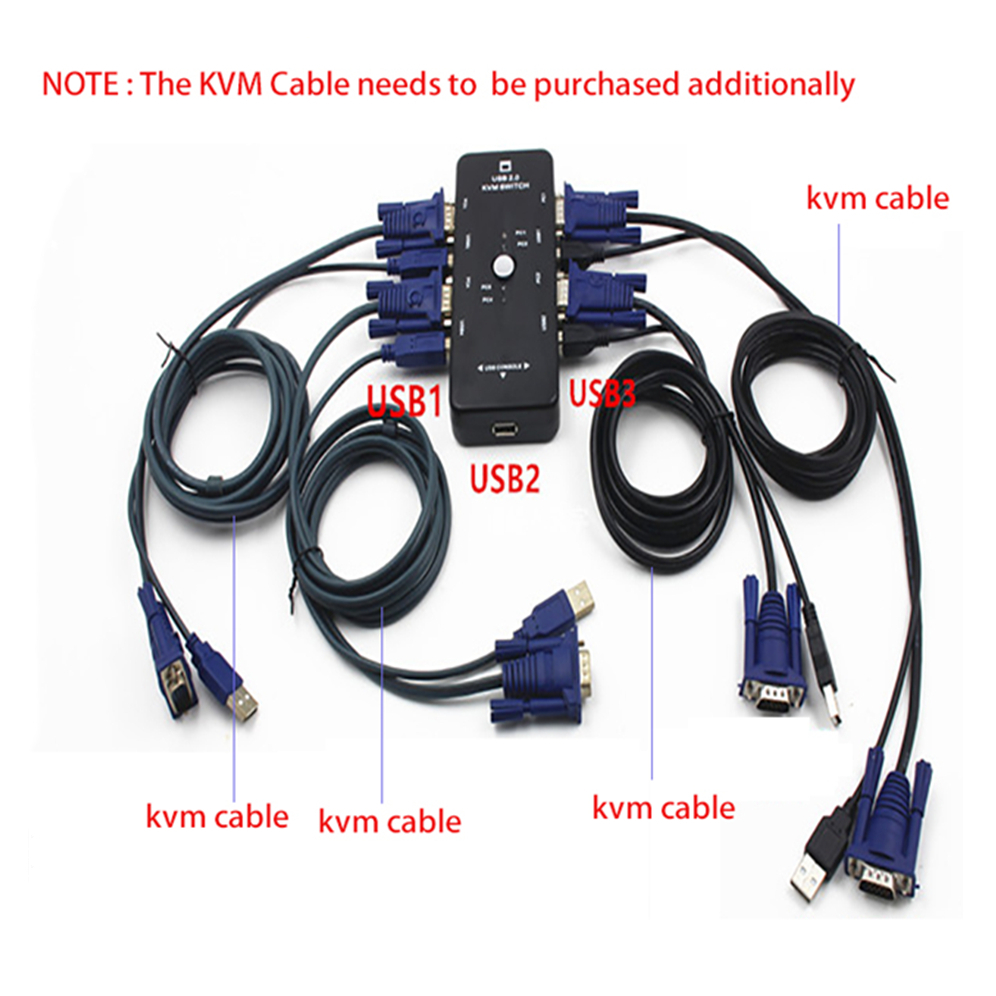

● 18.Cables(not include)

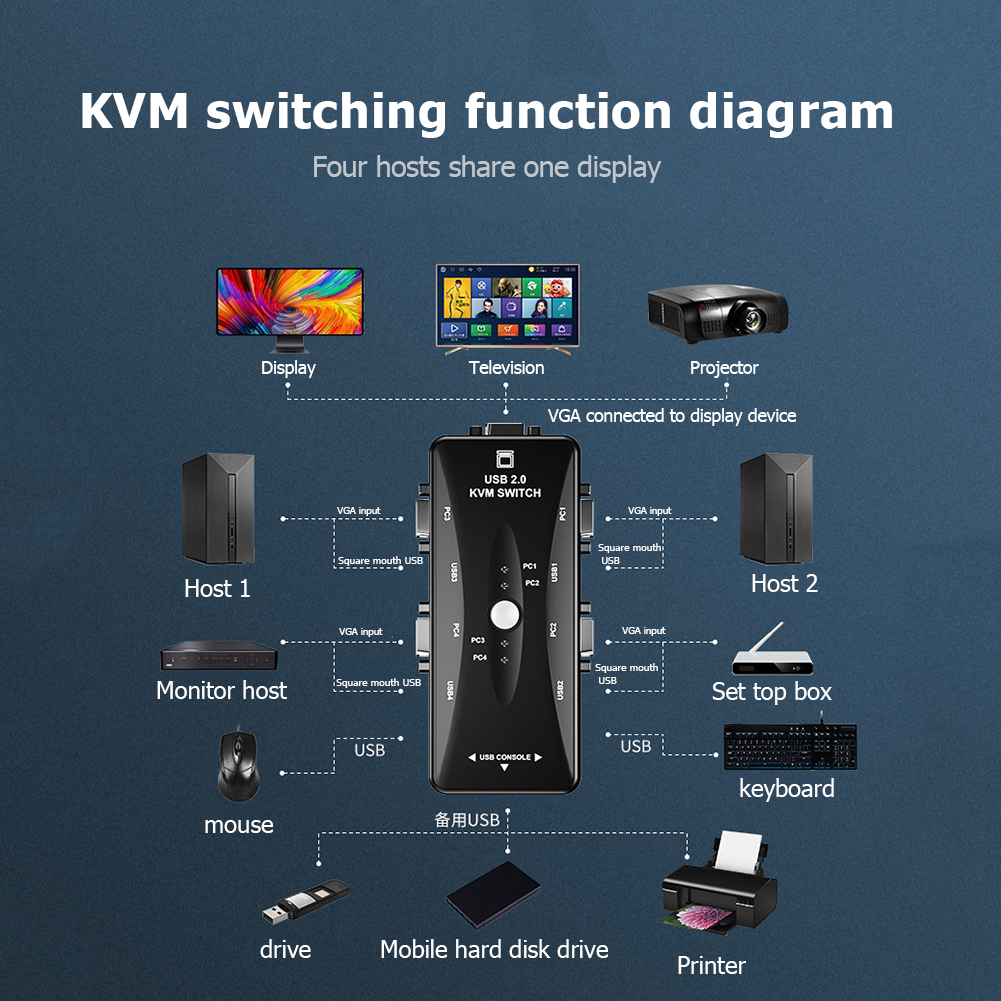

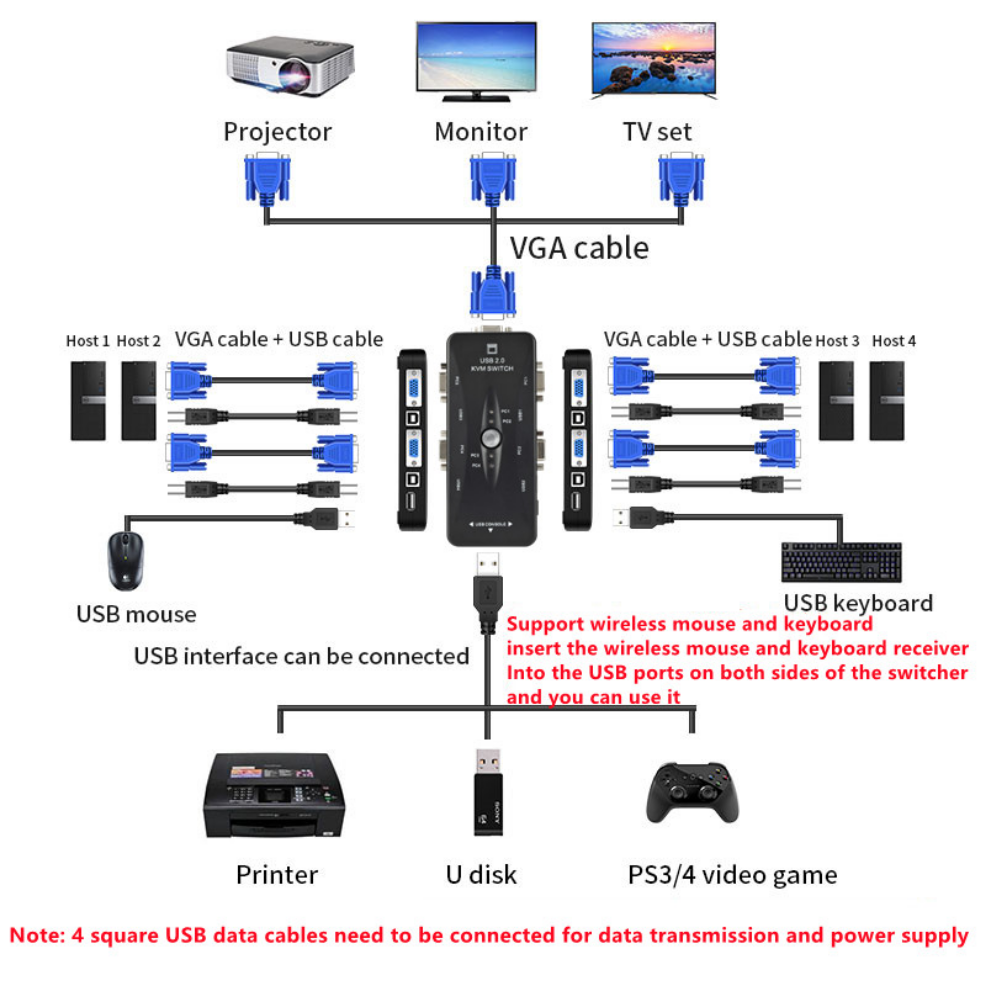

● 19. Connection:
● - connect VGA of computer A to PC1, VGA of computer B to PC2
● - connect the USB mouse/keyboard/printer to the 3 USB console ports
● - connect USB cable from computer A to USB1, USB cable from computer B to USB2
Descriptions

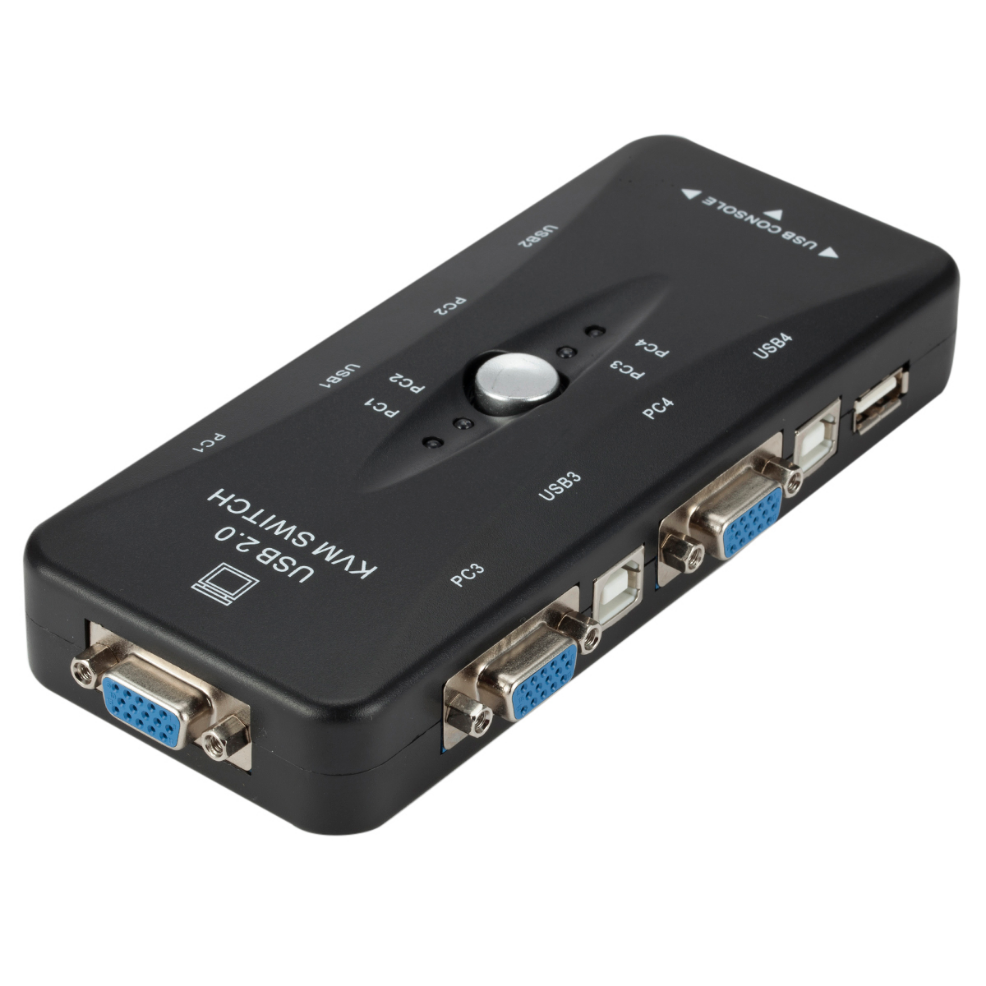

● This 4-port manual KVM switch is the most economical solution for controlling 4 PCs, this powerful tool is perfect for desktop placement and won't take up critical workspace.
Highlights
● 1. Key-press switch
● 2. Special design for high-speed data
● 3. Sharing interface, standard USB2.0
● 4. Plug and play
● 5. Support resolution 1920x1440
● 6. No external power is required
● 7. Support online games and DVR
