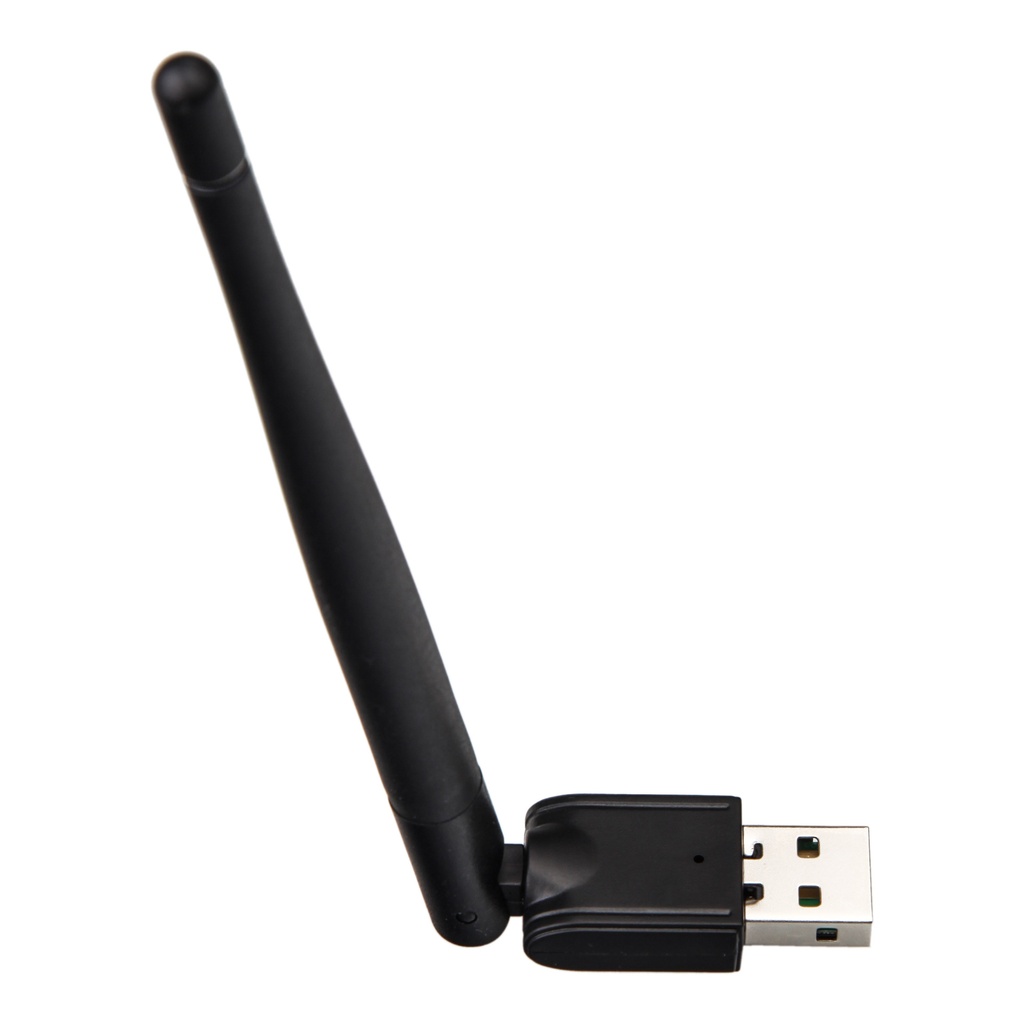

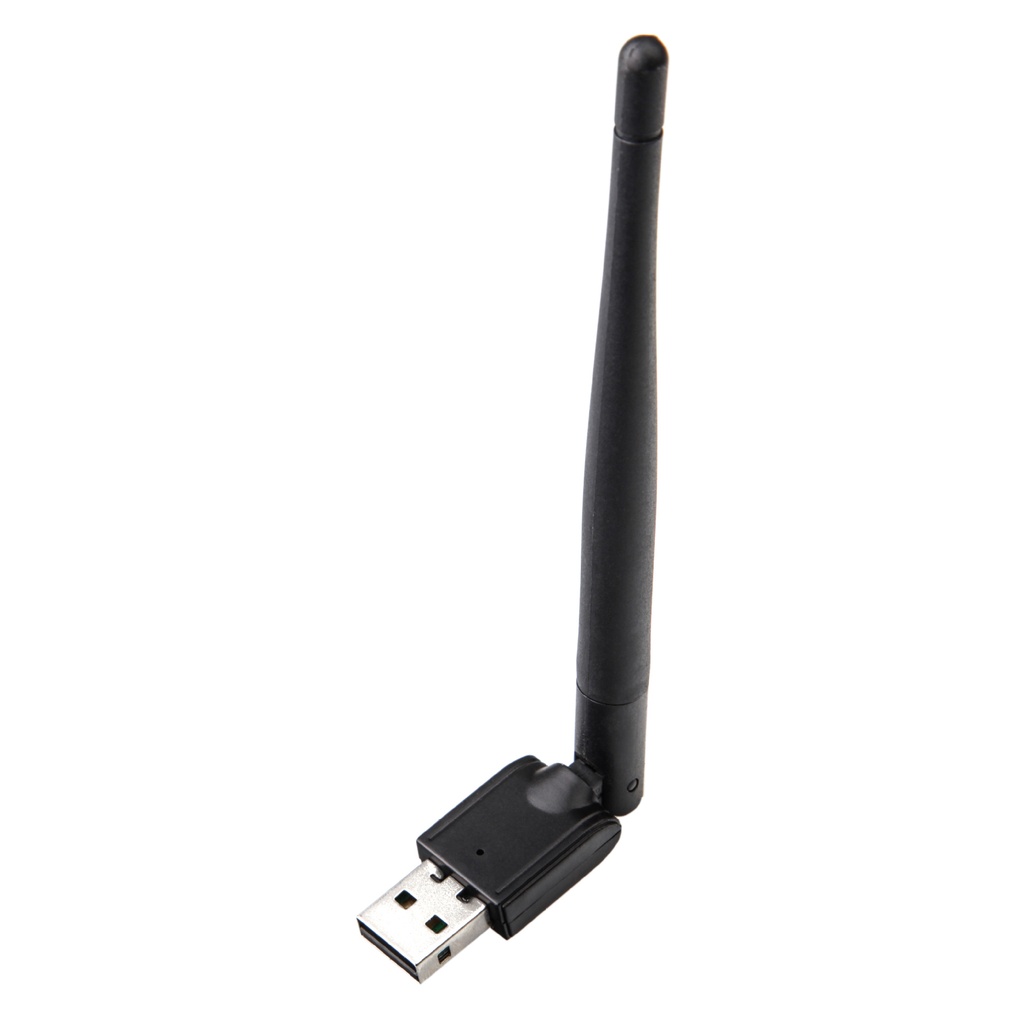

USB Wifi Adapter 150M WiFi Dongle Wi-fi Receiver Wireless Network Card MT7601

Product Description:

1. Adopt MediaTEK MT7601 chip, support Windows, Mac OS, Linux and Android operating systems.

2. This network card is the most widely used USB WiFi Adapter in the world. It supports many brands of set-top boxes, STB BOX, wireless cameras, and other devices that require external WiFi.

3. Using 11N wireless technology, the wireless transmission rate is up to 150Mbps, the data transmission in the local area network is more efficient, and the network application with high bandwidth requirements is smoother.

4. Suitable for desktop computers, netbooks, MID (tablet computers), set-top boxes, surveillance cameras, Internet radios, digital photo frames, fitness equipment, medical equipment, lighting control, door lock control, logistics network monitoring equipment, compatible with mainstream IPTV set-top boxes, Equipment such as SKYBOX, OPENBOX, and other media players.



Main Technical Specifications:
1. Product model: WD-1516B

2. Product chip: Mediatek MT7601

3. Product color: black

4. Product material: ABS material + silver USB head

5. Network mode (Frequency): 2.4GHz

6. Antenna type: 4dBi omnidirectional antenna

7. Network speed support (WiFi Speed ): 150Mbps

8. Applicable system (OS): Windows Vista/XP/2000/7/8/10, Linux, MAC OS



Software Specification

1. Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

2. Chipset: MediaTek MT7601

3. Wireless Speed: 11n: Up to 150Mbps, 11g: Up to 54Mbps, 11b: Up to 11Mbps

4. Frequency Range: 2.4-2.4835GHz

5. Wireless Transmit Power: 20dBm(MAX EIRP)

6. Modulation Type: OFDM/CCK/16-QAM/64-QAM

7. Receiver Sensitivity (without Standards antenna): 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER

8. Work Mode: Ad-Hoc, Infrastructure

9. Wireless Security: 64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

10. Support Operating System: Windows 2000/XP/Vista/Linux/ Win 7/Win8/Win10, Mac and Linux



Hardware Specification
1. Interface: USB2.0 Hi-Speed connector

2. Operating Temperature: 0oC~40oC (32oF~104oF)

3. Storage Temperature: -40oC~70oC (-40oF~158oF)

4. Relative Humidity: 10% ~ 90%, non-condensation

5. Storage Humidity: 5%~90% non-condensing

6. Dimensions: 17.5*11*1cm ( L*W*H) Packaging



Package Include

1 * Wifi adapter
